AnyDATA AWR-501L Manuel utilisateur

AnyDATA.NET

Wireless Wi-Fi Router, AWR-501L

(User Manual)

V 1.6

2008.11.03

AWR-501L (AWR Mobile Router)

AnyTimeAnyPlace AnyWireless Data Solutions™2/39

AnyDATA CDMA Module Series Reference Design Specification

Any part of this document may not be distributed, communicated, reproduced or transmitted in any form

or by any means, electronic or mechanical or otherwise, for any purpose, without the permission of

AnyDATA Corp.

This document can be subjected to revision without further notice.

Contact Address

AnyData.Net Inc.(Korea)

DaeGo Bldg, 8

th., 1591-10

Kwanyang-dong, Dongan-gu,

Anyang City, Kyunggi-do Korea.

http://www.anydata.co.kr

e-mail: infodata@anydata.net

Rep:+82-31-380-7100

Fax:+82-31-476-6021

AWR-501L (AWR Mobile Router)

AnyTimeAnyPlace AnyWireless Data Solutions™3/39

Contents

1. Introduction................................................................................................................................................4

1.1 Feature.................................................................................................................................................4

1.2 Front & Back view................................................................................................................................5

2. Package Contents.....................................................................................................................................6

3. Using the Configuration Menu...................................................................................................................8

Admin Login ...........................................................................................................................................8

Setup Wizard > CDMA Dial-Up Setting..................................................................................................9

Setup Wizard > Wireless LAN Security ...............................................................................................10

Setup Wizard > Password Setting .......................................................................................................11

Advanced Setup > System > System Status .......................................................................................12

Advanced Setup > System > Gateway Name Config..........................................................................13

Advanced Setup > System > Firmware Upgrade ................................................................................14

Advanced Setup > System > Client Information..................................................................................15

Advanced Setup > System > Remote Admin.......................................................................................16

Advanced Setup > System > Password Settings ................................................................................17

Advanced Setup > System > Reset.....................................................................................................18

Advanced Setup > System > Factory default ......................................................................................19

Advanced Setup > CDMA > Dial Up Setting........................................................................................20

Advanced Setup > CDMA > Your DNS................................................................................................21

Advanced Setup > CDMA > Reconnect Settings.................................................................................22

Advanced Setup > CDMA > Preferred Mode.......................................................................................23

Advanced Setup > LAN > LAN Setting................................................................................................24

Advanced Setup > Wireless LAN > Wireless Setting ..........................................................................25

Advanced Setup > Wireless LAN > Security........................................................................................26

Advanced Setup > Firewall > Firewall Setting .....................................................................................27

Advanced Setup > Firewall > Client Filtering.......................................................................................28

Advanced Setup > Firewall > MAC Control .........................................................................................29

Advanced Setup > NAT........................................................................................................................30

Advanced Setup > NAT > Virtual Server..............................................................................................31

Advanced Setup > NAT > Port Mapping..............................................................................................32

Advanced Setup > NAT > DMZ............................................................................................................33

4. RJ11 Interface for Voice Call...................................................................................................................34

5. Troubleshooting.......................................................................................................................................36

6. Technical Specifications ..........................................................................................................................38

AWR-501L (AWR Mobile Router)

AnyTimeAnyPlace AnyWireless Data Solutions™4/39

1. Introduction

1.1 Feature

- The AWR-501L CDMA 1x EV-DO IP Router supports the WLAN 802.11 b/g standard providing

constant 54Mbps data rates which are proven and secure technology.

- The AWR-501L combines the advanced CDMA EV-DO technique with the mature WAP technique

together to provide one completely feasible, secure high-performance wireless network infrastructure.

- Wireless broadband connectivity and universal compatibility with a 1x EV-DO module with tethered

data capability enables you to set up a WiFi hotspot virtually anywhere.

- Support 4 ports switching hub as LAN connection, Wireless up to 253 PC users (Recommend you ten

PC users and less)

- High-speed data connections with rate up to 3.1Mbps

- NAT & NAPT Virtual Server

- Automatic receipt of IP address with DHCP server

- 4 Indicator LED for Power, CDMA, Wi-Fi, LAN

- Browser-based configuration and easy set-up wizard

- Access Control to manage users

- User-friendly configuration and diagnostic utilities

- Industry-leading firewall security

- Supports 802.11 b/g Access Points, Routers and Gateway Server Applications

AWR-501L (AWR Mobile Router)

AnyTimeAnyPlace AnyWireless Data Solutions™5/39

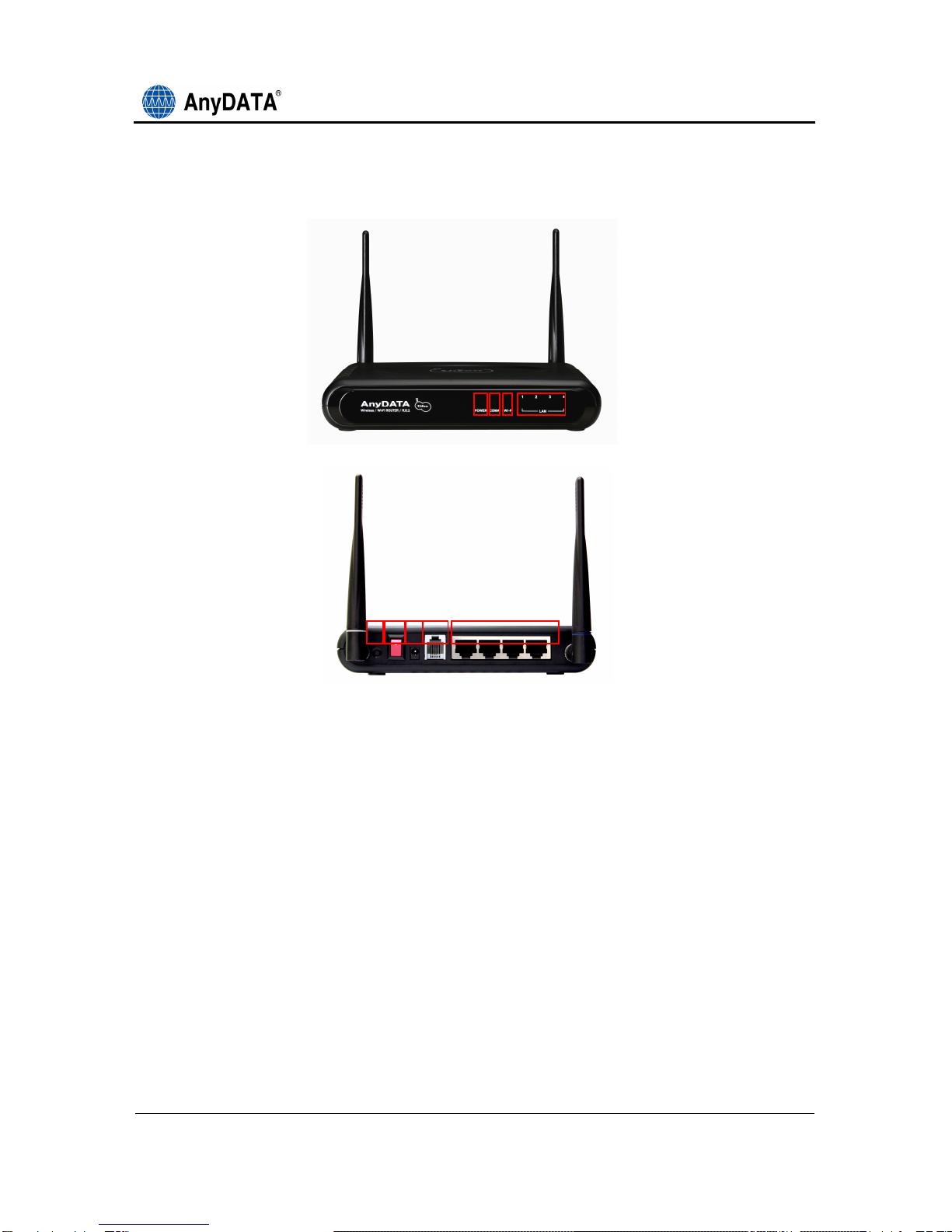

1.2 Front & Back view

1) Power LED: A red light indicates connection to the power supply.

2) CDMA LED: Ared light indicates that connection on the 1x or EV-DO or Hybrid port.

3) Wi-Fi LED: A red light indicates that the connection on the WLAN interface is available.

4) LAN LEDs: A red light indicates a connection to an Ethernet-enabled computer (ports 1-4) This LED

blinks during data transmission.

5) CDMAAntenna: Install a white lined antenna on the right side of the router

6) Wi-Fi Antenna: Install a blue lined antenna on the left side of the router

7) Reset Button: Press this button to restore the AWR-501L to its original factory default setting

- To restore AWR-501L to original factory setting, press and hold reset hole, and turn AWR-501L back

on. Keep it 3 to 4 seconds and then release the reset hole once until both Wi-Fi and CDMA LED light at

the same time.

8) Power On/Off Button

9) Receptor for Power Adapter

10) RJ11(“Telephon”) Port : For connection wire to phones

11) LAN Ports: These ports automatically sense the cable type when connection to Ethernet-enabled

⑨

⑨⑨

⑨⑩

⑩⑩

⑩⑪

⑪⑪

⑪

⑤

⑤⑤

⑤

 

AWR-501L (AWR Mobile Router)

AnyTimeAnyPlace AnyWireless Data Solutions™6/39

Computers.

2. Package Contents

Router Modem RJ45 Cable

5V DC Power Adaptor User Manual (CD-ROM)

Antenna

AWR-501L (AWR Mobile Router)

AnyTimeAnyPlace AnyWireless Data Solutions™7/39

AWR-501L (AWR Mobile Router)

AnyTimeAnyPlace AnyWireless Data Solutions™8/39

3. Using the Configuration Menu

Admin Login

Once properly configured, the AWR-501L will obtain and assign IP address information automatically.

Configuration settings can be done through the AWR-501L Configuration Menu. You can access this

interface by performing the steps listed below:

1. Open a web-browser. Type in the IP Address of the AWR-501L (http://192.168.2.1)

AWR-501L, ensure you enter the correct IP Address now.

<Note> If you have changed the default IP Address assigned to the AnyDATA

2. Type “admin” in the User Name field.

3. Type “admin” in the Password Field.

This is default value.

User must change password to protect from any

external hackings.

4. Click LOGIN

* If you enter wrong password, You can try to login again after 10 seconds.

AWR-501L (AWR Mobile Router)

AnyTimeAnyPlace AnyWireless Data Solutions™9/39

Setup Wizard > CDMA Dial-Up Setting

The Setup Wizard screen will appear.

Refer to the AWR-501L Quick Installation Guide for more information regarding the Setup Wizard.

User Name Select the User Name for your EVDO connection here.

AWR-501L (AWR Mobile Router)

AnyTimeAnyPlace AnyWireless Data Solutions™10/39

Setup Wizard > Wireless LAN Security

ESSID You may change network name by entering new name

Security

From Authentication Type, you may select one of the following.

- Open System: Non-security Mode

- Shared Key (WEP)

- WPA

In order to use Shared Key (WEP)’s functionality, you need to enter password required

for Active Key. (Password must be either 5 or 13 ASCII code.)

Once you complete configuration, then you will see the message box saying “After

System Reset, Your setting value will be applied”. Click OK and reset to make the

change effective.

WPA

In order to use WPA functionality, you need to enter password required for Active Key.

(Password must be from 8 to 63 ASCII code) Once you complete configuration, then you

will see the message box saying “After System Reset, Your setting value will be applied”.

Click OK and reset to make the change effective.
