HCG-620M POWER SUPPLY
USER’S MANUAL
USER’S MANUAL
HCG MSERIES
HCG-620M POWER SUPPLY
ELITE POWER MEETS UNRIVALED PERFORMANCE
Antec’s HCG M power supplies are the perfect combination of power and efficiency. The HCG M features special
heavy-duty High Current connectors and cabling that supply extreme levels of power, and superb efficiency thanks
to 80 PLUS® Bronze certification and Active PFC. Highest-quality connectors, Japanese-brand capacitors, and a
quiet 135 mm double ball bearing fan complete the package. The HCG-620M features High Current Cable
Management and 10-pin modular connectors. If loads of power, High Current engineering and extreme efficiency
are what you’re after, the HCG M is the PSU for you.
STANDARDS AND FEATURES
The connectors and power specifications of the HCG-620M PSU are all compatible with ATX12V v2.32 and EPS12V
v2.92 specifications. The HCG-620M features Universal Input, which automatically senses when you connect the
power supply to any AC power source between 100 - 240V without setting a voltage switch. This power supply also
features Active Power Factor Correction (PFC), which improves the power factor value of the power supply by
altering the input current wave shape, helping to power transmission across the grid.
SYSTEM PROTECTION
A variety of industrial-grade safety circuitry will help protect your computer: Over Current Protection (OCP), Over
Voltage Protection (OVP), Under Voltage Protection (UVP), Short Circuit Protection (SCP), Over Power Protection
(OPP) and Surge & Inrush Protection (SIP). Sometimes the PSU will “latch” into a protected state. You will need to
power off the PSU and clear the fault before it will function again. There are no user-replaceable fuses in your
HCG-620M.

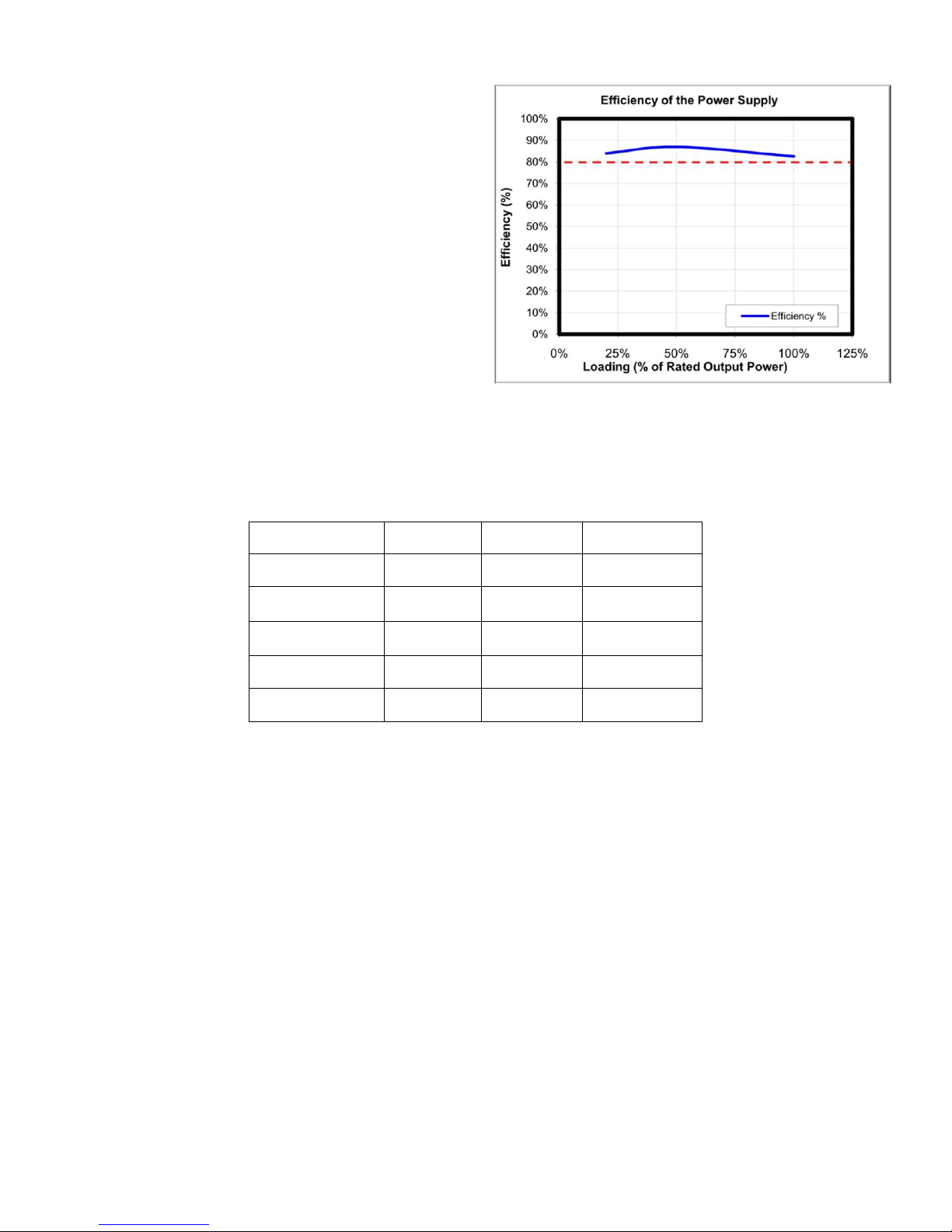

80 PLUS® CERTIFICATION
80 PLUS® certification is the most widely recognized
independent standard in power supply efficiency. An 80
PLUS® certified power supply uses less energy and
generates less heat to stay cooler, run quieter and last
longer. The HCG-620M has been 80 PLUS® Bronze
certified to be at least 82% efficient at a wide range of
operating loads; this will lower your operating costs and
help protect the environment.
POWER OUTPUT
To see the output capacity and regulation for each different voltage, see table 1.
TABLE 1
Output Voltage
Load Max.
Regulation
Ripple & Noise
+3.3V
24A
±5%
< 50 mV
+5V
24A
±5%
< 50 mV
+12V
48A
±5%
< 120 mV
-12V
0.8A
±5%
< 120 mV
+5VSB
2.5A
±5%
< 50 mV
INTELLIGENT HYBRID CABLE MANAGEMENT
The HCG-620M uses Intelligent Hybrid Cable Management. Cables that are important or mandatory are
permanently connected to the PSU for the highest quality power delivery. There are modular jacks on the back of
the PSU to add additional cables as needed. Using only the cables you need will reduce clutter and improve airflow
inside your case. For the list of connected and optional cables, see table 2.
MODULAR CABLE JACKS
There are two 5-pin black jacks and four 10-pin red jacks on the back of your HCG-620M PSU. These jacks are for
the optional cables that come with your power supply. A modular 10-pin connector system allows you plug 5-pin
connectors into the 10-pin jacks if you run out of 5-pin jacks.

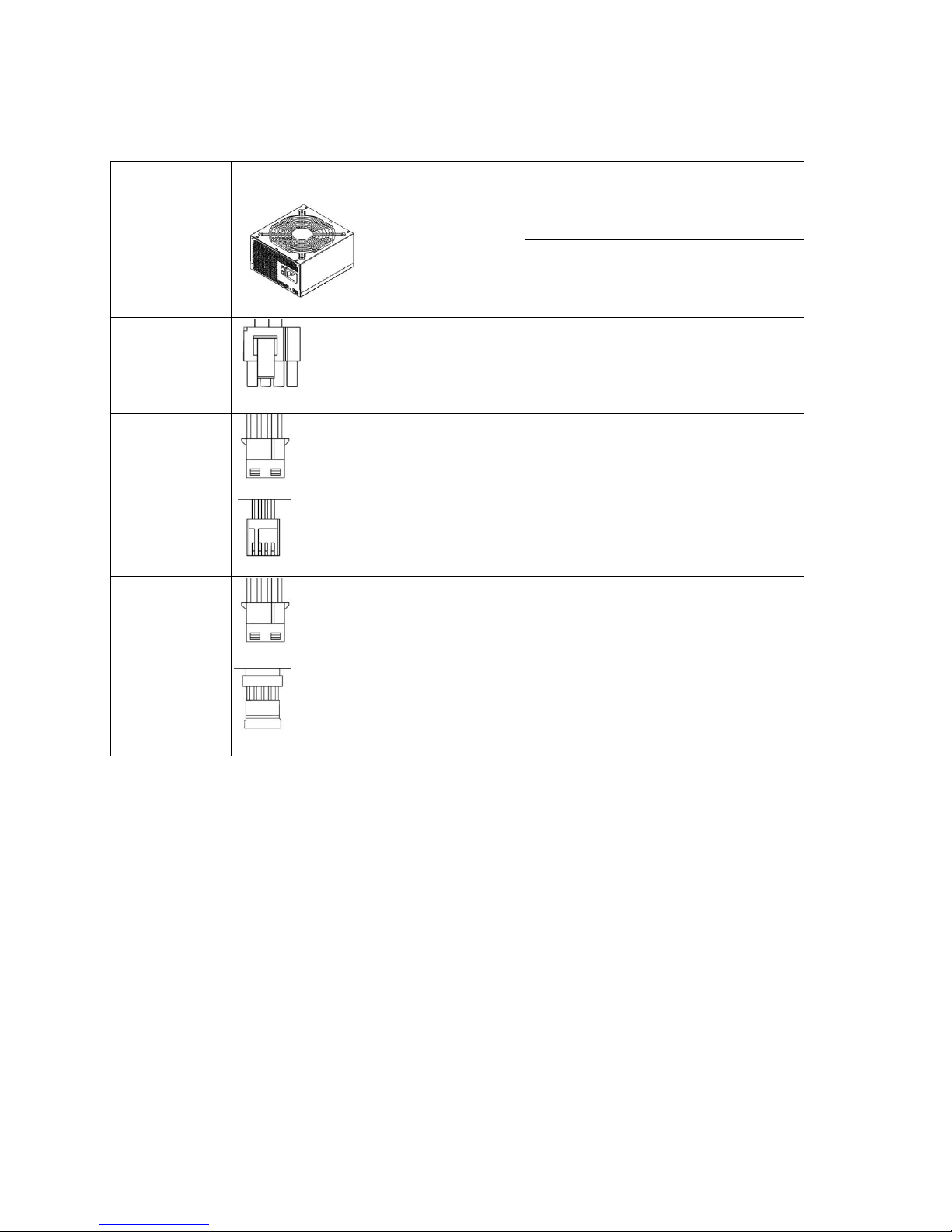

TABLE 2
Cable Quantity
Power Connectors
Description
N/A
Fixed cables
24 (20 + 4)-pin main connector
8 (4 + 4)-pin ATX12V/EPS12V
2
8 (6+2)-pin PCI-E
1
Molex + FDD
1
Molex
2
SATA
x 1
x 3
x 1
x 3
x 3

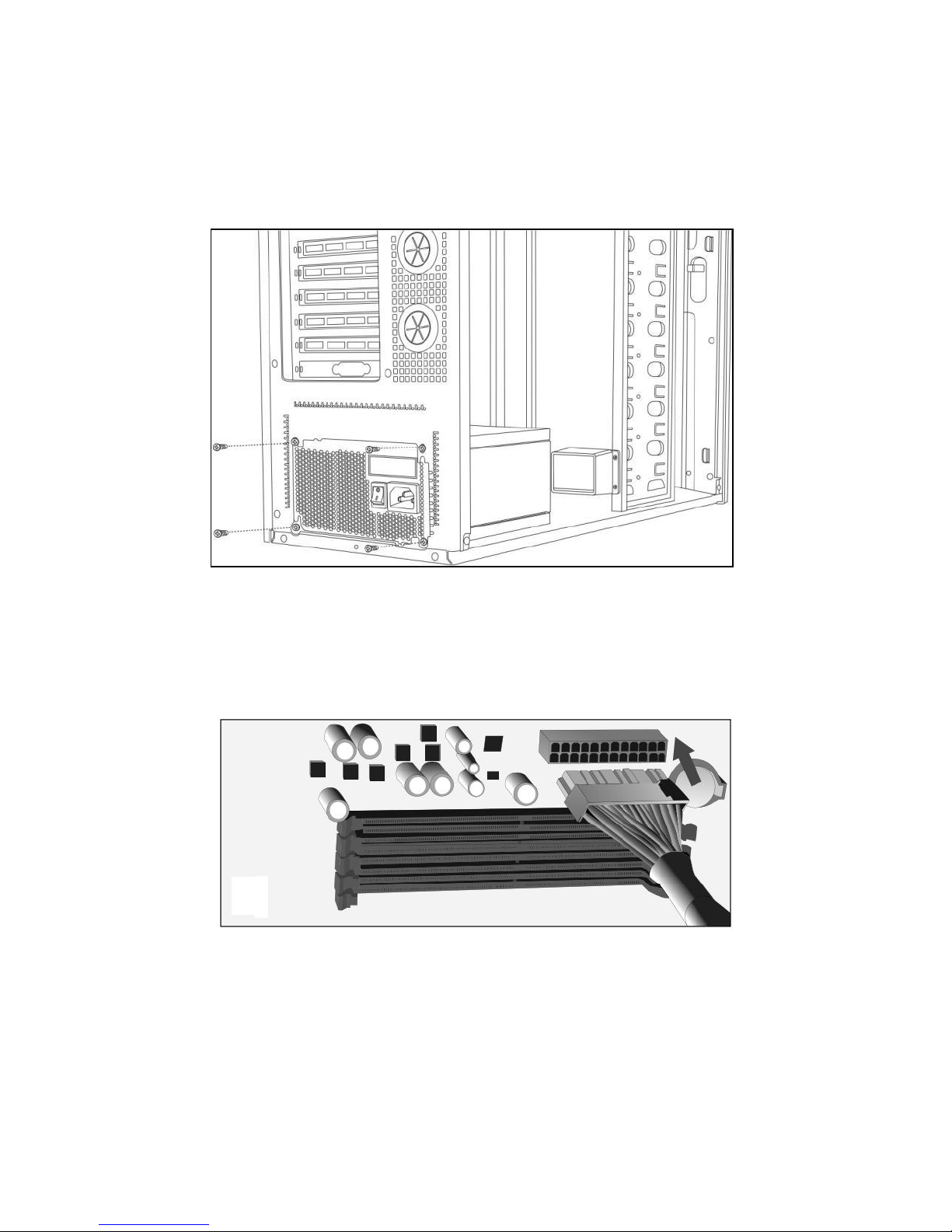

INSTALLATION:
1. Install the PSU into either the top or bottom of your case with the four screws provided. Refer to your case
manual if you are unsure where the power supply should be installed.
2. Connect the 24-pin main power connector to your motherboard. If your motherboard uses a 20-pin
connector, detach the 4-pin attachment on the 24-pin connector.
Note: The detachable 4-pin section cannot be used in place of a 4-pin +12V connector.
3. Connect the 8-pin or 4+4-pin connector for the CPU. If your motherboard has an 8-pin socket with a cover on
some of the openings, we recommend that you remove the cover and use the 8-pin connector.
Note: Please also refer to your motherboard user’s manual for any special instructions.
4. Connect extra cables from the cable pack to the sockets on the power supply only if needed. If you are going
to plug the PCI-E cables into the PSU, they should go into the red sockets. If the red sockets are not being used
for PCI-E, then they can be used for any other type of cable supplied in the pack that accompanies the PSU.
5. Connect the AC power cord to the power supply AC inlet. Be sure to use the heavy-duty cord supplied with
your PSU.
6. PCI-E graphics cards use different amounts of power. For some, a single 6-pin connector is sufficient, making
the hardwired connector the preferred choice. More powerful cards use multiple connectors, including the
advanced 8-pin PCI-E connector. The 8-pin PCI-E connector on the PSU can be used as either a 6- or 8-pin
connector.
7. Hard drives, optical drives (CD/DVD/BluRay™) and other accessories will use either the older 4-pin Molex
connector or the newer 15-pin SATA connector. 4-pin Molex connectors have two black, one yellow and one
red wire. The SATA connector has an additional orange power wire.
8. When you have all the connections secured, turn the switch on the PSU to the “|” position.
Technical Support:
www.antec.com/support
US & Canada
1-800-22ANTEC
nasupport@antec.com
Europe
+49-(0)40-226-139-22
Asia
apsupport@antec.com
Visit us on Facebook for contests, information & support:
USA & Canada
facebook.com/AntecInc
Europe
facebook.com/AntecEurope
Australia & New Zealand
facebook.com/AntecAU
India
facebook.com/AntecIndia
UK
facebook.com/AntecUK
Antec, Inc.
47900 Fremont Blvd.
Fremont, CA 94538
USA
tel: 510-770-1200
fax: 510-770-1288
Antec Europe B.V.
Stuttgartstraat 12
3047 A Rotterdam
The Netherlands
tel: +31 (0) 10 462-2060
fax: +31 (0) 10 437-1752
www.antec.com
©2011 ANTEC,INC.ALL RIGHTS RESERVED.
Specifications are subject to change without prior notice. Actual product(s) and accessories may differ from illustrations. Omissions and printing
errors excepted. Content of delivery might differ in different countries or areas. Some trademarks may be claimed as the property of others.
REPRODUCTION IN WHOLE OR IN PART WITHOUT WRITTEN PERMISSION IS PROHIBITED.
V1.0
