Analog way Smart Quad SQD200 Manuel utilisateur

QUICK START GUIDE

What’s in the box

Quick install and setup

Thank you for choosing Analog Way and the Smart Quad. By following these simple steps, you should be able to setup

and use your powerful Hi-Resolution Mixer Switcher within minutes. Discover the Smart Quad extensive capabilities

and intuitive interface while conguring your rst show, and unleash your creativity for a new experience in show and

event management by Analog Way.

Smart Quad - Ref. SQD200

1 x Smart Quad (SQD200)

1 x AC Power cable

2 x DVI-I male to HD15 female and DVI-D female breakout cable

1 x HD15 to 5 BNC cable

1 x Ethernet cross cable (for device update)

1 x DB9 to 4 BNC cable + mini-Din 4

1 x Set of 3 audio 10-pin screw terminals

4 x M4x12mm screws

1 x RCS - Remote Control Software (PC only) *

1 x Quick Start guide (PDF version) *

1 x User Manual (PDF version) *

* Download on our website: www.analogway.com

Key points:

 

 

 

 

Getting started:

 





 



 

 

 



        



        



      





IMPORTANT:       

ENTER



WARNING !

If required, front handles of the device can be dismantled,

but with caution.

The original screws removed must not be reintroduced to

their location without handles in place.

Substantial damages can occur, including risk of elec-

tric shock from the mains voltage.

Only M4x12mm screws can be used.

(They are supplied with the unit)

Smart Quad - Ref. SQD200

Front Panel Description

EXIT/MENU: Home Menu or back one level

ENTER: Validates the menu or command

#1 to #7: Press to access analog source #1 to #7

DVI 1 to DVI 2: Press to access DVI #1 or DVI #2

SDI 1 to SDI 2: Press to access SDI #1 or SDI #2

BLACK: Change the active layer to Black

Bkgnd Frame: Press to access Bkgnd Frame Layer

LOGO: Press to access logo Layer

EFFECT: Press to select a customized effect

FREEZE: Freeze the input linked to the current layer on MAIN

PRESET: Select a customized preset (4 memories available)

STAND-BY: Hold for 3 seconds for stand-by Mode

CONTROL

INPUT SELECTIONS FUNCTION CONTROL

STAND-BY

OUTPUT SETUP

1- Press the EXIT/MENU button from the Home menu

[all functions must be conrmed by the ENTER button]

2- Press [Output]

3- Press [Output format]

4- On Format line, select the display’s native resolution

5- Control or adjust your display device (Monitor or Video

Projector)

6- If necessary, select [Test Pattern] in the Output menu

INPUT SETUP

1- Press the EXIT/MENU button from the Home menu [all functions must be

conrmed by the Enter button]

2- Press [Input] and [Autoset ALL]

3- If the acquisition has failed, check all connections and perform a manual setup

4- For a comprehensive Input Setup, please refer to user’s Manual

5- For a manual input setup, press the EXIT/MENU button:

a) Press [Input],

b) Select the right input from Input #1 up to SDI #2, then

c) Select [Type].

NOTE: To adjust input Size or Pos, use the [Layer] Menus.

To adjust Blanking, use the Auto-Centering or Blanking adjustments in the

Image menu.

Display the pre-selected sources onto the

MAIN output with the selected effects

W1 to W4: Select the current Layer

TAKE

QUADRAVISION

BUTTON COLOR USAGE

#1 = Source is on the main outputs

Solid red: #2 = Freeze enable

#3 = Stand-by button

#4 = Preset Selection

Solid green: #1 = Source is on Preview

#2 = Function available for modication

Blinking red: Layer/source selected, and is currently

active on the main output

Blinking green: Layer/source selected, and is not currently

active one the main output

Smart Quad - Ref. SQD200

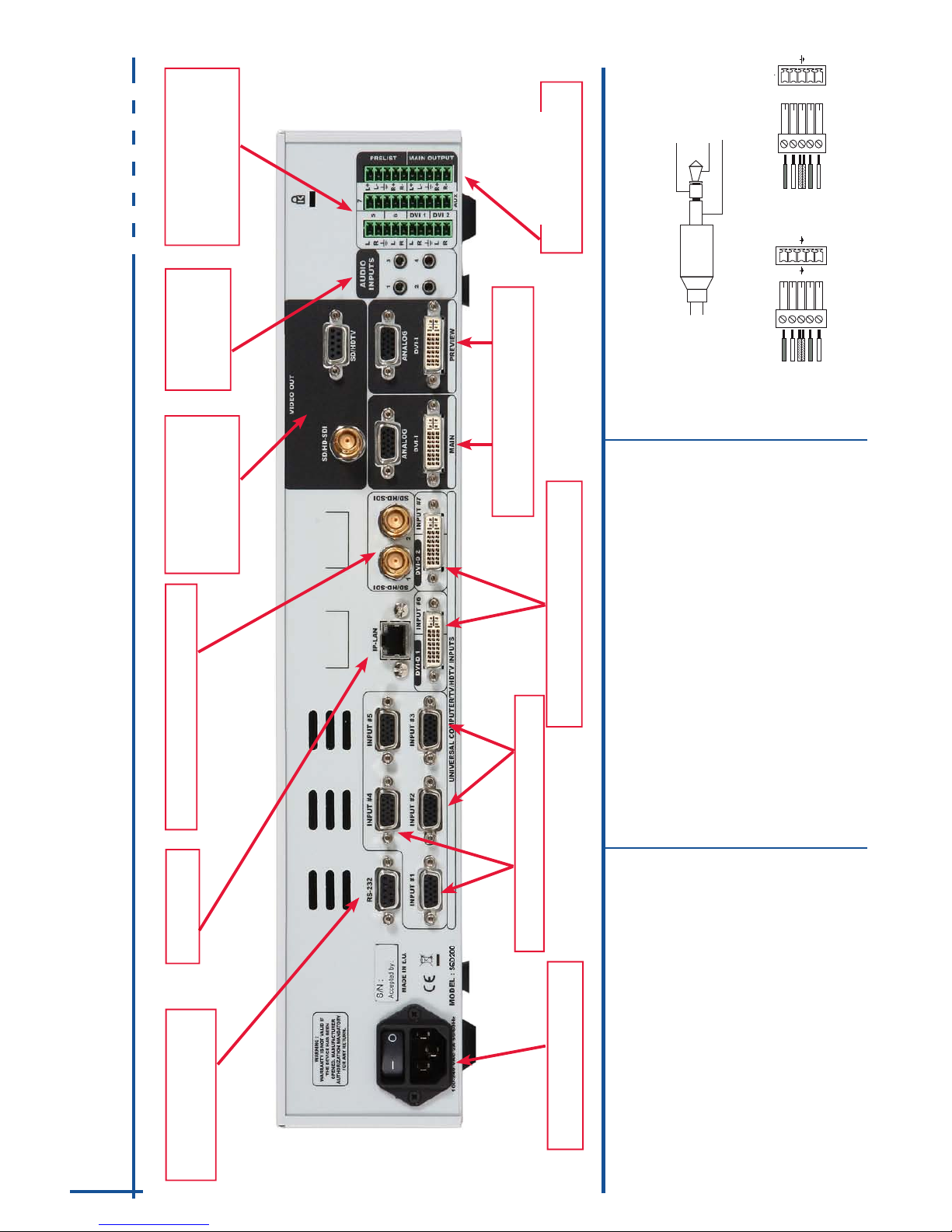

Rear Panel Description

RS-232 communication port

on a DB9 female connector or

TCP/IP on RJ45 connector

Power supply: IEC/EN/UL/CSA

60950-1, internal, autoswitchable

Universal Analog Computer/TV/HDTV inputs

3G/HD/SD-SDI inputs #1 & #2: female BNC

DVI inputs #1 & #2: female DVI-I

Outputs #1 & #2: female HD15, DVI-I

Prelist and Main Audio Output

IP-LAN connectors 3.5mm Jack Stereo

Connector input

(unbalanced)

1 x BNC-F: 3G/HD/SD-SDI

(with audio embedded)

1 x DB9-F: Analog & HDTV

formats

MCO Male Connector for inputs

(inputs #5 to #6)

DVI #1 and DVI #2: Unbalanced

Input 7 and AUX: Balanced

AUDIO INPUTS CONNECTIONSHOME MENU

- INPUT: select to congure the 1 individual input types and resolutions

- MAIN OUT: in Mixer mode, select to set Format and Rate

- PREVIEW OUT: in Mixer mode, select to Format and Rate

- PRESET: select to store and use presets

- IMAGE: select to change source image settings of an input

- KEYING/TITLING: select to access keying and titling controls and parameters

- LAYER: select to adjust layer size, position, border transparency or transitions

- LOGOS/FRAMES: select to store (record), use and manage logos and frames

- AUDIO: select to access all audio input and output parameters

- CONTROL: select to access device software information, LAN settings, reset factory

settings, amongst other user oriented functions (see next page)

- VIRTUAL T-Bar: select to access the Virtual T-Bar

WORKING WITH SQD200

The features of SQD200 can be controled by the external remote control as:

- Orchestra - Ref. ORC50

- Axion2 - Ref. ARC200

- Remote Control Software - Ref. RCS (supplied)

- Triple Remote Control Keypad - Ref. TRK-800

- Remote Control Keypad - Ref. RK-300

AUDIO OUTPUT

3.5mm Jack Stereo Connector

Inputs #1 to #4: Unbalanced connection

MCO Male Connectors

Inputs #5 to #6: Unbalanced connection

Inputs DVI #1 & #2: Unbalanced connection Main Output: Balanced connection

Input #7 (AUX): Balanced connection

L+

L-

R+

R-

BALANCED

L+

R+

L-

R-

GROUND(S)

Right

Left

Ground

UNBALANCED

LEFT

RIGHT

GROUND(S)

Input #5

Input #6

Going further with the Smart Quad

For complete details and operations procedures, please refer to the Smart Quad User’s Manual and our website for further

information : www.analogway.com

Version : 4.00 - 19/03/2012

Code : 140128

WORKING WITH TEMPLATES

Warranty

This Analog Way product has a 3 year warranty on parts and labor, back to factory. This warranty does not include faults

resulting from user negligence, special modications, electrical surges, abuse (drop/crush), and/or other unusual damage.

NOTE : The updater les are available on our web site: http://www.analogway.com

Some templates are available for the Quadravision Mode, you will nd them here:

Templates are just here to provide some useful layers positions, you can adjust them manually at any time.

Each template has to be saved in presets before doing any change. If it’s not the case, all template settings

will be deleted.

W 1

W 2

W 4

W 3

W 1 W 1

W 2

W 4

W 3

W 1

W 3

W 2

W 1

Win1 Full screen Win2 Full screen

Win3 Full screen Win4 Full screen

W 1

W 2

W 4

W 3

W 1 W 1

W 2

W 4

W 3

W 1

W 3

W 2

W 1

W 2

W 1

W 3

W 2

W 3

W 2

W 1

W 2

Split Screen

3 x Left + 1 x Right 1 x Top + 3 x Bottom

1 x Left + 3 x Right

Split 3V Split 3H

Split 2H Split 2V
