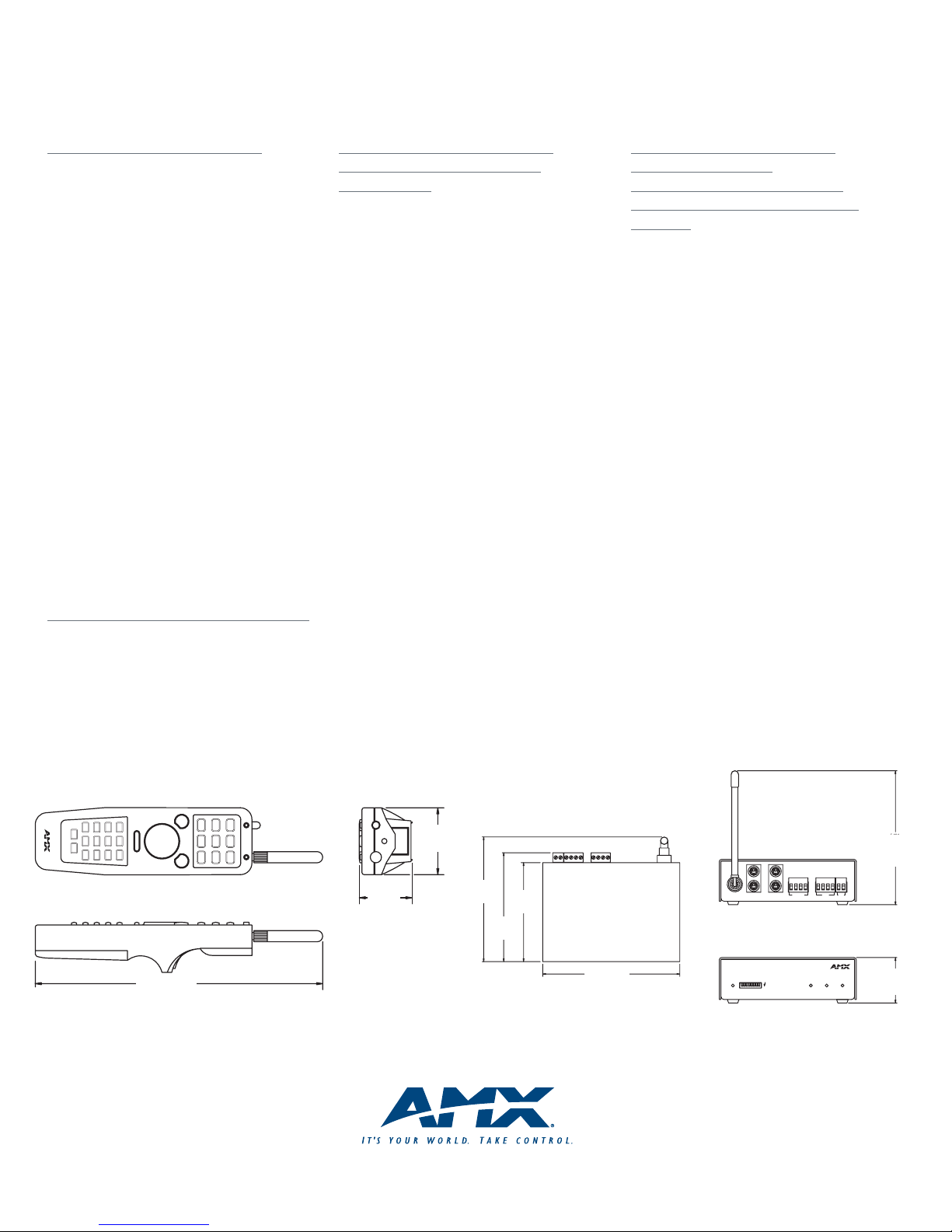

TXC-MS/TXC-MSL (front)
TXC-MS/TXC-MSL (side)
TXC-MS/
TXC-MSL
(top)
MOUSE
Wireless Mouse and Keyboard Controller
AXR-MSE
DEVICE
AXlink
ON
KEYBOARDANTENNA
PC
TO
KEYBOARDMOUSE DATA
AXlink
IR IN
EXTERNAL
IR SENSOR
AUX
PWR
GND
AXM
GND
PWR
IN
GND
PWR
AXP
+12VDC
9.95]
116
5.625 [142.86]
4.468
[113.49]
[103.14]
4.061
[47.29]
1.862
5.494
[139.55]
AXR-MSE (top)
AXR-MSE (rear)
AXR-MSE (front)
ARGENTINA • AUSTRALIA • BELGIUM • BRAZIL • CANADA • CHINA • ENGLAND • FRANCE • GERMANY • GREECE • HONG KONG • INDIA • INDONESIA • ITALY • JAPAN
LEBANON • MALAYSIA • MEXICO • NETHERLANDS • NEW ZEALAND • PHILIPPINES • PORTUGAL • RUSSIA • SINGAPORE • SPAIN • SWITZERLAND • THAILAND • TURKEY • USA
ATLANTA • BOSTON • CHICAGO • CLEVELAND • DALLAS • DENVER • INDIANAPOLIS • LOS ANGELES • MINNEAPOLIS • PHILADELPHIA • PHOENIX • PORTLAND • SPOKANE • TAMPA
3000 RESEARCH DRIVE, RICHARDSON, TX 75082 • 800.222.0193 • 469.624.8000 • +1.469.624.7400 • 469.624.7153 fax • www.amx.com
100-019-2915 © 2005 AMX Corporation. All rights reserved. AMX and the AMX logo are all trademarks of AMX Corporation. AMX reserves the right to alter specifications without notice at any time.
PC PRESENTER (FG832-418,-433)
• Gives you the power to take control of
PC mouse, keyboard macros, and
Axcess system from one wireless
remote
• Acts as conventional RF/IR receiver in
an AMX system
• Can operate as stand-alone PC control
system with onboard memory and pro-
cessing
• Transmits digital one-way RF up to 75
feet and IR wireless commands up to
30 feet
• Enables wireless proportional mouse
point and click
• Stores keyboard macros in onboard
memory or in AMX system program-
ming
• Transmitter includes custom engraving
INCLUDES
TXC-MS Wireless Mouse Transmitter
AXR-MSE Wireless Mouse and Keyboard
Controller
12 VDC 800 mA power supply
PC PRESENTER LP (FG833-315,-418,-433
• Transmitter includes integral laser
pointer and custom engraving
INCLUDES
TXC-MSL Wireless Mouse Transmitter
with Laser Pointer
AXR-MSE Wireless Mouse and Keyboard
Controller
12 VDC 800 mA power supply
AXR-MSE (FG5508-315,-418,-433)
WIRELESS KEYBOARD/MOUSE
CONTROLLER
• Pass-through mouse and keyboard con-
nections (PS2)
• Saves macro keystroke sequences in
onboard memory
• Acts as AXlink RF/IR receiver in an AMX
system
RF RECEPTION
418 MHz standard, 315 and 433 optional
IR Reception (IR Sensor Optional)
455 kHz high frequency
DIMENSIONS (HWD)
1.9" x 5.6" x 5.1"
47 mm x 143 mm x 130 mm
WEIGHT
12.6 oz (357 g)
POWER
12 VDC, 65 mA (max)
INCLUDES
2 PS/2 style cables, male/male, 6' (1.8 m)
2 4-pin connectors (AXlink and IR sensor)
2-pin connector (power)
OPTIONS
IRX-DS Wall-Mount IR Sensor
IRX-SM+ Swivel-Mount IR Sensor
TXC-MS (FG5158-315,-418,-433)
WIRELESS MOUSE TX
TXC-MSL (FG5159-315,-418,-433)
WIRELESS MOUSE TX WITH LASER
POINTER
• Transmits 1-way RF/ IR mouse, key-
board and Axcess commands
• Proportional mousedisc also generates
four AMX radio codes (up, down, left,
right)
• Mouse left- and right-click , also trans-
mits AMX radio codes
• Trigger activates left mouse click (laser
pointer in TXC-MSL)
• 23 general-purpose buttons send sys-
tem and/or macro command
RF TRANSMISSION
418 MHz standard, 315 and 433 optional
IR Transmission
455 kHz high frequency
DIMENSIONS (HWD)
8.5” x 2.0” x 1.6”
216 mm x 51 mm x 40 mm
WEIGHT
5.2 oz (146 g)
INCLUDES
Two AA batteries
Integral laser pointer (TXC-MSL)
8.50
[215.9]
2.00
[50.8]
5.625
[142.86]
5.116
