Amped Wireless SR300 Manuel utilisateur
SR300
Rev 1.1
High Power Wireless-N
Range Extender
User’s Guide
SR300
USER’S GUIDE
1
CONTENTS
INTRODUCTION .................................................. 2
GETTING STARTED .............................................. 3
Package Contents .................................................. 3
LED Indicators ........................................................ 4
Back Panel Description .......................................... 5
SETUP GUIDE ...................................................... 6
Welcome to the Dashboard................................... 9
Scan for a Home Network to Extend ................... 10
Connecting to a Secure Network......................... 11
Extended Network Settings ................................. 12
Connect to the new Extended Network .............. 14
Setup Summary ................................................... 15
WI-FI SETTINGS ................................................. 17
Home Network Settings....................................... 17
Extended Network Settings ................................. 19
Security ................................................................ 21
Advanced Settings ............................................... 23
SMART FEATURES..............................................25
Access Schedule ................................................... 26
User Access Control .............................................27
Wi-Fi Coverage Controls ......................................28
IP SETTINGS .......................................................29
MANAGEMENT FEATURES .................................31
Device Status........................................................ 32
Statistics ............................................................... 34
System Clock ........................................................35
System Logs..........................................................36
Upgrade Firmware ............................................... 37
Save and Reload Settings .....................................38
Password Settings ................................................39
TECHNICAL SPECIFICATIONS ..............................40
DEFAULT SETTINGS ............................................41
TROUBLESHOOTING ..........................................42
WARRANTY / REGULATORY INFORMATION ......51
SR300
USER’S GUIDE
2
INTRODUCTION
Thank you for purchasing this Amped Wireless product. At Amped Wireless we strive to provide you with the
highest quality products through innovation and advanced technology. We pride ourselves on delivering
products that outperform the competition and go beyond your expectations. If you have any questions please
feel free to contact us. We’d love to hear from you and thank you for your support!
Email: sales@ampedwireless.com
Call: 888-573-8830
Web: www.ampedwireless.com
SR300
USER’S GUIDE
3
GETTING STARTED
Package Contents
Check to make sure you have all the contents within your package:
High Power Wi-Fi Range Extender
Two Detachable 3dBi High Gain Antennas
Setup Guide
CD: User’s Manual, Installation Video
Vertical Mounting Base
SR300
USER’S GUIDE
4
LED Indicators
WPS: Wi-Fi Protected Setup activity. When
the WPS mode is activated the WPS LED
blinks as it awaits a connection.
Wired Connections: Shows the connection
status and data activity of each wired LAN
port.
Wireless Activity: Blinks rapidly when
wireless data traffic is passing through the
Range Extender. When there is a problem
with the Wi-Fi connection this LED will
remain off or blink steadily.
Power: When lit, the power is on.
SR300
USER’S GUIDE
5
Back Panel Description
Antenna Connectors: RJ-SMA antenna connectors. Compatible
with all antennas with RP-SMA connectors. Upgradable to
high gain antennas for more range.
Reset: Push down once to reboot the Range Extender. Hold
down for 5-10 seconds to reset the device back to factory
settings.
WPS: Hold down for 3 seconds to enable WPS push button
configuration.
Wired Connections: RJ-45 ports for connecting to wired
computers or network devices. Supports up to 5 connections.
Power: Power adapter port. DC 12V 1A.
SR300
USER’S GUIDE
6
6
SETUP GUIDE
Find a Setup Location
The location of where you install the Range Extender is very important to how it will function. The optimal
setup location should be somewhere no more than halfway between your Wi-Fi router and your Wi-Fi dead
zone.
SR300
USER’S GUIDE
7
7

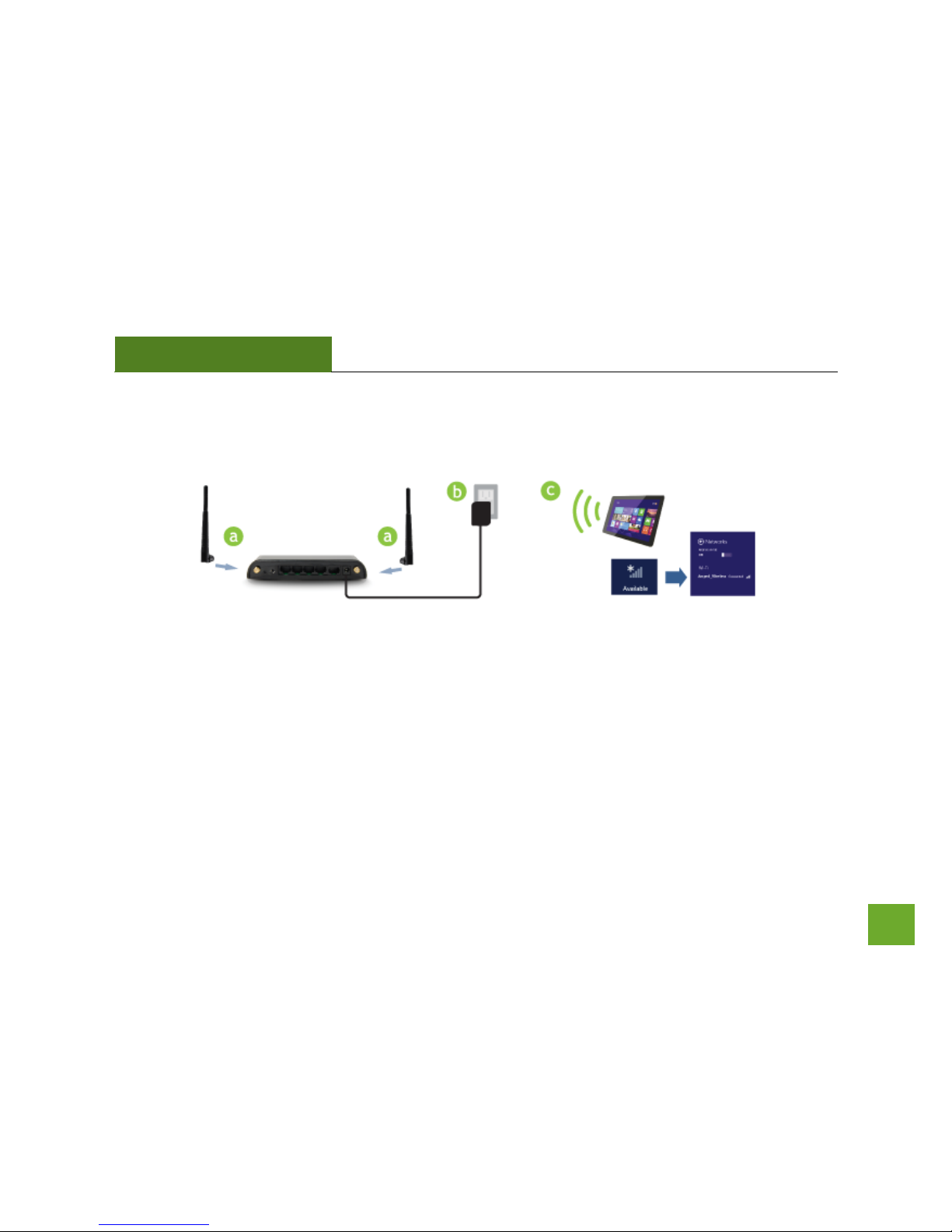

Connect your PC or Tablet to the Range Extender
a. Attach the two included antennas.
b. Attach the Power Adapter to the Range Extender’s Power Port and an available power outlet.
c. Connect your PC or Tablet to the Range Extender’s Wi-Fi network: Amped_Wireless
SR300
USER’S GUIDE
8
8
Open your Web Browser to Access the Setup Wizard
a. Open your web browser.
b. Type in: http://setup.ampedwireless.com into
the web address bar
c. If the web menu fails to open, type in the
following IP address into your web address
bar: http://192.168.1.240
a. Disconnect your PC from all Wi-Fi networks
b. Attach an Ethernet cable between the PC and the Range Extender
c. Open your web browser and go to http://setup.ampedwireless.com again.
SR300
USER’S GUIDE
9
9
Welcome to the Dashboard
The Dashboard will provide you with the current status
of the Range Extender.
Click SCAN to find an available network to extend.
The diagram on this page displays the terms used to
describe:
1) The network you are trying to extend (Home
Network).
2) The network that is rebroadcasted and
extended (Extended Network).
Study this diagram carefully as the terms used in the
following instructions will refer to these names.
