Amped Wireless SB1000 Manuel utilisateur

High Power 1000mW Wi-Fi

Signal Booster

(for 2.4GHz 802.11b/g/n certified devices)

SB1000

BOOST THE RANGE OF

YOUR CERTIFIED WI-FI DEVICE

The Amped Wireless High Power 1000mW Wi-Fi Signal

Booster amplifies the signal strength of your certified Wi-Fi

device to deliver more wireless range and performance.

Typical wireless routers, access points and adapters have

wireless output powers of less than 50mW. The SB1000

replaces the removable antenna on your certified Wi-Fi

device to boost the signal strength by as much as 20 times,

to a staggering 1000mW of wireless power. The high gain

7dBi omni-directional antenna transmits the boosted signal

in a 360 degree radius to cover your entire home or office

with strong Wi-Fi coverage.

How it Works:

Key Features

• Plug and Play: Replaces the antenna

on your certified Wi-Fi device

• Works with certified* wireless b/g/n

devices with detachable antennas

• Signal filters ensure a safe, clean and

Wi-Fi friendly environment

• Antenna swivels and is detachable

from the base for different installa-

tion options

Wireless Coverage Pattern

360°Signal Pattern

*See regulatory specifications on back

SB1000

Advanced Amped Technology:

Wireless Amplifiers and High Gain Antennas:

The High Power Signal Booster features a massive 1000mW Amplifier to

boost Wi-Fi transmitting and receiving strength

The SB1000 is optimally paired and tuned with a High Gain 7dBi Omni-

Directional Antenna for maximized 360 degree wireless coverage.

AMPED RANGE

600

150 1000

Wireless Performance

OUTPUT POWER (mW)

2x1x 3x 4x

Amped Wireless Technology

High Gain 7dBi Antenna

1000mW Amplifier Inside

“Original”

HotSpot Connection

Boosted Wi-Fi Coverage

with the SB1000

Existing Wi-Fi Coverage

without the SB1000

The High Power Signal Booster replaces the

antenna on your wireless device and boosts

your wireless coverage by up to 4X!

Home Wireless

Network Router 1000mW Amplified

Signal Booster

SB1000

OUTPUT POWER mW (Mili-Watts)

4x Range 4x Range

WIRELESS RANGE

Standard Wi-Fi Router Output Power: 50mW

SB1000 Boosted Output Power: 1000mW

• Boosts the wireless output power of your

certified Wi-Fi device by up to 20X

• Wireless range is increased by up to 4X!

360° AMPLIFIED RANGE

Mounting Options

Wireless Standard: Works with IEEE 802.11b/g/n

Frequency Band: 2.4 - 2.48 GHz

Amplifier: 1000mW Power Amplifier

Low Noise Amplifier

Total Output Power: Up to 30dBm (Max)

Receive Gain: 12dB

Input Power Range: 1 to 19dBm

Connectors:

• Antenna Connector: Reverse SMA Jack

• Input Connector: Reverse SMA Plug

• Input Cable Length: 4 Feet

Antenna:

• 1 High Gain 7dBi Omni-Directional Antenna

(Detachable)

LED Indicators: Transmit and Receive (Blue)

System Requirements

• Certified* 2.4GHz Wireless b/g/n Device with a

detachable antenna

• Reverse SMA Jack Antenna Connector

(for the wireless device)

Package Contents:

• One High Power 1000mW Wireless Signal Booster

with 4 foot cable

• One High Gain 7dBi Omni Directional Antenna

• One Quick Installation Guide

Certified Wi-Fi Devices

Amped Wireless High Power Wireless-150N Repeater

*Under FCC regulations,The SB1000 may only be used with Wi-Fi devices that

have been certified for use with the SB1000 as a system.

** Wireless performance may vary as performance depends on many factors,

including environmental conditions and installation scenarios.

Amped Wireless

13089 Peyton Dr. #C307

Chino Hills, CA 91709

www.ampedwireless.com

1(888) 573-8830

Product Specifications:

Plug & Play Setup

BOOST THE RANGE OF

YOUR CERTIFIED WI-FI DEVICE

WIRELESS ROUTER

Detach the antenna from your

Certified Wireless Device

Attach the Signal Booster

to the antenna connector

of your Wi-Fi device

Power on the Signal Booster

Detachable Swivel Antenna:

Wall:

Includes mounting holes and accessories

to mount the antenna on any wall

Magnetic Mount:

The magnetic base allows for mounting

on metal surfaces, such as the side of a

computer case

Easy to replace and position

Desktop

Place the antenna on any flat surface for

easy placement

Uses Reverse SMA Antenna Connectors

Table des matières

Autres manuels Amped Wireless Extenseur

Amped Wireless

Amped Wireless SR10000 Manuel utilisateur

Amped Wireless

Amped Wireless RE1750A Manuel utilisateur

Amped Wireless

Amped Wireless SR600EX Manuel utilisateur

Amped Wireless

Amped Wireless SR300 Manuel utilisateur

Amped Wireless

Amped Wireless SR150 Manuel utilisateur

Amped Wireless

Amped Wireless ATHENA-EX HIGH POWERRE2600M Manuel utilisateur

Amped Wireless

Amped Wireless TAP-EX2 Manuel utilisateur

Amped Wireless

Amped Wireless HighPower AC1750 Manuel utilisateur

Amped Wireless

Amped Wireless RE1200EX Manuel utilisateur

Amped Wireless

Amped Wireless ARTEMIS-EX RE1300M Manuel utilisateur

Amped Wireless

Amped Wireless ATHENA-EX RE2600M Manuel utilisateur

Amped Wireless

Amped Wireless RE2200T Manuel utilisateur

Amped Wireless

Amped Wireless TITAN-EX RE1900A Manuel utilisateur

Amped Wireless

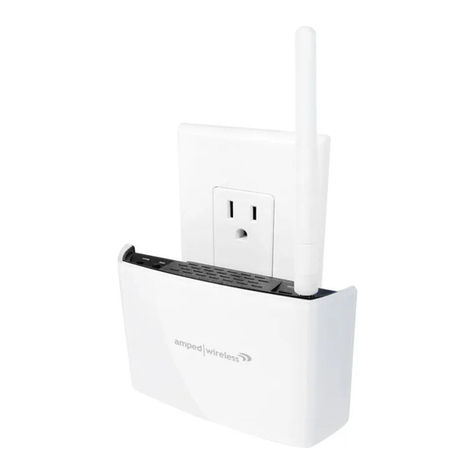

Amped Wireless REC10 Manuel utilisateur
