1
CDM530AM
WiFi Mobile Router
User Manual
2
Copyright
The contents of this publication may not be reproduced in any part or as a whole, stored,
transcribed in an information retrieval system, translated into any language, or transmitted in any
form or by any means, mechanical, magnetic, electronic, optical, photocopying, manual, or
otherwise, without the prior written permission.
Trademarks
All products, company, brand names are trademarks or registered trademarks of their respective
companies. They are used for identification purpose only. Specifications are subject to be changed
without prior notice.
FCC Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital device
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against radio interference in a commercial environment. This equipment can generate, use and
radiate radio frequency energy and, if not installed and used in accordance with the instructions in
this manual, may cause harmful interference to radio communications. Operation of this
equipment in a residential area is likely to cause interference, in which case the user, at his own
expense, will be required to take whatever measures are necessary to correct the interference.
CE Declaration of Conformity
This equipment complies with the requirements relating to electromagnetic compatibility, EN
55022/A1 Class B.
3
Table of contents
COPYRIGHT ..............................................................................................................................2
FCC INTERFERENCE STATEMENT........................................................................................2
CHAPTER 1 INTRODUCTION..............................................................................................4
1.1 PACKAGE LIST.................................................................................................4
1.2 HARDWARE INSTALLATION...........................................................................5
CHAPTER 2 GETTING STARTED WITH EASY SETUP UTILITY.......................................8
2.1 EASY SETUP BY WINDOWS UTILITY.............................................................8
2.2 EASY SETUP BY CONFIGURING WEB PAGES.......................................... 12
CHAPTER 3 MAKING CONFIGURATION ........................................................................ 15
3.1 BASIC SETTING............................................................................................. 15
3.2 FORWARDING RULES.................................................................................. 33
3.2.1 VIRTUAL SERVER .................................................................................. 33
3.2.2 SPECIAL AP ............................................................................................ 34
3.2.3 MISCELLANEOUS................................................................................... 35
3.3 SECURITY SETTING...................................................................................... 36
3.4 ADVANCED SETTING ................................................................................... 42
3.5 TOOL BOX...................................................................................................... 49
CHAPTER 4 TROUBLESHOOTING.................................................................................. 52
APPENDIX A. SPEC SUMMARY TABLE.............................................................................. 56
APPENDIX B. LICENSING INFORMATION .......................................................................... 57
4
Chapter 1 Introduction
Congratulations on your purchase of this outstanding product: CDM530AM WiFi Mobile Router.
This product is specifically designed for mobile user who needs to have the internet access
beyond his home and office. It provides a complete solution for Internet surfing and broadband
sharing. Instructions for installing and configuring this product can be found in this manual. Before
you install and use this product, please read this manual carefully for fully exploiting the functions
of this product.
1.1Package List
Items
Description
Contents
Quantity
1
WiFi Mobile Router
1
2
RJ45 Cable
1
3
Power adapter
1
4
CD
1
5
Holder
1
6
Quick Installation Guide
1
7
Li-ion Battery
1
5
1.2 Hardware Installation
A. Hardware configuration
B. LED indicators
Power LED indicator:
Power Source
ON/OFF Switch
LED Status
Description
Battery Only
ON
Green in flash
Device ON, and Battery is in use.
ON
Red
Device ON, and Battery is low.
OFF
N/A
Device OFF
Power Adapter
ON
Green
Device ON, and Battery is fully
charged.
ON
Amber
Device ON, and Battery is
charging, or no Battery installed.
OFF
Amber
Device OFF, and Battery is
charging.
OFF
N/A
Device OFF
LED Indicators
Power LED
Power LED
Battery lid
6

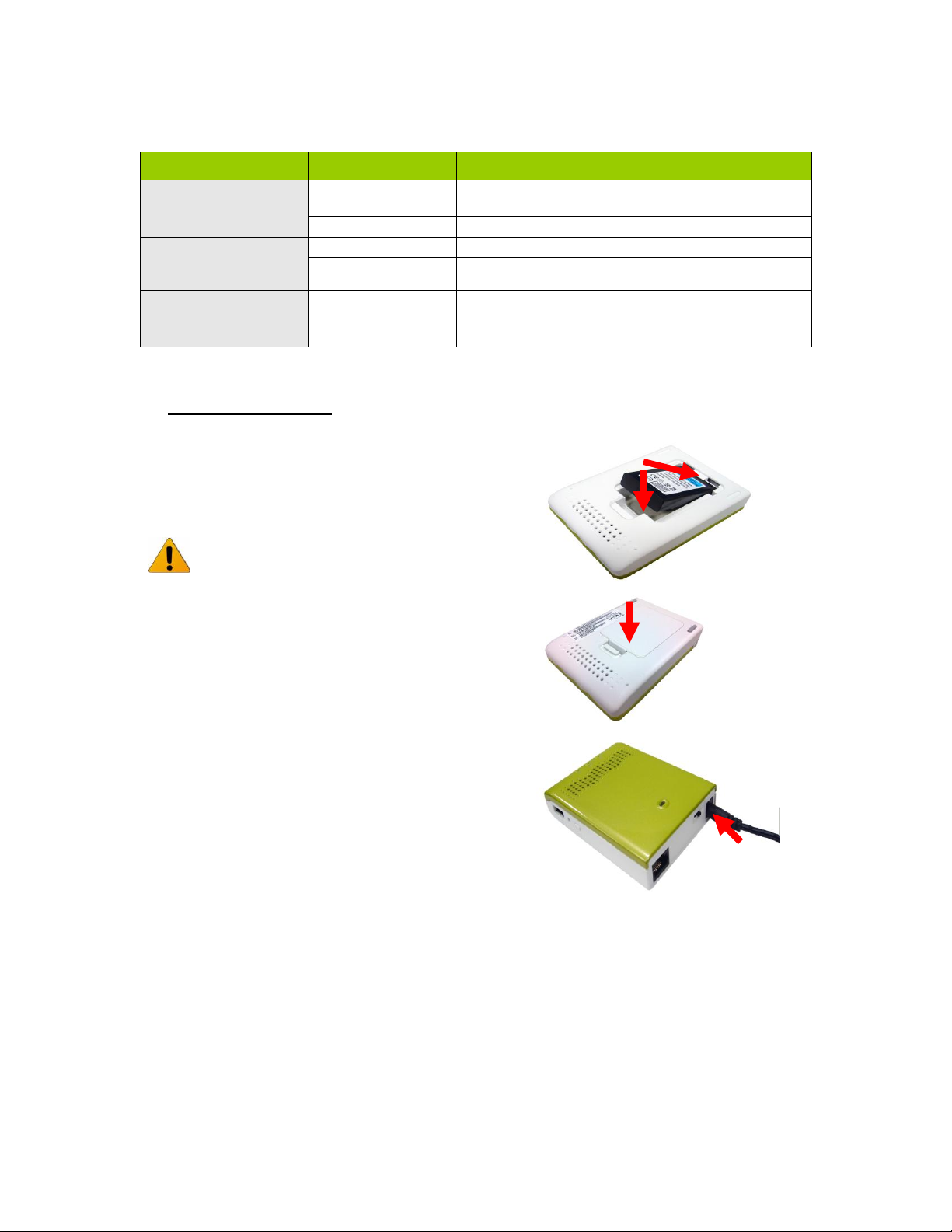

Other LED indicator:
LED Status
Description
Ethernet LED
Green
RJ45 cable is plugged, and Ethernet connection
is established.
Green in flash
Data access
USB LED
Green
3G/3.5G is on
Green in flash
Data access
WiFi LED
Green
WLAN is on
Green in flash
Data access
C. Installation Steps
Step 1. Install the battery:
Turn OFF the power switch, open the battery lid, and
then insert the Li-ion battery into the battery holder.
DO NOT insert or remove the Li-ion
battery while the power switch is at
ON position.
Step 2.
Close the battery lid
Step 3. Plug in power:
Connect with the power adapter to the receptor on the
back panel of it.
7
Step 4. Start to Charge the Battery:
Then plug the other end of the power adapter into a
wall outlet.
If it is the first time to put the battery
in, the power LED will show amber
which means the battery is been
charging. It will take about 3 hours
to fully charge the battery, and
when the battery is fully charged,
the power LED will show green.
Step 5. Power ON:
Turn ON the power switch.
Step 6. Connect with a USB 3G modem:
Plug your USB modem which is with activated SIM
card that is provided by your 3G service provider.
Step 7. Connect with Ethernet Cable
Insert the Ethernet cable into RJ45 Ethernet Port on
the back panel. And then plug the other end of RJ45
into the computer or Laptop computer. The Ethernet
LED will show green color if the Ethernet connection is
normally connected.
Step 8. Start to configure the device:
You can start to configure the device via the Easy
Setup Utility.
(see Easy Setup Utility)
ON
8
Chapter 2 Getting Started with Easy Setup Utility
There are two approaches for you to set up the WiFi Mobile Router quickly and easily. One is
through executing the provided Windows Easy Setup Utility on your PC, and the other is through
browsing the device web pages and configuration.
2.1 Easy Setup by Windows Utility
Step 1：
Install the Easy Setup Utility
from the provided CD then
follow the steps to configure
the device.
Step 2：
Select Language then click
“Next” to continue.
Step 3：
Then click the “Wizard” to
continue.
Step 4：
Click “Next” to continue.
9
Step 5：
Select Wireless Enable, and
then click “Next” to continue.
Step 6：
Enter SSID, Channel and
Security options, and then
click “Next” to continue.
Step 7：
Select 3G Service by clicking
3G icon to continue.
10
Step 8-1：
Select “Auto-Detection”, and
the Utility will try to detect and
configure the required 3G
service settings automatically.
Click “Next” to continue.
Step 8-2：
Or you can select “Manual”
and manually fill in the
required 3G service settings
provided by your ISP.
Click “Next” to continue.
Step 9：
The WiFi Mobile Router is
rebooted to make your entire
configuration take effect.
