Amica OWC4441BK Manuel utilisateur

IO-HOO-0911

(04.2022)

Kitchen extractor hood / Okap nadkuchenny /

kuchyňského odsavače / kuchynského odsávača

OWC4441BK

OPERATING INSTRUCTIONS EN

INSTRUKCJA OBSŁUGI PL

NÁVOD K OBSLUZE CS

NÁVOD NA OBSLUHU SK

- 3 -

NOTES ON SAFETY 6

UNPACKING 9

DISPOSAL OF OLD APPLIANCE 9

OPERATION 10

KITCHEN HOOD CONTROLS 10

CONTROL PANEL 10

OFF TIMER 10

DIMMER FUNCTION (BRIGHTNESS ADJUSTMENT) 10

OTHER IMPORTANT INFORMATION CONCERNING THE OPERATION OF THE HOOD 11

CLEANING AND MAINTENANCE 12

MAINTENANCE 12

GREASE FILTER 12

ACTIVATED CHARCOAL FILTER 12

LIGHT 12

WARRANTY AND AFTER SALES SERVICE 13

WARRANTY 13

WSKAZÓWKI DOTYCZĄCE BEZPIECZEŃSTWA 15

ROZPAKOWANIE 19

USUWANIE ZUŻYTYCH URZĄ DZEŃ 19

OBSŁUGA 20

STEROWANIE OKAPEM 20

PANEL STEROWANIA 20

TIMER (OPÓŹNIONE WYŁĄCZENIE OKAPU) 20

DIMMER (REGULACJA NATĘŻENIA OŚWIETLENIA) 20

INNE WAŻNE INFORMACJE DOTYCZĄCE OBSŁUGI OKAPU 21

CZYSZCZENIE I KONSERWACJA 22

KONSERWACJA 22

FILTR PRZECIWTŁUSZCZOWY 22

FILTR WĘGLOWY 22

OŚWIETLENIE 22

GWARANCJA, OBSŁUGA POSPRZEDAŻOWA 23

GWARANCJA 23

EN- Table of contents

PL- Spis treści

- 4 -

BEZPEČNOSTNÍ POKYNY 25

VYBALENÍ 28

LIKVIDACE OPOTŘEBOVANÝCH ZAŘÍZENÍ 28

OBSLUHA 29

OVLÁDÁNÍ ODSAVAČE 29

OVLÁDACÍ PANEL 29

ČASOVAČ (OPOŽDĚNÉ VYPNUTÍ MOTORU ODSAVAČE) 29

DIMMER (REGULACE INTENZITY OSVĚTLENÍ) 29

JINÉ DŮLEŽITÉ INFORMACE O OBSLUZE ODSAVAČE 30

ČIŠTĚNÍ A ÚDRŽBA 31

ÚDRŽBA 31

PROTITUKOVÝ FILTR 31

UHLÍKOVÝ FILTR 31

OSVĚTLENÍ 31

ZÁRUKA, POPRODEJNÍ SERVIS 32

ZÁRUKA 32

CS- Obsah

BEZPEČNOSTNÉ POKYNY POUŽÍVANIA 34

ROZBALENIE 38

LIKVIDÁCIA ZARIADENÍ 38

OBSLUHA 39

OVLÁDANIE ODSÁVAČA 39

OVLÁDACÍ PANEL 39

ČASOVAČ (ONESKORENÉ VYPNUTIE MOTORA ODSÁVAČA) 39

STMIEVAČ (NASTAVENIE INTENZITY OSVETLENIA) 39

INÉ DÔLEŽITÉ INFORMÁCIE TÝKAJÚCE SA POUŽÍVANIA ODSÁVAČA 40

ČISTENIE A ÚDRŽBA 41

KONZERVÁCIA 41

PROTITUKOVÝ FILTER 41

UHLÍKOVÝ FILTER 41

OSVETLENIE 41

ZÁRUKA, POPREDAJNÝ SERVIS 42

ZÁRUKA 42

SK- Obsah

- 5 -

Dear customer,

From now on, your daily housework will be easier

than ever before. Your appliance is excepon-

ally easy to use and extremely ecient. Aer reading

these Operang Instrucons, operang the appliance

will be easy.

Before being packaged and leaving the manufacturer,

the appliance was thoroughly checked with regard to

safety and funconality.

Before using the appliance, please carefully read

these Operang Instrucons. By following these

instrucons carefully you will be able to avoid any

problems in using the appliance. It is important to

keep these Operang Instrucons and store them in a

safe place so that they can be consulted at any me.

Follow these instrucons carefully in order to avoid

possible accidents.

Sincerely,

- 6 -

NOTES ON SAFETY

• Before using the appliance, please carefully read

this manual!

• The appliance is designed for household use only.

• The manufacturer reserves the right to introduce

changes, which do not aect operation of the ap-

pliance.

• The manufacturer shall not be liable for any dam-

age or re caused by the appliance resulting from

failure to follow instructions in this manual.

• Cooker hood is designed to remove cooking

odours. Do not use cooker hood for other pur-

poses.

• Connect the cooker hood operating in extraction

mode to a suitable ventilation duct (do NOT con-

nect the cooker to smoke or ue gas ducts, which

are in use). It requires installation of the air ex-

traction duct to the outside. The length of the

duct (usually a pipe of Ø 120 or 150 mm) should

not be longer than 4-5 m. An air extraction duct

is also required for telescopic and furniture hoods

in absorption mode.

• Cooker hood operating in air recirculation mode

requires the installation of an activated charcoal

lter. In this case, installing an extractor duct is

not required, however it is recommended to in-

stall an air guide vane (Mainly in chimney cooker

hoods).

• The cooker hood features independent lighting

and exhaust fan that can be operated at one of

several speeds.

• Depending on the type, the hood is designed to

be permanently attached to a vertical wall over

a gas or electric stove (chimney and universal

hoods); on the ceiling over a gas or electric stove

(island hoods); on the vertical built in furniture

over a gas or electric stove (telescopic and built-

in hoods). Before installing, make sure that the

- 7 -

wall/ceiling structure is strong enough to suspend

the hood. Some hoods are very heavy.

• For details of the installation distance above an

electric hob please refer to product technical

sheet If the installation instructions of the gas

cooker specify a greater distance, this must be

taken into account (Fig. 1).

• Do not leave an open ame under the hood.

When the pots are removed from the burner, set

the minimum ame. Always make sure that the

ame does not extend outside the pot, because it

causes unwanted loss of energy and a dangerous

concentration of heat.

• When cooking on fat, supervise the pans con-

stantly, because overheated fat can ignite.

• Unplug the appliance before any cleaning, replac-

ing the lter or repair work.

• Cooker hood grease lter should be cleaned at

least once a month, because the lter saturated

with fat is ammable.

• Ensure adequate ventilation (air ow) if other

equipment such as liquid fuel stoves or heaters

are operated in the room in addition the cooker

hood. When the cooker hood is simultaneously

operated with burning appliances requiring ade-

quate fresh air from the room to work properly,

their safe operation is possible if under pressure

around these appliances is a maximum of 0.004

mbar (this does not apply when the cooker hood

is used as an odour lter)

• Do not lean on the hood.

• The hood should be cleaned regularly both inside

and out (AT LEAST ONCE A MONTH, following the

indications concerning maintenance provided in

this manual)..Failure to adhere to the rules con-

cerning cleaning the hood and replacing lters

results in a re risk.

• If the power cord is damaged it should be re-

placed by a specialised service centre.

• Ensure that it is possible to disconnect the ap-

- 8 -

pliance from the mains by removing the plug or

switching o the bi-polar switch.

• This appliance is not intended for use by persons

(including children) with physical, mental or sen-

sory handicaps, or by persons inexperienced or

unfamiliar with the appliance, unless under su-

pervision or in accordance with the instructions

as communicated to them by persons responsible

for their safety.

• Particular attention should be paid not to allow

unaccompanied children to use the appliance.

• Make sure voltage indicated on the nameplate

corresponds to the local mains supply voltage.

• Before use, extend and straighten the power cord.

• Packaging materials (bags, polyethylene, poly-

styrene, etc.) should be kept away from children

during unpacking.

• Before connecting the hood to the mains power

supply always check that the power cord is prop-

erly installed and is not trapped by the appliance.

Do not connect the appliance to the mains until

assembly is complete.

• Do not operate your kitchen hood without the al-

uminium grease lters.

• It is strictly forbidden to cook dishes under on an

open ame (ambé) under your kitchen hood.

• Always strictly adhere to regulations issued by the

competent local authorities regarding the techni-

cal and safety requirements for fume extraction.

• Failing to tighten bolts and fasteners in accord-

ance with these instructions may endanger life

and health.

• Hanging kitchen hoods operate only in air circu-

lation / odour absorber mode

• WARNING! Failure to install the screws or xing

device in accordance with these instructions may

result in electrical hazards.

- 9 -

UNPACKING

During transportation, protective

packaging was used to protect the

appliance against any damage. Af-

ter unpacking, please dispose of all

elements of packaging in a way that

will not cause damage to the environ-

ment.

All materials used for packaging the

appliance are environmentally friendly; they are

100% recyclable and are marked with the appropri-

ate symbol.

Important! Packaging materials (bags, polyethyl-

ene, polystyrene, etc.) should be kept away from

children during unpacking.

DISPOSAL OF OLD APPLIANCE

In accordance with European Directive

2012/19/EU and local legislation re-

garding used electrical and electronic

goods, this appliance is marked with

the symbol of the crossed-out waste

container. This marking indicates that

the appliance must not be disposed of

together with other household waste

after it has been used.

The user is obliged to hand it over to waste collec-

tion centre collecting used electrical and electron-

ic goods. The collectors, including local collection

points, shops and local authority departments pro-

vide recycling schemes.

Proper handling of used electrical and electronic

goods helps avoid environmental and health haz-

ards resulting from the presence of dangerous com-

ponents and the inappropriate storage and process-

ing of such goods.

- 10 -

OPERATION

Kitchen hood controls

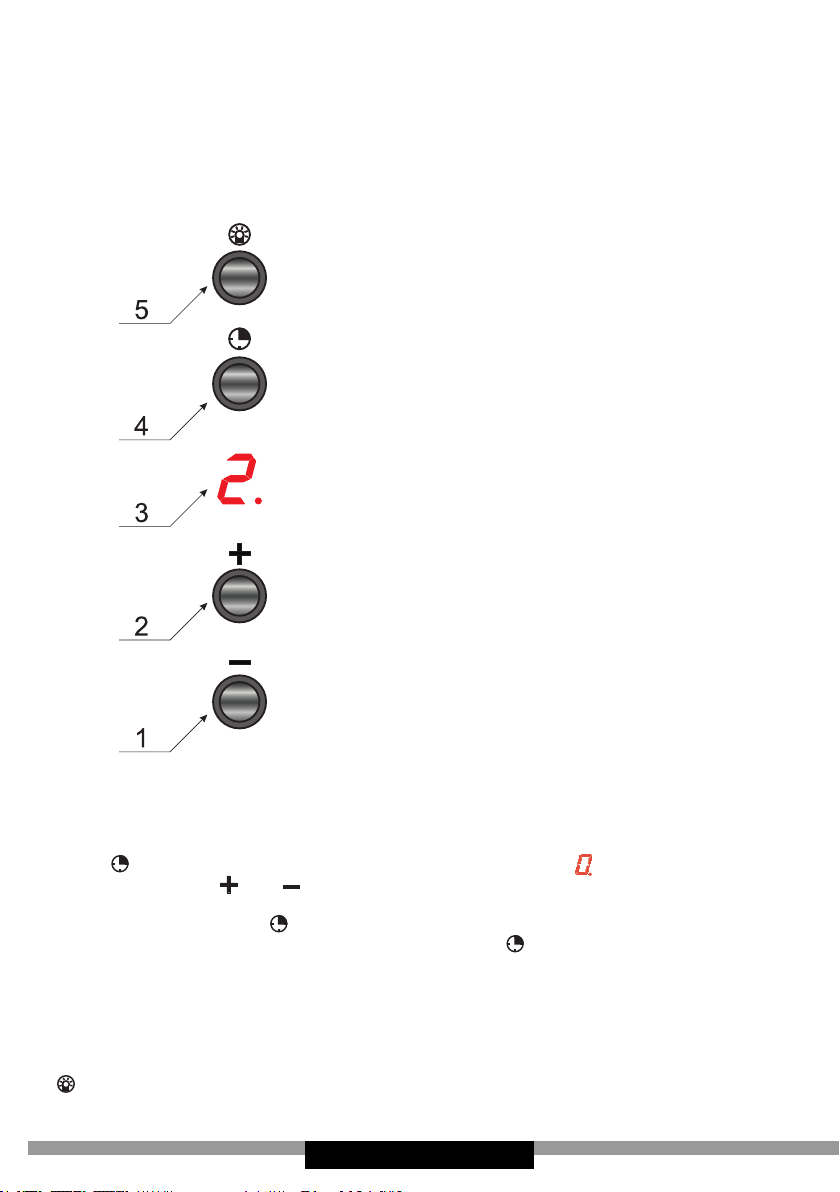

Control Panel is shown in Figure 4, for reference it is also shown below:

Control Panel

Touch one the sensors to enable the desired

function:

1 Reduce fan speed If the fan is running,

touch this sensor to turn it o.

2 Increase fan speed If the hood is in standby

mode, touch this sensor to turn on the fan.

3 Fan speed display (the display is not a con-

trol). The fan can run at 4 speeds.*

4 O timer

5 Lighting on/o The lighting operates inde-

pendently of hood fan.

Available fan speeds:*

- Low speed (1). Use this speed when cooking

a little food with hardly any fumes.

- Medium speeds (2 and 3*). Use this speed

when cooking multiple dishes at the same

time with moderate amount of fumes.

- High speed (4*). Use this speed when frying

or grilling, with large amount of fumes.

*Some models feature speeds 1–3.

O Timer

Use o timer to turn o the hood after a specied time. Use o timer to lter

the fumes out of the air after cooking. Maximum delay time is 90 minutes.

Press to cancel the o timer at any time. The number will ash on the

display. Then use and to select the delay in the range 1–9 (multiply the

number by ten to obtain delay in minutes, 1 – 10 minutes, 2 – 20 minutes ...

5 – 50 minutes). Press again to activate the function. The o timer is set a

dot will ash on by the digit on the display. Press to cancel the o timer. The

hood fan will run at the selected speed. Cancelling the o-timer does not turn

o the lighting.

Dimmer function (Brightness adjustment)

Use this function to adjust brightness. To adjust brightness, touch and hold the

sensor for about 2 seconds. The lighting brightness will change

Table des matières

Langues :

Autres manuels Amica hotte de ventilation

Amica

Amica OKC 653 SW Manuel utilisateur

Amica

Amica OKC654T Manuel utilisateur

Amica

Amica KH17159-2E Manuel utilisateur

Amica

Amica IN900BI Manuel utilisateur

Amica

Amica OKC6727I Manuel utilisateur

Amica

Amica KH17187E Manuel utilisateur

Amica

Amica OME6135I Manuel utilisateur

Amica

Amica OKC6651BIS HC Manuel utilisateur

Amica

Amica KHF 685 650 S Manuel utilisateur

Amica

Amica SOT 95 Series Manuel utilisateur

Amica

Amica OTS 645 I Manuel utilisateur

Amica

Amica KH 17403 S Manuel utilisateur

Amica

Amica OMP6241BI Manuel utilisateur

Amica

Amica KH 17214-2 E Manuel utilisateur

Amica

Amica OKC4441BK Manuel utilisateur

Amica

Amica IH 17211 E Mode d’emploi

Amica

Amica OKM6651IS Manuel utilisateur

Amica

Amica SP 62 AB Manuel utilisateur

Amica

Amica OTS 645 IOTS 625 IOTS 625 WOTS 615 IOTS 615 WOTS 515 IOTS 515 WOTS 635 IOTS 935 IFH 17231 EOTS 6425 IOTS 6521... Manuel utilisateur

Amica

Amica KH 17285-3 E Manuel utilisateur

Amica

Amica OKC951S Manuel utilisateur

Amica

Amica OKC5111MW Manuel utilisateur

Amica

Amica OKS6249SB Manuel utilisateur

Amica

Amica KH 17199 E Manuel utilisateur

Manuels hotte de ventilation populaires d'autres marques

emmeti

emmeti RECUPA MED A-140 Mode d’emploi

Nibe

Nibe F135 Manuel utilisateur

Kuppersberg

Kuppersberg INTRO 60 Instructions d'installation et d'entretien

Zephyr

Zephyr Spruce AK9834BS Guide d'installation

Hisense

Hisense MH6INBG Manuel utilisateur

Miele

Miele DA 1255 Manuel utilisateur

Broan

Broan 46000 Manuel utilisateur

GE Profile PV977 Instructions originales

FALMEC

FALMEC FFRIA24W5FS Manuel utilisateur

Whirlpool

Whirlpool RH2600XL-1 SERIES Manuel utilisateur

Küppersbusch

Küppersbusch DX ISLA Manuel utilisateur

ETNA

ETNA AV360RVS Manuel utilisateur

JUNO

JUNO JDF603E6 Manuel utilisateur

Miele

Miele DA 6708 D Manuel utilisateur

Tricity Bendix

Tricity Bendix LE 150 Manuel

AEG

AEG X68163BV1 Manuel utilisateur

AEG

AEG 125 D Manuel utilisateur

Smeg

Smeg KSEV97X Manuel utilisateur
