Ameriwood TYLER TOY STORAGE BOOKCASE Manuel utilisateur

B344947013COM00GO

- Unit can tip over causing severe injury or death.

- Anchor unit to stud in wall (if instructed to).

- Do Not allow children to climb on unit.

- Put heavy items on lower shelves or drawers.

WARNING

THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.

Do Not Return This Product!

Contact our customer service team for help first.

Call: 1-800-489-3351 (toll free)

Monday-Friday 9am - 5pm CST

Visit: www.ameriwoodhome.com

Follow Ameriwood Home

Date of Purchase ___ / ___ / ___

Lot Number:

4947013COM

TYLER TOY STORAGE BOOKCASE

Tube

You

Assembly Difficulty Meter

Easy Tough

Do NOT return this product!

Contact our friendly customer service team first for help.

Visit ameriwoodhome.com

Assembly Tips

- Open your item in the area you plan to keep it to avoid excessive heavy lifting.

- Identify, sort and count the parts before attempting assembly.

- Compression dowels are lightly tapped in with a hammer.

- Slides are labeled with a R (right) and L (left) for proper placement.

- Make sure to always face the point on the top of the Cam Lock towards the

outer edge.

- Use all the nails provided for the back panel and spread them out equally.

- Back panel must be used to make sure your unit is sturdy.

- Do NOT use harsh chemicals or abrasive cleaners on this item.

- Never push, pull, or drag your furniture.

ameriwoodhome.com

PEOPLE NEEDED FOR ASSEMBLY: 1-2

ESTIMATED ASSEMBLY TIME: 0.5-1 HOUR

Helpful Hints

Call us!

1-800-489-3351

Monday-Friday

9am - 5pm CST

Tube

You

Tube

You

Quick

Tip

Assembly

ameriwoodhome.com

Read through each step carefully and follow the proper order

Separate and count all your parts and hardware

Give yourself enough room for the assembly process

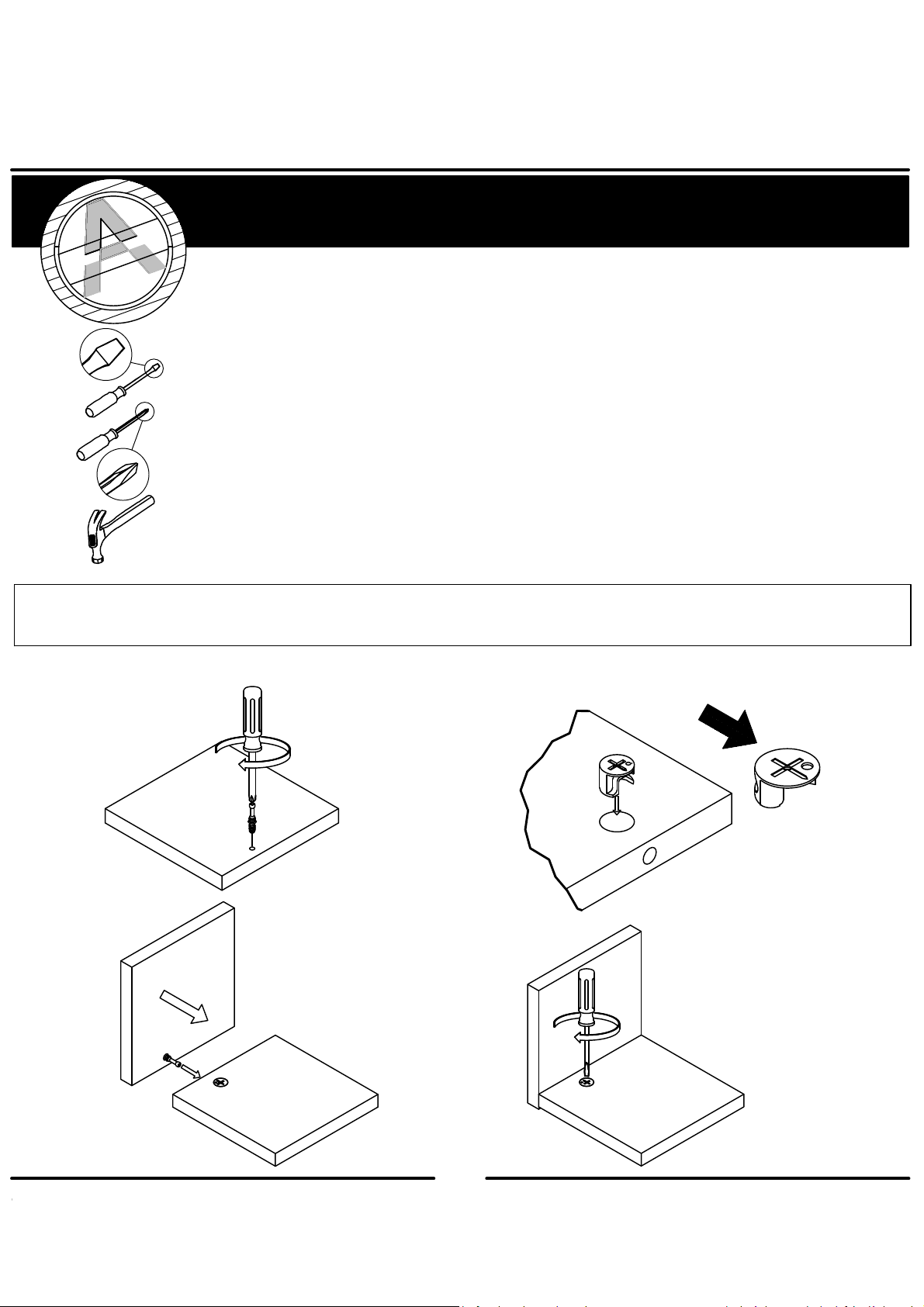

Have the following tools: Flat Head Screwdriver, #2 Phillips Head

Screwdriver and Hammer

Caution: If using a power drill or power screwdriver for screwing,

please be aware to slow down and stop when screw is tight.

Failure to do so may result in stripping the screw.

Before You Start

Cam Lock Fastening System

This Cam Lock Fastening System will be used throughout the assembly process.

Tube

You

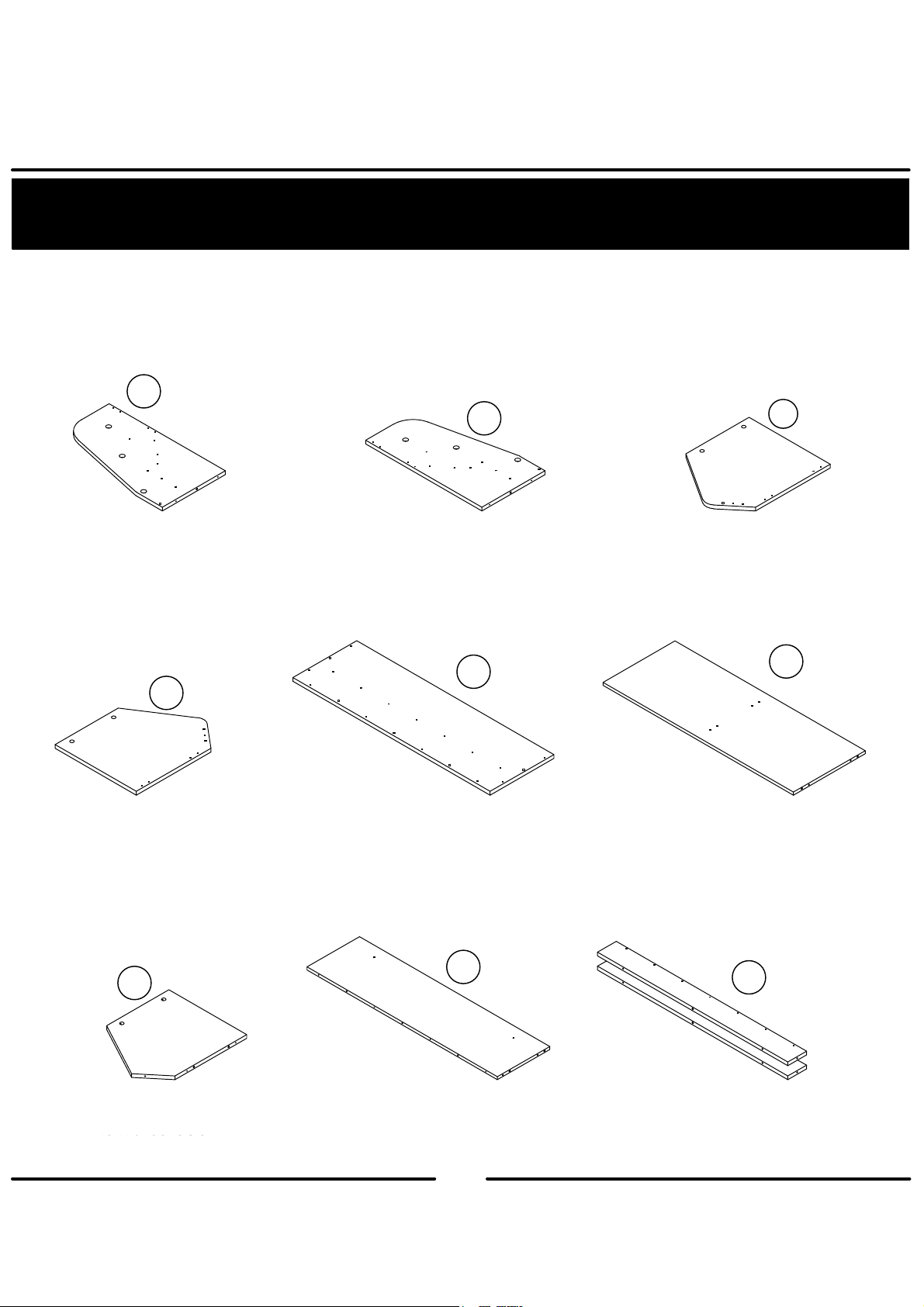

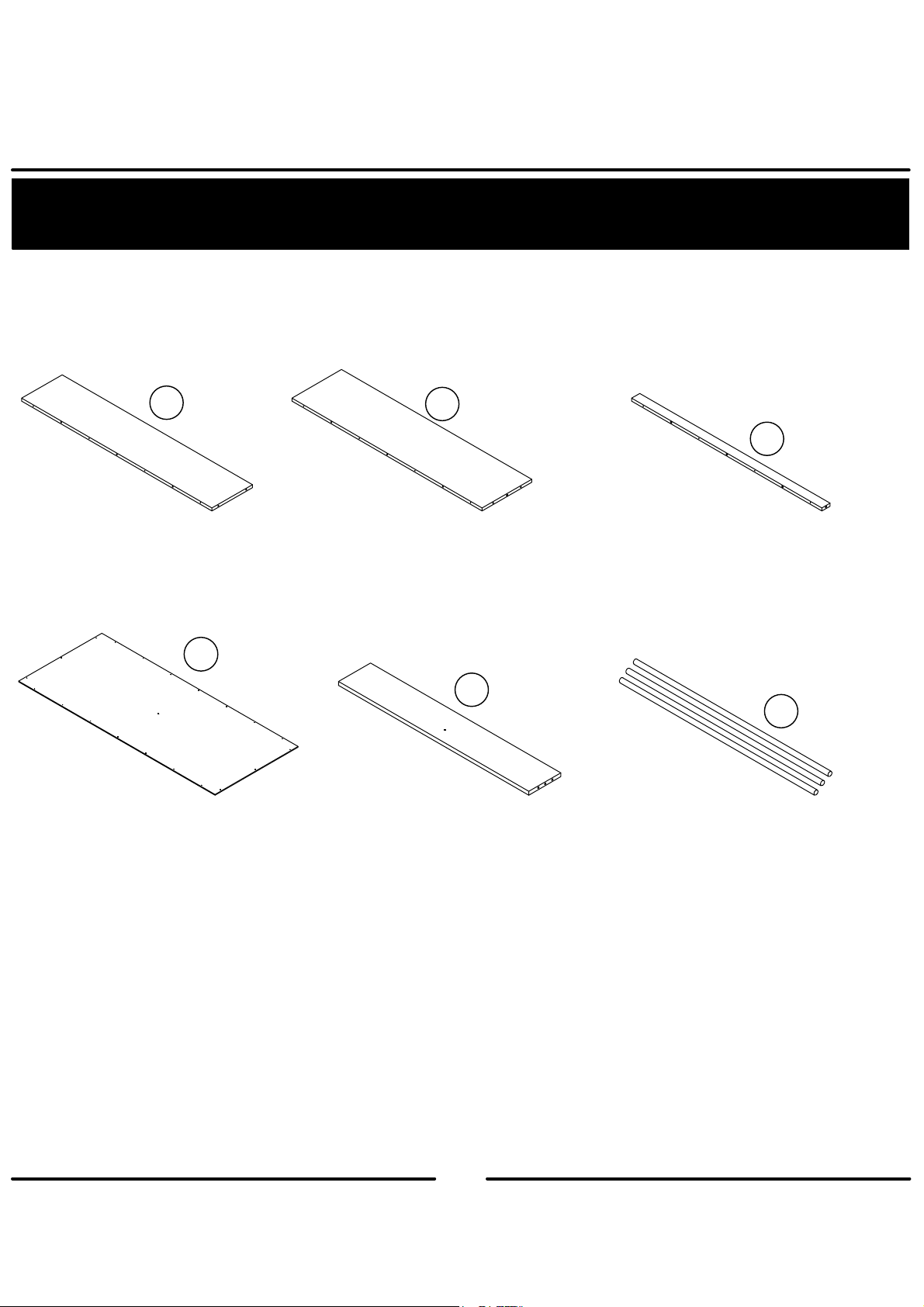

Board Identification

Not actual size

ameriwoodhome.com

UPPER RIGHT PANEL

T4947013020GO

QTY: 1 PC

LOWER LEFT PANEL

T4947013030GO

QTY: 1 PC

UPPER LEFT PANEL

T4947013010GO

QTY: 1 PC

LOWER RIGHT PANEL

T4947013040GO

QTY: 1 PC

FIXED SHELF

T4947013050GO

QTY: 1 PC

BOTTOM

T4947013060GO

QTY: 1 PC

LOWER PARTITION

T4947013070GO

QTY: 1 PC

UPPER SOLID BACK

T4947013080GO

QTY: 1 PC

UPPER BOTTOM

T4947013090GO

QTY: 2 PCS

Tube

You

Board Identification

Not actual size

ameriwoodhome.com

MID SOLID BACK

T4947013100GO

QTY: 1 PC

Tube

You

LOWER SOLID BACK

T4947013110GO

QTY: 1 PC

RAIL

T4947013120GO

QTY: 1 PC

BACK PANEL

T4947013130GO

QTY: 1 PC

FRONT PANEL

T4947013140GO

QTY: 1 PC

ROD

T4947013150GO

QTY: 3 PCS

Board Identification

Not actual size

ameriwoodhome.com

Tube

You

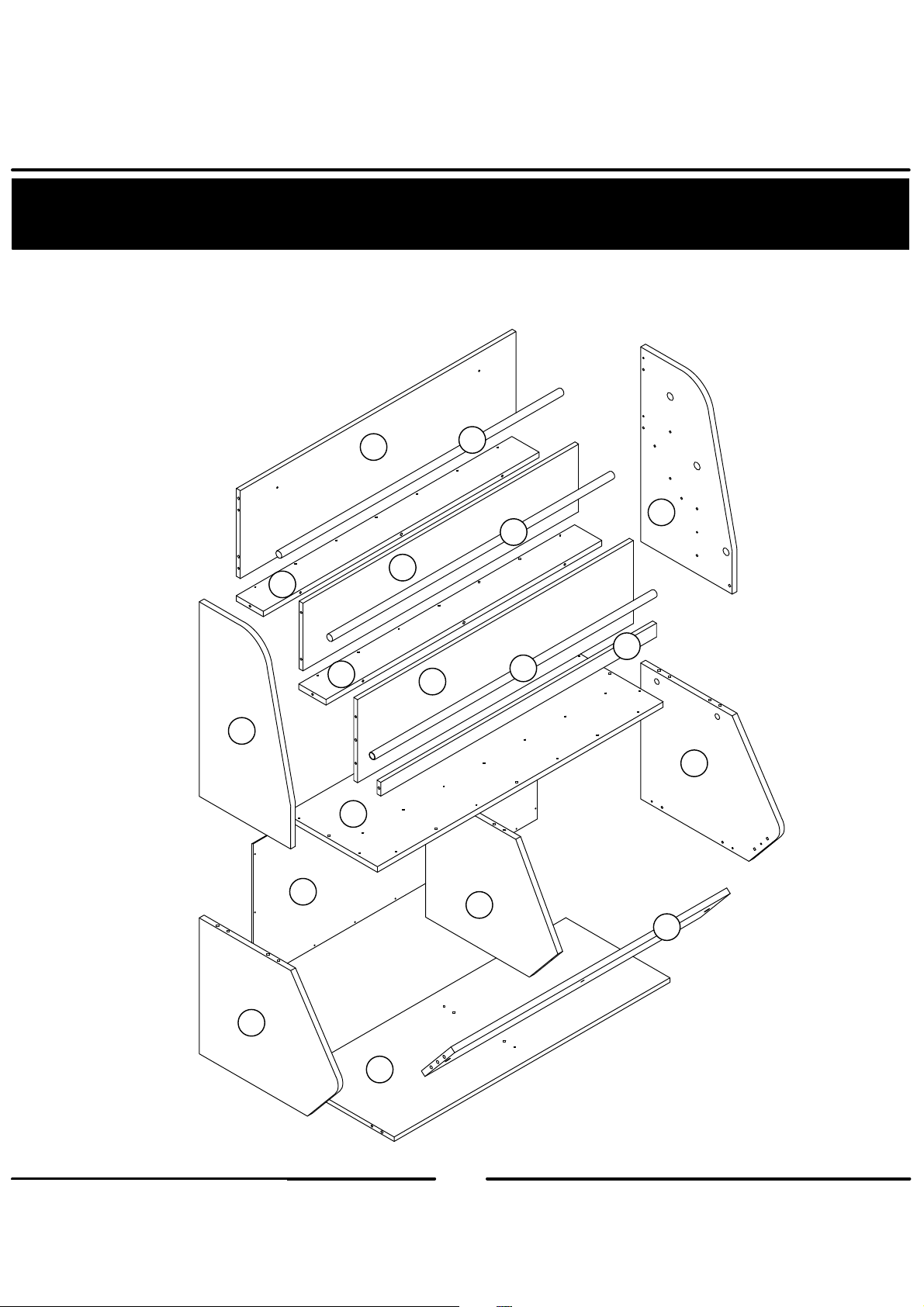

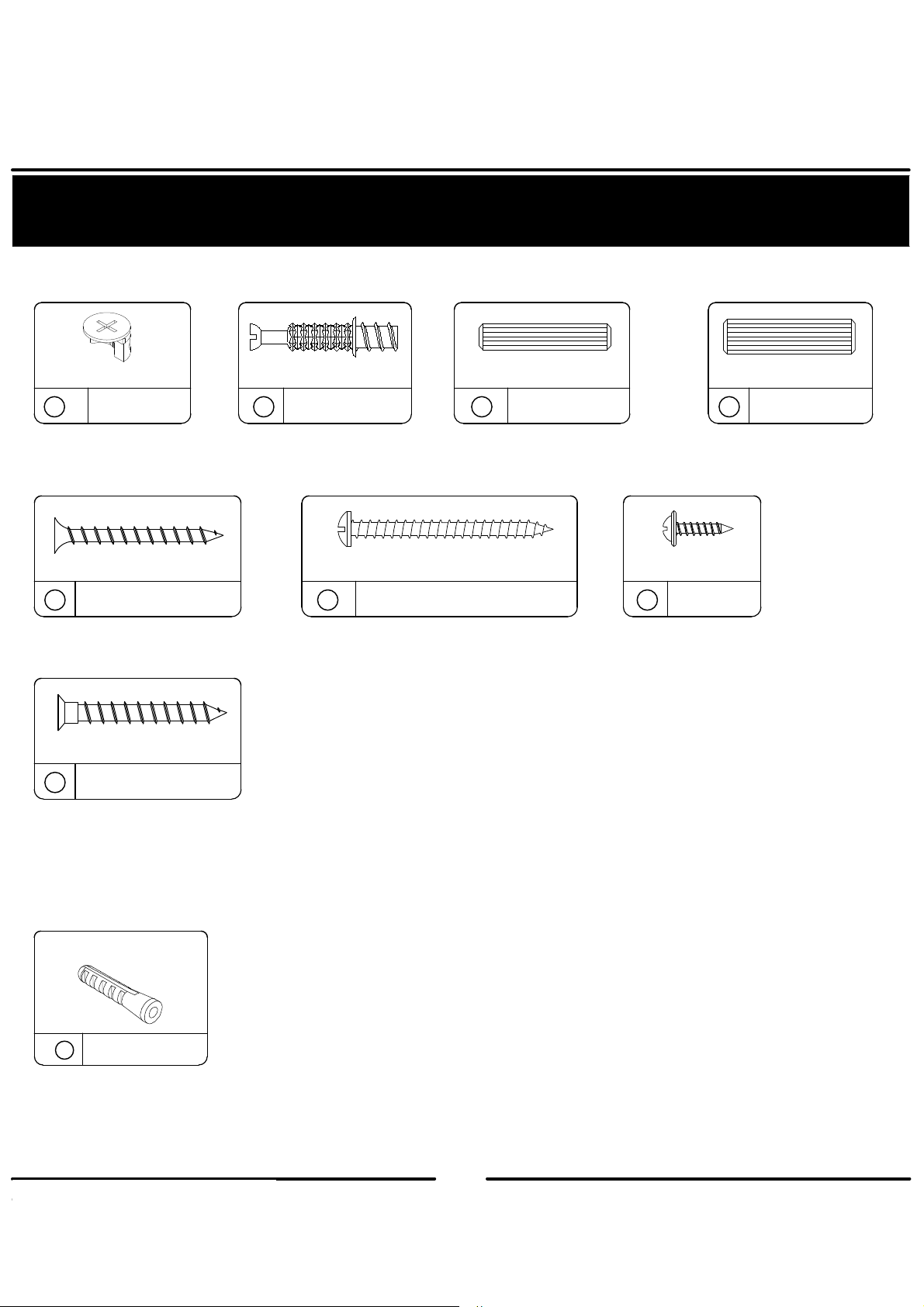

Part List

ameriwoodhome.com

Hardware Bag Reference number:

24947013COM0GO

Actual Size

×20 ×20 ×19

×2

CAM LOCK

TGO2100

WOOD DOWEL

TGO2900

SCREW

TGO1013

Ø3 X 12mm

×21

SCREW

TGO1301

Ø4.2 X 45MM

Ø8 x 30mm

Ø15 x 10mm

1 2 4

6 7

×33

Ø6 x 25mm

CAM BOLT

TGO2001

×22

WOOD DOWEL

TGO2903

Ø6 x 30mm

Not Actual Size

×2

WALL ANCHOR

TGO6501

Ø6 x 30mm

Tube

You

Ø4 x 38mm

SCREW

TGO1319

×18

Ø5 x 38mm

SCREW

TGO1320

ameriwoodhome.com

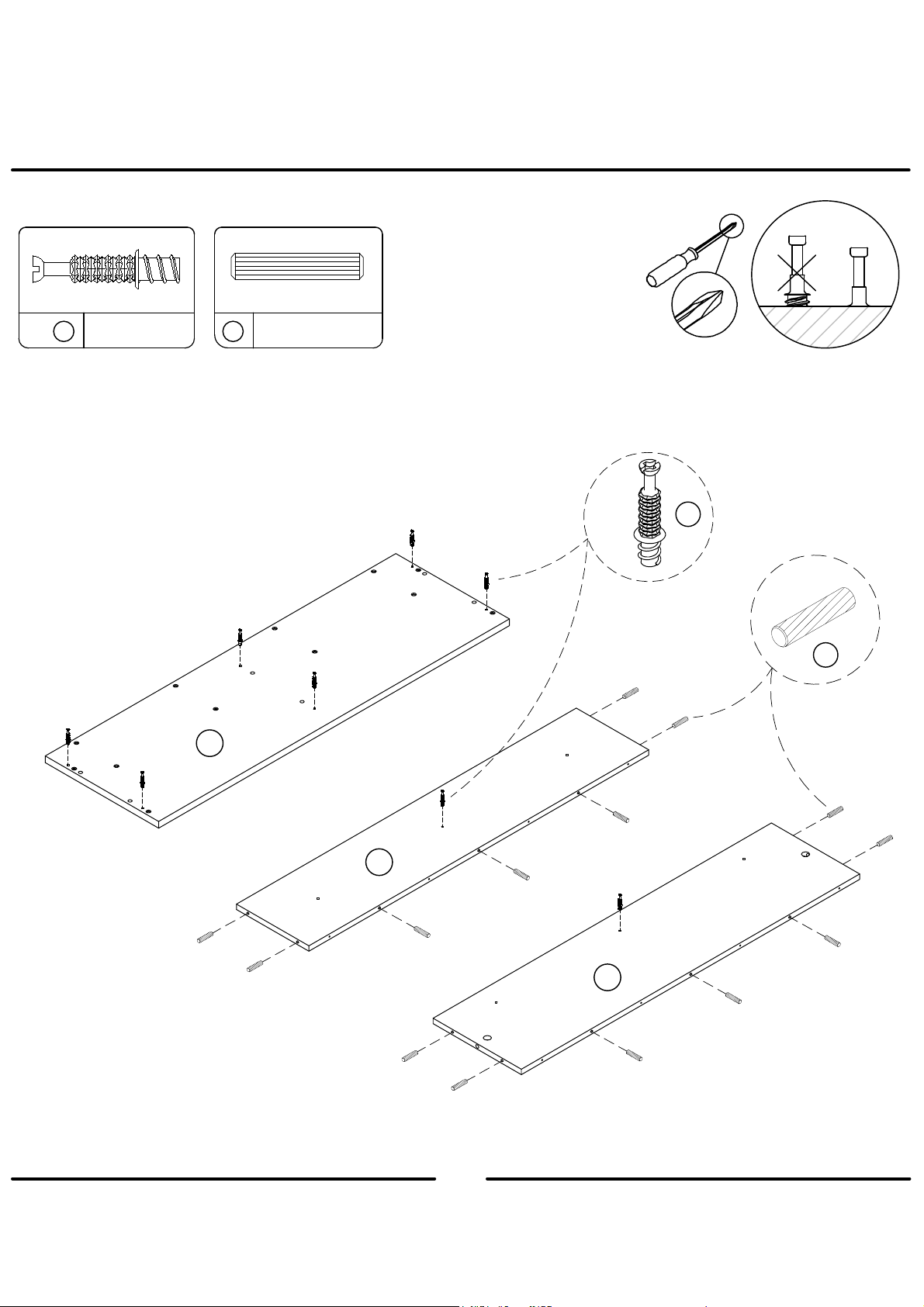

STEP

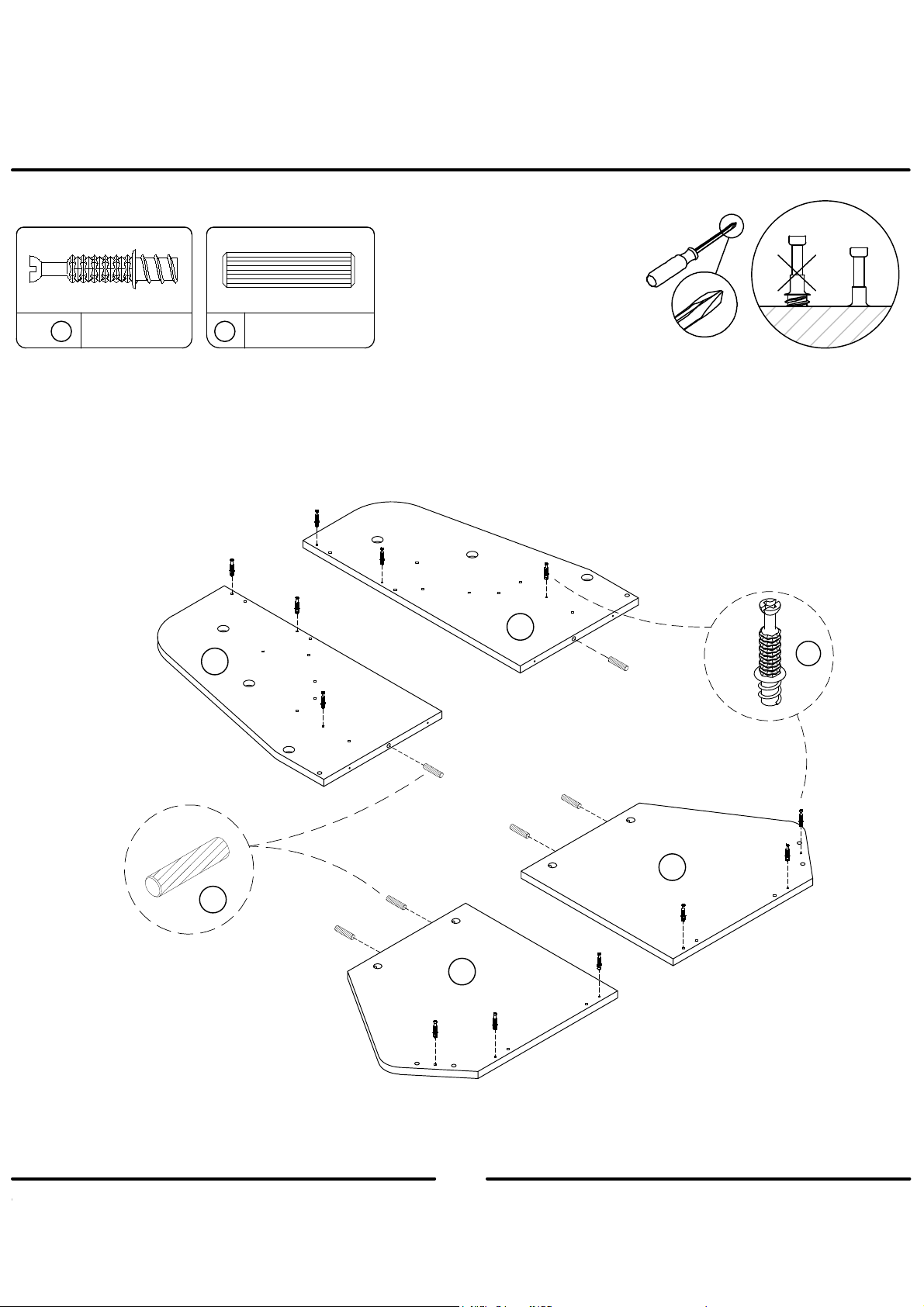

1.1 Cam bolt (3) into (A), (B), (C) and (D) as illustrated.

1.2 Insert (4) into (A), (B), (C) and (D) as illustrated.

×12

24 ×6

Tube

You

ameriwoodhome.com

STEP

2.1 Insert (3) into (K) and (J) as illustrated.

2.2 Cam bolt (2) into (E), (J) and (K) as illustrated.

×8

23 ×14

Tube

You

ameriwoodhome.com

STEP

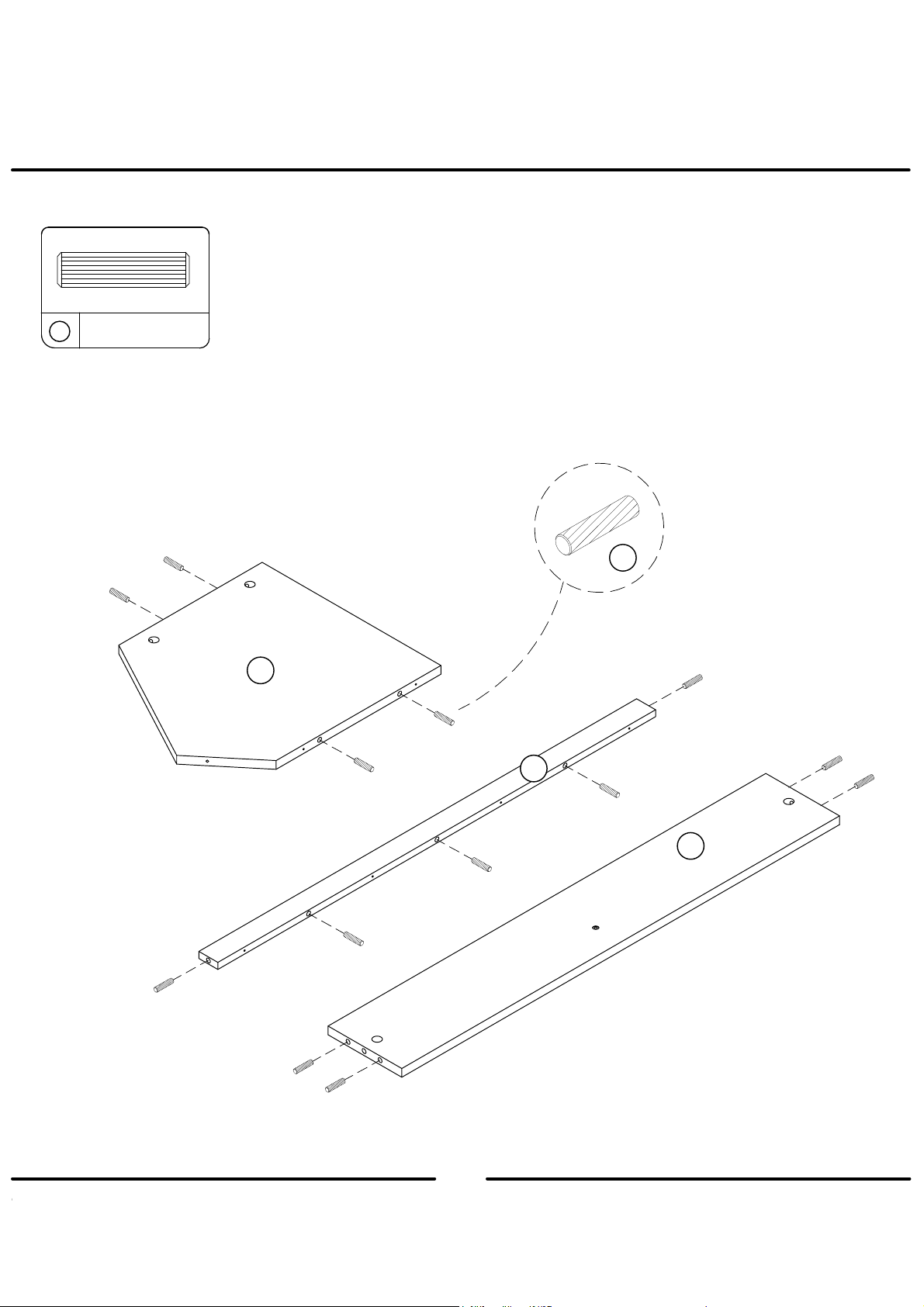

3.1 Insert (4) into (G), (L) and (N) as illustrated.

×13

Tube

You
