Ameriwood HOME Vaughn 5993096COM Manuel utilisateur

B345993096COM0Date of Purchase ___ / ___ / ___

Lot Number:

ameriwoodhome.com

Vaughn Nightstand

5993096COM

- Unit can over causing severe injury or death.

- Anchor unit to stud in wall (if instructed to).

- Do Not allow children to climb on unit.

- Put heavy items on lower shelves or drawers.

WARNING

Do Not Return This Product!

Contact our customer service team for help

Call: 1-800-489-3351 (toll free)

Monday-Friday 9am - 5pm CST

Visit: www.ameriwoodhome.com

Follow Ameriwood Home

Tube

You

Assembly Meter

Easy Tough

UPC for Wal-Mart

models.

THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.

Helpful Hints

Do NOT return this product!

Contact our friendly customer service team rst for help

ameriwoodhome.com

- Open your item in the area you plan to keep it to avoid excessive heavy liing.

- Idenfy, sort and count the parts before aempng assembly.

- Compression dowels are lightly tapped in with a hammer.

- Slides are labeled with a R (right) and L (le) for proper placement.

- Make sure to always face the point on the top of the Cam Lock towards the

outer edge.

- Use all the nails provided for the back panel and spread them out equally.

- Back panel must be used to make sure your unit is sturdy.

- Do NOT use harsh chemicals or abrasive cleaners on this item.

- Never push, pull, or drag your furniture.

Call us!

1-800-489-3351

Monday-Friday

9am - 5pm CST

Visit ameriwoodhome.com

Assembly Tips

Tube

You

PEOPLE NEEDED FOR ASSEMBLY: 1-2

ESTIMATED ASSEMBLY TIME: 1 HOUR

Before You Start

Cam Lock Fastening System

5993096COM

Vaughn Nightstand

ameriwoodhome.com

This Cam Lock Fastening System will be used throughout the assembly process.

Read through each step carefully and follow the proper order

Separate and count all your parts and hardware

Give yourself enough room for the assembly process

Have the following tools: Flat Head Screwdriver, #2 Phillips Head

Screwdriver and Hammer

Cauon: If using a power drill or power screwdriver for screwing,

please be aware to slow down and stop when screw is ght.

Failure to do so may result in stripping the screw.

Quick

Tip

Assembly

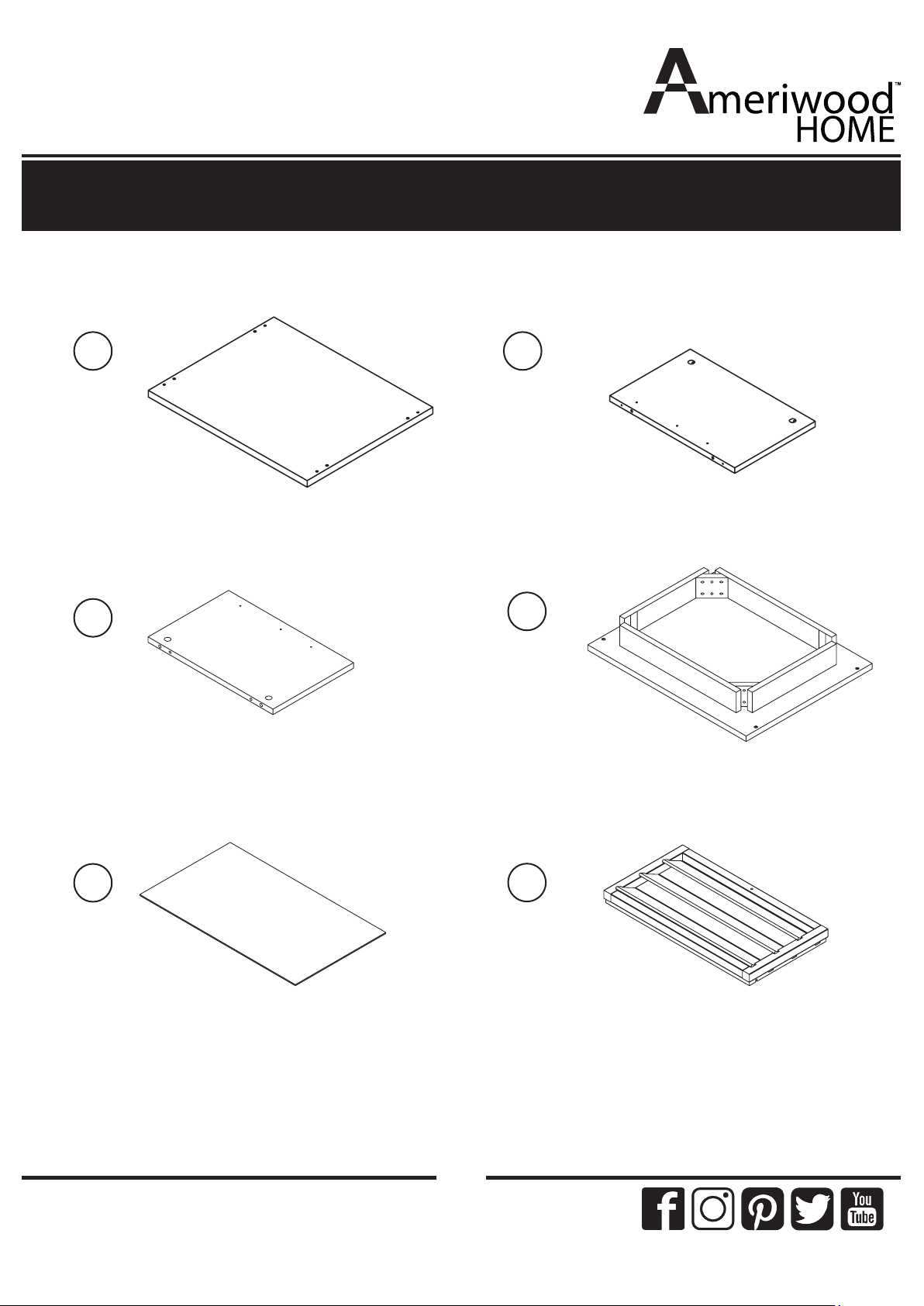

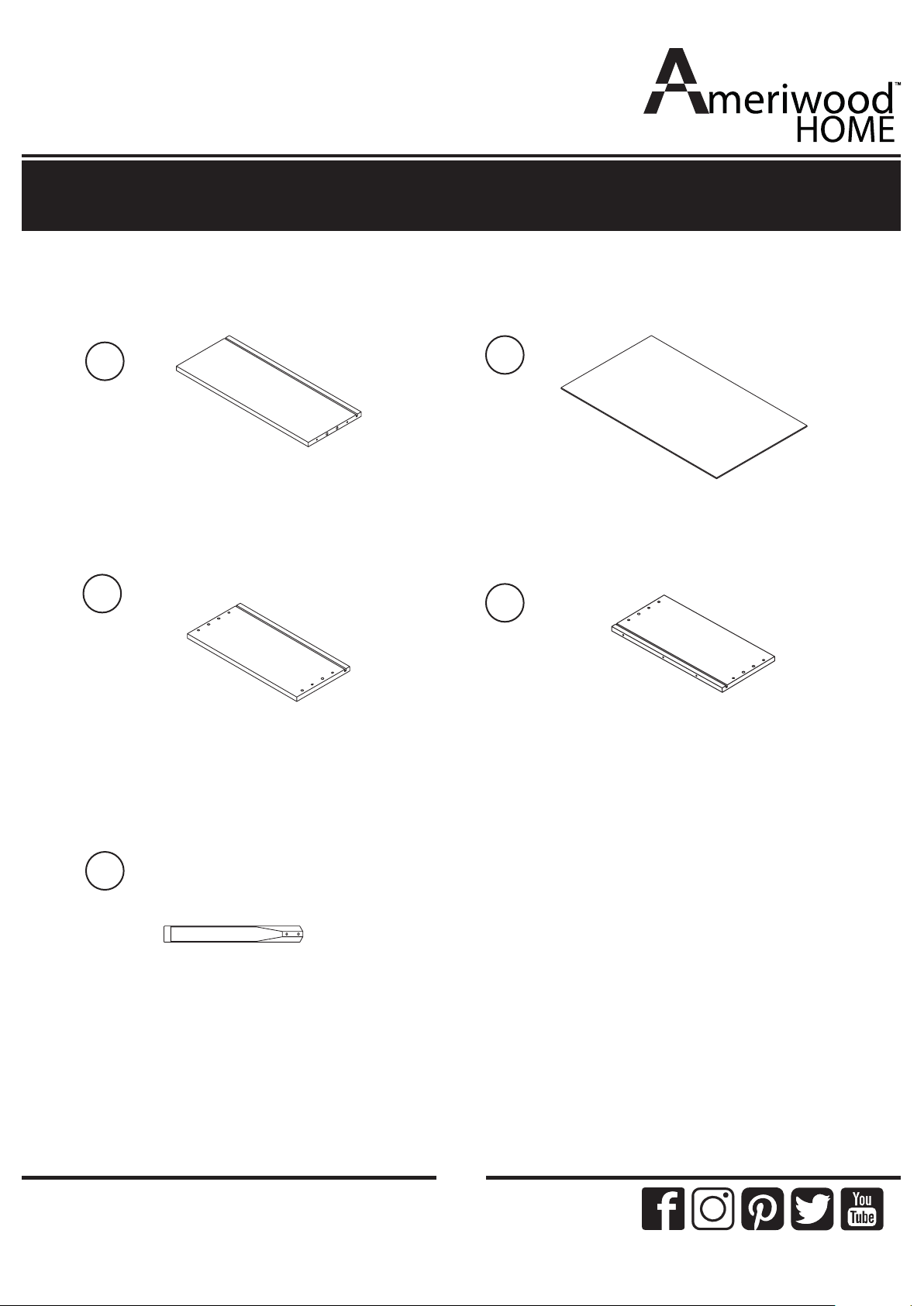

Board Identfcaton

Not actual size

5993096COM

Vaughn Nightstand

ameriwoodhome.com

T5993096010

TOP PANEL

T5993096020

SIDE RIGHT PANEL

T5993096030

SIDE LEFT PANEL

T5993096040

BOTTOM PANEL

T5993096050

BACK PANEL

T5993096060

DRAWER FACE

Board Identfcaton

Not actual size

5993096COM

Vaughn Nightstand

ameriwoodhome.com

T5993096070

DRAWER BOX BACK

T5993096080

DRAWER BOTTOM

T5993096090

DRAWER BOX LEFT

T5993096100

DRAWER BOX RIGHT

T5993096110

WOOD LEG

Part List

Actual Size

5993096COM

Vaughn Nightstand

ameriwoodhome.com

TTA0001

Cam Bolt

TTA0003

Cam Lock

15-11.5

x14

TTA0005

CBS 3.5 x 12 (RB)

TTA0046

SCREW JCBC

M6 X 50

TTA0014

PHM 4 X 20

x12

TTA0016

DOWEL 6 X 30

x18

TTA0018

NAILS 6/8”

POWER PIN

Not Actual Size

x1 Set

TTA0048

DRAWER SLIDE Q-FIT

350 MML (BLK)

x1 SET

TTA0030

DRW BRACKET AMERI-

WOOD A54223-116MM

TTA0011

CBS (BLK) M4 X 38

TTA0013

SCREW PHCB

4 X 12 MM (RB)

TTA0047 (BLK)

SPRING WASHER

TTA0050

METAL -KNOB

VAUGHN 8G (BLK)

TTA0053 (BLK)

FLAT WASHER

6 x 20 x 1

1 2 3 4

5 6 7 8

9 10 11

12 13 14 15

5993096COM

Vaughn Nightstand

ameriwoodhome.com

*raw edges are shaded

TTA0003

Cam Lock

TTA0016

DOWEL 6 X 30

TTA0005

CBS 3.5 x 12

TTA0048

Drawer Slide Q-Fit

350 (BLK)

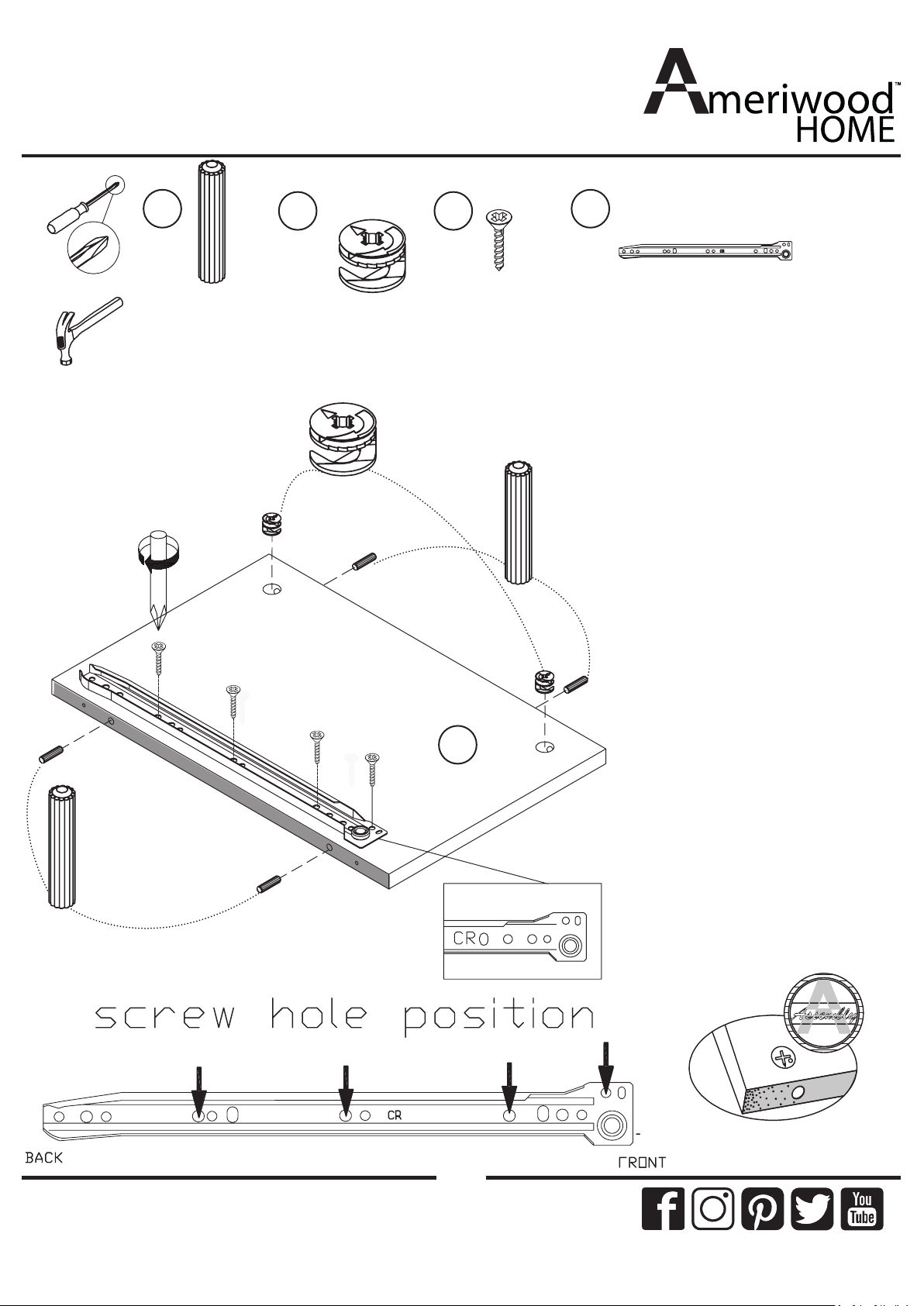

Step 1

Proper orientation of CAM LOCK

Tip

Assembly

Quick

Insert two cam lock, and four

dowel into the panel as shown.

Aach drawer slide with screw

to the side panel as shown.

10 2 3 14

5993096COM

Vaughn Nightstand

ameriwoodhome.com

*raw edges are shaded

Step 2

TTA0003

Cam Lock

TTA0016

DOWEL 6 X 30

TTA0005

CBS 3.5 x 12

TTA0048

Drawer Slide

350 BLK

Proper orientation of CAM LOCK

Tip

Assembly

Quick

Insert two cam lock, and four dowel

into the panel as shown.

Aach drawer slide with screw to

the side panel as shown.

10 2 3 14

5993096COM

Vaughn Nightstand

ameriwoodhome.com

Step 3

TTA0001

Cam Bolt

Insert four cam bolt into

the top panel as shown.

5993096COM

Vaughn Nightstand

ameriwoodhome.com

*raw edges are shaded

Aach the side right panel (B) and side le

panel (C) to the boom panel (D) as shown.

Step 4
