Ameriwood HOME Franklin Manuel utilisateur

B346228013COM00UD

Do Not Return This Product!

Contact our customer service team for help rst

Call: 1-800-489-3351 (toll free)

Monday-Friday 9am - 5pm CST

Visit: www.ameriwoodhome.com

–Unit can p over causing severe injury or death.

–Anchor unit to stud in wall (if instructed to)

–Do not allow children climb on unit

–Put heavy items on lower shelves or drawers

Franklin 6 Drawer Dresser

6228013COM

Date of Purchase: ____/____/_____

Lot Number:

THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.

WARNING

Easy Tough

Assembly Diculty Meter

Follow Ameriwood Home

Helpful Hints

Do NOT return this product!

Contact our friendly customer service team rst for help

Call us!

1-800-489-3351

Monday-Friday

9am - 5pm CST

PEOPLE NEEDED FOR ASSEMBLY: 1-2

ESTIMATED ASSEMBLY TIME: 1 HOUR

Visit ameriwoodhome.com

Assembly Tips

ameriwoodhome.com

- Open your item in the area you plan to keep it for less heavy liing

- Idenfy, sort and count the parts before aempng assembly

- Compression dowels are tapped in with a hammer

- Slides are labeled with a R (right) and L (le) for proper placement

- Make sure to always face the point on the top of the Cam Lock towards the

outer edge

- Use all the nails provided for the back panel and spread them out equally

- Back Panel must be used to make sure your unit is sturdy

- Do NOT use harsh chemicals or abrasive cleaners on this item

- Never push, pull, or drag your furniture

Before You Start

Cam Lock Fastening System

ameriwoodhome.com

This Cam Lock Fastening System will be used throughout the assembly process.

Read through each step carefully and follow the proper order

Separate and count all your parts and hardware

Give yourself enough room for the assembly process

Have the following tools: Flat Head Screwdriver, #2 Phillips Head

Screwdriver and Hammer

Cauon: If using a power drill or power screwdriver for screwing,

please be aware to slow down and stop when screw is ght.

Failure to do so may result in stripping the screw.

Quick

Tip

Assembly

Board Idencaon

Not actual size

ameriwoodhome.com

T6228013020UD

BOTTOM PANEL

T6228013030UD

LEFT SIDE PANEL

T6228013010UD

TOP PANEL

T6228013040UD

RIGHT SIDE PANEL

T6228013070UD

BACK PANEL

T6228013050UD

PARTITION

T6228013080UD

DRAWER FRONT

2 3

T6228013060UD

MIDDLE FOOT

T6228013090UD

DRAWER SIDE LEFT

7 8 9

Board Idencaon

Not actual size

ameriwoodhome.com

T6228013110UD

DRAWER BACK PANEL

T6228013120UD

DRAWER BOTTOM-

PANEL

T6228013100UD

DRAWER SIDE RIGHT

T6228013130UD

DRAWER BOTTOM

SUPPORT

10 11 12

Part List

Not Actual Size

ameriwoodhome.com

x24

TUD0009

CBS 4 x 38

x48

TUD0002

CAM LOCK

15-12

Hardware Bag Reference Number:

26228013COM0UD

x48

TUD0001

CAM BOLT

x12

TUD0004

DOWEL

8X25

TUD0010

PH M4 X 18

TUD0060

HANDLE

JCH-0055

x24

TUD0006

NAIL

TUD0047

M6 X 40

x1 set

TUD0021

ANTI TIPPING KIT

TUD0026

ALLEN KEY

ameriwoodhome.com

* raw edges are shaded

Proper orientaon of CAM LOCK

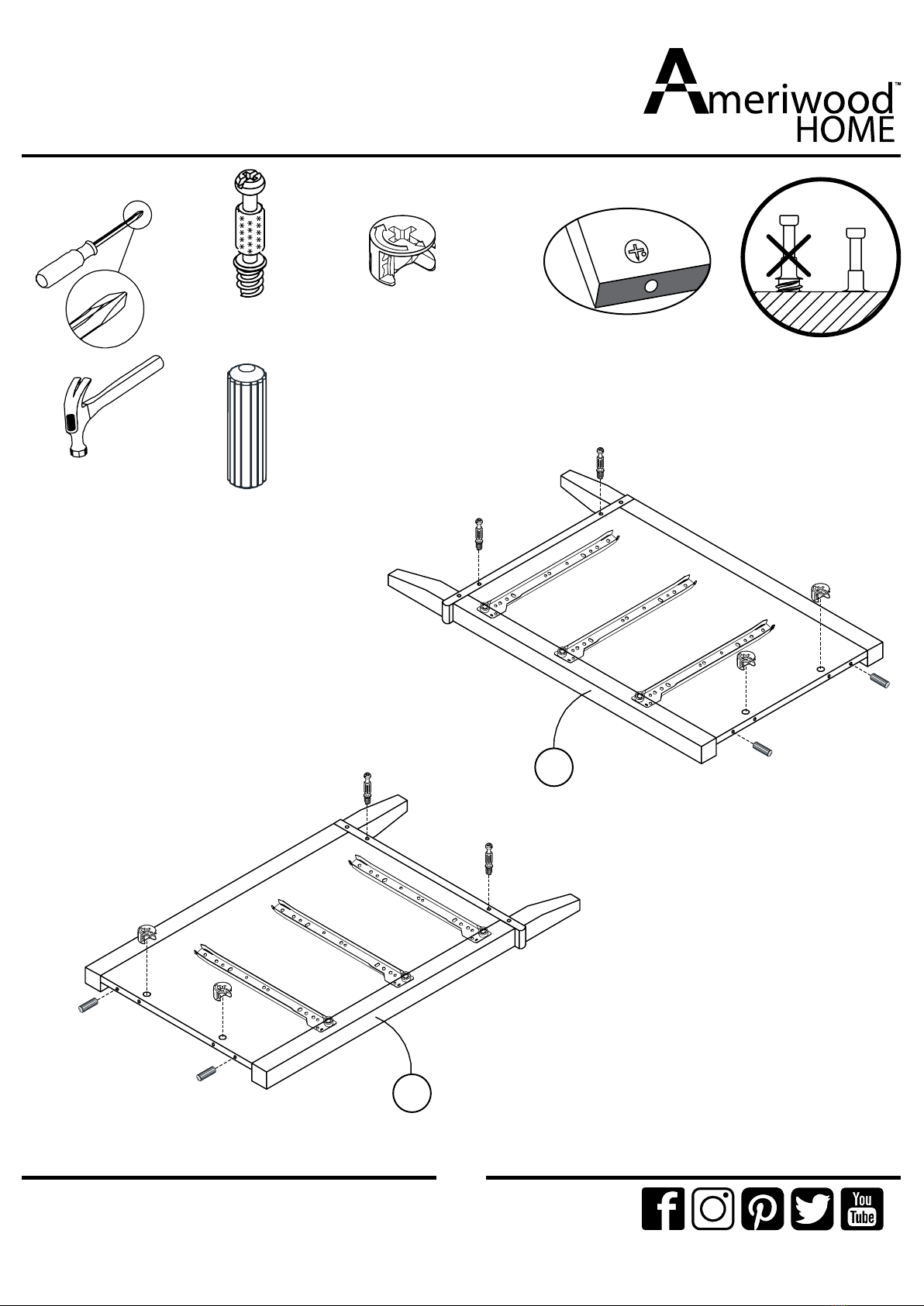

Step 1

TUD0001

TUD0004

TUD0002

Insert Cam Bolt and

fully ghten it.

ameriwoodhome.com

* raw edges are shaded

Proper orientaon of CAM LOCK

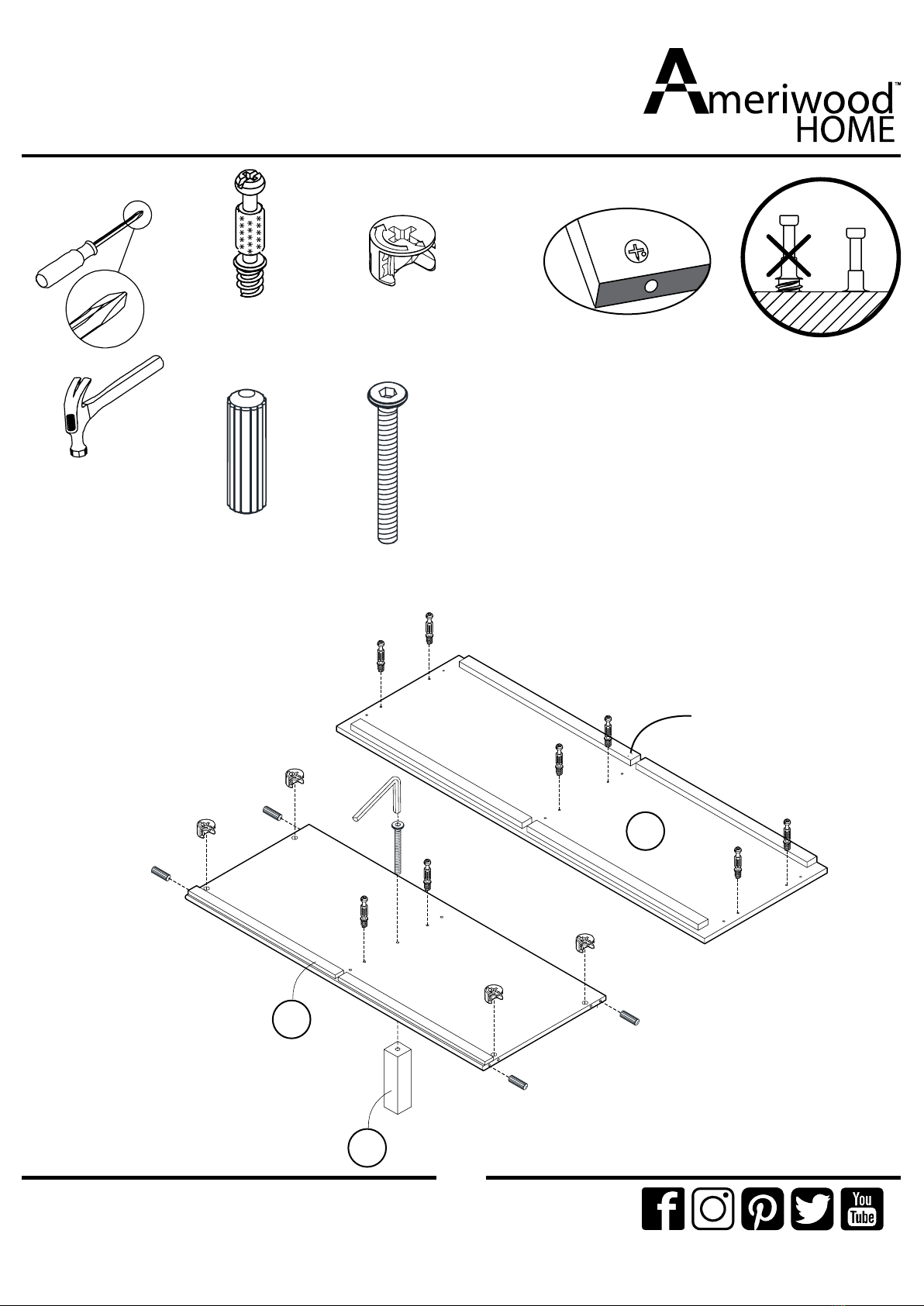

Step 2

TUD0001

TUD0004

TUD0002

TUD0028

M6 X 40

Insert Cam Bolt and

fully ghten it.

Tipping kit mark

ameriwoodhome.com

* raw edges are shaded

Proper orientaon of CAM LOCK

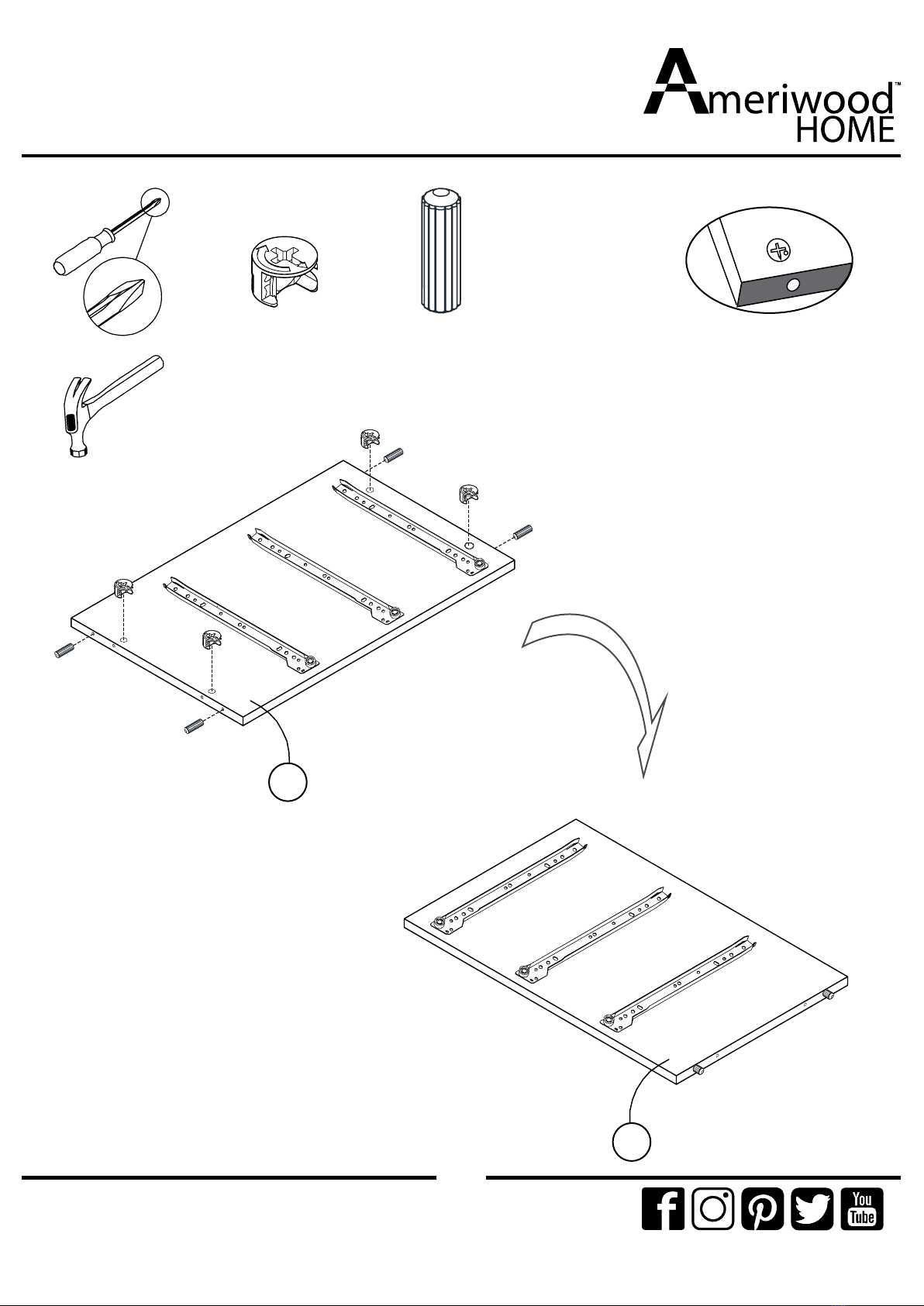

Step 3

TUD0002

TUD0004

RIGHT HAND SIDE

LEFT HAND SIDE

ameriwoodhome.com

* raw edges are shaded

Step 4

Aach 5 to 2 and fully ghten it as below

shown.
