Ameriwood HOME 1764096PCOM Manuel utilisateur

1764096PCOM

Fireplace / TV Stand

- Unit can tip over causing severe injury or death.

- Anchor unit to stud in wall (if instructed to).

- Do Not allow children to climb on unit.

- Put heavy items on lower shelves or drawers.

B341764096PCOM

THIS INSTRUCTION BOOKLET CONTAINS

IMPORTANT

SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.

WARNING

Follow Ameriwood Home

Tube

You

Date of Purchase ___ / ___ / ___

Lot Number:

Do Not Return This Product!

Contact our customer service team for help first.

Call: 1-800-489-3351 (toll free)

Monday-Friday 9am - 5pm CST

Visit: www.ameriwoodhome.com

Assembly Difficulty Meter

Easy Tough

Helpful Hints

ameriwoodhome.com

Do NOT return this product!

Contact our friendly customer service team first for help.

Call us!

1-800-489-3351

Monday-Friday

9am - 5pm CST

Visit ameriwoodhome.com to view the

limited warranty valid in the U.S. and Canada.

Assembly Tips

- Open your item in the area you plan to keep it to avoid excessive heavy lifting.

- Identify, sort and count the parts before attempting assembly.

- Compression dowels are lightly tapped in with a hammer.

- Slides are labeled with a

(right) and

(left) for proper placement.

- Make sure to always face the point on the top of the Cam Lock towards the

outer edge.

- Use all the nails provided for the back panel and spread them out equally.

- Back panel must be used to make sure your unit is sturdy.

- Do NOT use harsh chemicals or abrasive cleaners on this item.

- Never push, pull, or drag your furniture.

Tube

You

Tube

You

PEOPLE NEEDED FOR ASSEMBLY: 1-2

ESTIMATED ASSEMBLY TIME: 1 HOUR

ameriwoodhome.com

Before You Start

Quick

Tip

Assembly

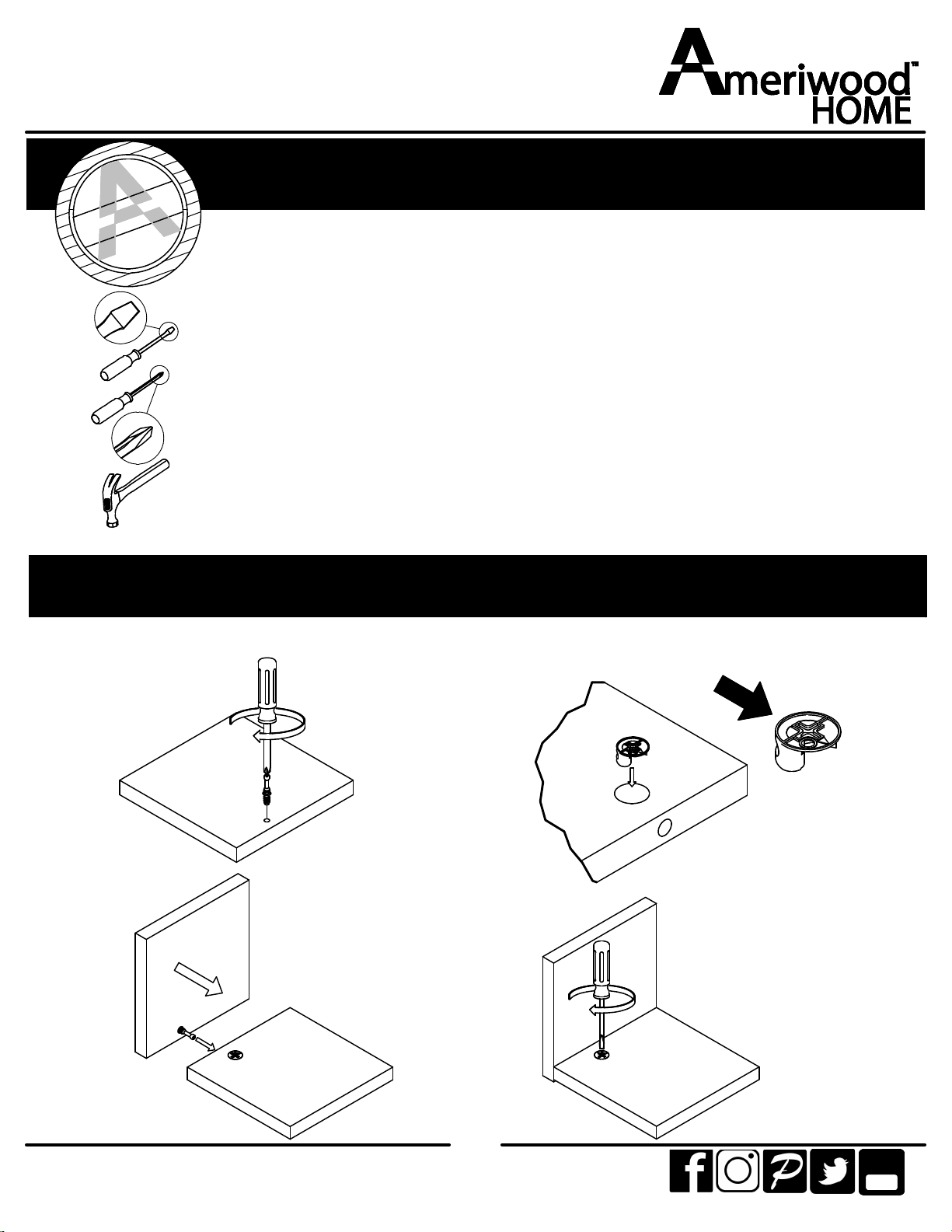

Cam Lock Fastening System

This Cam Lock Fastening System will be used throughout the assembly process.

Tube

You

Read through each step carefully and follow the proper order

Separate and count all your parts and hardware

Give yourself enough room for the assembly process

Have the following tools: Flat Head Screwdriver, #2 Phillips Head

Screwdriver and Hammer

Caution: If using a power drill or power screwdriver for screwing,

please be aware to slow down and stop when screw is tight.

Failure to do so may result in stripping the screw.

ameriwoodhome.com

Before You Start

Quick

Tip

Assembly

Tube

You

ameriwoodhome.com

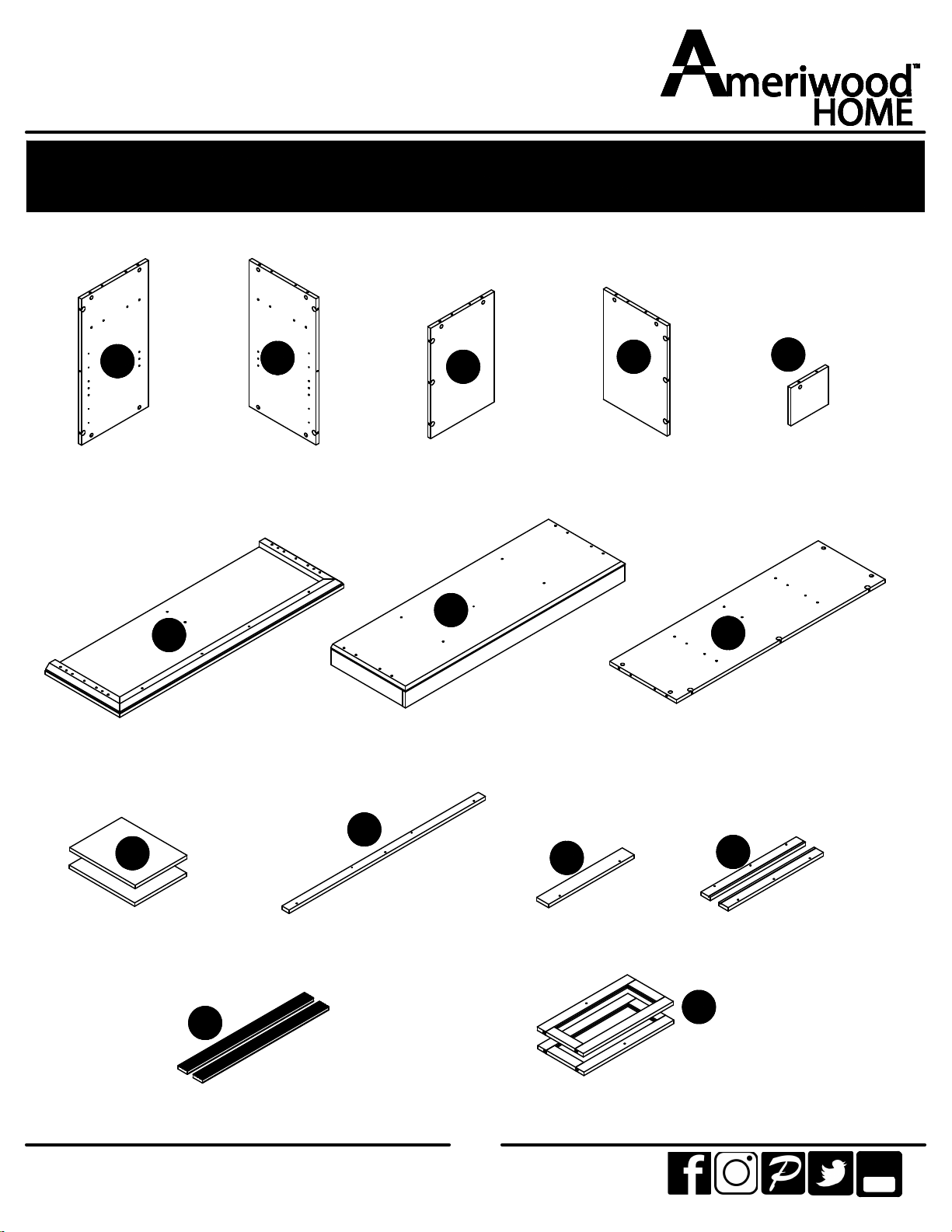

Board Identification

Not actual size

Tube

You

Left Panel

31764303010

Right Panel

31764303020

Left Partition

31764303030

Right Partition

31764303040

Upper Partition

31764303050

BCDE

Top Assembly

31764303060

Bottom Assembly

31764303070

Center Shelf

31764303080

Adjustable Shelf (x2)

31764303090

Center Shelf Rail

31764303100

Horizontal Rail

31764303110

Vertical Rail (x2)

31764303120

End Panel Molding (x2)

31764303130

Door (x2)

31764303140

ameriwoodhome.com

Board Identification

Not actual size

Tube

You

Back Panel

K176430300

Side Back Panel (x2)

K176430310

These pieces are paperboard construction.

They are not made from wood, but are

required for the assembly of your unit.

ameriwoodhome.com

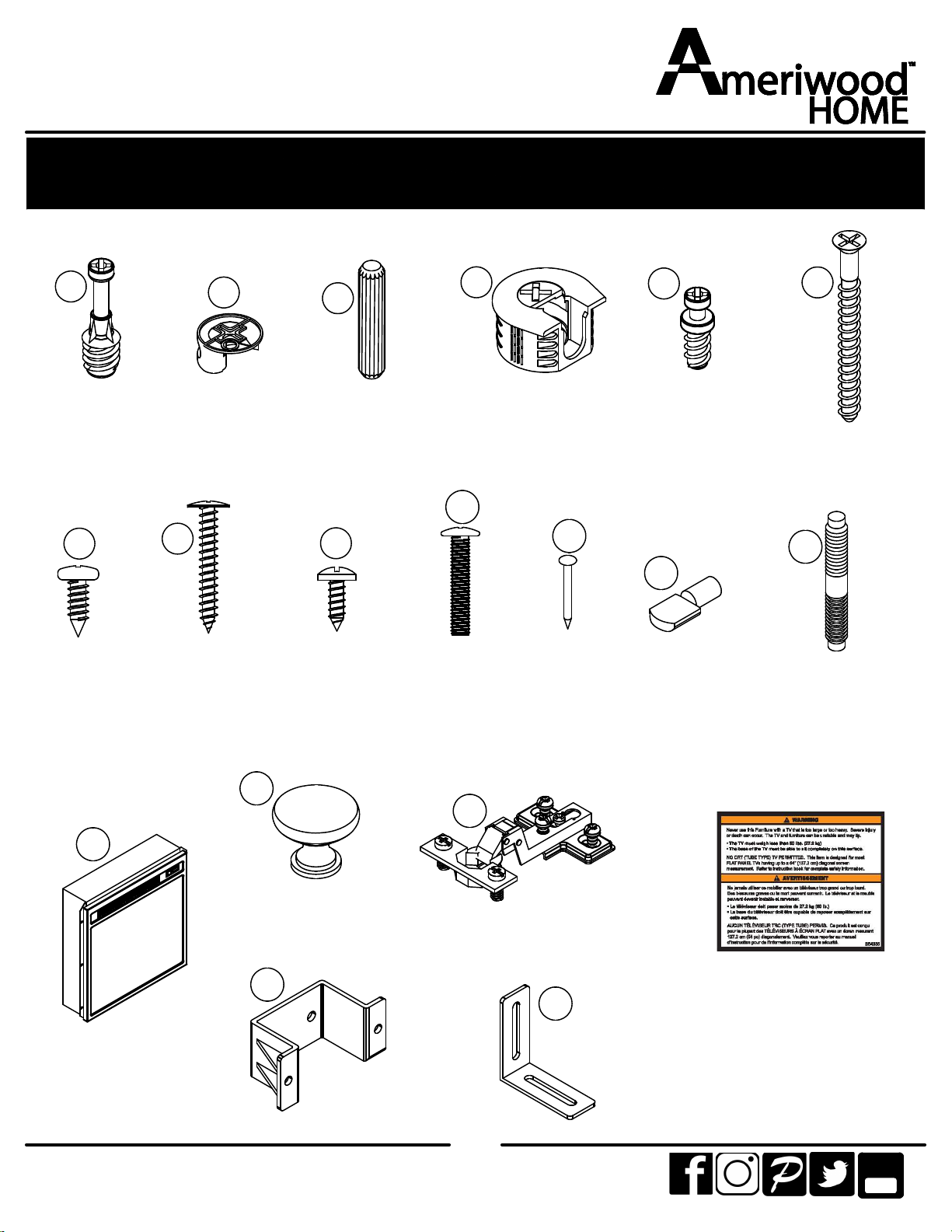

Part List

Actual Size

Tube

You

Not Actual Size

13456

911

(x17)

#A22610

cam bolt

(x17)

#A22620

cam lock

(x17)

#A21660

wood dowel

(x13)

#A22920

connector

(x13)

#A22910

connector bolt

(x6)

#A23030

confirmat

(x2)

#A17400

7/8" bolt

(x42)

#A21110

nail

(x8)

#A80250

shelf support

(x4)

#A65640

hinge

(x1)

#A53655

bracket

(x8)

#A14220

1/2" screw

(x2)

#A12940

1-1/8" screw

(x7)

#A12120

7/16" screw

(x1)

#A95020

fireplace insert

(x2)

#A51546

knob

(x4)

#A54000

top hat bracket

(x1)

#B64355

TV warning label

(x2)

#A21520

compression dowel

ameriwoodhome.com

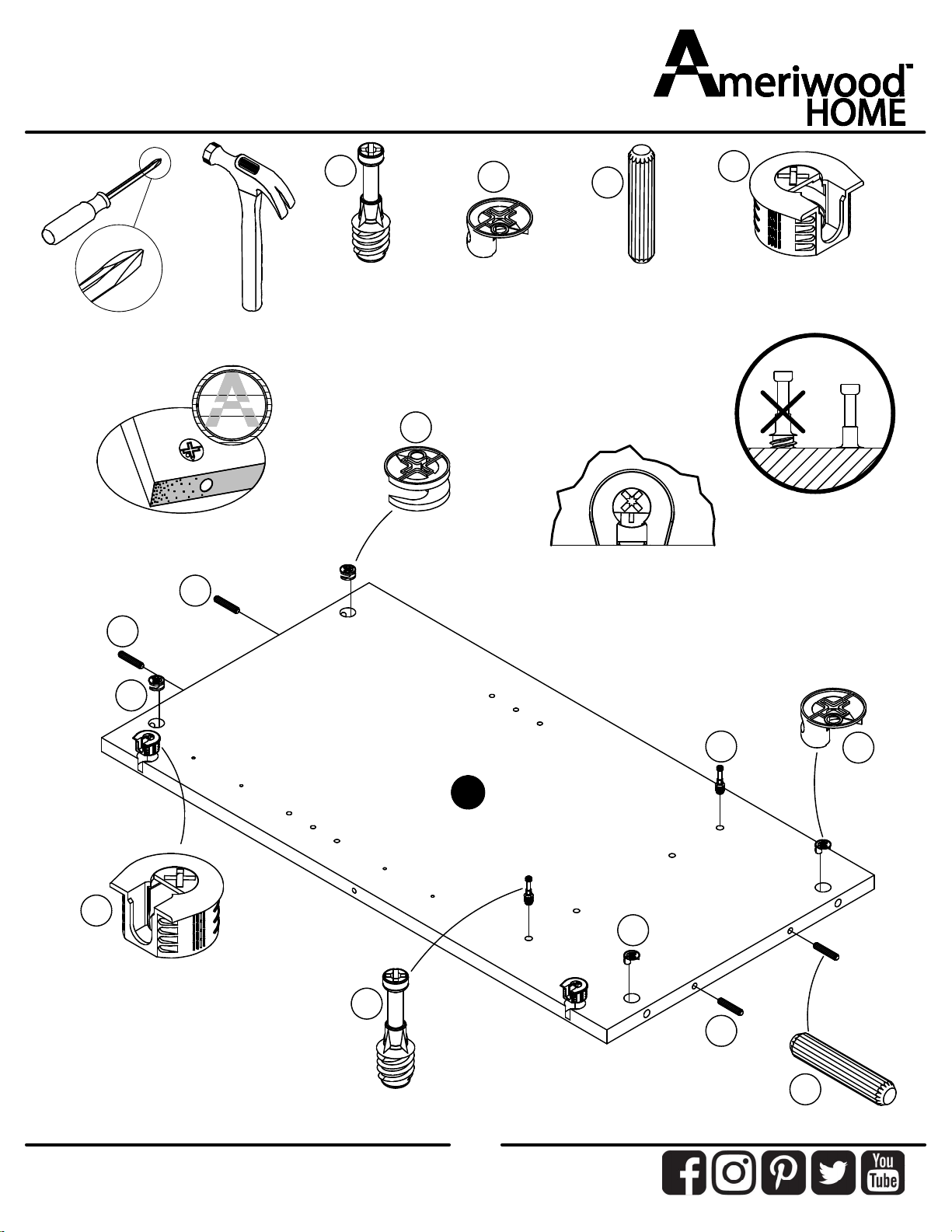

STEP1

Proper orientation of CAM LOCK

Tip

Assembly

Quick

(x2)

#A22610

(x4)

#A22620

(x4)

#A21660

(x2)

#A22920

Be sure connector (4) is

positioned as shown

before inserting into hole.

ameriwoodhome.com

STEP2

15 16

(x2)

#A54000

(x2)

#A65640

Loosen this screw and

separate hinge plate

from hinge.

(x4)

#A14220

Note: Do not get the #7 (A14220) screw and the

#9 (A12120) mixed up. The #7 (A14220) is larger.

ameriwoodhome.com

STEP3

(x2)

#A22610

(x4)

#A22620

(x2)

#A22920

(x4)

#A21660

Proper orientation of CAM LOCK

Tip

Assembly

Quick

Be sure connector (4) is

positioned as shown

before inserting into hole.
