AmeriWater Bicarb Manuel utilisateur

Bicarb Manual

Mix and Dispensing

Installation/Operation Manual

Manufactured With Pride

In The USA

www.ameriwater.com • 800-535-5585

AmeriWater • 3345 Stop 8 Rd. • Dayton, OH 45414

P/N 98-0134

REV C

TABLE OF CONTENTS

1.0 INTRODUCTION..................................................................... 1

2.0 THEORY OF OPERATION..................................................... 2

3.0 INSTALLATION...................................................................... 3

3.1 INSTALLATION REQUIREMENTS...................................... 3

4.0 START-UP.............................................................................. 4

4.1 DISINFECTION WITH CHLORINE OR PERACETIC ACID.5

4.2 MIXING BICARB................................................................. 7

5.0 MAINTENANCE...................................................................... 8

6.0 SYSTEM DRAWINGS............................................................. 9

7.0 PARTS LIST......................................................................... 12

1.0 INTRODUCTION

WARNING: This entire Bicarb System Operations Manual should be completely read

before operating or servicing the system. This Operations Manual should

then be kept near the system and used as a reference guide.

This manual has been provided for the installation, operation, and maintenance of the Bicarb

Manual Mix and Dispensing System. The AmeriWater Bicarb System is constructed of a

virgin polyethylene tank with a cone bottom, complete drain fittings, and 12-inch gasketed fill

hole. Piping and true union valves are PVC schedule 80. The pump is 115V, single-phase

8.5 amp motor, with all stainless steel design. The pump control is 115V. The high vortex

pumped mixing action provides complete mixing in minutes and keeps the bicarbonate

powder in solution.

The Bicarb System is designed to mix and dispense Bicarb solutions. The system is not

equipped with monitoring devices such as conductivity, or pH. Therefore, the solution

manufacture’s procedures should be followed, and are the sole responsibility of the user.

CAUTION: Federal law restricts this device to sale by or on the order of a physician

for use in hemodialysis applications.

Please read the Operations Manual before using the system. Contact AmeriWater

Customer Service with any questions at 1-800-535-5585 Monday through Friday 8:00 a.m. to

5:00 p.m. eastern standard time. For after hours emergencies call 1-800-535-5585 and follow

the instructions on the recorded message. Our on-call technician will return your call as soon

as possible.

WARNING: No person should attempt to operate or service the system without prior

authorization, instruction, and training from AmeriWater and/or your

medical facility director.

2.0 THEORY OF OPERATION

Mix Tank

The mix tank is filled to a desired level with RO purified water. The tank filling process is done

MANUALLY, and is restricted by a 3 GPM flow control. As the bicarbonate powder is added,

the system utilizes the pump discharge pressure, forcing the liquid through an eductor to mix

and quickly dissolve the powder.

Disinfection

The mix tank is designed for quick disinfection. The mix tank utilizes a spray nozzle design to

completely spray the inside of the tank during the disinfection process.

3.0 INSTALLATION

These are basic installation guidelines for the Bicarb Manual Mix and Dispensing System.

CAUTION: Local plumbing and electrical codes must be observed.

3.1 INSTALLATION REQUIREMENTS

The following requirements must be satisfied to insure proper installation and operation of

the Bicarb Manual Mix and Dispensing System.

1. Locate the Bicarb System on a level floor.

2. Locate the system as close as possible to a floor drain (to facilitate draining of the system).

3. Connect the purified water supply to the inlet hose located at the top of the pump header,

using the ½” inside diameter medical grade hose provided.

4. Plug the Bicarb Pump Control into a 120 V, 20 AMP, and dedicated, single-phase

electrical service.

4.0 START-UP

Please read and follow the guidelines and recommendations of the solution manufacturer

before proceeding with the start-up instructions. Refer below (Fig. 4-1) to reference control

panel and valve designations.

WARNING: The Bicarb System must be disinfected prior to placing the system in

service! Failure to comply may result in injury, illness, or death to the

patients!

Fig. 4-1

BICARB CONTROL PANEL AND VALVE DESIGNATIONS

4.1 DISINFECTION WITH CHLORINE OR PERACETIC ACID (PAA)

CAUTION: Always use a collection device to catch fluids from opening sample ports!

CAUTION: Always follow safety procedures when handling any chemicals!

CAUTION: Exposure to hydrogen peroxide/peroxyacetic acid concentrate or solution

may cause severe chemical burns to skin or eyes. Additional information

regarding the use of hydrogen peroxide/ peroxyacetic acid is found on PAA

bottles, and on the Material Safety Data Sheet. Read carefully before using

these products!

Perform the recommended disinfection and rinse procedures as established by your facility

administrator before placing the Bicarb System into service. After the disinfection, rinse with

RO purified water until a negative residual disinfectant test is attained prior to use.

1. Verify that the MIX OFF/ON switch is turned “OFF” and then plug the power cord into a

120 V, 20 AMP, dedicated, single phase receptacle.

2. Insure that all valves on the Bicarb System are closed.

3. Open the RO water supply valve and WATER INLET valve.

4. Open the valve marked “3M”.

5. Allow RO purified water to fill the mix tank to the desired level.

a. 55-gallon mix tank: Fill to 25 gallons and close WATER INLET valve.

b. 100-gallon mix tank: Fill to 50 gallons and close WATER INLET valve.

6. Once filled, close the “3M” and RO water supply valve, then open valve “2M”. (NOTE: If

“3M” valve is open when opening the tank lid, water will spray out of the tank while the

pump is running.)

7. Turn the MIX OFF/ON switch to “ON” and open the mix tank lid.

8. Add the disinfectant to the mixing water. Then securely close the tank lid. AmeriWater

recommends using 32 ounces (950 mL) of chlorine bleach or peracetic acid (PAA) for

every 25 gallons of water (makes a 1:100 ratio of disinfectant to water).

9. Open the tank sample port and verify with a test strip that the disinfectant concentration is

≥ 500ppm (add more disinfectant if necessary, but keep “3M” closed when lid is open).

10. Open the “3M” valve and close the “2M” valve, then allow the disinfectant to circulate for a

minimum of 15 minutes. (Turn switch “OFF” and soak for 10 minutes if desired, then turn

switch “ON”.)

11. Once the disinfectant is thoroughly circulated in the tank and has sprayed the tank’s inner

surfaces, open valve “1D”. SLOWLY AND COMPLETELY, open the dispensing valve to

the drain, to disinfect the dispensing hose, valve, and nozzle.

NOTE: Do not let the pump run when tank is empty! (The pump could be damaged if

allowed to run “dry”.)

12. Close the “1D” valve (before the tank is empty), then turn MIX OFF/ON switch to “OFF”.

13. Open the tank “DRAIN” valve and empty tank.

14. Insure all valves on the Bicarb System are closed.

15. Open the RO water supply valve and WATER INLET valve.

16. Open the “3M” valve.

17. Allow RO purified water (for rinsing) to fill the mix tank to the desired level.

a. 55-gallon mix tank: Fill to 25 gallons and close WATER INLET valve

b. 100-gallon mix tank: Fill to 50 gallons and close WATER INLET valve.

18. Turn the MIX OFF/ON switch to “ON”.

19. Rinse tank piping by opening valve “2M” and closing valve “3M” (for several minutes).

20. Open valve “3M” and close valve “2M” (for several minutes).

21. Once the rinse water is thoroughly circulated in the tank and has sprayed the tank’s inner

surfaces, open valve “1D”. Then the dispensing valve should be opened to the drain, to

rinse the dispensing hose, valve, and nozzle.

22. Close the “1D” valve (before the tank is empty), then turn the MIX OFF/ON switch “OFF”.

23. Open the TANK SAMPLE PORT for at least 5 seconds (at full flow) and sample with a test

strip for residual disinfectant.

24. Repeat steps 14 through 23 until a negative residual disinfectant is achieved.

25. Once a negative residual is achieved open the drain valve to empty the tank.

26. Log the disinfection operation into your journal.

4.2 MIXING BICARB

1. Verify that the MIX OFF/ON switch is turned “OFF” and the plug of the power cord is in a

120 V, 20 AMP, and dedicated, single-phase receptacle.

2. Verify that the mix tank is empty and clean by visual inspection, and by performing a

residual disinfectant test before filling with RO water.

3. Ensure that all valves on the Bicarb System are closed.

4. Determine the batch size that is required. (Check for the Bicarb manufacturer’s

recommendation on the amount of water to use. For best results fill the mix tank to a level

3 gallons less than what is needed before adding in the powder. After the bicarbonate

powder mixes, manually add the remaining water to the proper level.)

5. Open the RO water supply and INLET WATER valves to fill the mix tank.

6. Open valve “3M” and manually fill tank to desired level.

7. Once Mix tank is filled to the desired level, close valve “3M” and RO water supply valve.

8. Open valve “2M” to send water to the mix nozzle (eductor).

9. Turn the MIX OFF/ON switch to “ON” and open the tank lid.

10. Slowly add the dry powder to the mixing water and close the tank lid.

11. After the mix time is complete (follow manufacture’s recommendation for mix time), turn

MIX OFF/ON switch to “OFF”, remove the lid and inspect the contents of the mix tank to

insure that all of the powder has dissolved. If not, turn MIX OFF/ON switch to “ON” and

continue mixing.

12. Use the TANK SAMPLE PORT to perform the recommended test procedures for the

solution (to check the ratio). Log the test results in your journal.

13. Allow the pump to continue mixing the solution in the tank while opening the “1D” valve.

Then use the dispensing valve to fill bottles.

5.0 MAINTENANCE

Maintenance is the responsibility of the operator. The schedule for bacterial monitoring and

disinfections are to be established by your facility administrator. The administrator should

decide if disinfection and bacterial monitoring should be performed daily, or weekly.

Daily Maintenance

Check the system plumbing for leaks or precipitation build up that may cause reduced flow or

function of the system.

Verify that the hoses are free of restrictions that may reduce the flow of the Bicarb System.

Weekly Maintenance

AmeriWater recommends disinfecting the Bicarb System weekly or as directed by your

facilities protocol.

Quarterly Maintenance

AmeriWater recommends that the Bicarb System be decalcified quarterly (4 times per year).

Vinegar is an acceptable solution for decalcifying the system. Your Bicarb System may have

to be decalcified more often depending upon the amount of calcium build up. Mix 1 gallon of

vinegar per 25 gallons of water.

IMPORTANT: Log all of your Bicarb System maintenance onto your facilities operation

and maintenance journal.

Table des matières

Autres manuels AmeriWater Système d'eau

AmeriWater

AmeriWater OZONE Manuel

AmeriWater

AmeriWater OH 45414 Mode d’emploi

AmeriWater

AmeriWater 00HRO57600 Manuel

AmeriWater

AmeriWater 00HRO64800 Manuel

AmeriWater

AmeriWater HMS Manuel

AmeriWater

AmeriWater MediQA Guide de configuration

AmeriWater

AmeriWater VARIABLE SPEED PUMP SYSTEM Manuel

AmeriWater

AmeriWater MRO3 Manuel

AmeriWater

AmeriWater 20-3021 Manuel utilisateur

AmeriWater

AmeriWater Central Sterile RO3 Manuel

AmeriWater

AmeriWater 00M10800 Manuel utilisateur

AmeriWater

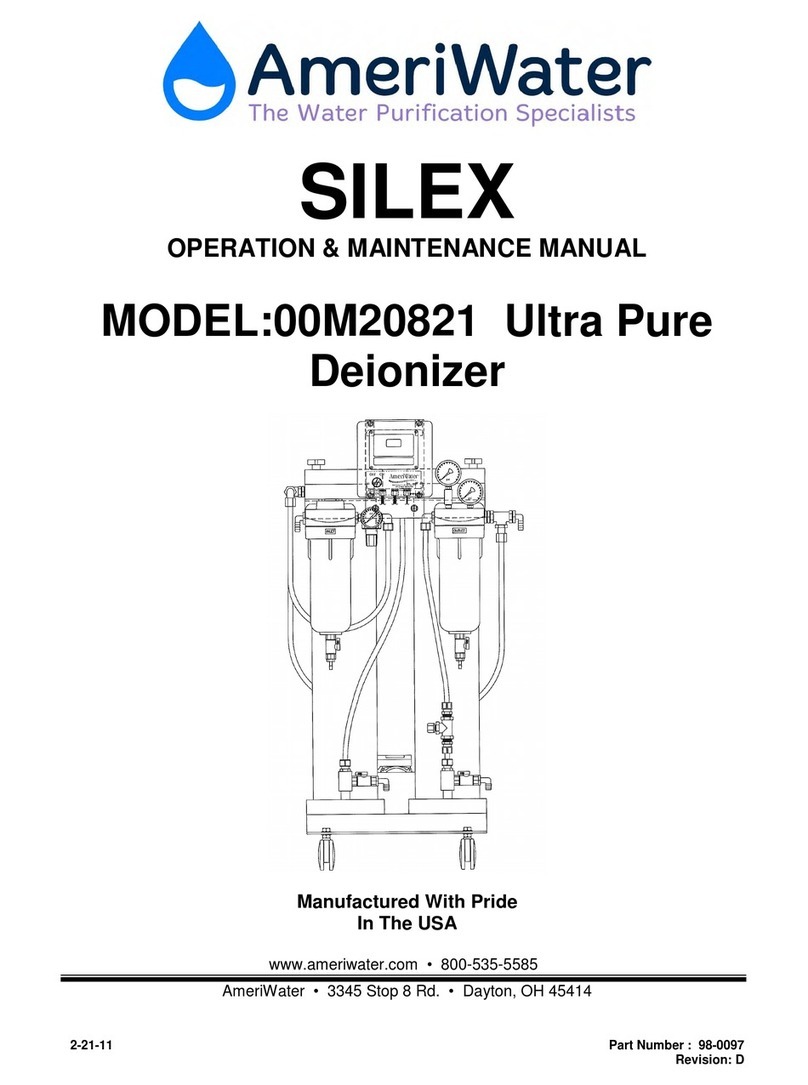

AmeriWater SILEX 00M20821 Manuel

AmeriWater

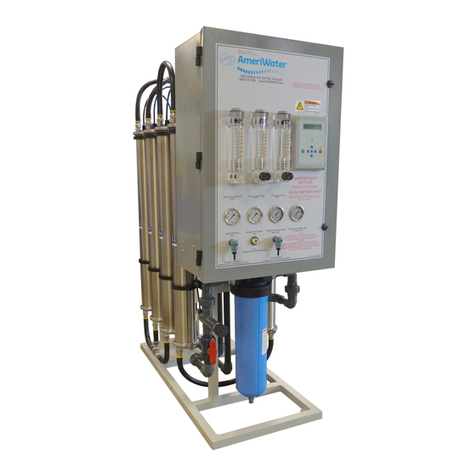

AmeriWater MRO3Z Manuel d'instructions

AmeriWater

AmeriWater Central Sterile RO3X Manuel

AmeriWater

AmeriWater CENTURION 1500+ Manuel utilisateur

AmeriWater

AmeriWater CENTURION 1500+ Manuel utilisateur

AmeriWater

AmeriWater 00HC-4090 Manuel

AmeriWater

AmeriWater V125DTH Manuel

AmeriWater

AmeriWater CLEAN IN PLACE CIP2 Manuel utilisateur

AmeriWater

AmeriWater V125DTH Manuel

AmeriWater

AmeriWater SPD Manuel

AmeriWater

AmeriWater Central Sterile RO2 Manuel

AmeriWater

AmeriWater STORAGE TANK Manuel utilisateur

AmeriWater

AmeriWater 98-0177A Manuel utilisateur

Manuels Système d'eau populaires d'autres marques

Spirotech

Spirotech SPIROVENT SUPERIOR S250 Manuel utilisateur

Culligan

Culligan Aqua-Cleer Aqua-Cleer Advanced Drinking Water... Manuel utilisateur

A.O. Smith

A.O. Smith Dura-Max AJH - 1000A - P Manuel utilisateur

Microline

Microline T.F.C.-4 Manuel

Eureka Forbes

Eureka Forbes Aquaguard Select Manuel utilisateur

Cetetherm

Cetetherm AquaEfficiency Manuel utilisateur

CB Tech

CB Tech CB-VOC Manuel utilisateur

Vaillant

Vaillant auroFLOW plus VPM 15 D Manuel utilisateur

resideo

resideo Braukmann HS10S Manuel utilisateur

Gude

Gude INOX 100/24 Manuel utilisateur

Mono

Mono Eco 1-60 Manuel

SpectraPure

SpectraPure Drinking Water Kit Manuel utilisateur

HydroCare

HydroCare Dual Action Manuel utilisateur

NEXT pool

NEXT pool STERILOR Cu/Ag Schéma de câblage

Alpha

Alpha SolarSmart 150 Guide de l'utilisateur

TA FRISTAR3 Manuel utilisateur

GÜDE

GÜDE HWA 800 K Manuel utilisateur

Rainfresh

Rainfresh UCS2 Manuel utilisateur
