INSTALLATION INSTRUCTIONS

752859-100 Rev. E

All product names listed herein are trademarks

of American Standard Inc. unless otherwise noted.

HIGH GLOSS ACRYLIC

SHOWN LESS ALL FITTINGS

REMINISCENCE

ELITE DROP-IN™

WHIRLPOOL

2908E SERIES

FOR AFTER-SALES SERVICE CALL 1 (800) 442-1902 WEEKDAYS.

THANK YOU...

for selecting an American Standard bath. Your new

bath is shipped to you after careful inspection. The

whirlpool version is completely assembled with pump,

motor, and system piping. All you need to finish the

installation are your selected fittings and electrical

connections for a whirlpool.

To insure maximum performance and pleasure from

this product, please follow the instructions and

cautions.

GENERAL INSTALLATION INFORMATION

Carefully uncrate and inspect your new bath for any shipping damage. If such damage is found, report it to your vendor

immediately.

After inspection and during installation, protect the bath from construction damage. After installation, and before

enclosing with wallboard, tile, etc., water test the unit and check for leaks.

Do not make modifications to the whirlpool system or remove pump from factory mounting. This could adversely affect

the safety and performance of the whirlpool and void the warranty. Do not handle or move the whirlpool by the pump,

motor, or piping system.

Fittings (bath filler, shower arm, etc.) are not provided with the bath and must be ordered separately. Framing and

enclosing materials are provided by others. Check for availability of optional American Standard wall tiling bead

(required for recess installations).

Protect all finished surfaces of the whirlpool during construction and installation using a drop cloth.

WARNING! Do not lift whirlpool by the piping harness at any time.

List of Optional Components (not included):

• Flex-Jet Pulse Jet Kit*

• Flex-Jet Soft Jet Kit*

• E-Z-Install Heater*

List of Required Components (not included):

• Drain* • Bath Filler*

* see your Home Depot Retailer

List of Required Tools and Supplies:

Tools

• Level

• Tape Measure

• Pipe Wrench

• Slip Joint Pliers

• Screw Driver

• Standard

Woodworking Tools

• Personal Safety

Equipment

• Caulking Gun

Supplies

• Nails

• Putty

• Caulking (waterproof)

• 1 x 3 or 2 x 2

Stringers

• Drop Cloth

• 15 amp GFI

Outlet

• Cement, Plaster,

Grout

66 x 36 x 24-1/4 In. (1676 x 914 x 616mm)

95 Lbs. (43 Kg.)

659 Lbs. (299 Kg.)

68 Gal. (257 L.)

55 Gal. (208 L.)

40 x 18 In. (1016 x 457mm)

53 x 28 In. (1346 x 711mm)

15 In. (381mm)

40 Lbs./Sq. Ft. (191 Kgs/Sq. m.)

23.8

44.5

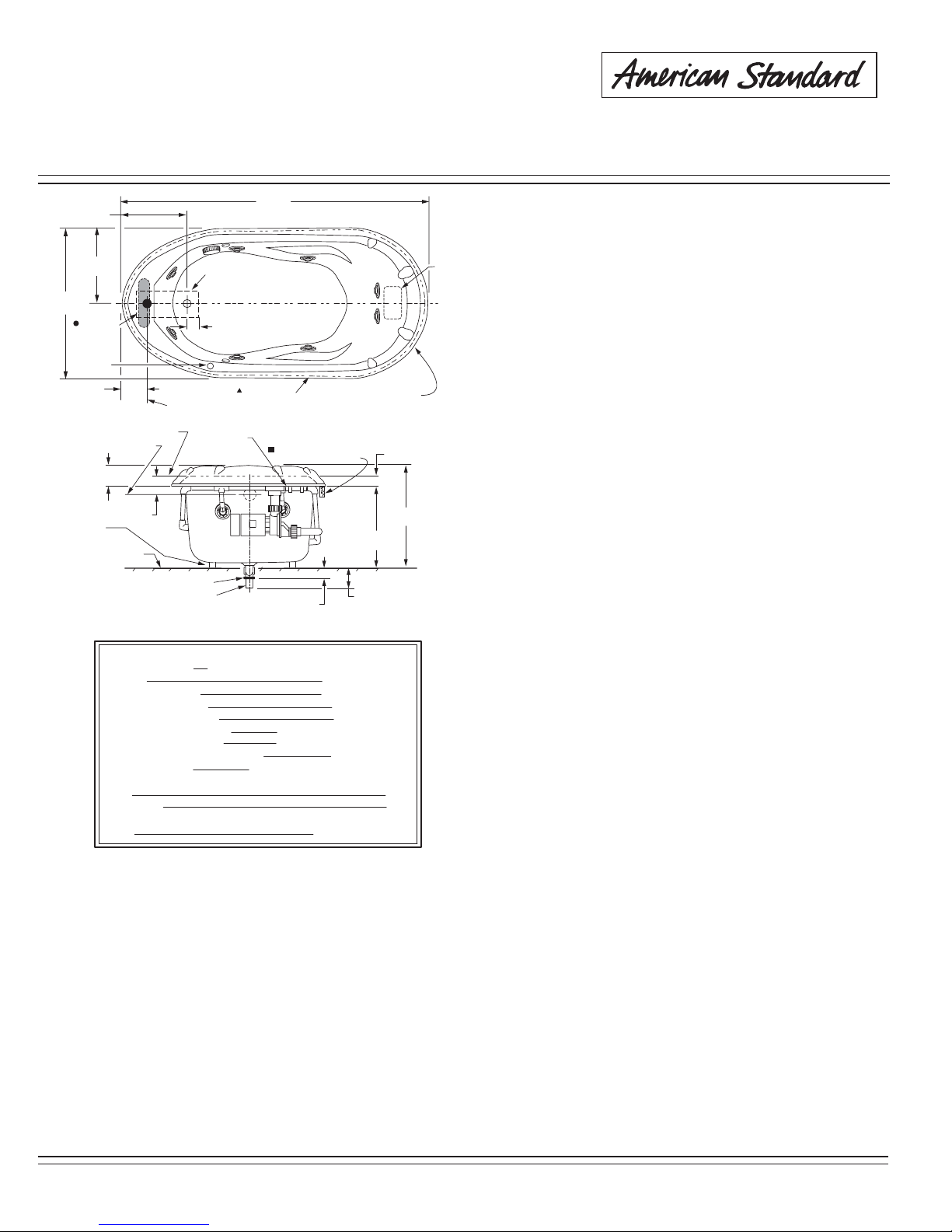

GENERAL SPECIFICATIONS FOR 2908E WHIRLPOOL

INSTALLED SIZE

WEIGHT

WEIGHT w/WATER

GAL. TO OVERFLOW

MIN. OPERATING GAL.

BATHING WELL AT SUMP

BATHING WELL AT RIM

WATER DEPTH TO OVERFLOW

FLOOR LOADING

(PROJECTED AREA)

PTS.

CUBE (FT3)

WHIRLPOOL ELECTRICAL SPECIFICATIONS

1.6 HP, 9.7 AMPS, 120V.PUMP

229 x 305mm

(9 X 12)

FLOOR

CUTOUT

1-1/2 N.P.T.M. THREADS

ROUGH

FLOOR

1-1/2 O.D.TAILPIECE 70mm

(2-3/4)

117mm

(4-5/8)

LEVELING STRINGER

(NOT FOR SUPPORT)

RIM AT

DRAIN END

C/L OF OVERFLOW

616mm

(24-1/4)

73mm

(2-7/8)

464mm

(18-1/4)

79mm

(3-1/8)

149mm REF.

(5-7/8)

64mm REF.

(2-1/2)

1676mm

(66)

PUMP

PROVIDE ACCESS

TO PUMP FOR SERVICE

ON ALL INSTALLATIONS

914mm

(36)

457mm

(18)

330mm

(13)

INTEGRAL

FITTING DECK

152mm

(6) C/L OF

DRAIN

OUTLET

OUTLINE OF

CUTOUT

ON/OFF

SWITCH

INTEGRAL

SUPPORT

FEET

IN-LINE

HEATER

REMOVABLE

BLANK

TYPICAL PIER TYPE INSTALLATION

MOUNTING SURFACE

WATERPROOF

SEALANT

BATH

UNLESS AN ACCESS OPENING OF AT LEAST

12" X 24" (305 X 610MM) IS PROVIDED,

WARRANTY SERVICE WILL NOT BE PERFORMED.

752859-100 Rev. E (2)

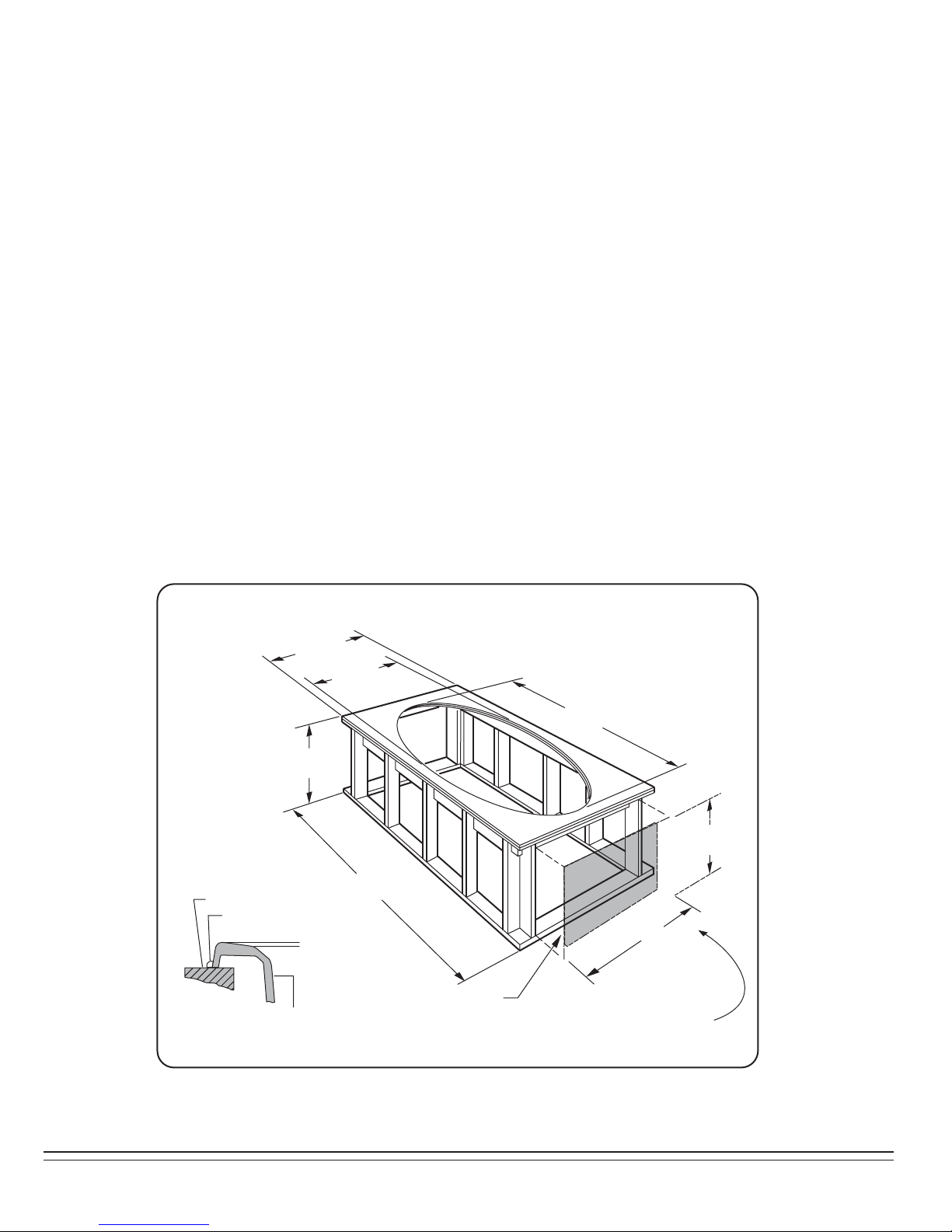

INSTALLATION AND FRAMING INSTRUCTIONS

The variety of installations possible for this whirlpool may require framing procedures other than those shown. Locate studs

as required. Ensure roughing-in dimensions are proper, plumb and square. Provisions must be made in all installations for an

access opening for servicing the pump and controls. It is strongly recommended that an additional opening be provided for

access to the drain components.

1. Position the whirlpool into the installation opening and level the deck, shimming the integral support feet as necessary.

2. Install drain components to the whirlpool following the manufacturers instructions. Before replacing your whirlpool for fina

installation, be certain that an opening has been provided in the sub-floor for the drain. See the roughing-in drawing for

suggested opening size and location dimensions.

3. Replace whirlpool and re-shim the integral support feet, shimming the entire length of the support feet. Secure the shims

using construction adhesive, silicone, mortar or equivalent materials. While not a necessity, the use of a foundation base

consisting of cement (e.g. Sakrete), mortar, or grout will help provide a solid and secure installation.

AS DESIRED

SEE TEMPLATE

AS DESIRED

SEE CUTOUT TEMPLATE

PROVIDED.

18-1/4

(464mm)

ACCESS PANEL

(305 mm)

(610mm)

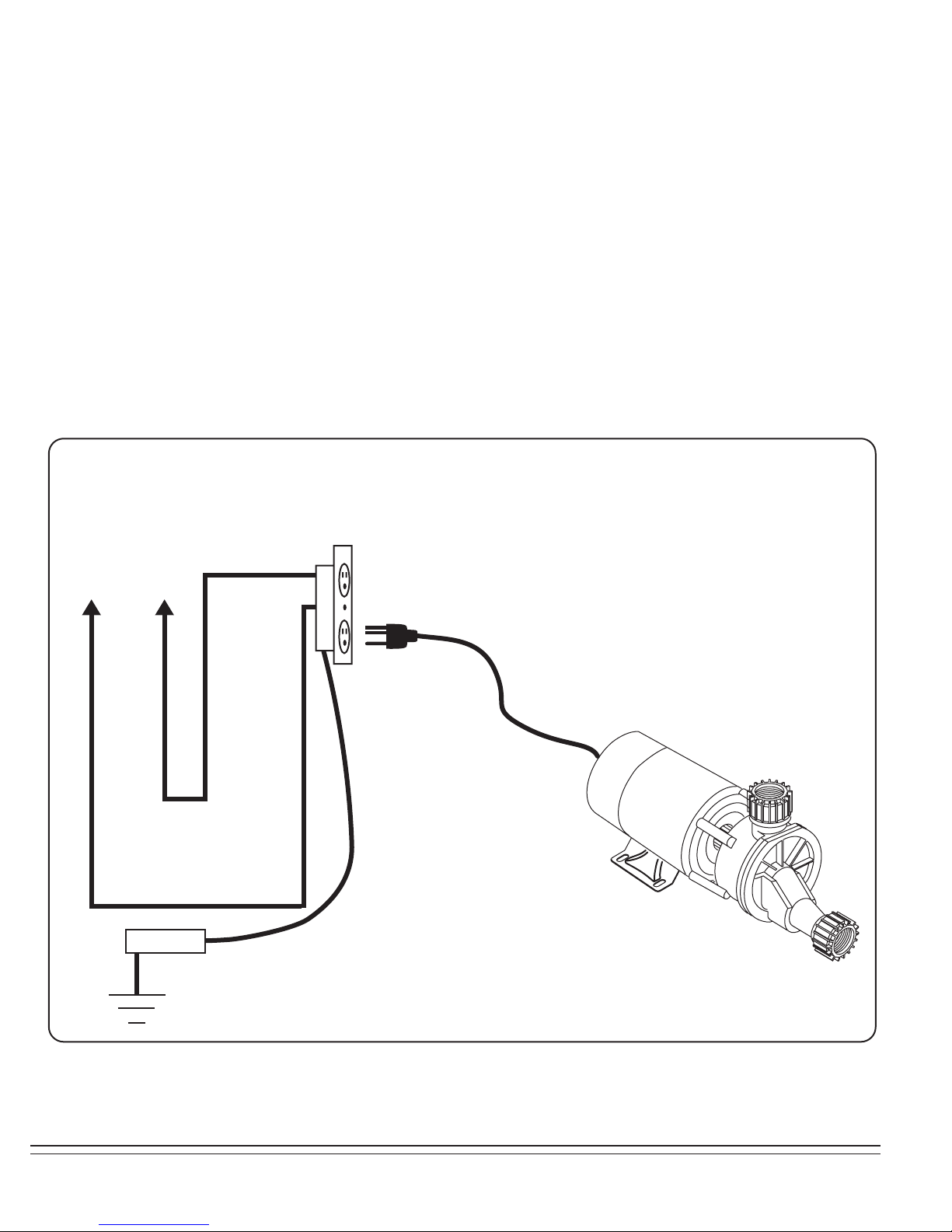

ELECTRICAL DIAGRAM

READ AND FOLLOW ALL INSTRUCTIONS

BLACK

WHITE

120 VAC

GND.

SEPARATE

15 AMP GFCI

OUTLET

WHIRLPOOL MOUNTED

AIR SWITCH OR

WALL TIMER

ELECTRICAL INSTALLATION

PUMP/MOTOR

752859-100 Rev. E

ELECTRICAL INSTALLATION INSTRUCTIONS

All wiring must be performed by a licensed electrician in accordance with the national electrical code and all other

applicable codes.

WARNING:

When using electrical products, basic precautions should always be observed, including the following:

1. DANGER: RISK OF ELECTRIC SHOCK

Connect only to a circuit protected by a ground-fault circuit interrupter.

2. Grounding is required. The unit should be installed by a licensed electrician and grounded.

3. Install to permit access for servicing.

4. All building materials and wiring should be routed away from the pump body and heater (if equipped).

The whirlpool should be installed on a 120 vac, 15 amp dedicated circuit. The circuit should be hard-wired from the

electrical power supply panel. The circuit must be a three (3) wire circuit from the electrical supply panel. A grounded

neutral wire and a third wire, earth ground, are essential. ADDING THE E-Z-INSTALL HEATER REQUIRES A

SEPARATE 15 AMP MAXIMUM GFCI CIRCUIT.

(3)

WIRE SELECTION GUIDE

752859-100 Rev. E

Maximum distance from

fusebox to motor The sizes shown on this

chart are recommendations

for copper conductors

only. Always follow

local and national

electrical codes

Motor

Hi Performance

Rating

1.6

50' 100'

120V Power Line

150' 200'

12 12 10 8

(4) SPIC AND SPAN®IS A REGISTERED TRADEMARK OF PROCTER & GAMBLE

DRAIN CONNECTION AND SYSTEM TEST

Using recommended drain opening, connect whirlpool drain to waste line. Tighten all drain joints securely. Check the pump

couplings and make sure they are hand-tight. Clean the whirlpool and fill with water to a point 2" above the top of the highest jet.

Recheck the pump couplings and make certain that they are not leaking. (Although the pump couplings are factory tightened and

inspected, some loosening may have occurred during transit.) Make sure the whirlpool is connected to the electrical supply and turn

the whirlpool on. Check for leaks around all piping connections while the whirlpool is running.

POST INSTALLATION CLEAN-UP

Remove all construction debris from bath. Tile grout can be removed with a wooden popsicle stick or tongue depressor. Do not use

wire brushes or any other metal implement on bath surface.

Post installation clean-up generally can be completed using warm water and liquid dishwashing detergent. Stubborn dirt or stains

may be removed using granular Spic and Span®mixed with water.

Painter's naphtha can be used to remove excess adhesives and/or wet oil-base paint.

FEATURES of YOUR NEW AMERICAN STANDARD ACRYLIC BATHTUB

Your new acrylic bathtub has been molded in the newest plumbing fixture material available today. Acrylics are tough

durable finishes that are simple and easy to care for.

The colors have been formulated to match other American-Standard fixtures and enhance your choice of bathroom

decorations. The high gloss surface is resistant to impact and chemicals and will retain its lasting luster with proper

care and maintenance.

AFTERCARE and CLEANING

• Always fill the tub with temperate water. Excessively hot water may cause surface damage

• Remove bath mat after use and hang to dry. Allowing bath mat to dry in the tub may cause surface damage.

• Clean after use with a mild liquid household detergent cleaner. Do not use Lestoil, Lysol Disinfectant (spray or

concentrate), or Lysol Basin, Tub and Tile Cleaner, Windex, Mr. Clean, Dow Disinfectant Bathroom Cleaner, or

cleaning products in aerosol cans.

HARSH CHEMICALS SHOULD NEVER BE USED ON ACRYLIC SURFACES.

• Do not use wire brushes, knives or sharp objects to remove stains, cigarette tar deposits, or other surface

blemishes.

• Abrasive cleaners or powders must not be used, since they will dull the surface. If the glossy surface looses

its sheen, dulled areas can be restored by rubbing with a white "automotive type" polishing compound and

waxing with a "liquid wax."

•Do not wax areas where you walk or stand.

• Do not allow nail polish remover, acetone, dry cleaning fluid, paint remover or other solvents to come into

contact with the surface.

• Clean the surrounding surface immediately after using caustic drain cleaners.

• Burning cigarettes will damage the surface.

• Should damage to the fixture occur, repairs can be made quickly and easily.

Your distributor or builder can provide details.
