HD-11

LIFETIME™ AIR SPA

WHIRLPOOLS BY AMERICAN STANDARD

HIGH GLOSS ACRYLIC

LIFETIME™ AIR SPA

Comfortable bathing design with form-tted

backrest and molded-in armrests

❏ Model# 2422LA (specify color)

• Acrylic with berglass reinforcement

• 1.25 HP pump/motor

• 8 air massage jets

• Two silent air volume controls

• Side-mounted On/Off control

• Complete factory installed and tested

whirlpool system

• Self leveling feet

• Designed with undermount installation option

❏ Model# 2422LAC (specify color)

• Same as above with the EverClean™ whirlpool

system. The EverClean™ antimicrobial system

incorporates AlphaSan®, a patented

antimicrobial agent manufactured right into the

circulation system components, which

suppresses the growth of unsightly algae,

fungus, mold and mildew.

❏ Model# 2422L.002 Lifetime™ Soak Tub

Bathing Pool only

Nominal Dimensions:

60” x 32” x 21-1/2”

(1524 x 813 x 546mm)

Compliance Certications -

Meets or Exceeds the Following Specications:

• Underwriters Laboratories - Hydromassage

Bathtubs UL 1795

• ASME A112.19.7M for Whirlpool Appliances

• ANSI Z124.1 for Plastic Bathtubs

• ASTM E162 for Flammability

• NFPA 258 for Smoke Density

SEE REVERSE FOR ROUGHING-IN DIMENSIONS

AND PRODUCT SPECIFICATIONS

Revised 7/07

Components Required:

❏ Bath Filler*: (specify nish)

❏ Bath Drain: 1599.205.XXX (specify color)

OR 1599.500.020 (white only)

Custom Accessories Available:

❏ E-Z-Install™ Whirlpool Heater - EZHEAT-100

❏ 5 Foot Apron: 9261.019.XXX (specify color)

❏ Tile Bead Kit: TILE-BEAD

For color/nish availability and other faucet choices, please

see the Product Selector and Pricing Guide.

NOTE: E-Z-Install™ Whirlpool Heater is designed to

maintain water temperature during operation. It will not heat

cold water to desired bathing temperature.

* See American Standard Faucet Selector

AlphaSan® is a registered trademark of Milliken & Co.

HD-12

LIFETIME™ AIR SPA

WHIRLPOOLS BY AMERICAN STANDARD

HIGH GLOSS ACRYLICv

Revised 7/07

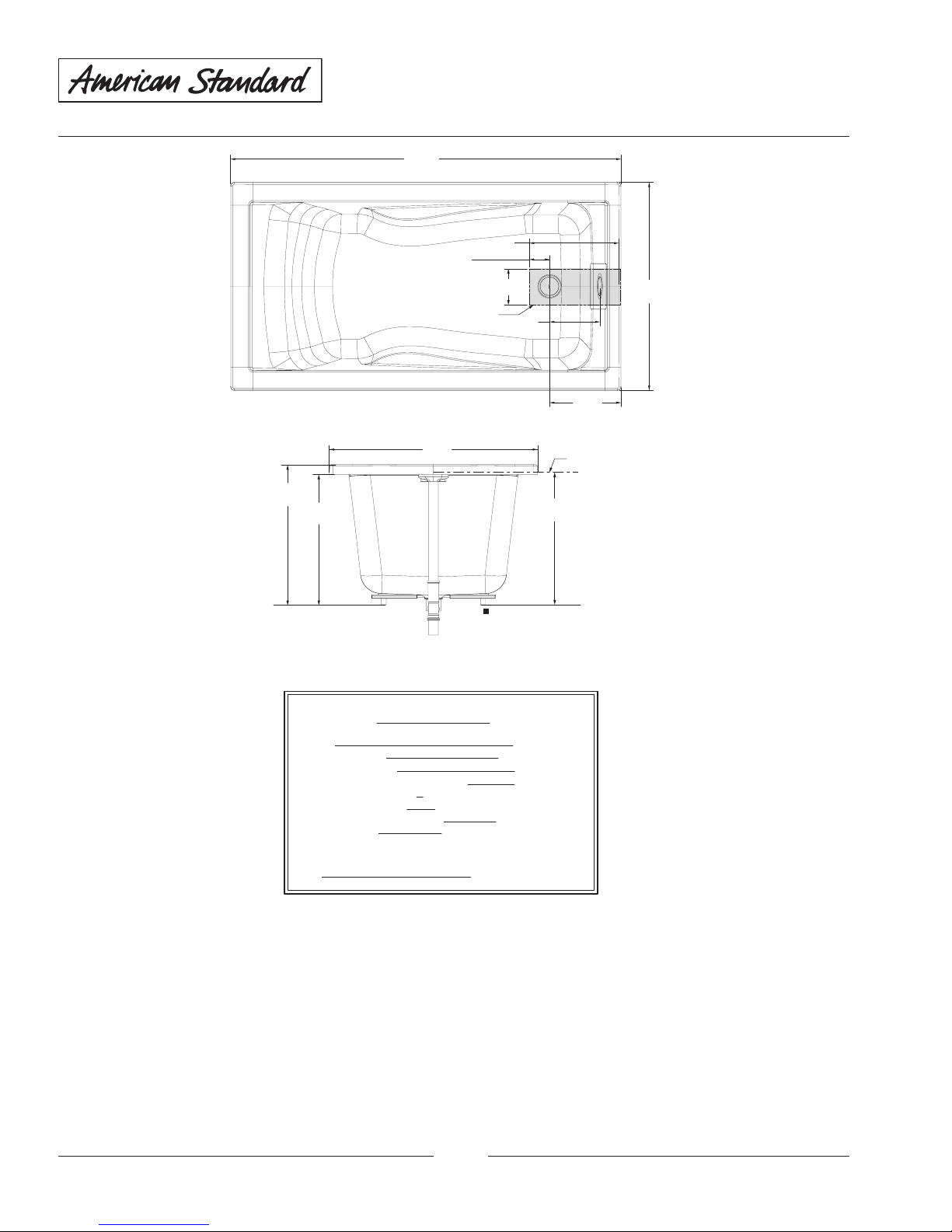

NOTES:

BATH CAN BE INSTALLED EITHER ABOVE OR BELOW FLOOR LINE AS PIER, ISLAND, OR PENINSULA TYPE INSTALLATION.

SUPPORT OF BATH BY SUMP BEDDING. SUPPORT AND ENCLOSING MATERIAL BY OTHERS.

■ REFER TO INSTALLATION INSTRUCTIONS SUPPLIED WITH WHIRLPOOL FOR ADDITIONAL INFORMATION.

FITTINGS NOT INCLUDED AND MUST BE ORDERED SEPARATELY.

PROVIDE SUITABLE REINFORCEMENT FOR ALL SUPPORTS.

IMPORTANT: Dimensions of xtures are nominal and may vary within the range of tolerances established by ANSI Standard Z124.1

These measurements are subject to change or cancellation. No responsibility is assumed for use of superseded or voided leaet.

60"

(1524mm)

32"

(813mm)

32"

(813mm)

(76mm)

(152mm)

13-3/4"

(349mm)

11"

(279mm)

7-3/4"

(197mm)

20"(C)

(502mm)

21-1/2"(H)

(546mm)

C/L OF

OVERFLOW

20-1/8"(A)

(511mm)

DIMENSIONS OF FIXTURES ARE NOMINAL AND MAY VARY WITHIN THE RANGE

OF TOLERANCES ESTABLISHED BY ANSI STANDARDS Z124.1 AND A112.19.7.

CUT OUT IN FLOOR

FOR DRAIN

60 x 32 x 21-1/2 In.

(1524 x 813 x 546mm)

74 Lbs. (34 Kg.)

690 Lbs. (313 Kg.)

74 Gal. (280 L)

33 Gal. (125 L)

41-1/4 x 22-1/4 In. (1048 x 565mm)

52-1/4 X 26 In. (1327 x 660mm)

18-1/2 In. (470mm)

52 Lbs./Sq.Ft. (253 Kgs./Sq.m)

GENERAL SPECIFICATIONS FOR 2422 BATHING POOL

INSTALLED SIZE

WEIGHT

WEIGHT w/WATER

GAL. TO OVERFLOW

WHIRLPOOL MIN. OPERATING VOL.

BATHING WELL AT SUMP

BATHING WELL AT RIM

WATER DEPTH TO OVERFLOW

FLOOR LOADING

(PROJECTED AREA)

WHIRLPOOL ELECTRICAL SPECIFICATIONS

1.25 HP, 9.7 AMPS, 120V.PUMP
