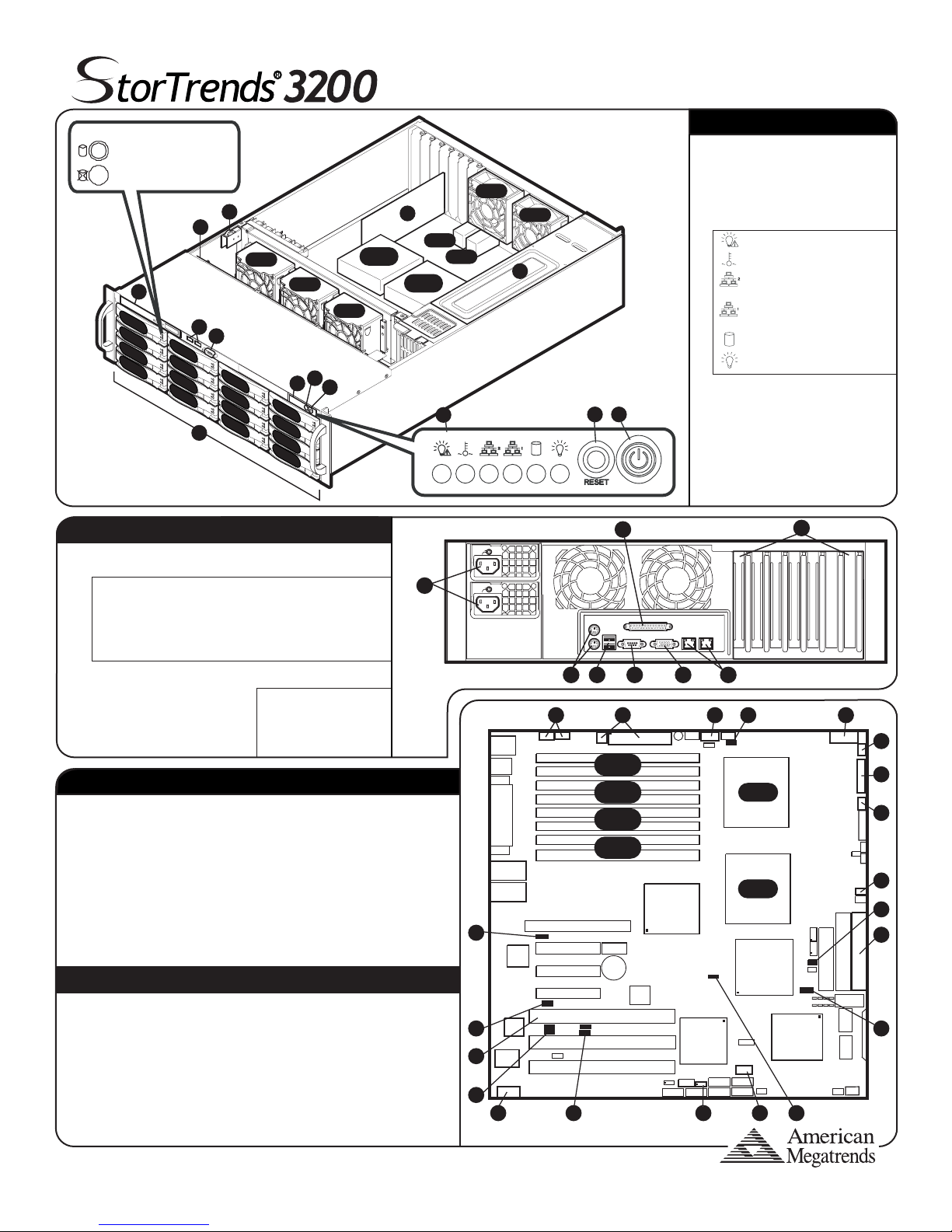

American Megatrends StorTrends 3200 Guide d'installation

MOTHERBOARD

BACK

FRONT/ INSIDE

Please refer to the StorTrends® 3200 User's Guide for detailed information.

Overview

23 4

Power Supply Modules

Mouse/ Keyboard Ports

USB Ports

COM1 Port

Parallel Port

VGA Port

Ethernet Ports

PCI Expansion Slots

-LED Description

Power Supply Failure

Failed Power Supply LED turns AMBER

Power Failure

Power Supply LED is OFF

(check your UPS)

Green =

Amber =

No Light =

Red with constant beep

(if system is not muted)

Left LED

On/ Flashing = Activity

Right LED

Off = No Connection/ 10 Mbps

Green = 100 Mbps

Orange = 1 Gbps

Power Supply DC On

Power Supply Standby

No AC Power

SAS Backplane

Chassis Intrusion

SAS RAID Controller

Redundant Power Supplies

Fan (5), CPU (2), NIC (2)

SAS Drive Bays (0 - 15)

Slim DVD-ROM Drive

Dual USB Ports

COM Port

Control Panel and System LEDs

System Reset Button

Main Power Button

INSIDE

FRONT

Power Failure

Red/ On = Power Module Failure

Overheat/ Fan Failure

Red/ On = Overheating/ Fan Failure

NIC2

Green/ Blinking = LAN Activity

Green/ On = LAN Link exists

NIC1

Green/ Blinking = LAN Activity

Green/ On = LAN Link Exists

HDD

Amber/ On = Activity

Power

Green/ On = Power On

Top LED

Blue/ On = Drive Activity

Bottom LED

Red/ On = Drive Failure

*Each SAS Drive Carrier has two LEDs:

Fan1

Fan2

Fan3

Fan4

Fan5

NIC1

NIC2

CPU1

CPU2

Bay15

Bay14

Bay13

Bay12

Bay11

Bay10

Bay9

Bay8

Bay7

Bay6

Bay5

Bay4

Bay3

Bay2

Bay1

Bay0

910

567

Front Panel Control Flat Ribbon Cable

Fan 1, Fan 2, Fan 3 , Fan 5 and Fan 6 Cables

IDE1 Flat Ribbon Cable

JCOM2 Cable

USB 2/3 Cable

JL1 Chassis Intrusion Cable

4-Pin PWR, 24-Pin ATX PWR and 8-Pin PWR Power Cables

SMBPS Cable

SAS RAID Controller9

J27 & J28

J3P

JCF1

JPG1

JPL1/ JPL2

JPS1

JWD

Debug Only

12C Bus to PCI-X/ PCI-E Slots

3rd PWR Failure Detect

Compact Card Master/ Slave Select

VGA Enable

GLAN1/ GLAN2 Enable

SAS Controller Enable Pins

Watch Dog Pins

Closed (Normal)

Open (Disabled)

Closed (Master)

Pins 1-2 (Enable)

2-3 (Disable)

1-2 (Reset)

Jumper Description Default Setting

456

CPU2

CPU1

BANK1

BANK2

BANK3

BANK4

11 10
