American Dynamics SpeedDome Ultra Manuel

SpeedDome®Ultra

Camera Dome

Installation and Service

Manual

8000-1362-01, Rev. C

SpeedDome®Ultra

Camera Dome

Installation and Service Manual

8000-1362-01, Rev. C

MDR 6/97

FCC COMPLIANCE

This equipment has been tested and found to comply with Part 15

of the FCC Rules. Operation is subject to the following two

conditions: 1) this device may not cause harmful interference, and

2) this device must accept any interference received, including

interference that may cause undesired operation.

EQUIPMENT MODIFICATION CAUTION

Equipment changes or modifications not expressly approved by

Sensormatic Electronics Corporation, the party responsible for

FCC compliance, could void the user's authority to operate the

equipment.

WARRANTY DISCLAIMER

Sensormatic Electronics Corporation makes no representation or

warranty with respect to the contents hereof and specifically

disclaims any implied warranties of merchantability or fitness for

any particular purpose. Further, Sensormatic Electronics

Corporation reserves the right to revise this publication and make

changes from time to time in the content hereof without obligation

of Sensormatic Electronics Corporation to notify any person of

such revision or changes.

No part of this manual may be reproduced in any form without

written permission from Sensormatic Electronics Corporation.

SpeedDome is a trademark of Sensormatic Electronics Corpora-

tion. Other product names (if any) mentioned herein may be

trademarks or registered trademarks of other companies.

TABLE OF CONTENTS

iii

PREFACE....................................................................................................................................................................V

CHAPTER 1 INTRODUCTION ............................................................................................................................ 1-1

ABOUT THE DOME ...................................................................................................................................................... 1-2

Main Components .................................................................................................................................................. 1-2

Camera Options...................................................................................................................................................... 1-2

Optional Slot Cover ............................................................................................................................................... 1-2

Basic Geneology .................................................................................................................................................... 1-2

Indoor Mounting Methods ..................................................................................................................................... 1-4

Outdoor Mounting Method .................................................................................................................................... 1-6

Features .................................................................................................................................................................. 1-6

SPECIFICATIONS .......................................................................................................................................................... 1-9

CHAPTER 2 “INDOOR” INSTALLATION ........................................................................................................ 2-1

BEFORE YOU BEGIN ................................................................................................................................................... 2-2

Safety ..................................................................................................................................................................... 2-2

Verifying and Unpacking ....................................................................................................................................... 2-2

Tools and Equipment Required.............................................................................................................................. 2-2

Parts Check ............................................................................................................................................................ 2-2

I/O Board Detachment ........................................................................................................................................... 2-2

INSTALLATION PROCEDURE ........................................................................................................................................ 2-3

How to Use this Section......................................................................................................................................... 2-3

Hard/Tile Ceiling Mounting................................................................................................................................... 2-3

Optional Mounting Structures ................................................................................................................................ 2-5

Dome Setup and Attachment................................................................................................................................ 2-19

Skirt and Bubble Attachment ............................................................................................................................... 2-22

CHAPTER 3 “OUTDOOR” INSTALLATION .................................................................................................... 3-1

BEFORE YOU BEGIN ................................................................................................................................................... 3-2

Safety ..................................................................................................................................................................... 3-2

Verifying and Unpacking ....................................................................................................................................... 3-2

Tools and Equipment Required.............................................................................................................................. 3-2

Parts Check ............................................................................................................................................................ 3-2

I/O Board Detachment ........................................................................................................................................... 3-2

INSTALLATION PROCEDURE ........................................................................................................................................ 3-3

How to Use this Section......................................................................................................................................... 3-3

Mounting the Dome’s Base in the Outdoor SpeedDome Housing ......................................................................... 3-4

Dome Setup and Attachment.................................................................................................................................. 3-4

Skirt and Bubble Attachment ................................................................................................................................. 3-8

CHAPTER 4 SERVICE .......................................................................................................................................... 4-1

BEFORE YOU BEGIN ................................................................................................................................................... 4-2

Tools and Equipment Required.............................................................................................................................. 4-2

ROUTINE TROUBLESHOOTING ..................................................................................................................................... 4-2

DETAILED TROUBLESHOOTING ................................................................................................................................... 4-5

DOME DISASSEMBLY TECHNIQUES ............................................................................................................................. 4-5

How to Remove the CPU Board ............................................................................................................................ 4-6

How to Remove the P/S Board .............................................................................................................................. 4-6

How to Remove the Pan Motor.............................................................................................................................. 4-7

How to Remove the Slot Covers ............................................................................................................................ 4-7

How to Remove the Camera................................................................................................................................... 4-8

How to Detach the Eyeball..................................................................................................................................... 4-8

How to Remove the Camera/Lens Board ............................................................................................................... 4-9

How to Remove the Tilt Motor ............................................................................................................................ 4-10

DOME MAINTENANCE ............................................................................................................................................... 4-11

Updating/Reprogramming Dome Software .......................................................................................................... 4-11

Setting the Dome Address.................................................................................................................................... 4-11

Changing Special Features ................................................................................................................................... 4-11

Preface

Who should use this manual

Customer Engineers and Dealers who want to install and service

the camera dome.

How this manual is organized

This manual contains the following four chapters:

1 INTRODUCTION provides a product overview and specifi-

cations.

2 “INDOOR” INSTALLATION provides procedures required to

mount the dome indoors.

3 “OUTDOOR” INSTALLATION provides procedures required

to mount the dome outdoors.

4 SERVICE provides troubleshooting and maintenance

information.

Related Documents

Installation and service of this camera dome does not require

detailed knowledge of how it works or its circuits. However, if this

information is required, order the following document.

Theory for SpeedDome Ultra Camera Domes, document number

8000-1670-01.

Questions?

For technical support or questions that this manual does not

address:

Customer Engineers call: 1-800-543-9740

Dealers call: 1-800-442-2225

CHAPTER 1

SPEEDDOME ULTRA

1-1

SpeedDome Ultra Camera Dome

CHAPTER 1 INTRODUCTION

nAbout the Dome........................................................................1-2

Describes how the dome works, its mounting methods,

major components, and features.

nSpecifications ............................................................................1-9

Lists electrical, environmental, regulatory, and

mechanical specifications for the dome.

INTRODUCTION

SPEEDDOME ULTRA

1-2

About the Dome

The SpeedDome Ultra camera dome (Figure Chapter 1-

1) is part of a programmable network of camouflaged

cameras. These devices enable security personnel, from

a remote console, to track a target, near or far, even in

low light. Small and unobtrusive, the dome can be used

in facilities such as retail stores, casinos, manufacturing

facilities, hotels, and hospitals, especially where

appearance is important.

Main Components

The dome consists of a housing and eyeball assembly

that “twist locks” onto a mounting base. These com-

ponents are described as follows:

•Base. Mounted directly to an indoor hard or tile

ceiling, or to one of many optional indoor or outdoor

mounting structures, the base supplies power and

data to the housing and eyeball assembly, once it is

attached.

The base has terminal blocks that receive all video,

ac, alarm, and data connections and has LED

indicators that enable the installer to verify that

power and data are available.

•Housing and eyeball assembly. The housing

contains the dome’s power supply, pan motor, and

electronics used to operate the eyeball.

The rotating eyeball, gloss black and 120mm (4.75")

in diameter, contains a camera, camouflaged lens

(incorporated into one of two removable slot

covers), tilt motor, and associated electronics.

Camera Options

The dome, as shipped, contains one of four different

CCD cameras.

•Color NTSC (60Hz)

•Color PAL (50Hz)

•Monochrome EIA (60Hz)

•Monochrome CCIR (50Hz)

These cameras have 12X optical zoom with continuous

auto focus and backlight compensation. An electronic

zoom provides selectable magnification up to 18X or

48X.

Optional Slot Cover

Used in place of the slot cover mounted on the eyeball,

this optional slot cover has a 0.5f darker lens to enhance

eyeball camouflage. Order part number 0351-1163-01.

Figure Chapter 1-1. SpeedDome Ultra camera

dome

Basic Geneology

The dome is available in the four versions listed below.

Basic parts are listed under each version. An exploded

view is shown in Figure Chapter 1-2.

•RAS516LP Color NTSC (60Hz)

−0100-1340-01 Base Assy.

−0100-1036-01 Housing and Eyeball Assy.

−0351-1109-01 Install Kit

•RAS516LP-1 Color PAL (50Hz)

−0100-1340-01 Base Assy.

−0100-1036-02 Housing and Eyeball Assy.

−0351-1109-01 Install Kit

•RAS515LP Monochrome EIA (60Hz)

−0100-1340-01 Base Assy.

−0100-1036-03 Housing and Eyeball Assy.

−0351-1109-01 Install Kit

•RAS515LP-1 Monochrome CCIR (50Hz)

−0100-1340-01 Base Assy.

−0100-1036-04 Housing and Eyeball Assy.

−0351-1109-01 Install Kit

Housing

and

Eyeball

Assembly

Base

INTRODUCTION

SPEEDDOME ULTRA

1-3

Figure Chapter 1-2. Dome components

0400-0833-01 Housing Assy.

0100-1340-01 Base Assy.

Screws (3), M3 x 8 PHP (5801-1051-120)

Slip Ring Assy. (2100-0005-01)

Skirt (0500-6710-01)

Tripod Mount

(0500-6712-01)

Tilt Motor

(3501-0018-01)

Screws, M2x3

(5801-0011-120)

Washer, 1/4 Flat

(2848-8100-07)

0100-1036-00 Housing

and Eyeball Assy.

-01 Color NTSC camera

-02 Color PAL camera

-03 BW EIA camera

-04 BW CCIR camera

0400-0831-00 Eyeball Assy.

-01 Color NTSC camera

-02 Color PAL camera

-03 BW EIA camera

-04 BW CCIR camera

Camera. 1/4 CCD 9Vdc

(2003-0037-01 CLR NTSC)

(2003-0037-02 CLR PAL)

(2003-0037-03 BW EIA)

(2003-0037-04 BW CCIR)

Screw, 1/4-20x3/8

(2802-7407-65)

Bearing Assy., Lens Carriage

(2510-0038-01)

oke Bracket (2)

(0500-7254-01)

Standard Slot Cover with Lens

(0500-6709-01)

(Supplied with Final Assy., not Eyeball Assy.)

Cable Assy., Tilt

(0650-1680-01)

Slot Cover

(0500-6709-02)

(Supplied with Final Assy., not Eyeball Assy.)

oke

(0500-6709-01)

Camera/Lens Board

(0301-0641-01)

Bearing Assy., Pan Gear

(2510-0040-01)

Housing (0500-7255-01)

Dust Cover

(3100-0066-01)

I/O Board

(0301-0546-01)

Pan Motor (3501-0017-01)

Standoff (3), M3 x 8H x 13L (5899-0055-01)

Screw (4), M3 x 6 (5813-2041-113)

Standoff (3), M3 x 6H x 19L (5887-1122-020)

Power Supply Board (5606-0015-01)

Fan and Cable (0650-1682-01)

Shield (0500-7192-01)

Cap (0500-7256-01)

CPU Board (0301-0578-01)

Ground Clip

(0500-7293-01)

Base

(0500-7257-01)

INTRODUCTION

SPEEDDOME ULTRA

1-4

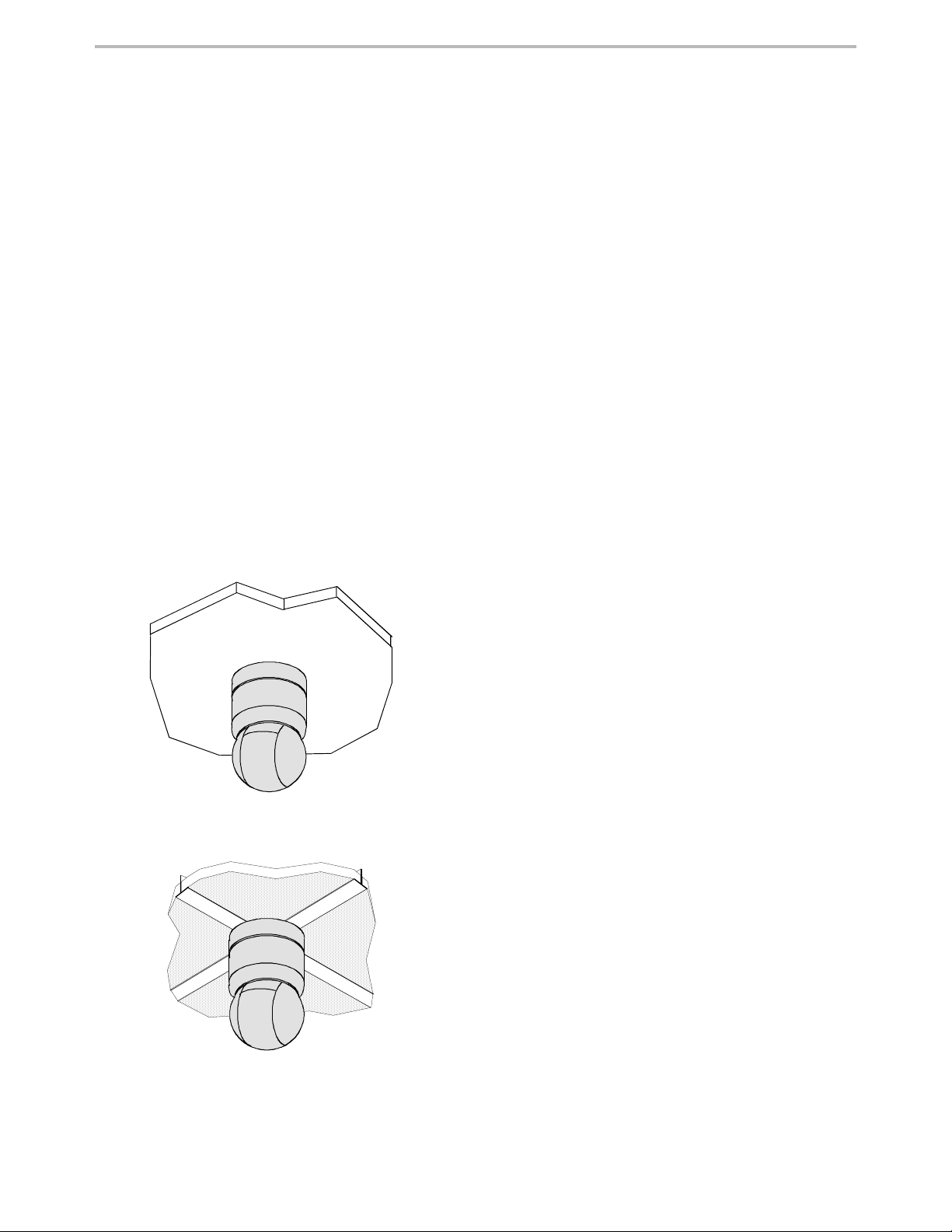

Indoor Mounting Methods

The dome’s base mounts directly to indoor hard or tile

ceilings using hardware supplied with the dome, or to

one of many optional mounting structures. These

methods facilitate quick installation after site prep-

aration, enabling wiring to be done during rough

building construction.

An “install/removal tool” (not shown) can be used to

easily attach the “twist-lock” housing and eyeball

assembly to its base and to attach skirts and bubbles—

without the need for a ladder. It can also be used to

detach these components.

Hard/Tile Ceiling Mounting

The dome’s base can be surface mounted directly to

sheet rock ceilings, wood ceilings, or ceilings with spe-

cial finishes (Figure Chapter 1-3). The base can also be

mounted directly to tile ceiling T-bars where they

intersect (Figure Chapter 1-4). Mounting hardware is

supplied with the dome.

Figure Chapter 1-3. Surface mounting to hard

ceilings

Figure Chapter 1-4. Surface mounting to tile

ceilings

Mounting Structures (Optional)

The dome’s base can be mounted to many indoor

mounting structures (Figure Chapter 1-5) that attach to

indoor walls and ceilings. These structures are as

follows:

Product

Code Mounting Structure

RHIUH Top hat housing with trim ring. Contains the

camera dome. This housing can be used

independently or as part of the following

mounting structures. It also can be used with

the following bubbles:

RU105UD Clear bubble

RU106UD Silver bubble

RU107UD Smoked bubble

RU108UD Gold bubble

RHIUFB*Fixed bracket. Allows top hat housing to be

recessed into 2x2 drop ceiling or in hard

ceilings such as sheet rock, plaster, and wood

(requires top hat RHIUH).

RHIUAB*Adjustable bracket. Allows the top hat housing

to be recessed into 2x4 drop ceiling tiles

(requires top hat RHIUH).

RHIUWM*Wall mount structure. For direct wall installa-

tion (top hat housing RHIUH is optional).

RHIUCM*Wall mount structure with corner feature.

Allows dome to mount directly to the wall, or to

inside or outside corners (top hat housing

RHIUH is optional).

RHIULWM*Long .6m (24”) wall mount structure with

corner feature. Allows dome to see over

furniture, shelving, and displays, and to mount

directly to the wall, or to inside or outside cor-

ners (top hat housing RHIUH is optional).

RHIUPND*Pendent mount. Allows dome to suspend from

a structural I-beam or hard ceiling (top hat

housing RHIUH is optional). Used for indoor

ceilings at least 6m (20ft) high.

RHIU4x4 4x4 mounting plate. Allows dome to attach to

a standard 4 x 4 duplex electrical box (top hat

housing RHIUH is optional).

RHIU3x3 3x3 mounting plate. Allows dome to attach to

a standard 3.5 x 3.5 electrical box (top hat

housing RHIUH is optional).

RHSDA Adapter bracket. Allows the dome to be

inserted into existing indoor SpeedDome hous-

ings. Two sets of spring-loaded locking pins on

the bracket enable the light-weight dome as-

sembly to swing out of the housing for servicing

or to be removed entirely. This bracket can also

be used for outdoor housings.

* These options come in white, but can be easily painted to

match decor.

Autres manuels pour SpeedDome Ultra

Table des matières

Autres manuels American Dynamics Caméra de sécurité

American Dynamics

American Dynamics RASIPPS-1 Manuel utilisateur

American Dynamics

American Dynamics SensorRail IIIe ADRL3TRK Series Manuel utilisateur

American Dynamics

American Dynamics SpeedDome Optima LT Manuel

American Dynamics

American Dynamics ADC780 Instructions de montage

American Dynamics

American Dynamics Illustra 1MP Manuel utilisateur

American Dynamics

American Dynamics SpeedDome Ultra 8 35x Manuel utilisateur

American Dynamics

American Dynamics ADC522WP Manuel utilisateur

American Dynamics

American Dynamics DeltaDome II Instructions d'installation et d'utilisation

American Dynamics

American Dynamics AD615 Manuel utilisateur

American Dynamics

American Dynamics ADC500 Manuel utilisateur

American Dynamics

American Dynamics ADC520D Manuel utilisateur

American Dynamics

American Dynamics ADC710 Manuel utilisateur

American Dynamics

American Dynamics ADCA Series Manuel utilisateur

American Dynamics

American Dynamics Illustra Flex Series Manuel utilisateur

American Dynamics

American Dynamics IP speedDome Ultra 8 Instructions d'installation et d'entretien

American Dynamics

American Dynamics Camera Accessories Manuel utilisateur

American Dynamics

American Dynamics illustra 600 Manuel utilisateur

American Dynamics

American Dynamics ADC 660P Manuel utilisateur

American Dynamics

American Dynamics Tyco Discover Series Manuel utilisateur

American Dynamics

American Dynamics SpeedDome Ultra VII Manuel utilisateur

American Dynamics

American Dynamics SensorRail IIIe ADRL3TRK Series Manuel utilisateur

American Dynamics

American Dynamics ADC700 Manuel utilisateur

American Dynamics

American Dynamics ADSDUHOC Manuel utilisateur

American Dynamics

American Dynamics Illustra Flex Series ADCi600F-W012** Manuel utilisateur

Manuels Caméra de sécurité populaires d'autres marques

Okina USA

Okina USA SIR36-870VF650LP Manuel utilisateur

Divio

Divio NDR155PA Manuel utilisateur

Canon

Canon VB-C500D Manuel utilisateur

Easy Access

Easy Access EasyGuard Manuel utilisateur

Vivotek

Vivotek FD9389-EHV-v2 Manuel utilisateur

TUYA

TUYA COSMO W2 Manuel utilisateur

Eusso

Eusso UNC7500-IR Guide de configuration

urmet domus

urmet domus 1096/204 Manuel utilisateur

VC VC20 series Manuel utilisateur

Axis

Axis Q1614 Manuel utilisateur

ieGeek

ieGeek DD201 Manuel utilisateur

VADDIO

VADDIO ClearVIEW HD-USB PTZ 999-6990-000 Manuel utilisateur

Vicon

Vicon V662-D-1 Mode d'emploi

Grundig

Grundig GCH-K0274P Manuel utilisateur

Lorex

Lorex VANTAGE LBC7032 Manuel utilisateur

4xem

4xem WPT Manuel utilisateur

Samsung

Samsung SCV-3082 Manuel utilisateur

Vitek

Vitek VTC-C544 Manuel utilisateur
