Quick Setup Guide

VideoEdge IP Outdoor Mini-dome

Part Number 8200-2646-07 B0

Quick Setup Guide

WARNING

At close range, infrared light can seriously damage a person's vision. Install this

illuminator with a minimum safety zone of 1.22m ( 4 ft. ) between the illuminator and

the closest possible human contact.

Note: 1.22m ( 4 ft. ) is the actual measurement of the strength of the IR Illuminators

that are being used.

Note: CAMERASTARTS UPIN BLACK & WHITE BECAUSE THE IR ILLUMINATOR

IS DISCONNECTED.

For safety reasons, the IR Illuminator is disconnected at the factory. If the IR

Illuminator were to accidentally trigger during install, it may pose a hazard to those

within 4 feet. Once the camera is installed, reconnect the power lead (see

manual). Ensure that you do not cover the photo cell (see manual) after power is

reconnected as that may trigger the IR illuminator.

SERVICE WARNING

DO NOT LOOK DIRECTLY INTO AN OPERATONAL IR ILLUMINATOR.

Since IR light is invisible to the human eye, the only method of verifying a malfunctioning IR

illuminator is to observe the picture at the video output location.

SAFETY PRECAUTIONS

All the following safety and operational instructions to prevent harm or injury to the

operator(s) or other persons should be read carefully before the unit is activated.

Under copyright laws, the contents of this manual may not be copied, photocopied,

reproduced, translated or reduced to any electronic medium or machine-readable

form, in whole or in part, without prior written consent of Tyco International Ltd. ©

American Dynamics

6600 Congress Avenue

Boca Raton, FL 33487, U.S.A.

WARNING

To prevent fire or shock hazard, avoid exposing this unit to rain or moisture.

Do not block ventilation openings.

Do not place anything on top of the unit that might spill or fall into it.

Do not attempt to service this unit yourself, as opening or removing covers may expose

you to dangerous voltage or other hazards. Please refer all servicing to your distributor

/ retailer.

Do not use liquid cleaners or aerosols for cleaning.

To prevent fire or electric shock, do not overload wall outlets or extension cord.

This unit must be grounded to reduce the risk of electric shocks.

The installation should be made by a qualified service person.

PoE considered a Network Environment 0 per IEC TR62101, and thus the

interconnected ITE circuits may be considered SELV.

CAUTION

RISK OF EXPLOSION IF BATTERY IS REPLACED BYAN INCORRECT TYPE.

DISPOSE OF USED BATTERIESACCORDING TO THE INSTRUCTIONS.

4Quick Setup Guide

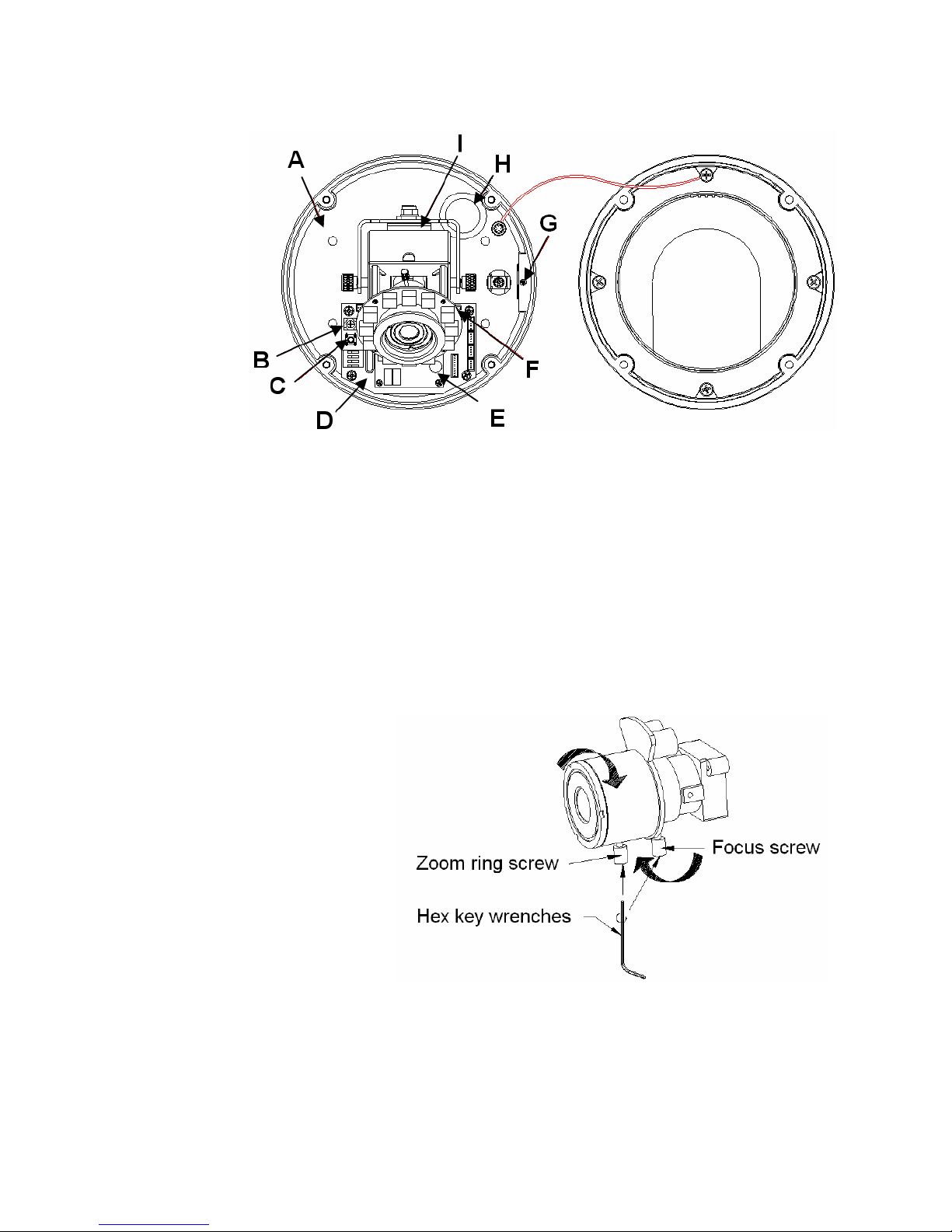

1. Name of parts and functions

A. Inner plate mounting holes

B. DC level

C. Reset

D. PC assembly

E. IP module

F. USB plug

G. Side conduct entry

H. Back conduct entry

I. SD card slot

2. Adjusting the camera zoom and focus

1. Loosen the zoom ring thumbscrew.

2. Turn the zoom ring to set the desired zoom.

3. Tighten the zoom ring thumbscrew.

4. Loosen the focus ring thumbscrew.

5. Turn the focus ring to set the desired focus.

6. Tighten the focus ring thumbscrew with the tool to adjust the focus.

Quick Setup Guide

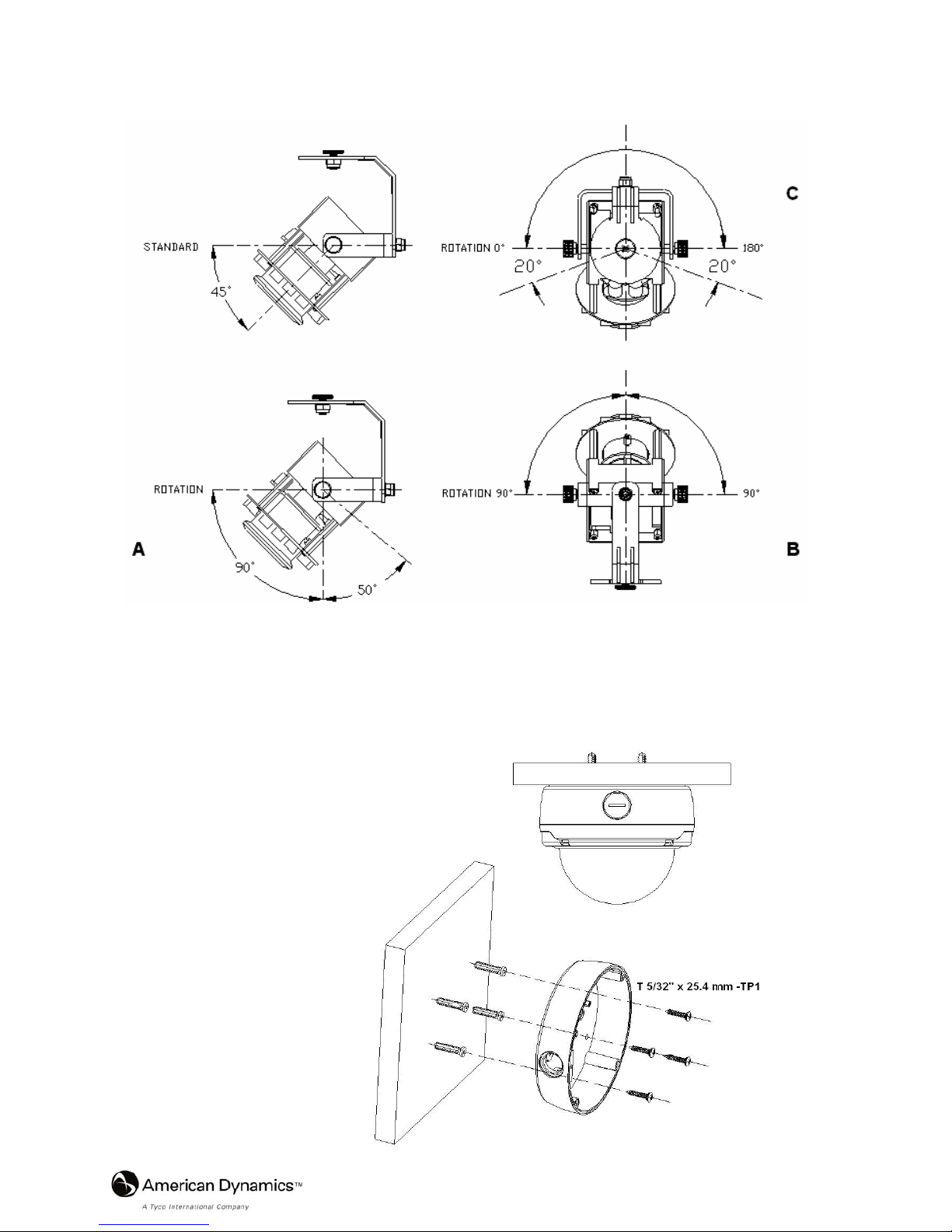

3. Camera adjustment

1. Horizontal angle adjustment: turn the platform to adjust the horizontal angle B (90

degrees) and C (180 degrees).

2. Vertical angle adjustment: turn the platform to adjust the vertical angle A (90 degrees).

4. Mounting the housing

6Quick Setup Guide

5. Install, configure and set the IP Dome Camera

The CAMERAdefault setting is DHCP OFF. Users can build the CAMERAworking environment with a static IP

address. The default static IPis192.168.1.168. You can set an IPaddress for the CAMERAif the LAN unit isn’t

connected to a DHCP server. Or turn on to use the DHCP protocol if the DHCP server is working in the LAN,

the CAMERA will obtain an IP address automatically from the DHCP server. The CAMERA is linked by its

Video Out connection via a BNC connector to a monitor's Video In connection. If this connection is there, you

can see some information on the monitor screen, such as the CAMERA factory default Static IP address.

1. Check the IP class of your PC

Step 1: Select Settings from the Start menu, and then click Control Panel.

Step 2: Double-click the Network Connections icon. The Network Connections dialog box appears.

Step 3: Click the Protocols tab in the Network Connections dialog box.

Step 4: Select Internet Protocol (TCP/IP) and click Properties.

Step 5: Select Use the following IP Address to indicate that you do not wish to use DHCP, and assign IP

Address 192.168.1.200 with Subnet mask 255.255.255.0. Click OK when you finish.

Step 6: Choose Close to finish the modification.

2. Install UPnP Packets of your PC

Microsoft Windows XP®does not start the UPnPservice by default. Some packets must be installed before it is

initialized, as described below.

Step 1: Select Set Program Access and Default from the Start menu.

Step 2: Click the Add/Remove Windows Components button when the Add or Remove Programs dialog

box appears.

Step 3: Check the Network Services in the Windows Component Wizard dialog box, and then click Details.

Step 4: Check UPnP User Interface, and choose OK.

Step 5: Click Next when the original Network Component Wizard dialog box returns.After about one minute

the UPnP installation is complete.

Step 6: Select Finish to close.

3. Turn on Services of your PC

After installation, turn on the relative services to start the UPnP protocol. The following procedures will

demonstrate this.

Step 1: Select Settings from the Start menu, and then click Control Panel.

Step 2: Double-click the Administrative Tools icon. The Administrative Tools dialog box appears.

Step 3: Click the Services icon in the Administrative Tools dialog box.

Step 4: Double-click the SSDP Discovery Service icon when the Services dialog box shows up.

Step 5: Choose Automatic in the Startup type, and click OK to start it. The Services dialog box appears

again.

Step 6: Double-click the Universal Plug and Play Device Host icon.

Step 7: Choose Automatic in the Startup type, press the Start button, and click OK to start it.

Step 8: Restart your system.

4. Set the static IP address in the IP Dome Camera.

Step 1: Plug in the IP Dome camera’s power connection.

Step 2: Plug the USB connector to your PC and the USB socket on the left flank panel. A window pops up

asking if you want to "Run the program", "Open folder to view files", or " Take no action".

Step 3: Choose "Run the program" and click "OK", and the "USB configuration " window will pop up.

Step 4: Set the Network setting and type in the IP address you desire. Before you change the IP address, you

should note the factory default Static IP address ( 192.168.1.168 ).

Step 5: Click the "Apply" button in the "USB Configuration” window. A message pops up asking you to affirm

the action as "OK".

Step 6: Click "OK", and remove the USB connection from the window.

Step 7: Click "Exit" at the bottom of the "USB Configuration” window to close the window. Or, choose the

"Launch" button to see the local camera images directly. Before clicking "Launch", check your PC's IP

address and use the Network connector ( RJ-45 ) to link up with your camera.

Step 8: If you can see the images, then the IP setting is complete.

5. Scan IP Dome Camera through “My Network Place”

After your installation and starting services, the UPnP protocol will take effect.

Step 1: Scan all IP Dome Camera in My Network Place.

Step 2: Double click the IP Dome Camera icon, and the video live stream will pop up automatically without

assigning any IP address in Microsoft Internet Explorer.

6. Change the IP Dome Camera's control and operational settings.

Step 1: Enter the IP address in the IE Browser. You will now see the IP Dome camera images.

Quick Setup Guide

Step 2: Use the buttons below the images to enter any other operational settings pages.

Step 3: When you change any setting, please remember to click the "Submit” button in each page.

NOTE: Enable DHCP Function: This function can only work if the LAN, which the unit is connected to,

has a DHCP server. If the DHCP server is working, the IP Dome Camera will obtain an IP address

automatically from the DHCP server.

NOTE: The default "User Name" and "Password" are admin and 9999 respectively. If either the user

name or the password is incorrect, please check the input data and rectify it as necessary.

NOTE: When only one unit of the IP Dome Camera is connected to a computer or LAN, you can freely

assign an IP address for the IP Dome Camera. For example, there is a range of IP Dome Camera IP

addresses from 192.168.1.1 to 192.168.1.255. You can pick one for use from the range of the IP. It’s

not necessary to set MASK and GATEWAY; leave the settings as default.

When an IP Dome Camera is connected to a WAN, you must acquire a unique, permanent IP

address and correctly configure the MASK and GATEWAY settings according to your network

architecture. If you have any questions regarding those settings, please consult a qualified MIS

professional or your ISP.

Specifications

ADCIPE3712OCN VideoEdge IP Outdoor Mini-dome, 3.7-12mm, clear, NTSC, w/PS

ADCIPE3712OCPE VideoEdge IP Outdoor Mini-dome, 3.7-12mm, clear, PAL, EU Plug, w/PS

ADCIPE3712OCPU VideoEdge IP Outdoor Mini-dome, 3.7-12mm, clear, PAL, UK Plug, w/PS

ADCIPE3712OSN VideoEdge IP Outdoor Mini-dome, 3.7-12mm, smoke, NTSC, w/PS

ADCIPE3712OSPE VideoEdge IP Outdoor Mini-dome, 3.7-12mm, smoke, PAL, EU Plug, w/PS

Model

ADCIPE3712OSPU VideoEdge IP Outdoor Mini-dome, 3.7-12mm, smoke, PAL, UK Plug, w/PS

Image device 1/3” Sony Super-HAD CCD

Effective Pixels NTSC:768 x 494, PAL:752 x 582

System NTSC/ PAL

CCD Setting BLC, AGC, AWB, FL / Mirror / Shutter Speed 1/1000

IR wavelength / IR Length 700~1100nm (built-in 850nm) / 25m

Min. Illumination 0.5 Lux @F1.6, 0 Lux IR on

Camera

Lens 3.7~12mm Vari-focal auto iris DC drive lens

Compression MJPEG / MPEG4

Resolution D1/ 2CIF/ CIF

Frame-rate 30 (25) / 24 / 15, 5 fps, adjustable

Picture size (quality) MJPEG: 4~64KB

MPEG4: 64Kbps ~ 8Mbps (Bit-rate)


Motion detection Motion Detection (96 zones, 5 levels)

Interface Ethernet (RJ-45 wired, 10/100 base-tx), MDIX support

Protocols TCP/IP, DHCP, HTTP, ICMP, UPnP, ARP, DNS, DDNS, PPPoE, *FTP,

*SMTP, RTP, RTSP

Network

Throughput 2.0M bytes/sec

Web browser Microsoft IE 6.0 or above

Development tools ActiveX / HTTP-API / SDK

Software Security Multiple level / Multiple users / IP address filtering

Video output 1.0 Vpp, 75 ohm, composite, negative, BNC x 1

Alarm I/O/Reset 1 / 1 / 1

SD card Alarm and Schedule recording / update

USB Mini Type , 1.1 Slave for Configuration / Update

Connectors

Reset Factory Default

Power requirement POE/802.3af class 3, DC 12V/750mA

Power current consumption 700mA IR On, 500mA IR OFF

Operating Temperature 0°C ~ 50°C (32℉~ 122℉)

Dimensions 110mm(High) X 142 mm (Diagram)

Approvals FCC, CE, RoHS

Others

Accessories User manual x 1

*Specifications are subject to change without notice.

**FTP and SMTP functions for PAL version only.

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels American Dynamics Caméra de sécurité

American Dynamics

American Dynamics SpeedDome Optima LT Manuel utilisateur

American Dynamics

American Dynamics ADC700 Manuel utilisateur

American Dynamics

American Dynamics IP speedDome Ultra 8 Manuel utilisateur

American Dynamics

American Dynamics ADSDUPIHC Manuel utilisateur

American Dynamics

American Dynamics ADC660 Manuel utilisateur

American Dynamics

American Dynamics SpeedDome Ultra VIIE Instructions d'installation et d'entretien

American Dynamics

American Dynamics IP speedDome Ultra 8 Instructions d'installation et d'entretien

American Dynamics

American Dynamics SensorRail IIIe ADRL3TRK Series Manuel utilisateur

American Dynamics

American Dynamics ADCDW Series Manuel utilisateur

American Dynamics

American Dynamics illustra 600 Manuel utilisateur

American Dynamics

American Dynamics AD615 Manuel utilisateur

American Dynamics

American Dynamics IP speedDome Ultra 8 Manuel

American Dynamics

American Dynamics Discover 600 Series Manuel utilisateur

American Dynamics

American Dynamics Tyco Discover Series Manuel utilisateur

American Dynamics

American Dynamics ADC 660P Manuel utilisateur

American Dynamics

American Dynamics ADODHCL Instructions d'installation et d'entretien

American Dynamics

American Dynamics SpeedDome Ultra VII Manuel utilisateur

American Dynamics

American Dynamics SpeedDome Ultra III Instructions d'installation et d'entretien

American Dynamics

American Dynamics VideoEdge IP Indoor Mini-dome 8200-2646-02... Instructions d'utilisation d'origine

American Dynamics

American Dynamics DeltaDome II Instructions d'installation et d'utilisation

American Dynamics

American Dynamics Illustra 625 PTZ Manuel utilisateur

American Dynamics

American Dynamics RASO series Manuel utilisateur

American Dynamics

American Dynamics DeltaDrone II Manuel utilisateur

American Dynamics

American Dynamics Illustra 1MP Manuel utilisateur

Manuels Caméra de sécurité populaires d'autres marques

Okina USA

Okina USA SIR36-870VF650LP Manuel utilisateur

Divio

Divio NDR155PA Manuel utilisateur

Canon

Canon VB-C500D Manuel utilisateur

Easy Access

Easy Access EasyGuard Manuel utilisateur

Vivotek

Vivotek FD9389-EHV-v2 Manuel utilisateur

TUYA

TUYA COSMO W2 Manuel utilisateur

Eusso

Eusso UNC7500-IR Guide de configuration

urmet domus

urmet domus 1096/204 Manuel utilisateur

VC VC20 series Manuel utilisateur

Axis

Axis Q1614 Manuel utilisateur

ieGeek

ieGeek DD201 Manuel utilisateur

VADDIO

VADDIO ClearVIEW HD-USB PTZ 999-6990-000 Manuel utilisateur

Vicon

Vicon V662-D-1 Mode d'emploi

Grundig

Grundig GCH-K0274P Manuel utilisateur

Lorex

Lorex VANTAGE LBC7032 Manuel utilisateur

4xem

4xem WPT Manuel utilisateur

Samsung

Samsung SCV-3082 Manuel utilisateur

Vitek

Vitek VTC-C544 Manuel utilisateur
