Intellex™

Digital Recorder

Quick Reference Guide

Intellex™Digital Recorder

Notice

The information in this manual was current when published. The

manufacturer reserves the right to revise and improve its products.

All specifications are therefore subject to change without notice.

Under copyright laws, the contents of this manual may not be cop-

ied, photocopied, reproduced, translated or reduced to any electronic

medium or machine-readable form, in whole or in part, without prior

written consent of Sensormatic Video Products Division.

Sensormatic Video Products Division

6795 Flanders Drive

San Diego, CA 92121

U.S.A.

Trademarks

Intellex™and IntelleCord™aretrademarksof SensormaticVideoProd-

ucts Division.

Trademarked names are used throughout this manual. Rather than

place a symbol at each occurrence, trademarked names are desig-

nated with initial capitalization. Inclusion or exclusion is not a judg-

ment on the validity or legal status of the term.

Quick Reference Guide

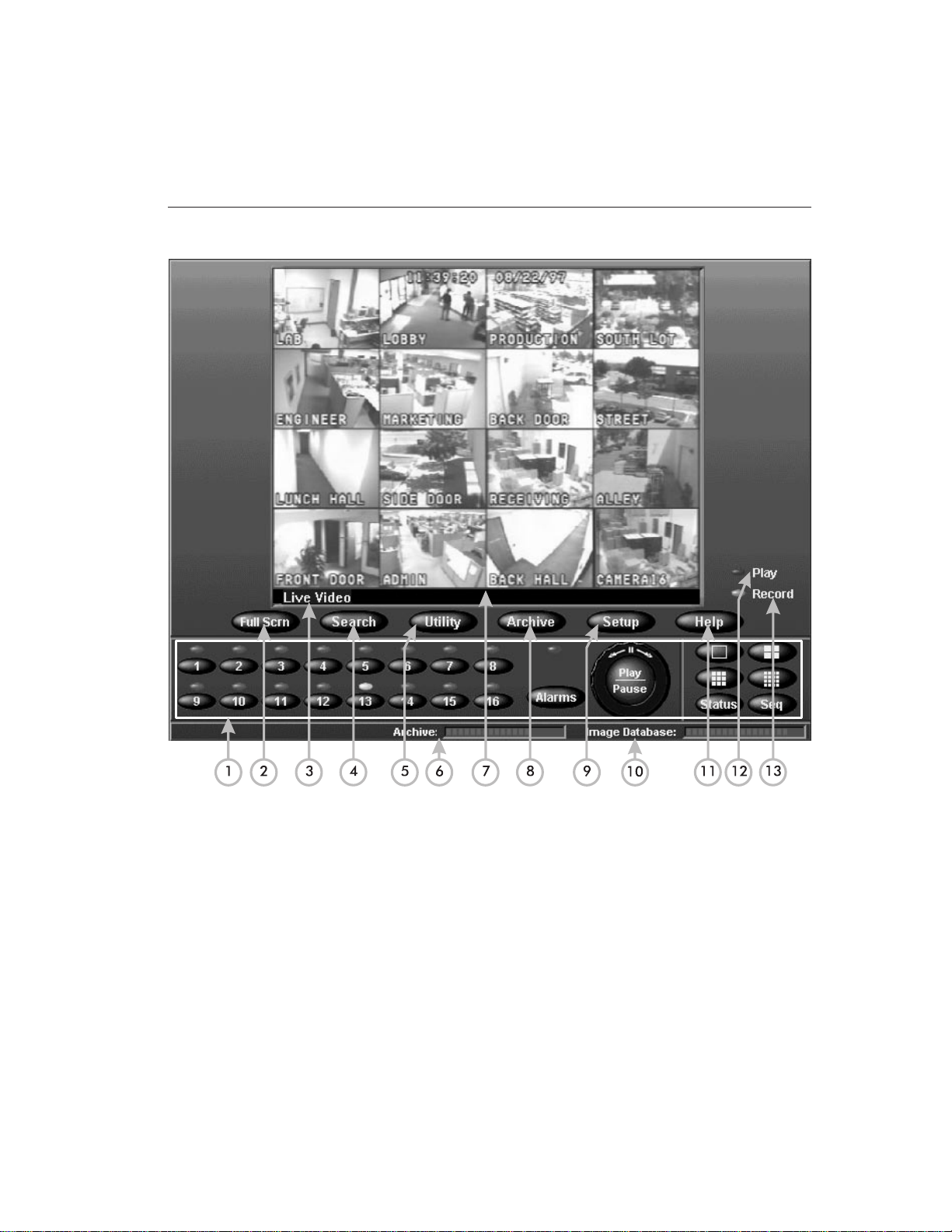

MAIN DISPLAY SCREEN

5. Utility — Click to access the UtilityOptions

screen.

6. Archive — Indicates the amount of used

and available recording space on the tape.

7. Image Area — Live images are displayed

here in the selected screen format.

8. Archive — Click to access the Archive Op-

tions screen.

1. Front Panel — Representation of the

physical front panel (see Front Panel Con-

trols and Indicators).

2. Full Scrn — Click to hide the controls and

display the current images full screen.

3. LiveVideo — Indicates unit is displaying

liveimages(single-monitorconfigurations

only).

4. Search — Click to search the image data-

base for specific video images.

Intellex™Digital Recorder

Front Panel Controls and Indicators

14. 1–16 (Cameras) — Press or click to dis-

play a specific camera in the 1x1 format.

The indicator for the displayed camera is

lit.

15. Alarm Indicator — This indicator is lit

when alarm events have occurred, but

have not been reviewed.

16. Play/Pause — Controls speed and

direction of images during playback.

17. Alarms — Press or click to display the

alarm review screen.

18. 1x1 — Press or click to select the single

window display format. Only one cam-

era can be displayed at a time.

19. 2x2 — Press or click to select the four-

window display format. Up to four cam-

eras can be displayed at the same time.

20. 3x3 — Press or click to select the nine-

window display format. Up to nine cam-

eras can be displayed at the same time.

21. 4x4 — Press or click to select the 16-win-

dow display format. Up to 16 cameras can

be displayed at the same time.

22. Status — Press or click to display the

unit’s status screen.

23. Seq — Press or click to display cameras

sequentially.

9. Setup — Click to access the Setup Op-

tions screen.

10. Image Database — Indicates the amount

of used and available recording space.

11. Help — Click to display help information.

12. Play — This indicator is lit when the unit

is playing back images.

13. Record — This indicator is lit when the

unit is recording images. On the front

panel, this indicator is labeled Rec.

Quick Reference Guide

To perform this action: Do this:

Change the screen format Click or press a screen format button (1x1, 2x2, 3x3, 4x4).

Display system status Click or press Status.

Display cameras sequentially Click or press Seq.

Log out Click Utility. Click Log Out. Click Yes.

Shut down the unit* Click Utility. Click Shutdown. Click Yes.

Generate an alarm* ClickUtility. Click Generate Alarms. Select the cameras. Click

OK to generate alarms for the selected cameras.

Clear latched alarm messages* Click Utility. Click Clear Latched. Click Yes.

Back up the image database* Click Archive. Click Back up... Follow the directions.

Restore archived images* Click Archive. Click Restore... Follow the directions.

Play archived images* Click Archive. Click Play... Follow the directions.

Add, change or delete a user* Click Setup. Click Security.

Configure the record schedule* Click Setup. Click Schedule.

Configure other unit settings* Refer to Chapter 3 — System Configuration in the Intellex

Installation Instructions.

Review an alarm* Click or press Alarms. Select an alarm segment to review. Click

or press Play.

Search the image database* Click Search. Select the search conditions. Click Find.

Use the filters to search the Refer to Chapter 3 — Playback Operation in the Intellex

image database* Operating Instructions.

Play back images* Click or press a camera button. Click or press Play/Pause.

Configure IntelleCord filters* Refer to Chapter 3 — System Configuration in the Intellex

Installation Instructions.

MAIN SCREEN

OPERATION

NOTE: You must have permission from the system adminis-

trator to access items marked with an‘*’.

Intellex™Digital Recorder

PLAYBACK SCREEN

1. Front Panel — The unit’s front panel is

reproduced on the playback screen (see

Playback Controls and Indicators).

2. Full Scrn — Click to hide the playback

controls and indicators and to display the

image area full screen.

3. Camera Name — Displays the name of

the displayed camera.

4. Search — Click to search the image data-

base for specific images.

5. Image Date — Displays the date of the

image.

6. Tools — Click to enhance the currently

displayedimageusingtheimageenhance-

ment tools. You can also print the image

and save it to a diskette.

7. Image Time — Displays the time stamp

for the image.

8. Alarm Input — Displays the alarm input

or type of alarm event (if any).

Quick Reference Guide

9. Image Area — The unit displays playback

images in this area of the screen.

10. Close — Click to close this screen and

return to normal operation.

11. Playback State — Displays Play or

Pause, playback speed (1x to 5x), and di-

rection (forward or reverse).

12. Help — Click to display help information.

13. Play — This indicator is lit when the unit

is playing back images.

14. Record — This indicator is lit when the

unit is recording images. On the front

panel, this indicator is labeled Rec.

Playback Controls and Indicators

15. 1–16 (Cameras) — Press or click to play

backimagesforspecific cameras. The light

indicates which camera is being played

back.

16. Alarm Indicator — This light indicates

that alarm events have occurred, but have

not been reviewed.

17. Play/Pause Control Knob — Controlsthe

playback speed and direction (see Adjust

playback speed and direction on the next

page).

18. Screen Formats — Press or click to

change the live display format. The unit

closes the playback screen. When an op-

tional live display monitor is installed, the

unit changes the format on that monitor,

and does not close the playback screen.

19. Alarms — Press or click to display the

alarm review screen.

20. Play/Pause — Press or click to play back

images or to pause image playback. The

unit displays Play or Pause, as

appropriate.

21. Status — Press or click to display the

unit’s status screen.

22. Seq — Press or click to display cameras

sequentially. The unit closes the playback

screen. When an optional live display

monitor is installed, the unit cancels play-

back operation, but does not close the

playback screen.

Intellex™Digital Recorder

Sensormatic Video Products Division

6795 Flanders Drive

San Diego, California 92121

TEL: 619-642-2400

800-854-2057

FAX: 619-642-2440

PLAYBACK OPERATION

To perform this action: Do this:

Display the playback screen From the main screen, click or press Play/Pause.

Review an alarm ClickAlarms.Clickthealarmsegmenttoreview. Click or press

Play.

Search the image database Click Search. Select the search conditions. Click Find.

Play back images Click a camera button. If playback is paused, click or press

Play/Pause.

Pause image playback Click or press Play/Pause.

Adjust playback speed and Turn the Play/Pause control knob (on-screen or front panel)

direction (Play or Pause) clockwise for forward playback or counterclockwise for re-

wind. Turn the knob farther to increase playback speed. The

speed (–5x to –1x or 1x to 5x) is displayed next to the play-

back state (Play or Pause). In Pause mode, playback oper-

ates at a slower speed than in Play mode.

Enhance an image Pause playback at the correct image. Click Tools. Use the en-

hancement tools.

Print an image Pause playback at the correct image. Click Tools. Click Print.

Save an image to a diskette Pause playback at the correct image. Click Tools. Click Save.

Load an image from a diskette Pause playback at the correct image. Click Tools. Click Load.

Close the playback screen and Click Close, or click or press Seq.

display the main screen

Part Number 8000-2185-00 REV A
