ML-96

(HSI)

Parts Manual

1999/2000

Retain This Manual In ASafe Place For Future Reference

American Dryer Corporation products embody advanced concepts in engineering, design, and safety. If this product is

properly maintained, it will provide many years of safe, efficient, and trouble-free operation.

ONLY qualified technicians should service this equipment.

OBSERVE ALL SAFETY PRECAUTIONS displayed on the equipment or specified in the installation manual included with

the dryer.

The following “FOR YOUR SAFETY” caution must be posted near the dryer in a prominent location.

We have tried to make this manual as complete as possible and hope you will find it useful. ADC reserves the right to make

changes from time to time, without notice or obligation, in prices, specifications, colors, and material, and to change or

discontinue models.

Important

For your convenience, log the following information:

DATE OFPURCHASE ____________________________ MODELNO. __________________________________________

RESELLER’SNAME _______________________________________________________________________________________

Serial Number(s) ________________________________________________________________________________________

________________________________________________________________________________________

Replacement parts can be obtained from your reseller or the ADCfactory. Whenordering replacement parts from thefactory,

you can FAX your order to ADC at (508) 678-9447 or telephone your order directly to the ADC Parts Department at

(508)678-9000. Pleasespecifythe dryermodelnumberand serialnumberin addition to thedescriptionand partnumber,so

that your order is processed accurately and promptly.

The illustrations on the following pages may not depict your particular dryer exactly. The illustrations are a composite of the

various dryer models. Be sure to check the descriptions of the parts thoroughly before ordering.

ML-96

“IMPORTANTNOTETOPURCHASER”

Informationmustbeobtainedfromyourlocalgassupplierontheinstructions

tobefollowedifthe user smells gas. Theseinstructionsmustbeposted in a

prominentlocationnearthedryer.

FORYOUR SAFETY

Donot store or use gasolineor

otherflammablevaporsorliquids

inthevicinityofthisoranyother

appliance.

POURVOTRESÉCURITÉ

Nepasentreposer ni utiliser d’essence

nid’autresvapeursou liquides

inflammablesdans levoisinagedecet

appareiloude yout autre appareil.

Table of Contents

Control Door Assembly ................................................................................................. 2

Phase 6 Microprocessor Panel Assembly ...................................................................... 3

Main Door/Front PanelAssembly .............................................................................. 4, 5

Main DoorAssembly ................................................................................................. 6, 7

Main Door SwitchAssembly ......................................................................................... 8

Temperature Sensor Bracket Assembly ......................................................................... 9

Wrapper Assembly....................................................................................................... 10

Lint DoorAssembly ..................................................................................................... 11

Basket (Tumbler)Assembly ......................................................................................... 12

Basket(Tumbler) BearingAssembly ............................................................................ 13

Idler ShaftAssembly .................................................................................................... 14

Drive ShaftAssembly................................................................................................... 15

Drive MotorAssembly ................................................................................................. 16

Motorized Impellor (Fan)Assembly ............................................................................ 17

Reversing Relay PanelAssembly ................................................................................. 18

PneumaticValveAssembly........................................................................................... 19

Hot Surface Ignition (HSI) BurnerAssembly......................................................... 20, 21

Air JetAssembly .......................................................................................................... 22

Sail SwitchAssembly ................................................................................................... 23

Exhaust CollarAssembly ............................................................................................. 24

American Dryer Corporation 88 Currant Road / Fall River, MA 02720-4781

2Control Door Assembly

Illus. No. Part No. Qty.Description

1 882246 1 White Control DoorAssembly Complete

(includes illus. nos. 1 and 3)

882376 1 Wrinkle Blue Control DoorAssembly Complete

(includes illus. nos. 1 and 3)

882355 1 Corvel Dry Blue Control DoorAssembly Complete

(includes illus. nos. 1 and 3)

882357 1 Coral Wrinkle Blue Control DoorAssembly Complete

(includes illus. nos. 1 and 3)

882359 1 Coral Blue Control DoorAssembly Complete

(includes illus. nos. 1 and 3)

2 112368 1 Logo ONLY

3 882541 2 Spring Turn Latch (2-piece)

4 150309 9 #10-16 x 1/2” Hex Head TEK Crimptite Screw

5 102505 1 Control Door Support Rod

6 102601 1 Control Door Retainer Clip

7 102603 1 Control Door Rod Catch

Telephone: (508) 678-9000 Fax: (508) 678-9447

Phase 6 Microprocessor PanelAssembly

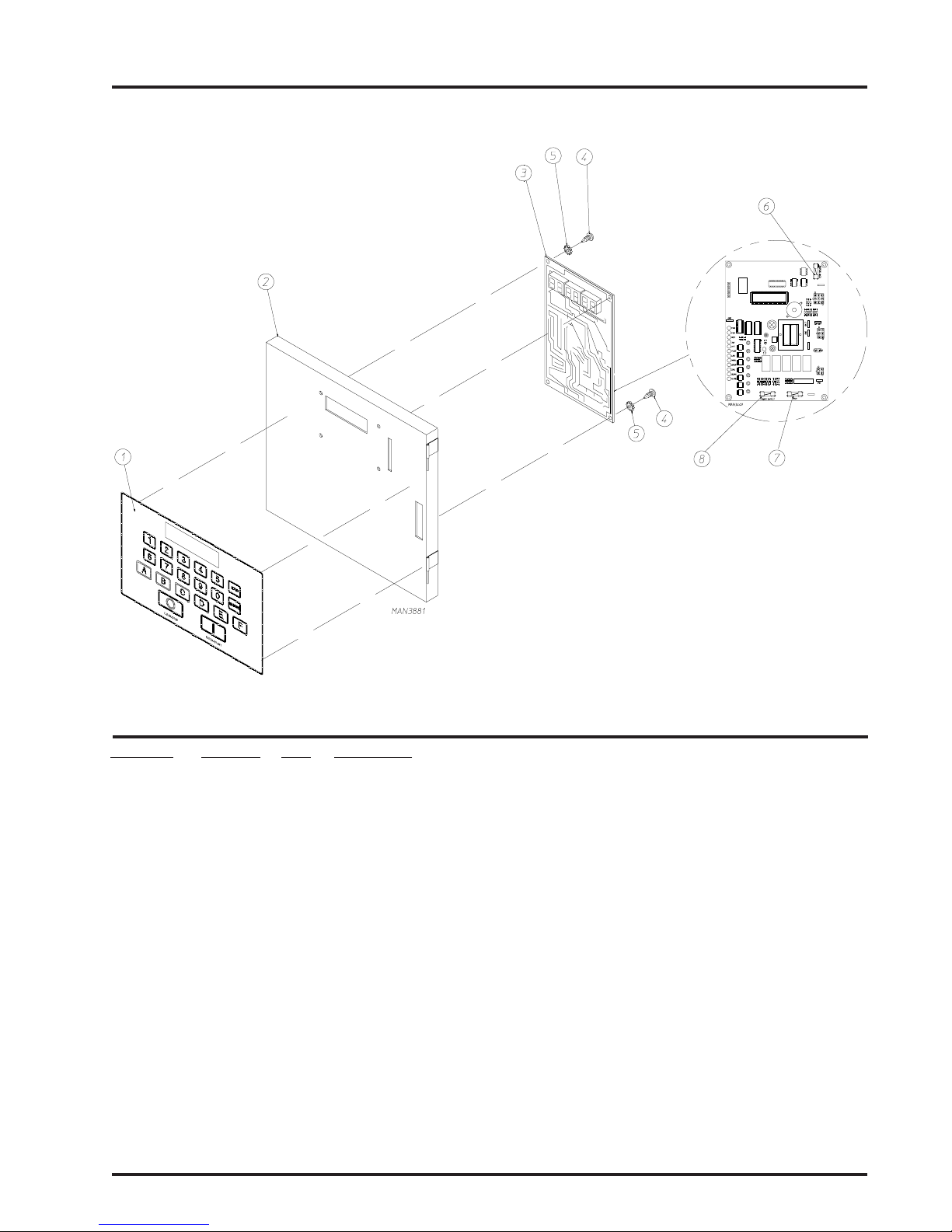

Illus. No. Part No. Qty.Description

1 112537 1 Phase 6 OPL Keyboard (touch pad)

112276 1 OPL Stick-On Labels

(English Only) ... Not Illustrated

112275 1 3-Language OPL Stick-On Labels

(Spanish, Italian, and Hebrew) ... Not Illustrated

112277 1 3-Language OPL Stick-On Labels

(English, Spanish, and Hebrew) ... Not Illustrated

112278 1 5-Language OPL Stick-On Labels

(Italian, Dutch, French, German, and Chinese) ... Not Illustrated

2 824480 1 Phase 6 Microprocessor Controller (computer) Panel ONLY

3 137124 1 Phase 6 Reversing Microprocessor Controller (computer) with Air Jet

(for models mfd. as of June 26, 1998)

137122 1 Phase 6 Reversing Microprocessor Controller (computer) without Air Jet

(for models mfd. prior to June 26, 1998)

4 150005 6 #6-32 x 1/4” Phillips Round Head Machine Screw

5 153010 6 #6 Star Washer

6 136048 1 1/8-Amp (slo blo) Fuse

7 136017 1 3.5-Amp (fast acting) Fuse

8 136019 1 1-Amp (fast acting) Fuse

American Dryer Corporation 88 Currant Road / Fall River, MA 02720-4781

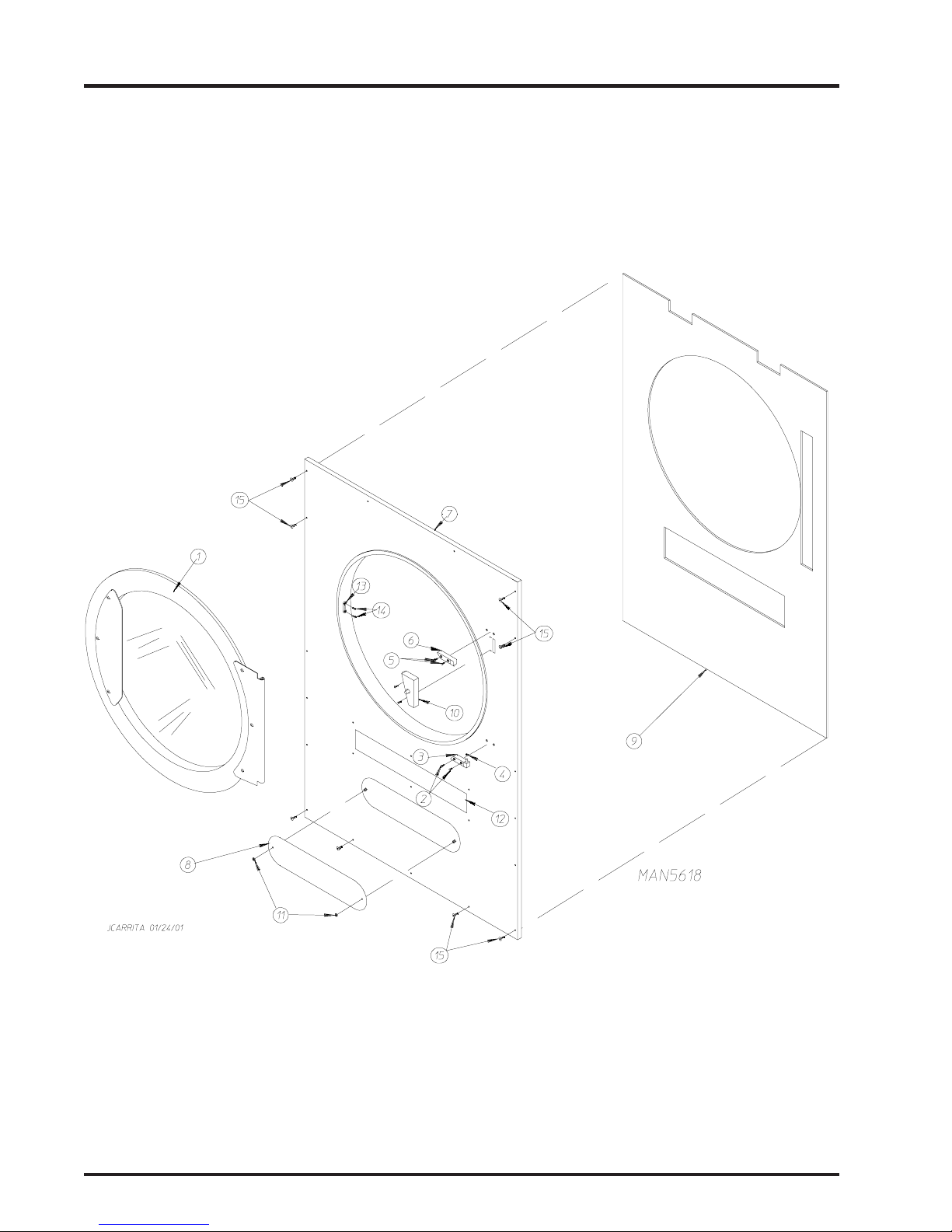

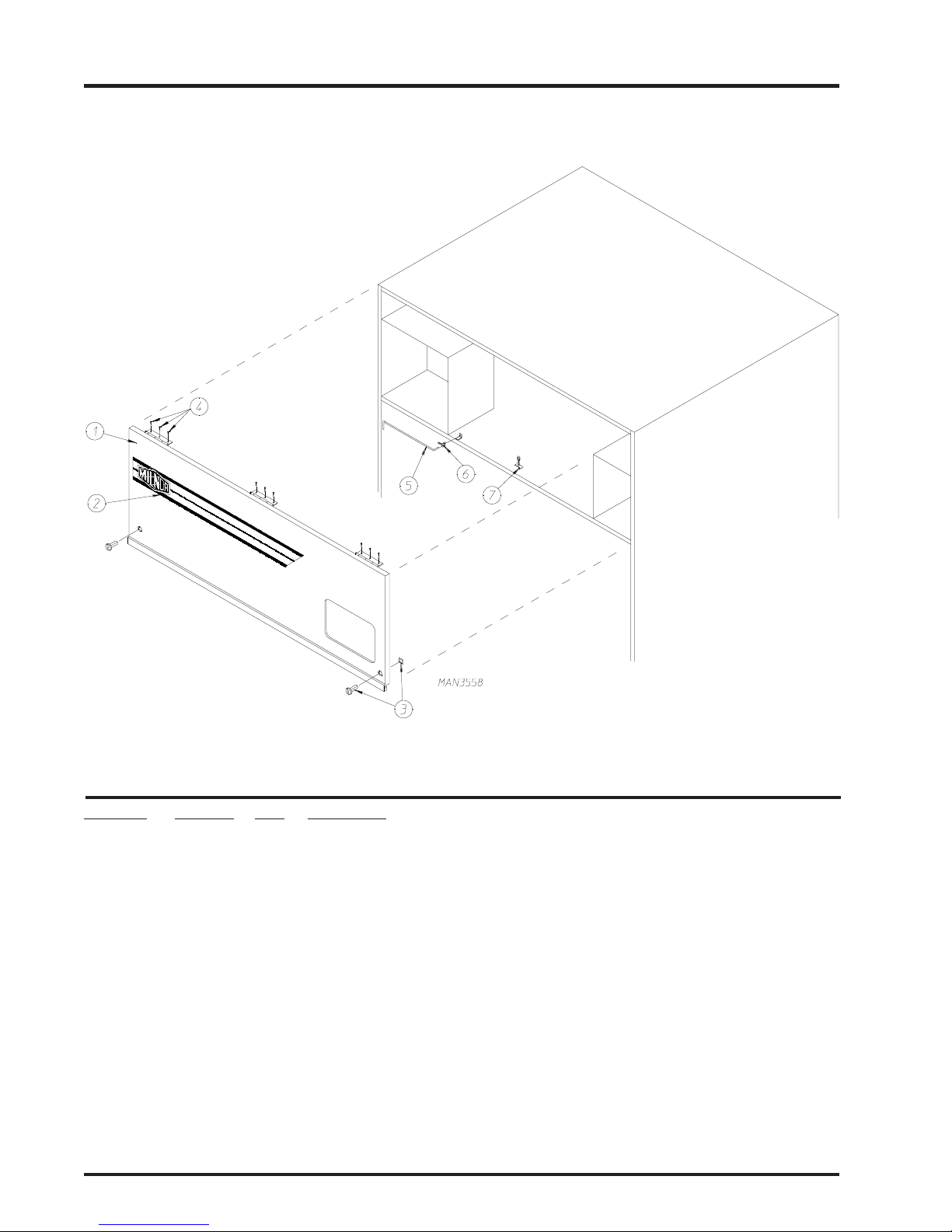

4Main Door/Front Panel Assembly

Telephone: (508) 678-9000 Fax: (508) 678-9447

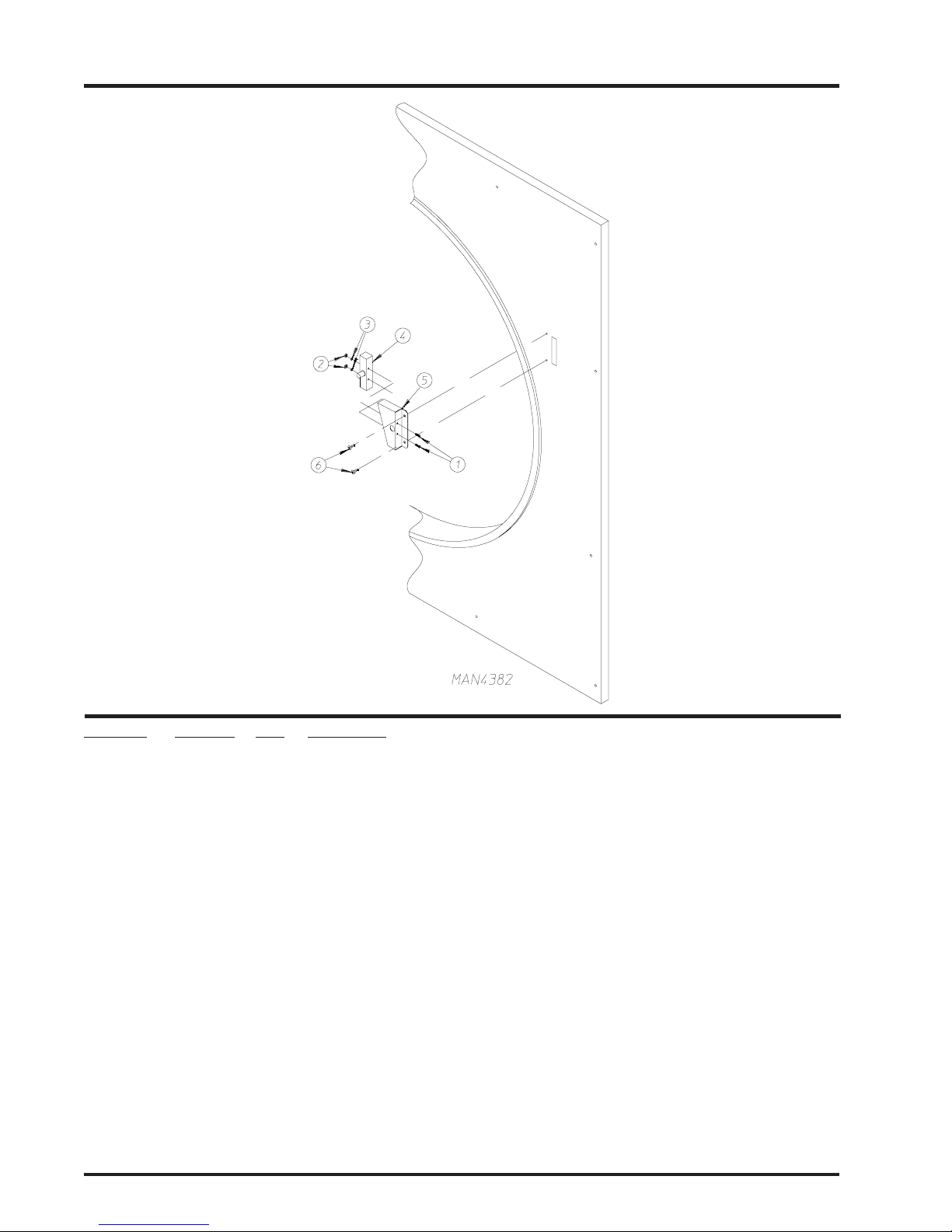

Illus. No. Part No. Qty.Description

1 -------- 1 Main Door

(refer to Main Door Assembly on page 6 and page 7)

2 150443 2 Socket Cap Screw

3 881441 1 White Bottom Hinge Block

882306 1 Wrinkle Blue Bottom Hinge Block

881735 1 Corvel Dry Blue Bottom Hinge Block

882283 1 Coral Wrinkle Blue Bottom Hinge Block

882335 1 Coral Blue Bottom Hinge Block

4 153031 1 Nylon Washer

5 150443 2 Socket Cap Screw

6 881440 1 White Top Hinge Block

882307 1 Wrinkle Blue Top Hinge Block

881736 1 Corvel Dry Blue Top Hinge Block

882284 1 Coral Wrinkle BlueTop Hinge Block

882334 1 Coral Blue Top Hinge Block

7 882236 1 White Front Panel
