X-Treme™ User Instructions page 1

American DJ®User Instructions

• 9 Dichroic Colors plus White

• 8 Gobos plus Spot on separate wheel

• 360 degree rotation of Gobo and Color Wheels

• DMX-512 Protocol

• Controlled by the X-Treme/19C™ or X-Treme/C™ Basic Controller

X-Treme™ Features

The X-Treme™ intelligent lighting fixture features 9 rich dichroic colors plus white, 9 gobos plus spot, separate gobo/

color wheels, strobes in every color, and a 300 hour long life 250W lamp. 360 degree rotation of gobo & color wheels

with speed control provide a X-treme™ lighting show for club, concert, and mobile use. DMX-512 protocol. Fan

cooled. Also available in 220V operation. Controlled by the X-Treme/19C™ or X-Treme/C™. The X-Treme/19C™:

Programmable controller with 64 channel DMX-512 output; Ergonomic joystick control of pan/tilt motion; 56 profession-

ally designed pan/tilt motions; 6 Show memories of 300 steps; Show memories can be chased for long concerts; Instant

manual override and control of all projectors and functions; Built-in gobo & color chases; and Quick, intuitive modular

programming. Control up to 16 heads. 120V or 220V operation. 3 space, 19 in. rack mount. The X-

Treme/C™: A basic controller that operates blackout; built-in programs; gobo/color change;

speed control of gobo/color wheels; and strobing. Control up to 8 heads. 120V or 220V operation.

X-Treme™ Description

Voltage: 120V 50/60 Hz

Dimensions: 22.75” x 9” x 6.5” / 740mm x 293mm x 212mm

Lamp: ZB-EVC 250W 24V, 300 hour lamp life

Weight: 27 lbs. / 12.3 kg.

Fuse: 5A

X-Treme™ Specifications

HALOGEN LAMP WARNING!

This fixture is fitted with a halogen lamp

which is highly susceptible to damage if

improperly handled. Never touch lamp

with bare fingers as the oil from your

hands will shorten lamp life. Also, never

move fixture until lamp has had ample

time to cool. Remember, lamps are not

covered under warranty conditions.

Thank you for purchasing this American DJ® product. Some assembly required.

Please read the following instructions before installing or using your new unit.

X-Treme ™

INTELLIGENT LIGHTING FIXTURE

Se cti on 1

Inspection

Every X-Treme™ projector was thoroughly tested and shipped in perfect condition. Carefully unpack

the projector and remove the bag with components from the carton. Inspect equipment for shipping

damage.

Packing list:

1. X-Treme™ Projector

2. IEC power cord

3. Operating manual

4. MC-10 XLR female to male 10ʼ cable

Lamp Installation

Caution! Extremely hot! Always allow unit to cool before re-lamping

1. Loosen thumbscrews on back of unit. Slide out the lamp holder assembly.

2. Remove lamp from original packaging. Read the enclosed instructions. Lamp is

included with X-Treme™ Projector Do not touch glass with bare hands as this

could damage the lamp.

3. Fit lamp Into holder

4. Slide lamp holder assemble back Into unit.

5. Tighten retaining screws

Projector Installation

1. Unit can be hung In any position.

2. Make sure to use a minimum 35Kg rated clamp.

3. Allow enough space on all sides for proper cooling.

4. Connect IEC power cord to back of unit.

5. Plug cord into property grounded socket.

*Check that the voltage marked on the back of unit is correct for your area.

6. Lamp will light and unit will reset and wait for signal from controller.

*The shutter is closed in stand-by mode, so it will be difficult to tell if the lamp is

lit without a controller.

* Unit may make smoke for a few minute until dust and excess paint is burned off by the lamp.

Precautions:

1.Never operate unit when case is open.

2.Never cover unit as this may block air vents and cause overheating and

possible fire hazard.

3. Never operate unit in the rain or in damp moist conditions as this could

cause electric shock.

4. Follow standard electrical safety precautions when installing, operating or

servicing the unit to prevent electrical shock, fire, or equipment damage.

5.These units are for commercial use and contain no user-serviceable parts inside.

Servicing must be conducted by qualified service personnel.

X-Treme™ User Instructions page 2

Getting Started

Lens Focusing

1. Hang fixture in its final position

2. Set Function DIP switch #6 to on.

3. Projector shutter will open and Pan and Tilt will be set to center and Gobo will be set to “small

spot”

4. Use a screwdriver to loosen the silver retaining screw .

5. Adjust lens until sharp focus is obtained.

Warning. Tighten screw securely. If screw Is not tight, the lens tube could slide out of the

fixture, causing equipment damage and or personal injury.

Se cti on 2

DMX512 Operation

I. Connect the X-Treme™ fixture to the X-Treme/C™, X-Treme/19C™ or any suitable DMX-512

controller with a 3 pin XLR data cable.

2. Continue to connect together all the fixtures using 3 pin XLR data cables.

3. Set the DMX address for each fixture using the 9 pin DIP switch on the back panel fixture.

Each fixture uses 4 DMX-512 channels;

CH1: Color, CH2: Gobo 1; CH3: Pan; CH4: Tilt

You must select the proper DMX-512 address for each X-Treme™ projector.

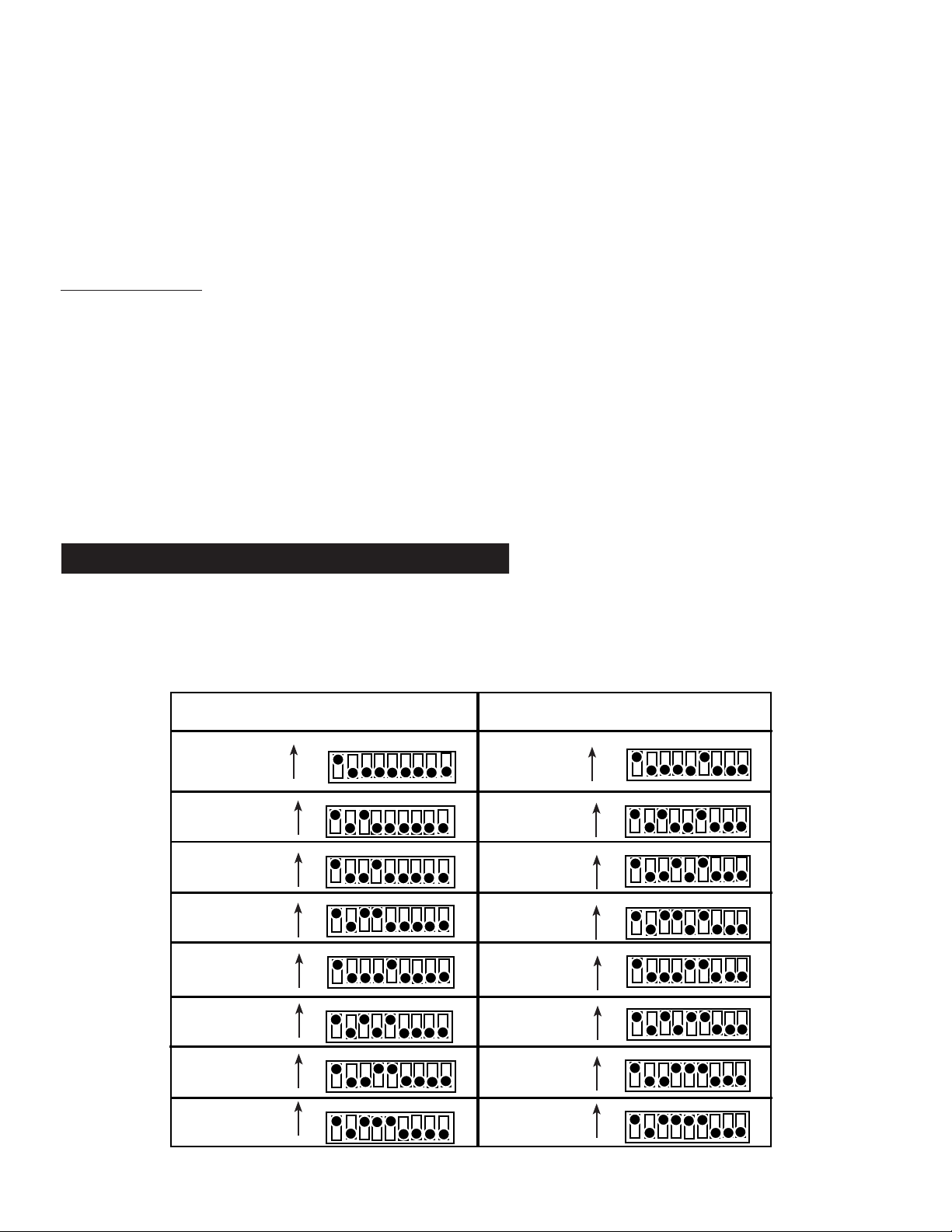

Below Is a chart of standard addressing for use with the X-Treme/C™ ,X-Treme/19C™ controllers.

DIP switch setting

Projector

DIP switch setting

Projector

1 2 3 4 5 6 7 8 9

412

1 2 3 4 5 6 7 8 9

614

7 15

816

1 2 3 4 5 6 7 8 9

1 2 3 4 5 6 7 8

1 2 3 4 5 6 7 8 9

X-Treme™ User Instructions page 3

DMX-512 Addressing

These functions are designed to give you added convenience and power, making installation and

programming faster and easier.

Switch Off On

No. 1 Gobo positions Unlimited Gobo positions

No. 2 No Function No Function

No. 3 Normal Inverted Pan

No. 4 Normal Inverted Tilt

No. 5 Normal Self test

No- 6 Normal Focus

No. 7 Normal Auto Program

No. 8 Normal DMX-512 Termination

Function #1: “Off”: Gobo wheel only stops at full and split color positions.

This makes programming and control much easier.

“On”: Gobo wheat can be placed In any position for extreme control and special

effects.

Function #2: No Function

Function #3: “On” Inverts the Pan motion. Useful when projectors are mounted “head to head”,

to allow the Mirrors to move in unison.

Function #4: “On” Inverts the Tilt motion. Useful when projector are mounted “head to head”, to

allow the mirrors to move In unison.

Function #5: “On” X-Treme™ automatically runs through all the features one at a time. So you

can see every gobo and color and pan/tilt motion. Used when testing operation

of unit.

Function #6: “On” Makes focusing the X-Treme™ easy. Opens the shutter and places the

“small spot” Gobo In the center for easy focusing without need of a controller.

Function #7: “On” Built-in demonstration program

Function #8: “On” DMX512 line termination, Used when this is the last projector of the DMX-5I2

chain.

X-Treme™ User Instructions page 4

Function Settings
