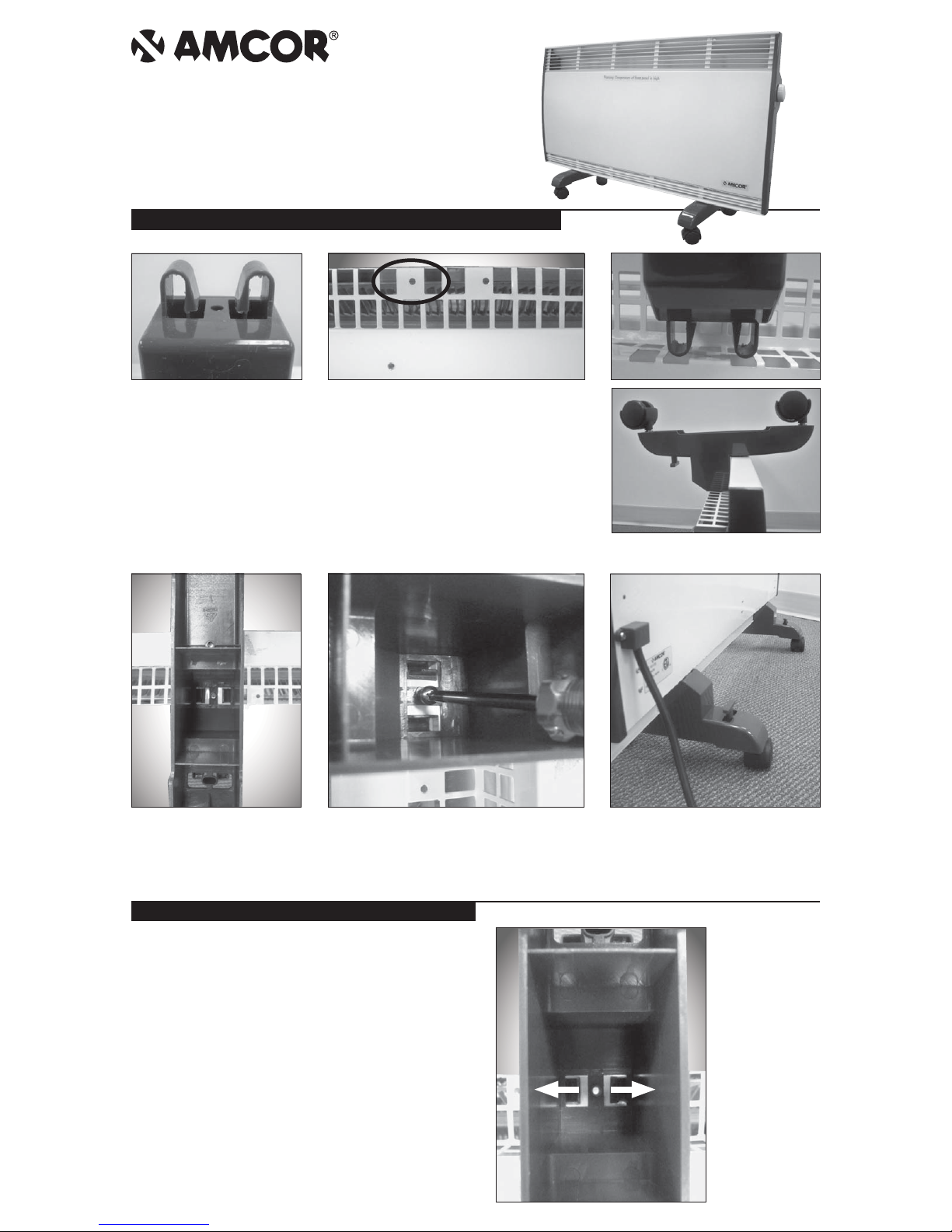

Model AHM8
Wall Mountable/Portable Heater
WHEEL INSTRUCTIONS
For more information, please see the enclosed Owner’s Manual,
or call 1-866-361-2233, or visit www.amcorgroupusa.com
Installing Wheels
Removing Wheels
Make sure the unit is unplugged and cooled before
taking the following steps.
Turn the unit over.
With a Phillips head screwdriver, please remove the screw.
Please do not attempt removing the wheel sets out
immediately; they are locked into place by the looped inserts.
As shown in Figure G, push the loops outward to remove
them off the locked position. This will then free the wheels so
that you may remove them from the unit easily.
Make sure you place the wheel sets and screws in a safe place
for future use.
Fig. G
As shown in Figure A, the two wheel
sets come with looped clips that
snap into the unit.
Fig. A Fig. B
Figure B displays the back of the unit where the
wheel sets are set in place, directly over the
screw holes on the unit.
As shown in Figure C, you must align the looped
clips in the open slots bordering the hole set
on the unit. The wheel sets should then click
in place as shown in Figure C as well.
NOTE: The supported block side of the wheel
sets aligns with the back side lip of the unit.
Fig. C
Figure D shows the successful
completion of the aligned looped
clips inserted into the open slots
after they have “clicked” into place.
Fig. D
With a small Phillips-head screwdriver, take the
provided screw and secure the wheel set into
place. Example shown in Figure E.
Figure F displays the successful completion
and the security of the completed wheel set.
The mobility of your new Amcor AMH-8
Portable heater is now complete and you are
now free to move it around your room.
Fig. E Fig. F
