Ambir ImageScan Pro 930u Manuel utilisateur

Ambir ImageScan Pro 930u

High Speed Document Scanner with

UltraSonic Misfeed Detection

User Guide

www.ambir.com

Ver 1.2p/n UG930u-1.2

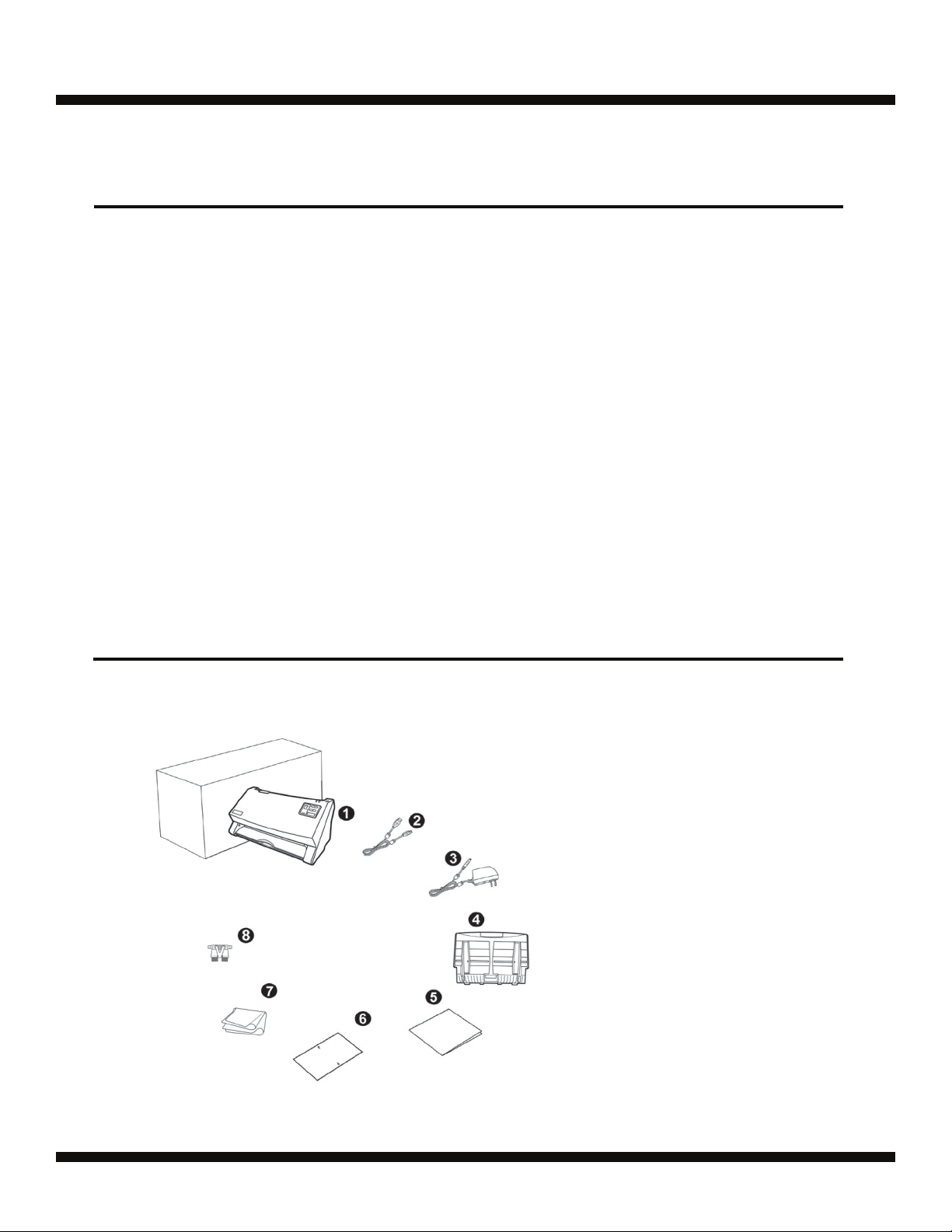

Ambir ImageScanPro®930u

1.Scanner

2.USB Cable

3.AC Adapter

4.Paper Chute

5.Installation Guide

6.Calibration Sheet

7.Cleansing Cloth

Box Contents

Guide

Table of Contents

Box Contents

Installation and Setup

Loading Documents

Scanning

Calibration

Cleaning the ADF

Replacing the Pad Module

Clearing Paper Jams

Scanner Connection

LED Indication

Ultrasonic Sensor

3,4

6,7,8,9

8.Feed Pad

User

p/n UG930u-1.2

Ambir ImageScan Pro®930u

Installation and Setup

Step 1. Install the Paper Chute

1. Open the ADF cover by pulling the lever.

gnitresnidnagningilaybetuhcrepapehtllatsnI.2

the tabs of the paper chute into their slots on the

scanner.

nwodkcabtignihsupybrevocFDAehtesolC.3

until it snaps back into place.

Step 2. Connecting the Scanner to

Your Computer

1. Plug the AC adapter into the scanner’s power

rotpecer .

2. Plug the other end of the AC adapter into a

.teltuorewopCAdradnats

elbacBSUdedulcniehtfodneerauqsehtgulP.3

to the USB port at the rear of the scanner.

4. Plug the rectangular end of the USB cable to an

available USB port on your computer.

GuideUser

p/n UG930u-1.2

Ambir ImageScanPro®930u

Installation and Setup (Continued)

Step 3. Installing the Software

Visit www.ambir.com/900u-series-set to download your scanner driver

and AmbirScan ADF software.

GuideUser

p/n UG930u-1.2

Ambir ImageScan Pro 930u

1. Load the documents, and face down, toward the

center of the ADF paper chute and all the way into the ADF

until touching the bottom.

For single-sided scans, load the documents face down so

that the side to be scanned faces towards the paper chute.

For double-sided scans, load the desired page order of

documents face down so that the side to be scanned faces

towards the paper chute.

If you wish to scan both sides of a single page, the page need

only pass through the ADF once – you will need to set the

scan type to “Duplex.”

3. Adjust the paper width slider for the paper size

you are using. The paper width slider should be

gently touching both sides of the documents.

Attention

DO NOT load more than 100 sheets of paper (70 g/m2, 18 lb.) to the ADF.

Paper scanned from the ADF must be a minimum of 5.08 x 5.08 cm (2” x 2”, W x L).

Make sure there are no gaps between the document stack and the paper-width slider; otherwise,

the scanned images can be skewed.

they should never be wedged in so tightly that the process of feeding them through the scanner

is strained.

Do not load additional paper into the ADF while the unit is feeding and scanning.

LOADING DOCUMENTS

2. If you need to scan longer documents, pull

out the paper chute extension and stacker to

provide further support for the documents.

®GuideUser

p/n UG930u-1.2

Ambir ImageScanPro 930u

Scanning

There are three different ways to operate the scanner:

1. By acquiring images from the scanner through our TWAIN interface within any TWAIN-

compliant application programs.

2. By scanning from the buttons on the Scanner’s front panel.

3. By scanning from AmbirScan ADF’s Execute menu on the screen.

Scanning via TWAIN Interface

Select the Scan Source:

If you have more than one scanner or other imaging devices installed on your computer, you

need to set this scanner as the default scanning source before you acquire image data/scan

using a TWAIN compliant program.

®GuideUser

p/n UG930u-1.2

Ambir ImageScan Pro 930u

Scanning from the Scanner’s Front Panel

Completing scanning projects using the scanner buttons is easy and convenient. The number

assigned to a scanning task displayed on the scanner’s front panel is through AmbirScan

ADF. AmbirScan ADF offers you quick access to the most frequently-used scanning functions. They

are especially useful when you need to repeatedly scan with the same settings and send images to

the same destination. Before performing your scan via scanner buttons, the button

settings with your preferences.

Scan with Scanner Buttons

1. Place the document or images into the scanner.

2. Press the UP or DOWN button to select the desired task.

3. Press the Scan button.

The scanner starts to scan immediately and carry out the corresponding action according to settings in

the Button window.

Scanning (Continued)

®GuideUser

p/n UG930u-1.2

Ambir ImageScanPro 930u

Within the “Button window, you can a row of icons running through the left side of

the window. Each icon represents a scanning task, and the number underneath corresponds to the

function number displayed on the scanner front panel.

Nine (9) frequently-used scanning tasks are for your convenience. You may, however,

customize the settings of the nine tasks to best meet your needs and preferences.

Follow the steps below:

1. Do one of the following to open the Button window:

Double-click the icon in the Windows system tray.

Right-click the icon in the Windows system tray, and then choose

in the pop-up menu that opens.

2. Select a task number by clicking on the icon.

3. Select the desired function from the drop-down list of Button Template and adjust

button settings.

Click the Help button within the Button window for more information about the button settings.

Scanning (Continued)

GuideUser

p/n UG930u-1.2

Ambir ImageScan Pro 930u

View Button Settings

There are two ways to view the button settings:

1. Double-click the icon in the Windows system tray.

2. Right-click the icon in the Windows system tray, and then choose “Button

in the pop-up menu that opens.

Scanning from the AmbirScan ADF On-screen Execute Menu

You may also use AmbirScan ADF’s on-screen Execute menu to perform the same scanning tasks.

This program provides a quick and convenient way to perform various scanning functions.

Follow the steps below:

1. Place the document or images onto the scanner.

2. Right-click the icon in the Windows system tray, and then choose Execute in the pop-up menu

that opens.

3. Click the desired button function item in the pop-up menu. The scanner starts to scan

immediately and carries out the corresponding action according to the button you set.

Scanning (Continued)

®GuideUser

p/n UG930u-1.2

Ambir ImageScanPro 930u

Calibrate the scanner if colors appear in areas that should be white,

or colors of the scanned image and the original vary a lot. This allows

you to adjust and compensate for variations that can occur in the optical

component over time by its nature.

The following describes how to calibrate the scanner:

ehthtiw,rennacsehtfoFDAehtotniteehSnoitarbilaClaicepsehttresnI.1

arrow pointed toward the scanner buttons.

noitarbilaC>emanledomrennacsruoY>smargorPllA>tratSkcilC.2

Wizard.

etarbilaCkcilcneht,puspoptahtdraziWnoitarbilaCehtmorftxeNkcilC.3

Now....

.ssecorpnoitarbilacehtnigebotnottubtratSehtnokcilC.4

hcihw,rennacsehthguorhtteehsnoitarbilacehtslluprennacsehT.5

completes thecalibration process. After the calibration is complete, click

OK and then click Finish.

Calibration

Cleaning the ADF

1. Open the ADF cover by pulling the lever.

htiwdenepmadhtolcehthtiwsaeragniwollofehtepiwyltneG.2

the cleaner. Be careful NOT to scratch their surfaces.

Clean Feed Roller:

Wipe the Feed Roller from side to side and then rotate it. Repeat

this until its entire surface is cleaned.

Clean Pad Module:

Wipe the Pad Module from top to bottom (in the direction of

arrow shown in below picture). Be careful not to damage the

pick springs of the pad.

1. Wait for cleaned areas to dry completely.

spanstilitnunwodkcabtignihsupybrevocFDAehtesolC.2

back into place.

Have the following cleaning materials ready to clean the scanner:

soft, dry, lint-free cloth

DO NOT USE WATER

non-abrasive cleaner ﬂuid: Isopropyl

rubbing alcohol(95%)

®GuideUser

p/n UG930u-1.2

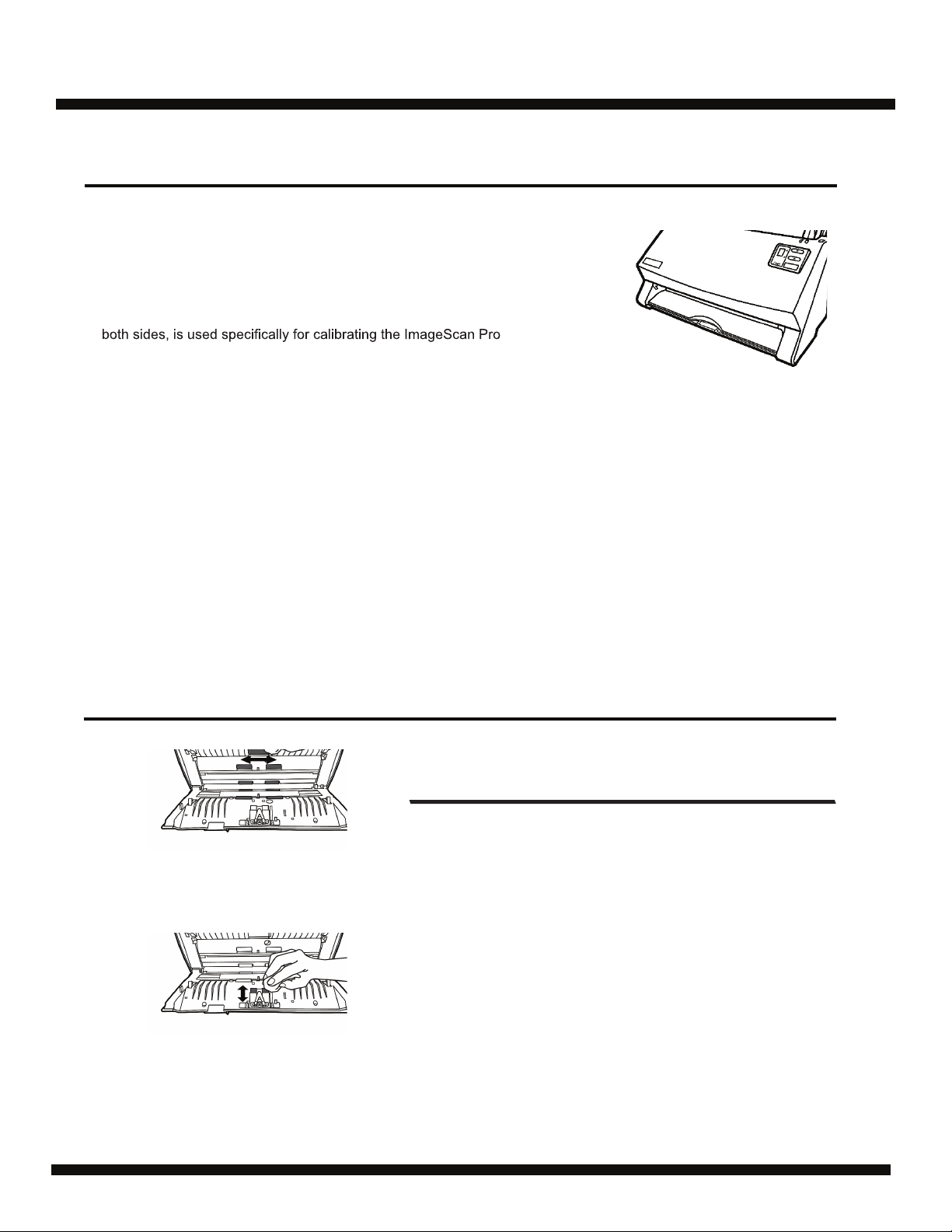

taegderehtienoworranahtiwdekram,teehSnoitarbilaCdedulcniehT

930u.
