Altronix TROVE T1RM3F4V Manuel utilisateur
T1RM3F4V
4 Door Kit with Fused Outputs
Fully assembled kit includes:
- Trove1R rack enclosure with Altronix and Mercury/LenelS2 backplane (TM1R)
- (1) eFlow6NBV - Power Supply/Charger
- (1) VR6 - Voltage Regulator
- (1) PDS8 - Fused Dual Output Power Distribution Module
- (1) ACM4 - Fused Access Power Controller
T1RM3F4DV
4 Door Kit with PTC Outputs
Fully assembled kit includes:
- Trove1R rack enclosure with Altronix and Mercury/LenelS2 backplane (TM1R)
- (1) eFlow6NBV - Power Supply/Charger
- (1) VR6 - Voltage Regulator
- (1) PDS8CB - PTC Dual Output Power Distribution Module
- (1) ACM4CB - PTC Access Power Controller
Access & Power Integration
Rev. T1RM3F4V080720
Installing Company: _________________________ Service Rep. Name: __________________________________________
Address: _________________________________________________________ Phone #: _________________________
All registered trademarks are property of their respective owners.
Installation Guide
More than just power.™
- 2 - T1RM3F4(D)V
Overview:
Altronix T1RM3F4V and T1RM3F4DV rack kits are pre-assembled and consist of Trove1M1R enclosure/backplane with factory installed Altronix
power supply/charger and sub-assemblies. These kits also accommodate various combinations of Mercury/LenelS2 boards for up to four (4)
doors in a single enclosure.
Configuration Chart:
Altronix
Model
Number
220VAC 50/60Hz
P/S Input Current (A)
Power Supply Board
Input Fuse Rating
Power Supply Board
Battery Fuse Rating
Nominal DC
Output Voltage Maximum Supply
Current for Main and
Aux. Outputs on
Power Supply board,
PDS8(CB) Power
Distribution Module
and ACM4(CB) Access
Power Controller’s
outputs (A)
Current Per
ACM4 Output (A)
Current Per
ACM4CB Output (A)
ACM4(CB) Board
Input Fuse Rating
ACM4 Board
Output Fuse Rating
ACM4CB Board
Output PTC Rating
Fail-Safe/Fail-Secure or
Dry Form “C” Outputs
(ACM4 Only)
PDS8 Board
Input Fuse Rating
PDS8 Board
Output Fuse Rating
PDS8CB Board
Input PTC Rating
PDS8 Board
Output Fuse Rating
[DC] [Aux]
24VDC Output
Range (V)
24VDC Output
Range (V)
T1RM3F4V
2.5 5A/
250V
10A/
32V
20.28-
26.4
20.28-
26.4 24VDC @ 5.6A
2.5 – 10A/
250V
3A/
32V –
4
10A/
32V
3A/
32V – –
T1RM3F4DV – 2.0 – 2.5A – – 9A 2.5A
Hardware and Accessories:
Specifications:
Agency Listings:
• CE European Conformity.
Mechanical:
• Black enclosure with ample knockouts for convenient access.
• Includes: tamper switch, cam lock and mounting hardware.
• Modular 2U standard EIA 19” drawer with
extendable slides up to 48”.
• Dimensions (H x W x D): 3.25” x 19.0” x 26.5”
(82.6mm x 482.6mm x 673.1mm).
Included Accessories:
• One (1) tamper switch (Altronix Model TS112 or equivalent).
• Cam lock.
Available Accessories (not included):
• RE2: Rack Mount Battery Enclosure
accommodates up to four (4) 12VDC/7AH batteries.
• WM5, WM25, WM100: Magnetic Cable Tie Mounts
(5, 25, 100 counts).
Spacer | 5/16” Pan Head Screw | Lock Nut
T1RM3F4(D)V - 3 -

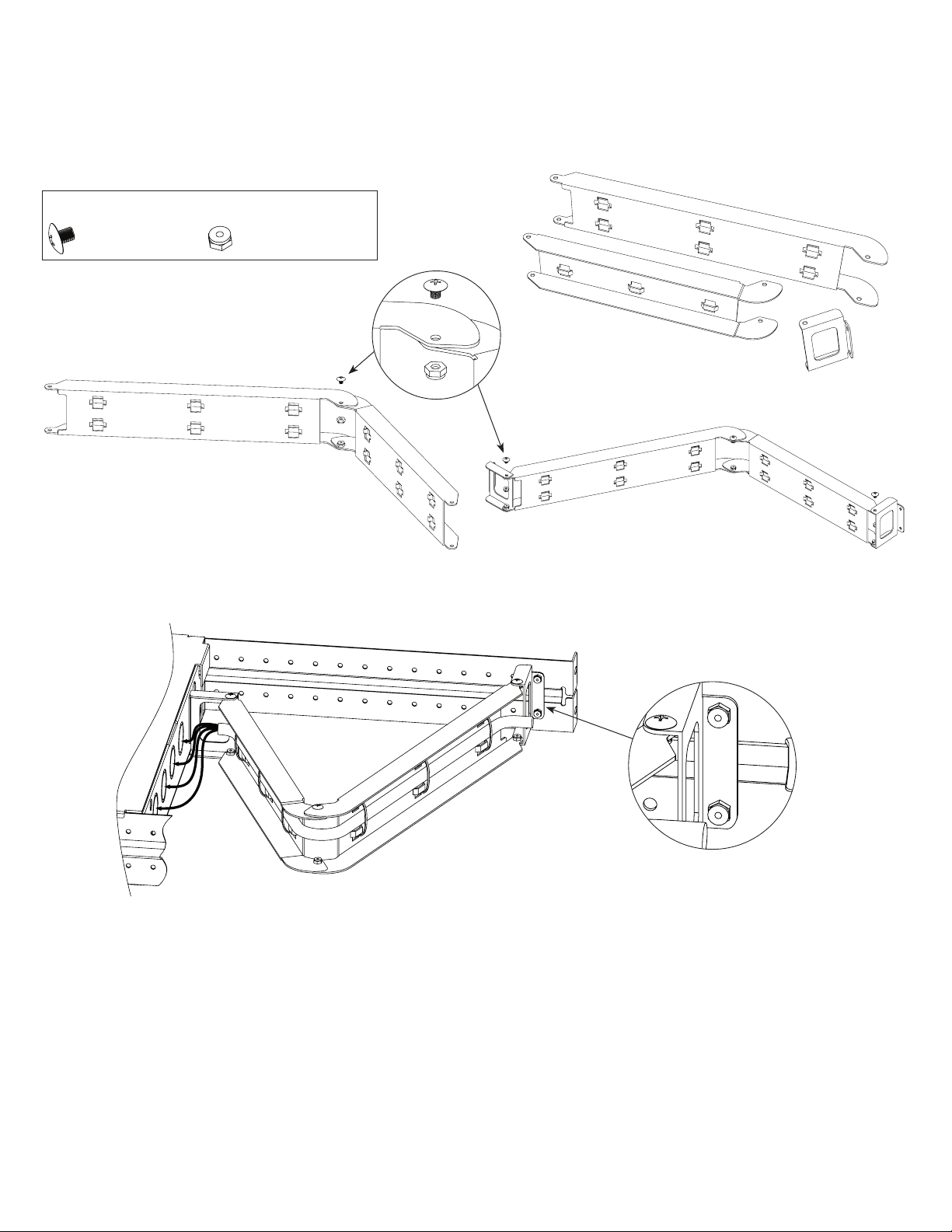

Assembling and Attaching Z Bracket Wire Management Accessory (included):
Altronix Trove Rack enclosures include Z Bracket, a convenient and reliable wire management accessory.
1. Carefully unpack Z Bracket. Do not discard hardware (included) (Fig. 1, pg. 3).
2. Attach arms to each other using bolts and lock nuts (Fig. 1a, pg. 3).
3. Attach the hinge brackets to the ends of arms using bolts and nuts positioning them as shown on Fig. 1b, pg. 3.
4. Make sure that all nuts are tightened.
5. Attach the hinge bracket on the longer side of Z Bracket to the adjustable rail using bolts and lock nuts (included) (Fig. 2, 2a, pg. 3).
6. Attach the hinge bracket on the shorter side of Z Bracket to the rear of the rack enclosure using bolts (included).
Fig. 2
Fig. 2a
Hardware (included):
Ten (10) bolts and eight (8) lock nuts
Two (2)
Fig. 1
Fig. 1b
Fig. 1a
- 4 - T1RM3F4(D)V
Installation Instructions for T1RM3F4(D):
Wiring methods shall be in accordance with the National Electrical Code/NFPA 70/ANSI, and with all local codes and authorities having jurisdiction.
Product is intended for indoor use only.
1. Remove backplane from enclosure prior to installing into rack cabinet (do not discard hardware).
2. In order to mount included UL Listed tamper switch (Altronix Model TS112 or equivalent) turn the enclosure upside down.
Punch out the knockout in designated location, on the back of the unit, from outside of the drawer (Fig. 3, pg. 4).
Insert the tamper switch into the knockout from outside of the drawer with the button facing outwards and spaded connectors
inside the drawer. Connect tamper switch wiring to the Access Control Panel input or the appropriate UL Listed reporting device.
To activate alarm signal open the rack drawer.
3. Slide the rack enclosure into an open 2U location in the four post rack cabinet.
4. Utilizing proper fasteners attach front ears to the rack rails.
5. Attach the rear of the adjustable slides to the rear rails of the rack cabinet with the proper fasteners.
6. Ensure that all internal cofigurations (voltage selection, switch settings, etc.) are completed before mounting backplane back into
Trove rack enclosure.
7. Refer to the eFlow Power Supply/Charger Installation Guide for eFlow6NB and corresponding sub-assembly Installation Guides for
the following models: ACM4(CB), PDS8(CB), VR6 for further instructions.

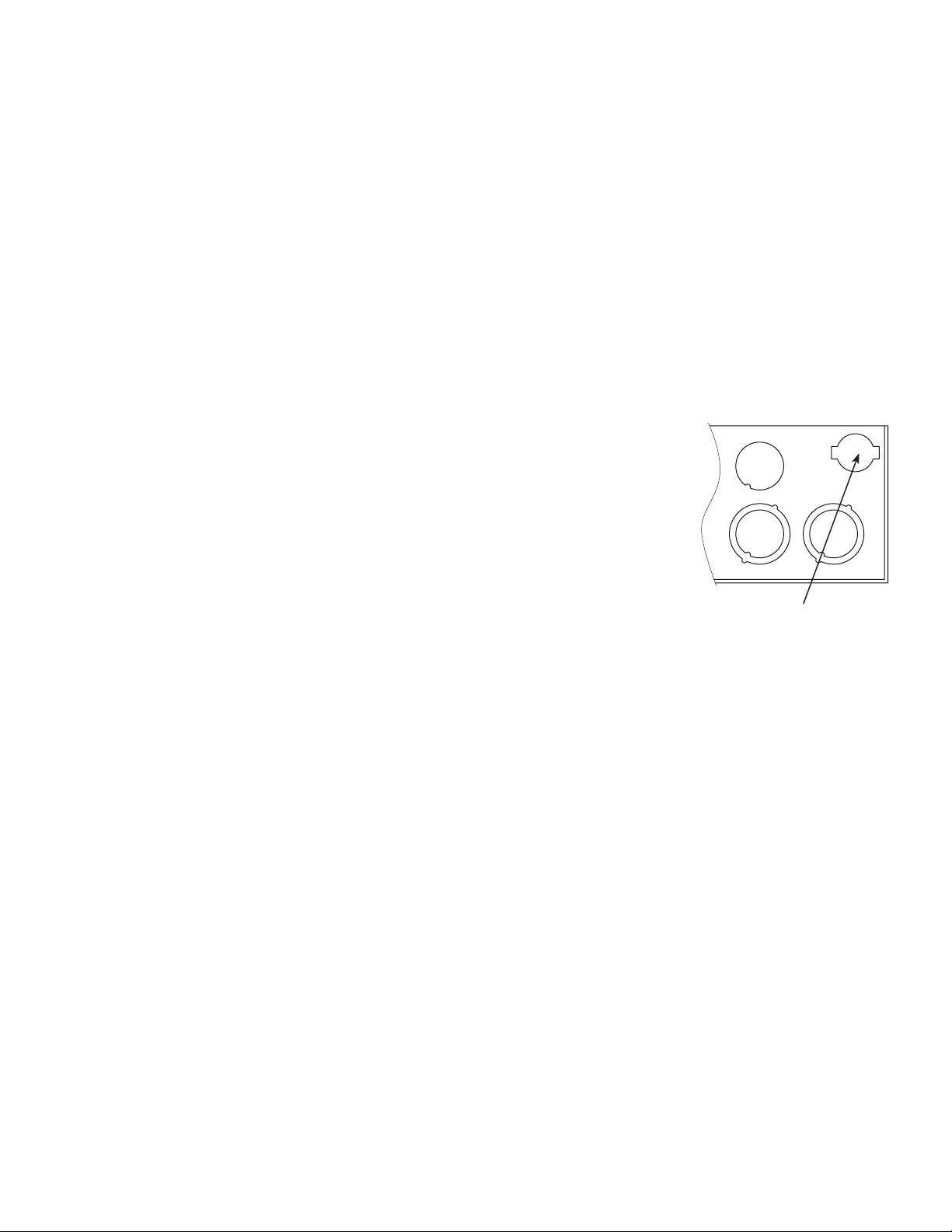

Fig. 3
Tamper Switch mounting location
Back of the drawer,
viewed from outside.
T1RM3F4(D)V - 5 -
Altronix - PDS8(CB)/VR6
OUT1 OUT2 OUT3 OUT4 OUT5 OUT6 OUT7 OUT8
1 2 3 4 5 6 7 8
Common Power Outputs (NEG)
P
N
+ INP1 - + INP2 -
PWR1+
PWR2+
COM(-)
PWR1+
COM(-)
P
N
PWR1+
Altronix - ACM4(CB)
--- +
Control
--- +
Power
NO C NC
FACP INTERFACE
+ INP --- T + RET ---
TRG
TRIGGER
INPUT
IN GND
1
NC C NO COM
OUTPUT 1
NC C NO COM
OUTPUT 2
NC C NO COM
OUTPUT 3
NC C NO COM
OUTPUT 4
IN GND
3
IN GND
4
IN GND
2
ACM4
ACCESS POWER
CONTROLLER
RoHS
MAIN
Altronix - eFlow6NBV
AC
L G N
DCAC1 1 min
enable
2 hr.
disable
OFF - 24V
ON - 12V
ON
TRIGGER EOL
SUPERVISED
--- BAT + --- DC +
NC C NO
AC FAIL
NC C NO
BAT FAIL + AUX ---
NO GND
RESET
VR6 is mounted under PDS8(CB)
A
C
D
D
C
B
B
A
To IEC connector
To LED lense

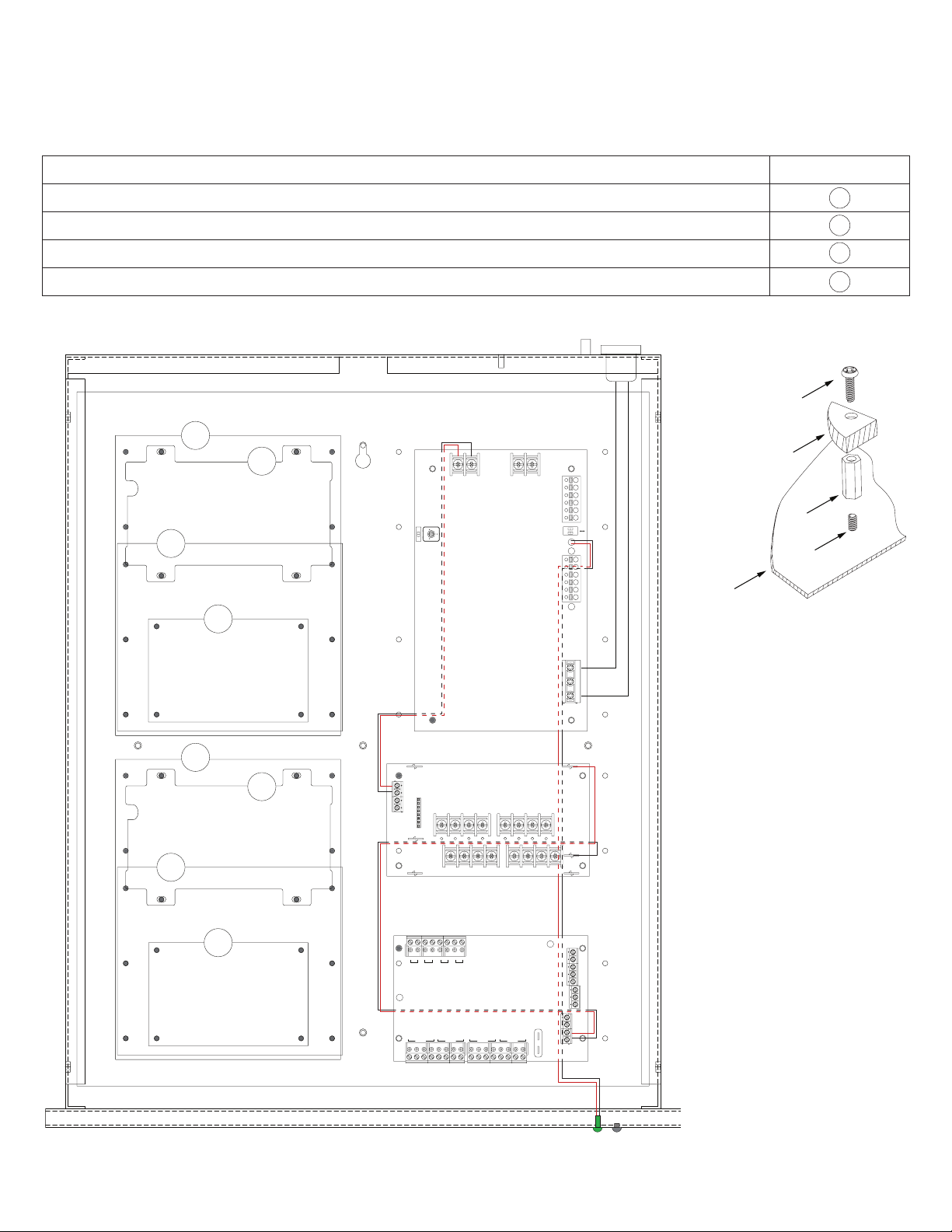

T1RM3F4(D)V: Configuration of Mercury Boards:
1. Fasten spacers onto metal pems configuration (A), (B), (C) or (D) of backplane depending on the access controller (Fig. 5, pg. 5).
2. Position access controller module over corresponding spacers and fasten screws into spacers (Fig. 5a, pg. 5).
3. Mount backplane to enclosure with hardware.
Access Controller Position Chart for the Following Models:
Mercury/LenelS2 Access Controller Pem Mounting
LP1502, MR52, MR16IN, MR16OUT A
LP2500, MUX8 B
LP1501, MR62e C
MR50 D
Fig. 5
Pem
Spacer
Backplane
Power Supply or
Sub-Assembly
Pan Head Screw
Fig. 5a
- 6 - T1RM3F4(D)V
Notes:
T1RM3F4(D)V - 7 -
Notes:
- 8 - T1RM3F4(D)V

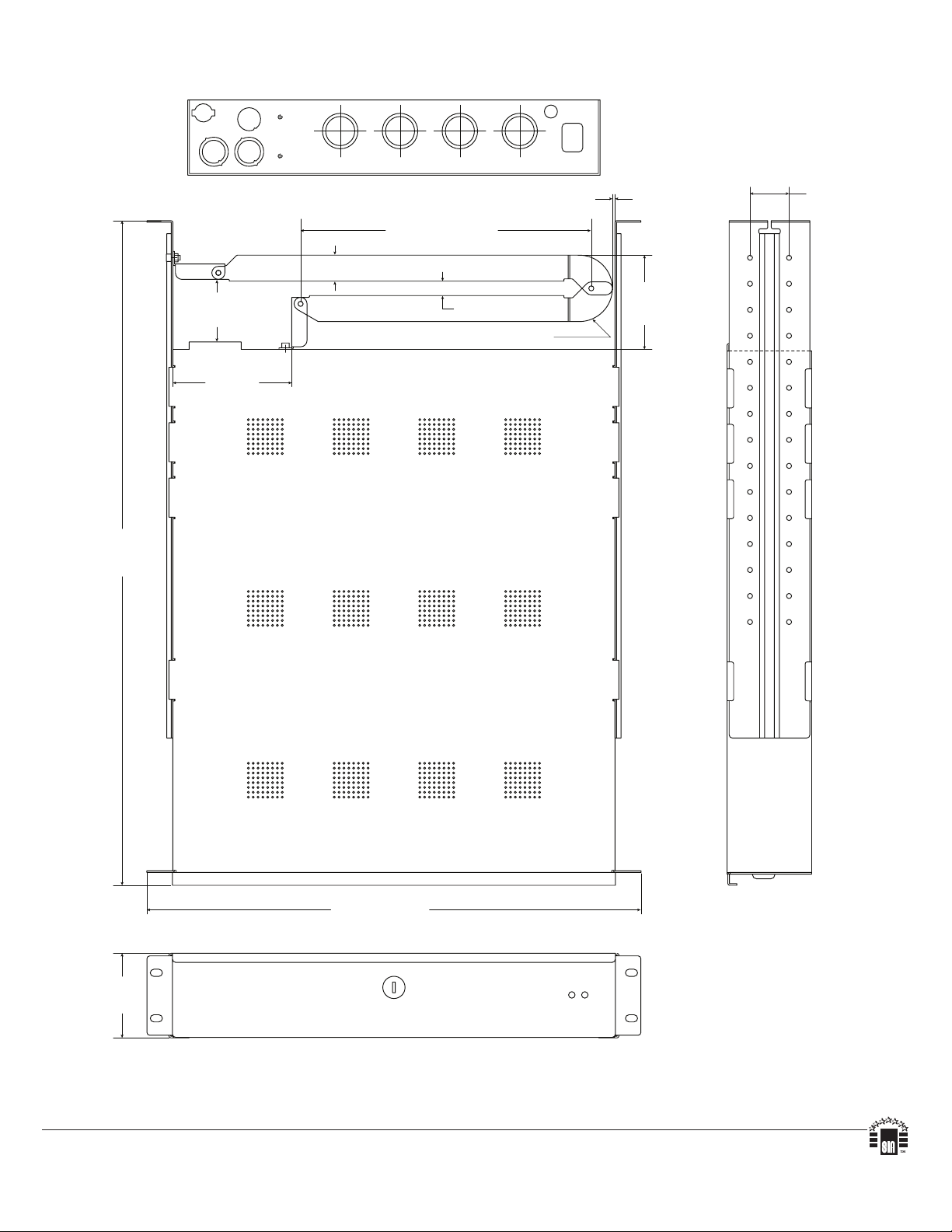

Trove1R Enclosure Dimensions (H x W x D):
3.25” x 19.0” x 26.5” (82.6mm x 482.6mm x 673.1mm). Shown with Z Bracket attached.
0.1”
2.5mm
1.5”
38.1mm
11.175” (283.8mm)
2.4”
61mm
4.57”
116.1mm
3.25”
82.3mm
26.5”
673.1mm
19” (482.6mm)
R 1.27” (32.3mm)
1” (25.4mm)
0.55” (14mm)
3.62”
92mm
Altronix is not responsible for any typographical errors.
140 58th Street, Brooklyn, New York 11220 USA | phone: 718-567-8181 | fax: 718-567-9056
IIT1RM3F4(D)V G14U
