Altronix T2428100CP Manuel utilisateur

Overview:

Altronix T2428100CP provides power for electronic power supplies and equipment including security, access control, and

surveillance devices.

Specifications:

• Input: 115VAC 50/60Hz, 0.95A.

• Output: 24VAC @ 4A or 28VAC @ 3.5A supply current.

• In-line fuse rated @ 3.5A/250V.

• 220VAC models are available upon request.

Installation Instructions:

1. Mount unit in the desired location. Mark and predrill holes in the wall to line up with the top two (2) keyholes in the enclosure.

Install two (2) upper fasteners and screws in the wall with the screw heads protruding. Place the enclosure’s upper keyholes over the

two (2) upper screws, level and secure. Mark the position of the lower two (2) holes. Remove the enclosure. Drill the lower holes and install

the two (2) fasteners. Place the enclosure’s upper keyholes over the two (2) upper screws. Install the two (2) lower screws and make sure

to tighten all screws (Enclosure Dimensions, pg. 2).

2. Connect the AC (115VAC 50/60 Hz) to the black and white flying leads of the transformer (Fig. 1).

3. Measure output voltage before connecting device. This helps avoiding potential damage.

4. For 24VAC configuration use terminals marked [COM] and [24VAC].

For 28VAC configuration use terminals marked [COM] and [28VAC].

5. Upon completion of the wiring secure enclosure door with screws (supplied).

WARNING: This installation should be made by qualified service personnel and should conform to the National Electrical Code

and all local codes.

XFMR

Input

115VAC

50/60Hz

0.95A

Low Voltage

AC Output

(see Specifications).

Green Ground

Black Lead

White Lead

Com 24

VAC

Brown

Yellow

Black

T2428100CP

AC Power Supply

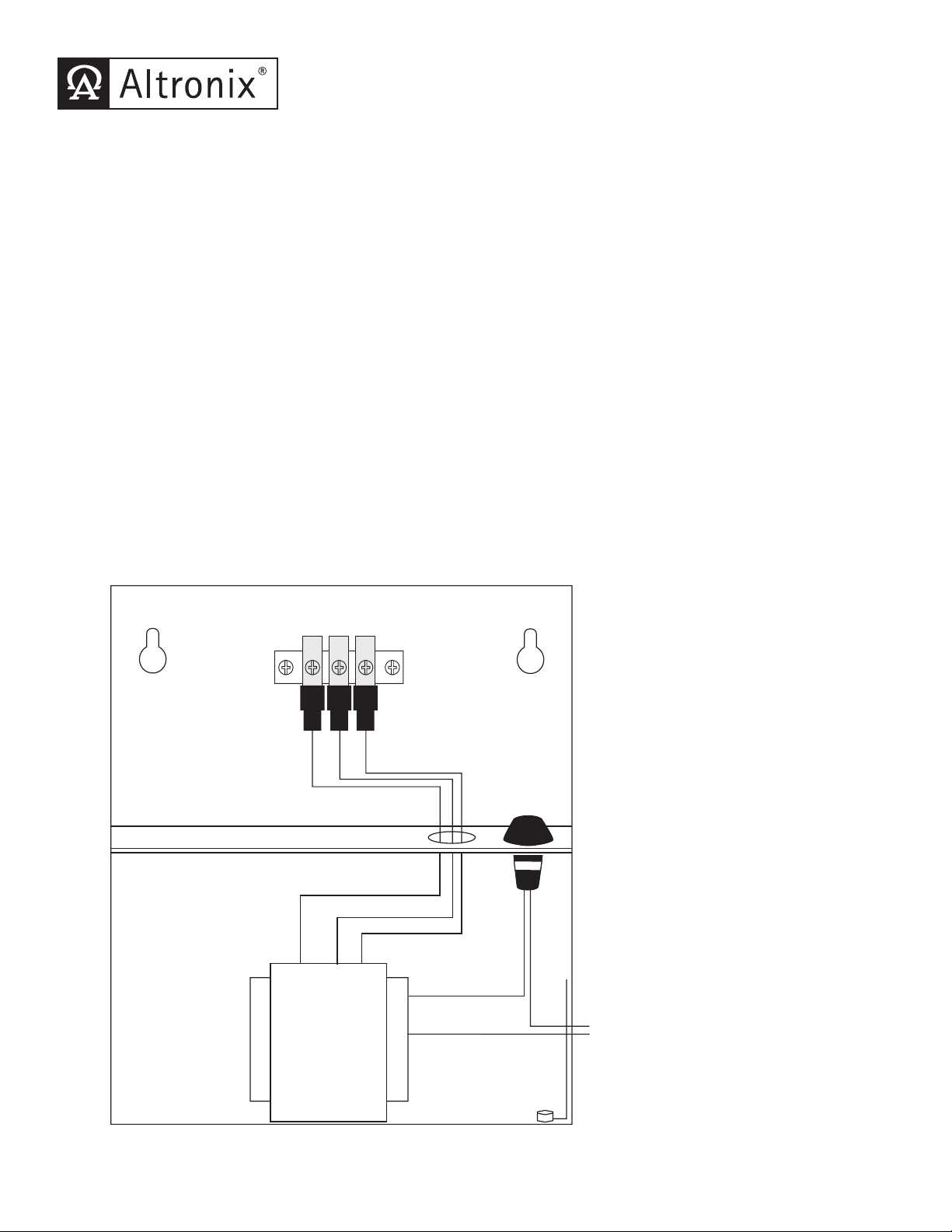

Fig. 1

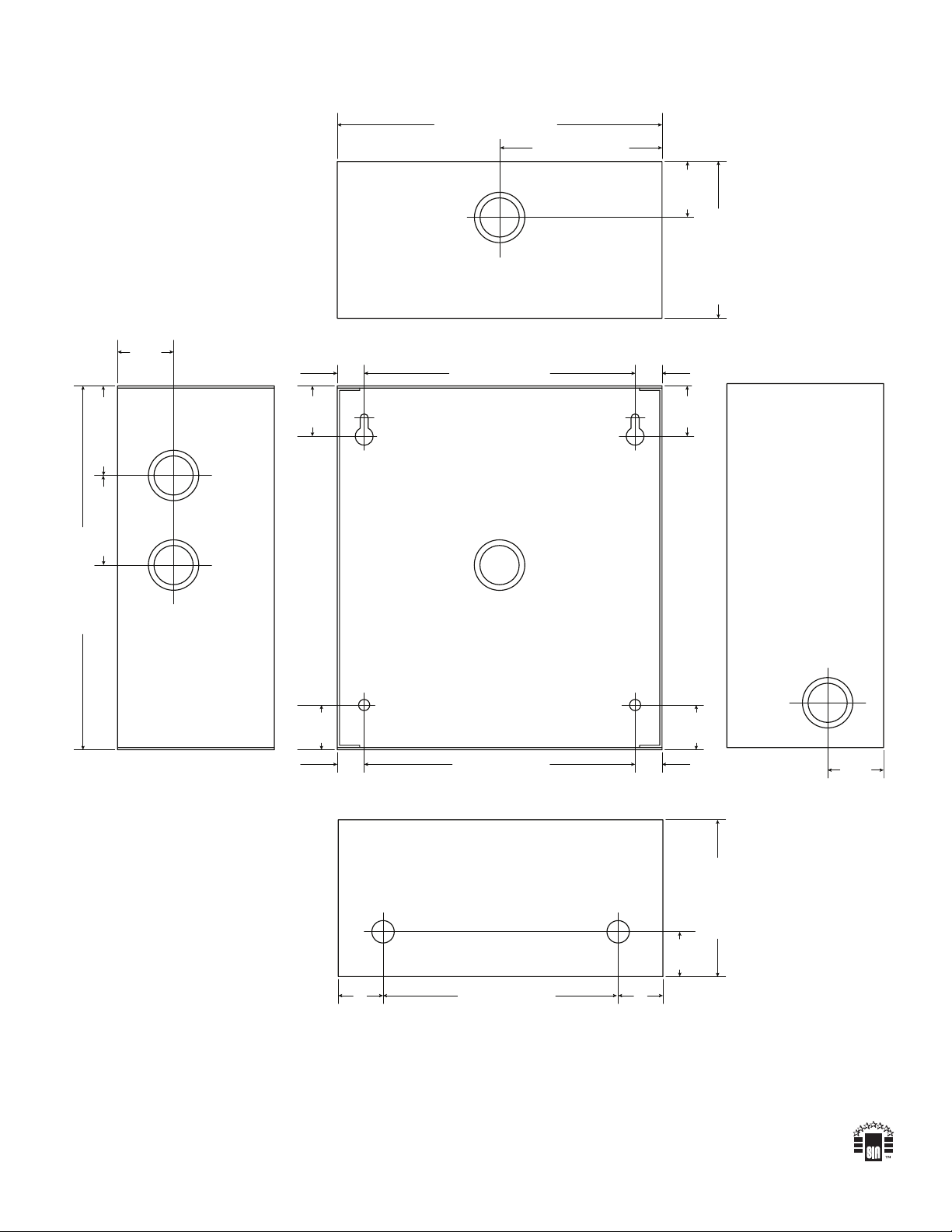

Enclosure Dimensions (H x W x D approximate):

8.5” x 7.5” x 3.5” (215.9mm x 190.5mm x 88.9mm)

Altronix is not responsible for any typographical errors. Product specifications are subject to change without notice.

––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––

140 58th Street, Brooklyn, New York 11220 USA | phone: 718-567-8181 | fax: 718-567-9056

website: www.altronix.com | e-mail: [email protected] | Lifetime Warranty

IIT2428100CP Rev. 090905 L13U MEMBER

7.25” (184.2mm)

3.625” (92mm)

1.25”

(31.8mm)

3.5” (88.9mm)

6.05” (153.7mm)

1.125”

(28.6mm)

1.125”

(28.6mm)

0.6” (15.2mm)0.6” (15.2mm)

2” (50.8mm)2” (50.8mm)

8.125” (206.4mm)

1”

(25.4mm)

1”

(25.4mm)

1”

(25.4mm)

1.25”

(31.75mm)

1.25”

(31.75mm)

1”

(25.4mm)

1”

(25.4mm)

5.25” (133.35mm)

6.05” (153.7mm)

3.5” (88.9mm)
