Altronix ACM4 Series Manuel utilisateur

Sub-Assembly

Installation Guide

for Models:

ACM4

ACM4CB

ACM8

ACM8CB

MOM5

PD4UL

PD4ULCB

PD8UL

PD8ULCB

PD16W

PD16WCB

PDS8

PDS8CB

ACMS8

ACMS8CB

VR6

LINQ2

LINQ8PD*

LINQ8PDCB*

*not evaluated by UL

SIGNALING

More than just power.TM

Rev. MS020119

- 2 - Sub-Assembly

Top edge of Enclosure

LINQ2 bracket

LINQ2 Side View

LINQ2 Module

eFlow Power

Supply/Charger

Fig. 1

Overview:

Altronix manufactures a wide variety of sub-assemblies suitable for many tasks in fire alarm, access control,

network communications, surveillance, and other security applications.

Installation Instructions:

Wiring methods shall be in accordance with the National Electrical Code/NFPA 70/NFPA 72/ANSI, and

with all local codes and authorities having jurisdiction. Product is intended for indoor use only and should be

installed by qualified personnel.

Refer to individual Sub-Assembly Installation Guides for mounting and connecting specific boards.

Installing LINQ2 Board:

1. Using the mounting bracket mount the LINQ2 network module to the desired location on the enclosure.

Secure the module by tightening the longer screw on the front edge of the mounting bracket (Fig. 1, pg. 2).

2. Connect one end of the supplied interface cable(s) to the ports marked [Power Supply 1] and

[Power Supply 2] on LINQ2 (Fig. 1, pg. 2). When connecting to one power supply use the connector

marked [Power Supply 1].

3. Connect the other end of the interface cable to the interface port of each eFlow power supply board.

4. Connect Ethernet cable (CAT5e or higher) to the RJ45 jack on the LINQ2 network module.

For access control and fire alarm signalling applications the cable connection has to terminate is the same room.

Refer to the LINQ2 Installation Manual.

Sub-Assembly - 3 -

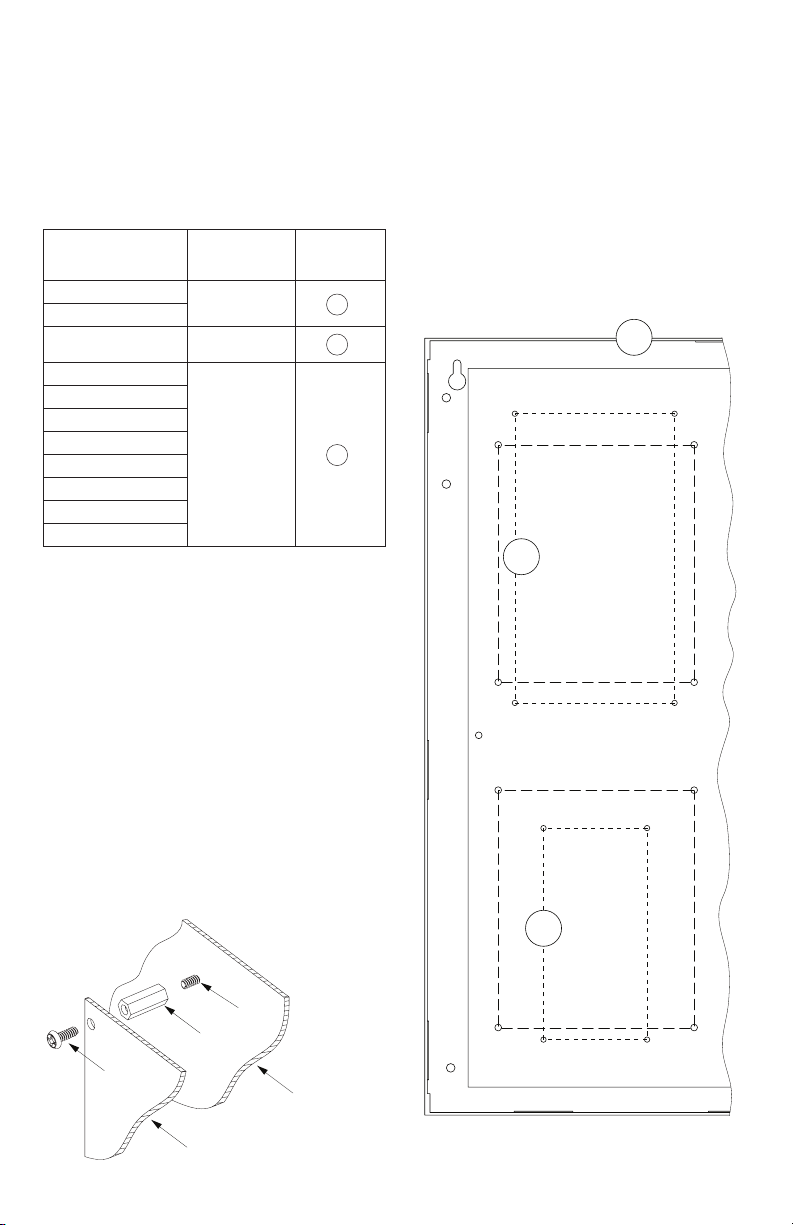

Installation Instructions for Trove1:

1. Fasten standoffs onto metal pems configuration (A) or configuration (B) of enclosure depending on the

sub-assembly module (Fig. 2, pg. 3).

2. Position sub-assembly module over corresponding standoffs and secure module into enclosure with four (4)

pan head screws supplied (Fig. 2a, pg. 3).

3. Refer to the Trove1 Installation Guides and individual Sub-Assembly Installation Guides for the

following models: ACM4(CB), LINQ2, LINQ8PD(CB), MOM5, PD4UL(CB), PD8UL(CB), PD16W(CB),

PDS8(CB), ACMS8(CB), VR6 for further installation instructions.

Sub-Assembly Position Chart for the Following Models:

Sub-Assembly

Module

Mounting

Position Mounting

ACM8(CB) Top Left A *

ACMS8(CB)

LINQ2** Top Edge C

LINQ8PD(CB)

Bottom Left B

ACM4(CB)

MOM5

PD4UL(CB)

PD8UL(CB)

PD16W(CB)

PDS8(CB)

VR6

* Position (A) is usually reserved for Altronix power supplies,

but can also be used for sub-assemblies (Fig. 2).

** LINQ2 can be installed when utilizing

eFlow power supply/charger boards.

Fig. 2

Pem

Standoff

Sub Assembly

Enclosure

Pan Head

Screw

Fig. 2a

- 4 - Sub-Assembly

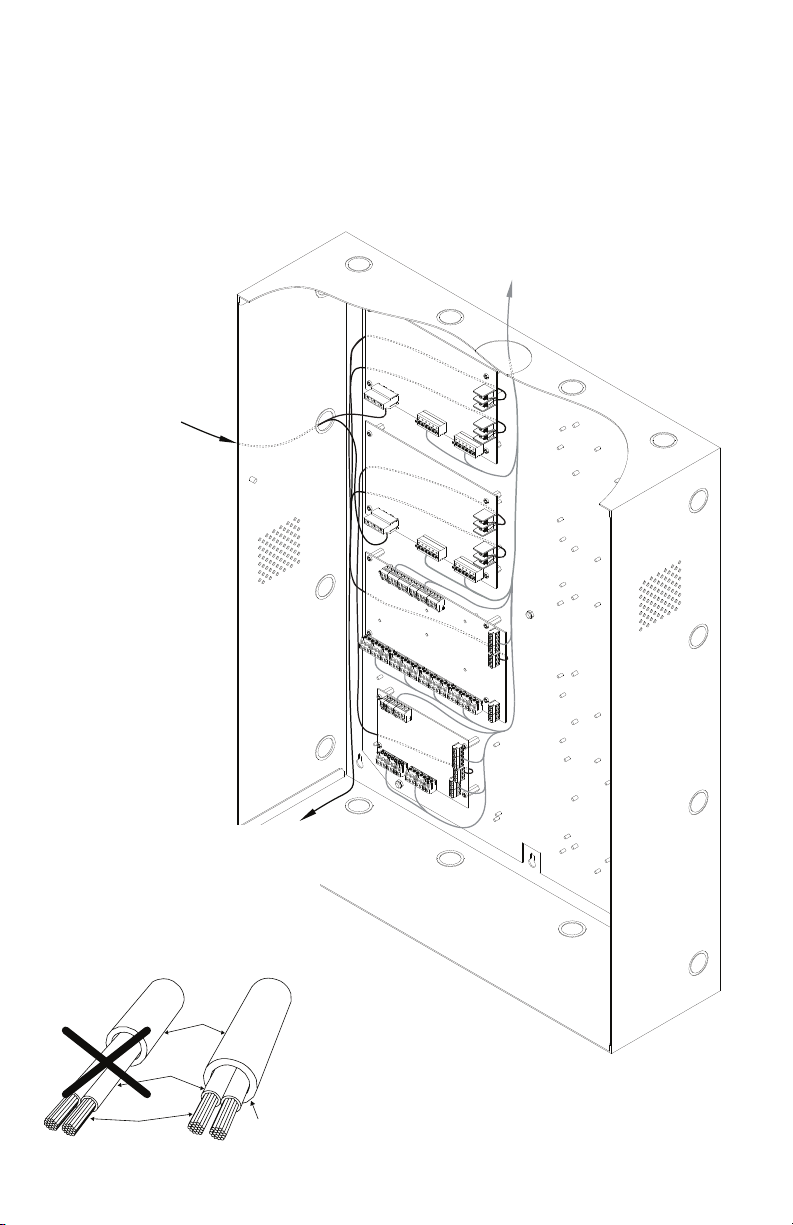

NEC Power-Limited Wiring Requirements:

Power-limited and non power-limited circuit wiring must remain separated in the enclosure. All power-limited

circuit wiring must remain at least 0.25” away from any non power-limited circuit wiring. Furthermore, all

power-limited circuit wiring and non power-limited circuit wiring must enter and exit the enclosure through

different conduits. One such example of this is shown below. Your specific application may require different

conduit knockouts to be used. Any conduit knockouts may be used. For power-limited applications use of

conduit is optional. All field wiring connections must be made employing suitable gauge CM or FPL jacketed

wire (or equivalent substitute).

Note: Refer to wire handling drawing below for the proper way to install the CM or FPL jacketed wire

(Fig. 3a, pg. 4).

Supervisory Connections

(power-limited)

Input 115VAC/120VAC, 60Hz

(non power-limited)

Battery Connections

(non power-limited).

Number of batteries may vary depending

on your optional hookup)

Fig. 3

External

Jacketed

Shield

Incorrect Wire

Handling

Correct Wire

Handling

Pull back

external jacketed

shield approx. 1/2”.

Wire

Insulation

Solid Copper

Conductors

Fig. 3a - Recommended jacketed wiring for

power-limited connections

Sub-Assembly - 5 -

Installation Instructions for Trove2:

1. Fasten standoffs onto metal pems configuration (A) or configuration (B) of enclosure depending on the

sub-assembly module (Fig. 4, pg. 5).

2. Position sub-assembly module over corresponding standoffs and secure module into enclosure with

four (4) pan head screws supplied (Fig. 4a, pg. 5).

3. Refer to the Trove2 Installation Guides and individual Sub-Assembly Installation Guides for the

following models: ACM4(CB), LINQ2, LINQ8PD(CB), MOM5, PD4UL(CB), PD8UL(CB),

PD16W(CB), PDS8(CB), ACMS8(CB), VR6 for further installation instructions.

Sub-Assembly Position Chart for the Following Models:

Sub-Assembly

Module

Mounting

Position Mounting

ACM8(CB) First, Second,

Third & Fourth

on Left

A *

ACMS8(CB)

LINQ2** Top Edge C

LINQ8PD(CB)

Second, Third

& Fourth on

Left

ACM4(CB)

MOM5

PD4UL(CB)

PD8UL(CB)

PD16W(CB)

PDS8(CB)

VR6

* Top left position (A) is usually reserved for Altronix power

supplies, but can also be used for sub-assemblies (Fig. 4).

** LINQ2 can be installed when utilizing

eFlow power supply/charger boards.

Note: TM2 (Mercury/Lenel) and TV2 (HID/VertX)

Trove2 backplane models allow for additional

sub-assembly mounting positions on the right side.

Pem

Standoff

Sub Assembly

Enclosure

Pan Head

Screw

Fig. 4a

Fig. 4

- 6 - Sub-Assembly

NEC Power-Limited Wiring Requirements:

Power-limited and non power-limited circuit wiring must remain separated in the enclosure. All power-limited

circuit wiring must remain at least 0.25” away from any non power-limited circuit wiring. Furthermore, all

power-limited circuit wiring and non power-limited circuit wiring must enter and exit the enclosure through

different conduits. One such example of this is shown below. Your specific application may require different

conduit knockouts to be used. Any conduit knockouts may be used. For power-limited applications use of

conduit is optional. All field wiring connections must be made employing suitable gauge CM or FPL jacketed

wire (or equivalent substitute).

Note: Refer to wire handling drawing below for the proper way to install the CM or FPL jacketed wire

(Fig. 5a, pg. 6).

Supervisory Connections

(power-limited)

Input 115VAC/120VAC, 60Hz

(non power-limited)

Battery Connections

(non power-limited).

Number of batteries may vary

depending on your optional hookup)

External

Jacketed

Shield

Incorrect Wire

Handling

Correct Wire

Handling

Pull back

external jacketed

shield approx. 1/2”.

Wire

Insulation

Solid Copper

Conductors

Fig. 5

Fig. 5a - Recommended jacketed wiring for

power-limited connections

Sub-Assembly - 7 -

B B

Installation Instructions for Trove2CV2 (TCV2):

1. Fasten standoffs onto metal pems configuration (A) or configuration (B) of enclosure depending on the

sub-assembly module (Fig. 6, pg. 7).

2. Position sub-assembly module over corresponding standoffs and secure module into enclosure with

four (4) pan head screws supplied (Fig. 6a, pg. 7).

3. Refer to the Trove2 Installation Guides and individual Sub-Assembly Installation Guides for the

following models: ACM4(CB), ACM8(CB), LINQ2, LINQ8PD(CB), MOM5, PD4UL(CB), PD8UL(CB),

PD16W(CB), PDS8(CB), ACMS8(CB), VR6 for further installation instructions.

Sub-Assembly Position Chart for the Following Models:

Sub-Assembly

Module

Mounting

Position Mounting

ACM8(CB) First, Second &

Third on Left A *

ACMS8(CB)

LINQ2** Top Edge C

LINQ8PD(CB)

Two (2)

Vertical Slots

Third on Left

ACM4(CB)

MOM5

PD4UL(CB)

PD8UL(CB)

PD16W(CB)

PDS8(CB)

VR6

* Top left position (A) is usually reserved for Altronix power

supplies, but can also be used for sub-assemblies (Fig. 6).

** LINQ2 can be installed when utilizing

eFlow power supply/charger boards.

Pem

Standoff

Sub Assembly

Enclosure

Pan Head

Screw

Fig. 6a

Fig. 6

- 8 - Sub-Assembly

NEC Power-Limited Wiring Requirements:

Power-limited and non power-limited circuit wiring must remain separated in the enclosure. All power-limited

circuit wiring must remain at least 0.25” away from any non power-limited circuit wiring. Furthermore, all

power-limited circuit wiring and non power-limited circuit wiring must enter and exit the enclosure through

different conduits. One such example of this is shown below. Your specific application may require different

conduit knockouts to be used. Any conduit knockouts may be used. For power-limited applications use of

conduit is optional. All field wiring connections must be made employing suitable gauge CM or FPL jacketed

wire (or equivalent substitute).

Note: Refer to wire handling drawing below for the proper way to install the CM or FPL jacketed wire

(Fig. 7a, pg. 8).

External

Jacketed

Shield

Incorrect Wire

Handling

Correct Wire

Handling

Pull back

external jacketed

shield approx. 1/2”.

Wire

Insulation

Solid Copper

Conductors

Supervisory Connections

(power-limited)

Input 115VAC/120VAC, 60Hz

(non power-limited)

Battery Connections

(non power-limited).

Number of batteries may vary

depending on your optional hookup)

Fig. 7

Fig. 7a - Recommended jacketed wiring for

power-limited connections

Sub-Assembly - 9 -

Installation Instructions for Maximal (BC800 Enclosure):

1. Fasten standoffs onto metal pems configuration (A) or configuration (B) of enclosure depending on the

sub-assembly module (Fig. 8, pg. 9). ACM8(CB) modules can only be installed in the middle or bottom

mounting positions of the Maximal enclosure.

2. Position sub-assembly module over corresponding standoffs and secure module into enclosure with four (4)

pan head screws supplied (Fig. 8a, pg. 9).

3. Refer to the Maximal Access Power Controllers Installation Guides for: Maximal 3/5/7,

Maximal 3D/5D/7D, Maximal 3F/5F/7F, Maximal 3FD/5FDFD, Maximal 11/33/55/75/77,

Maximal 11D/33D/55D/75D/77D, Maximal 11F/33F/55F/75F/77F,

Maximal 11FD/33FD/55FD/75FD/77FD (Pgs. 20-21).

Refer to the Maximal Expandable Power Systems Installation Guides for:

Maximal 11E/13E/33E/35E/37E/55E/75E/77E,

Maximal 11FE/FE/33FE/35FE/37FE/55FE/75FE/77FE (Pg. 22),

and individual Sub-Assembly Installation Guides for the following models: LINQ8PD(CB), ACM4(CB),

LINQ2, MOM5, PD4UL(CB), PD8UL(CB), PD16W(CB), PDS8(CB), ACM8(CB), ACMS8(CB), VR6

for further installation instructions.

Sub-Assembly Position Chart for the Following Models:

Maximal Access Power Controller and Maximal Expandable Power Systems (refer to instruction #3 above).

Sub-Assembly

Module

Mounting

Position Mounting

LINQ8PD(CB)

Top, Middle

& Bottom A

ACM4(CB)

MOM5

PD4UL(CB)

PD8UL(CB)

PD16W(CB)

PDS8(CB)

VR6

ACM8(CB) Middle & Bottom B

ACMS8(CB)

LINQ2* Edge of Divider C

* LINQ2 can be installed when utilizing

eFlow power supply/charger boards.

Top

Middle

Bottom

B A

Pem

Standoff

Sub Assembly

Enclosure

Pan Head

Screw

Fig. 8a

Fig. 8

- 10 - Sub-Assembly

NEC Power-Limited Wiring Requirements:

Power-limited and non power-limited circuit wiring must remain separated in the enclosure. All power-limited

circuit wiring must remain at least 0.25” away from any non power-limited circuit wiring. Furthermore, all

power-limited circuit wiring and non power-limited circuit wiring must enter and exit the enclosure through

different conduits. One such example of this is shown below. Your specific application may require different

conduit knockouts to be used. Any conduit knockouts may be used. For power-limited applications use of

conduit is optional. All field wiring connections must be made employing suitable gauge CM or FPL jacketed

wire (or equivalent substitute).

Note: Refer to wire handling drawing below for the proper way to install the CM or FPL jacketed wire

(Fig. 9a, pg. 6).

External

Jacketed

Shield

Incorrect Wire

Handling

Correct Wire

Handling

Pull back

external jacketed

shield approx. 1/2”.

Wire

Insulation

Solid Copper

Conductors

Fig. 9

Battery Connections

(non power-limited).

Number of batteries may vary

depending on your optional

hookup)

Supervisory, Fire Alarm Interface &

Aux. output Connections (power-limited)

Fig. 9a - Recommended jacketed wiring for

power-limited connections

DC Output

Wiring

Sub-Assemblies*

* Output from power supply

is power-limited: Maximal11,

Maximal11D, Maximal11E.

* Output from top power

supply board is non power-

limited and bottom power

supply board is power-

limited: Maximal13E.

* Output from power supply is

non power-limited:

Maximal3, Maximal5,

Maximal7, Maximal3D,

Maximal5D, Maximal7D,

Maximal11, Maximal33,

Maximal55, Maximal75,

Maximal77, Maximal11D,

Maximal33D, Maximal55D,

Maximal75D, Maximal77D,

Maximal11E, Maximal13E,

Maximal33E, Maximal35E,

Maximal37E, Maximal55E,

Maximal75E, Maximal77E.

Input

115VAC/120VAC, 60Hz

(non power-limited)

Autres manuels pour ACM4 Series

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Altronix Contrôleurs

Altronix

Altronix MaximalV Series Manuel utilisateur

Altronix

Altronix VR6 Manuel utilisateur

Altronix

Altronix StrikeIt1V Manuel utilisateur

Altronix

Altronix eFlowNAD8V Series Manuel utilisateur

Altronix

Altronix Maximal R Series Manuel utilisateur

Altronix

Altronix StrikeIt1 Manuel utilisateur

Altronix

Altronix LINQ8ACM Instructions de montage

Altronix

Altronix ACM Series Manuel utilisateur

Altronix

Altronix Trove T2ZK7F8 Manuel utilisateur

Altronix

Altronix MAXIMAL FIT MaxFit78AP Manuel utilisateur

Altronix

Altronix MaxFit3F8AP Manuel utilisateur

Altronix

Altronix ACM4 Series Manuel utilisateur

Altronix

Altronix trove1m1 Instructions d'utilisation et d'entretien

Altronix

Altronix ACM4E Series Manuel utilisateur

Altronix

Altronix ACMCB220 Series Manuel utilisateur

Altronix

Altronix MAXIMAL FIT MaxFit7F8AP Manuel utilisateur

Altronix

Altronix ACM220 Series Manuel utilisateur

Altronix

Altronix ACMS8 Series Manuel utilisateur

Altronix

Altronix MAXIMAL FIT MaxFit3F5AP Manuel utilisateur

Altronix

Altronix AL400ULACMCB Manuel utilisateur

Altronix

Altronix Maximal series Manuel utilisateur

Altronix

Altronix TROVE T2ZK7F8D Manuel utilisateur

Altronix

Altronix eFlowNA8 Series Manuel utilisateur

Altronix

Altronix Maximal1RHD Manuel utilisateur

Manuels Contrôleurs populaires d'autres marques

Digiplex

Digiplex DGP-848 Mode d'emploi

YASKAWA

YASKAWA SGM series Manuel utilisateur

Sinope

Sinope Calypso RM3500ZB Manuel utilisateur

Isimet

Isimet DLA Series Style 2 Manuel d'installation

LSIS

LSIS sv-ip5a Manuel utilisateur

Rockwell Automation

Rockwell Automation 1769-L31 Manuel utilisateur

Airflow

Airflow Uno hab Manuel utilisateur

ABB

ABB ACS580-01 drives Manuel utilisateur

Panasonic

Panasonic GM1 Series Manuel utilisateur

Emerson

Emerson SW93 Manuel utilisateur

AutoAqua

AutoAqua Smart ATO micro SATO-120P Manuel utilisateur

Panasonic

Panasonic FP? Positioning Unit RTEX Manuel utilisateur

Samson

Samson Type 5824 Manuel de service

Alpha IP

Alpha IP MIOB 21001 Manuel utilisateur

Siemens

Siemens OpenAir GMA 1 Series Manuel utilisateur

Surecom

Surecom SR-629 Manuel utilisateur

Fishman

Fishman TriplePlay Manuel utilisateur

Regulus

Regulus SRS1 T Manuel utilisateur
