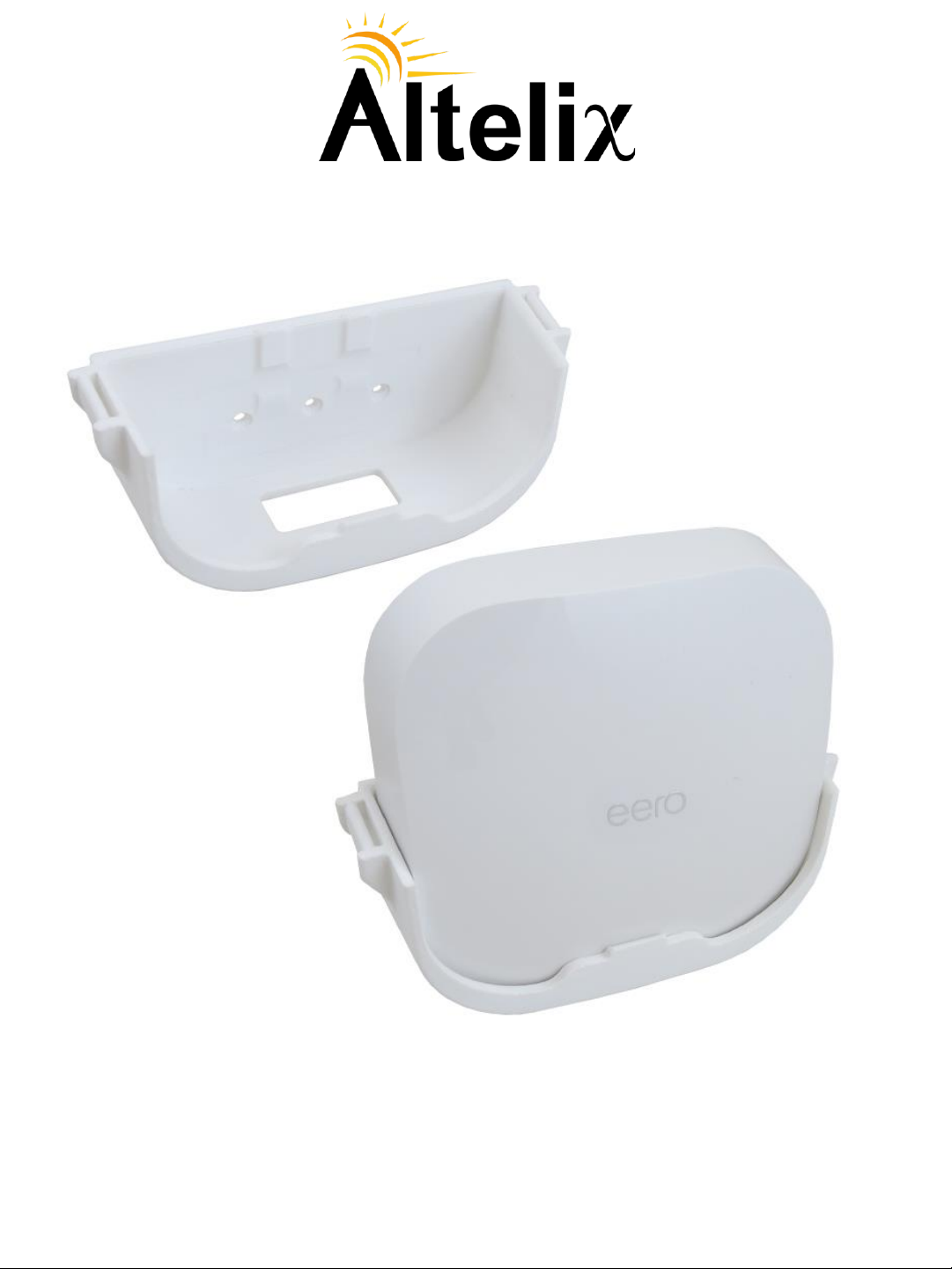

Altelix BMP-EER2 Manuel utilisateur

BMP-EER2

Installation Guide

Altelix LLC USA: 866-660-WIFI (9434) International: +1 561-660-9434 [email protected] www.altelix.com

Copyright (C) 2023 Altelix LLC. All rights reserved. Altelix and the Altelix logo are Trademarks and/or Registered Trademarks of Altelix LLC.

Specifications are subject to change without notice. See www.altelix.com for most current information

eero® is a trademark or registered trademark of Amazon Technologies, Inc.

IS0210 Rev A 07/10/23

BMP-EER2 Installation Guide

The BMP-EER2 can be directly mounted to the inside of a network equipment

cabinet using the included double-sided tape. For wall mounting, wall anchors

and screws are also provided.

Double Sided Tape

(Optional Step) For installations subject to

vibrations, an optional hook and loop strap is

provided to secure the eero Pro 6 in the

mounting cradle.

Wall Anchors and Screw

To use the included double-sided tape,

firmly attach to the rear of the BMP-EER2

as shown.

For wall mounting use the drill template

below.

Once the BMP-EER2 is mounted, insert

the eero Pro 6 into the cradle as shown.

Hook and Loop Strap

Drill Template for Mounting Holes

Place the template in the desired

mounting location and mark the holes.

Follow all applicable safety precautions

when drilling. If necessary, drill pilot holes

where you made your mark. If you will be

using the wall anchors provided with your

enclosure drill 3/16 inch holes. If you will be

using the screws directly, drill 3/32 inch

holes.

Printing Instructions

Print onto 8-1/2” x 11” paper. Select

“Actual Size” or “100% Scale” when

printing.

Installation Note: If attaching to surfaces such as glass, mirror and tile, be sure to clean

surfaces first with alcohol wipes or glass cleaner

IS0210 Rev A 07/10/23
