Altana BYK LC2 Manuel utilisateur

Manual

Betriebsanleitung

Istruzioni d’uso

Measure what you see.

Conductivity Meter LC 2

Leitfähigkeitsmessgerät LC 2

198 013 256 EDI 1412

Conductivity Meter LC 2

Cat. No.

1722,1710, 1712

Leitfähigkeitsmessgerät

LC 2

Best.-Nr.

1722,1710, 1712

Conduttivimetro LC 2

N° di cat.

1722,1710, 1712

198 013 256 EDI 1605

Conductivity Meter

LC 2

Cat.No.

1722, 1710, 1712

Table of Contents

%Safety Information

%System Description

%Start-Up /

Measuring Procedure

%Evaluation

%Calibration

%Trouble Shooting

%Ordering Guide /

Technical Specifications

Technical Data are Subject to

Alterations

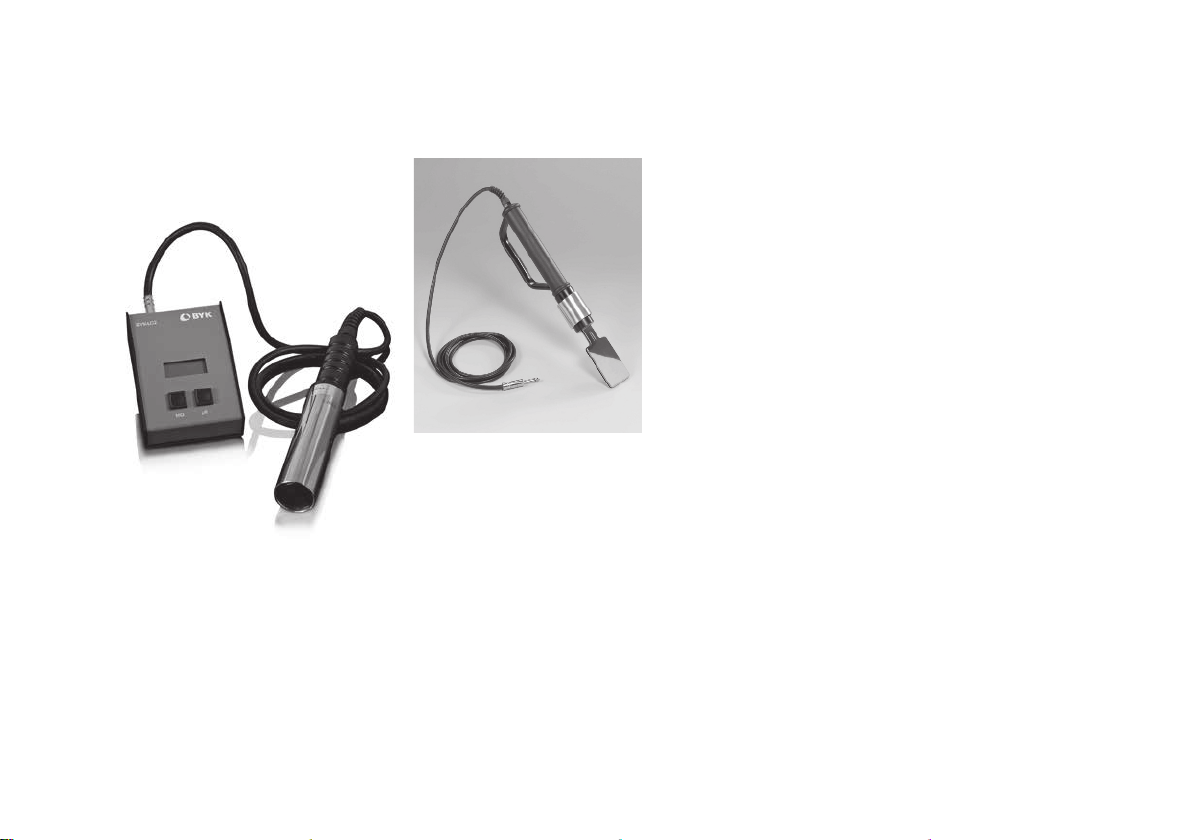

Conductivity Tup Electrode

Cat.No. 1710

Conductivity Meter BYK LC 2

Cat.No. 1722

Conductivity Plate Electrode

Cat.No. 1712

1. Safety Instructions

• The instrument must not be

used in explosion-proof areas!

• Only use leak-proof batteries

and accumulators.

• Do not attempt to repair the

instrument yourself. If your

instrument should experience

a malfunction, our customer

service will be glad to help you

as quickly as possible.

2. System Description

The Conductivity Meter LC 2,

ASTM D 5682, is used for the

analysis of liquids of low

conductivity, such as paint

systems. The electrical resistance

or the conductivity are measured

by means of an immersion

measuring cell. Depending on the

selected function, the specific

resistance or the specific

conductivity are automatically

calculated and displayed.

The BYK LC 2 has been designed

with special emphasis on simple

operation and reliability. The

measuring instrument is

independent of mains energy

(battery or accumulator

operation).The measuring cell

consists of two concentrically

arranged electrodes. The size and

shape of the sampler will generally

not influence the result of the

measurement.

The 3 1/2 digit display shows

values from 0.05 to 19.99 Mor

from 19.99 to 0.05 S. An arrow

on the top left of the display

indicates that the measured value

is assigned to the left Mkey.

Values >19.99 are displayed as

-.-, values < 0.05 are displayed as

0.0.

Housing and measuring cell are

largely resistant to solvents but

should not be exposed to such

liquids for too long.

The housing parts are glued

together (detachable) and the

screws are secured in the same

manner. Please do not open the

housing as otherwise the

guarantee for the instrument is

extinguished!

3. Start-up/

Measuring Porcedure

•Check measuring cell for

clean condition; assemble.

The solid design ensures the firm

seating of the outer electrode.

Accumulation of material on the

contact surface or on the

electrode surfaces – even a very

thin film – will impair the

measurement result in that such

accumulation would simulate an

excessive high resistance or low

conductivity value respectively.

•Connect the measuring cable

to the instrument. The socket

is on the instrument rear.

•Dip the measuring cell into the

liquid. The liquid level should

reach the two holes or rather

the long hole.

•Press the Mor the S

button. After 4 sec. the

"overflow" symbol appears on

the display. Then the

appropriate measurement

value is displayed.

Repeated Measurements

A new measurement can be

started at any time, even when the

last result is still displayed.

If you start a new measurement

while the last result is still

displayed, the display test is

shown during the measurement to

indicate that a new measurement

is running.

The display duration is 2.5 min.

and is not restarted with a new

measurement. If a new measure-

ment is started at the end of the

interval it is possible that the result

is displayed for a very short time

only or not at all.

•Remove the measuring cable

from the instrument and clean

the measuring cell. For this

purpose, pull the outer

electrode (stainless steel)

from the holder. Rinse with

suitable solvent and wipe

clean with dry cloth.
