Installation Instructions

Alpha CB/C/SY Boiler

Anti-Theft Clamp

(Kit Part No. 6.1000446)

KIT CONTENTS

1. GENERAL

The Anti-Theft Clamp is designed to permanently fix the boiler to the wall. This prevents the boiler from being stolen

or removed from the wall.

The clamp is fitted to the boiler after it has been hung on the wall, but it is recommended that the hole for the security

bolt is drilled into the wall before the boiler is lifted into position on the wall mounting bracket.

2. INSTALLATION

Note: These instructions must be read in conjunction with

the Installation instructions supplied with the boiler.

a. Remove the wall template from the boiler carton and

tape it to the wall in the required position (ensure it is

level and the right way up). Mark the positions of all

the required fixings, flue etc.

Mark the hole for the security bolt in the position

shown in Fig. 1, (this is not marked on the template).

b. Drill a 12 mm hole to a depth of 65 mm in the position

previously marked for the security bolt fixing hole.

Remove the shear nut from the bolt and position the

bolt in the fixing hole.

Fig. 1

Compiled and designed by Publications 2000, Tel (01670) 356211 08/04/D134

Part No. 6.0001127

c. When the boiler has been hung in position on the wall

and the remainder of the installation completed, i.e.

flue, all pipework tested and commissioned etc,

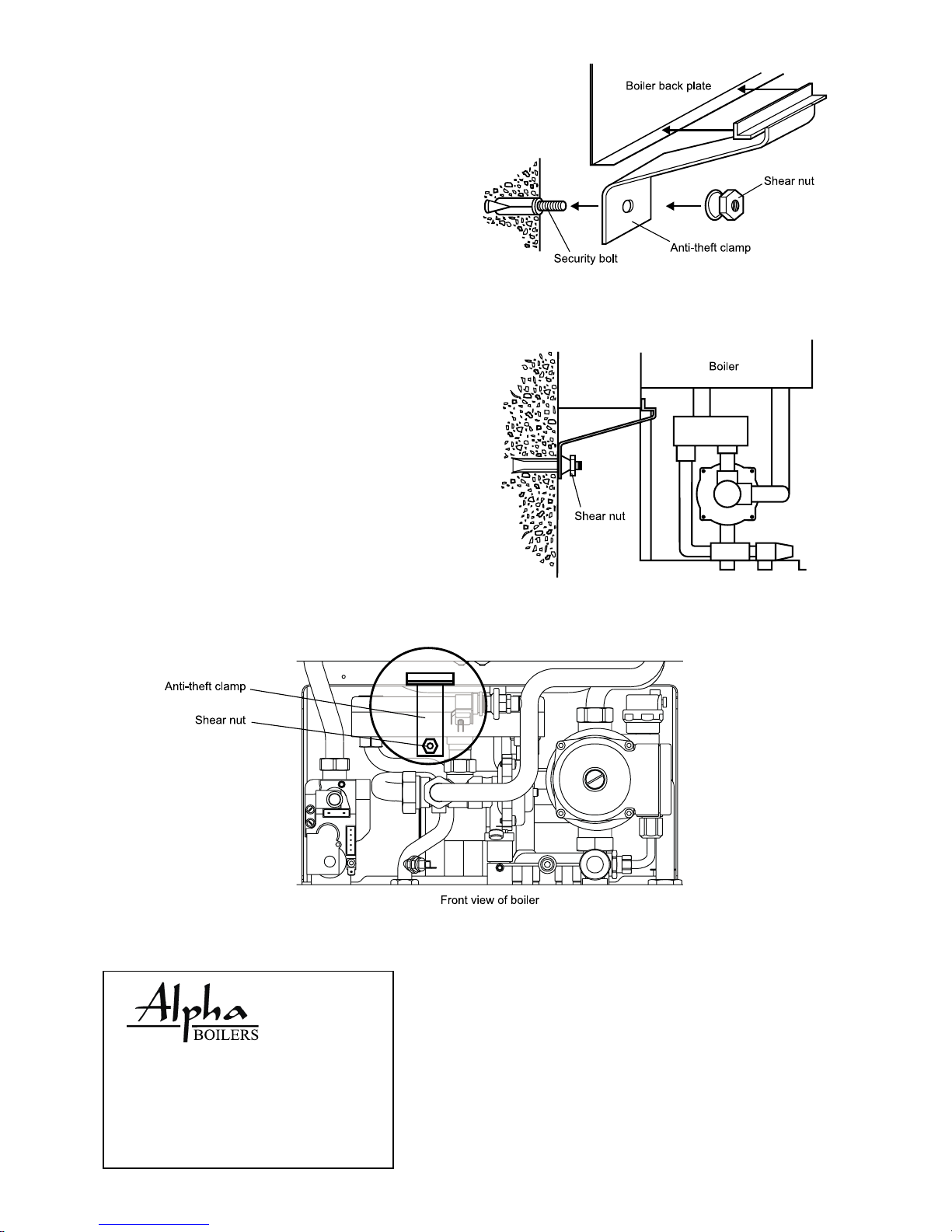

position the anti-theft clamp over the boiler back plate

and over the security bolt as shown in Fig. 2.

Fig. 3

d. Fit the shear nut to the bolt and gradually tighten until

it retains the clamp to the wall, see Fig. 3, continue to

tighten until the nut shears off the cone.

Notes: i. Access to the shear nut is from the front

of the boiler, see Fig. 4, using a 19 mm

socket.

ii. Do not tighten the shear nut until the

whole system has been completed, as

once the bolt is fitted, the boiler can only

be removed by drilling out the bolt with a

hardened drill until the cone falls away.

e. Before leaving site, stick the warning label supplied

to the outer casing of the boiler.

Fig. 2

Fig. 4

These instructions have been carefully prepared but we reserve the right to

alter the specification at any time in the interest of product improvement.

© Alpha Therm Limited 2004.

Alpha Therm Limited.

NepicarHouse,LondonRoad,WrothamHeath,

Sevenoaks, Kent TN15 7RS

Tel: 0870 3001964

email: [email protected]

website: www.alpha-boilers.com
