SNX-60x0-486F Series Data Center Switch
Quick Installation Guide
SNX-60x0-486F Series Data Center Switch Quick Installation Guide
2
Introduction
This guide is to assist the reader with the most basic
form of installation and connection to switches in
this series. As there is more than one switch in this
series, the diagrams might slightly differ, however,
the installation and connection is the same for all
switches in this series.
Package Contents
After purchasing any of the switches in this series,
the following items will be included in the package:
One SNX-60x0-486F Series Switch (This includes 1
power supply module and 3 fan modules).
One Quick Installation Guide.
One AC power cord.
One RS-232-to-RJ45 console cable.
One USB-to-USB console cable.
One pair of frontal rack-mount brackets.
One pair of rack-mount slider brackets.
Four rubber feet with adhesive patches.
Eight Phillips-head frontal rack-mount bracket screws.
One warranty card.
Note: If any of the above mention items was not
found inside the package contents of this switch or
are damaged in any way, contact your reseller
immediately.
Hardware Installation
Installation Guidelines
This section will discuss the hardware installation
guidelines that administrators must follow in order
to properly and safely install this switch into the
appropriate environment.
Installation using the Rubber Feet
When installing the switch in an area other than
inside a switch rack, like on a desktop, rubber feet
can be attached to the bottom panel of the switch.
On the bottom panel of the switch, there are clearly
marked squares where the rubber feet can be
attached. These marked squares are usually found
close to the corners of the switch’s bottom panel.
Adhesive material is included on the rubber feet.
Simply pull away the protective sticker, of each
rubber foot and then attach the foot into the
appropriately marked square. The rubber feet
cushion the switch, protecting the casing from
scratches and preventing it from scratching other
surfaces.

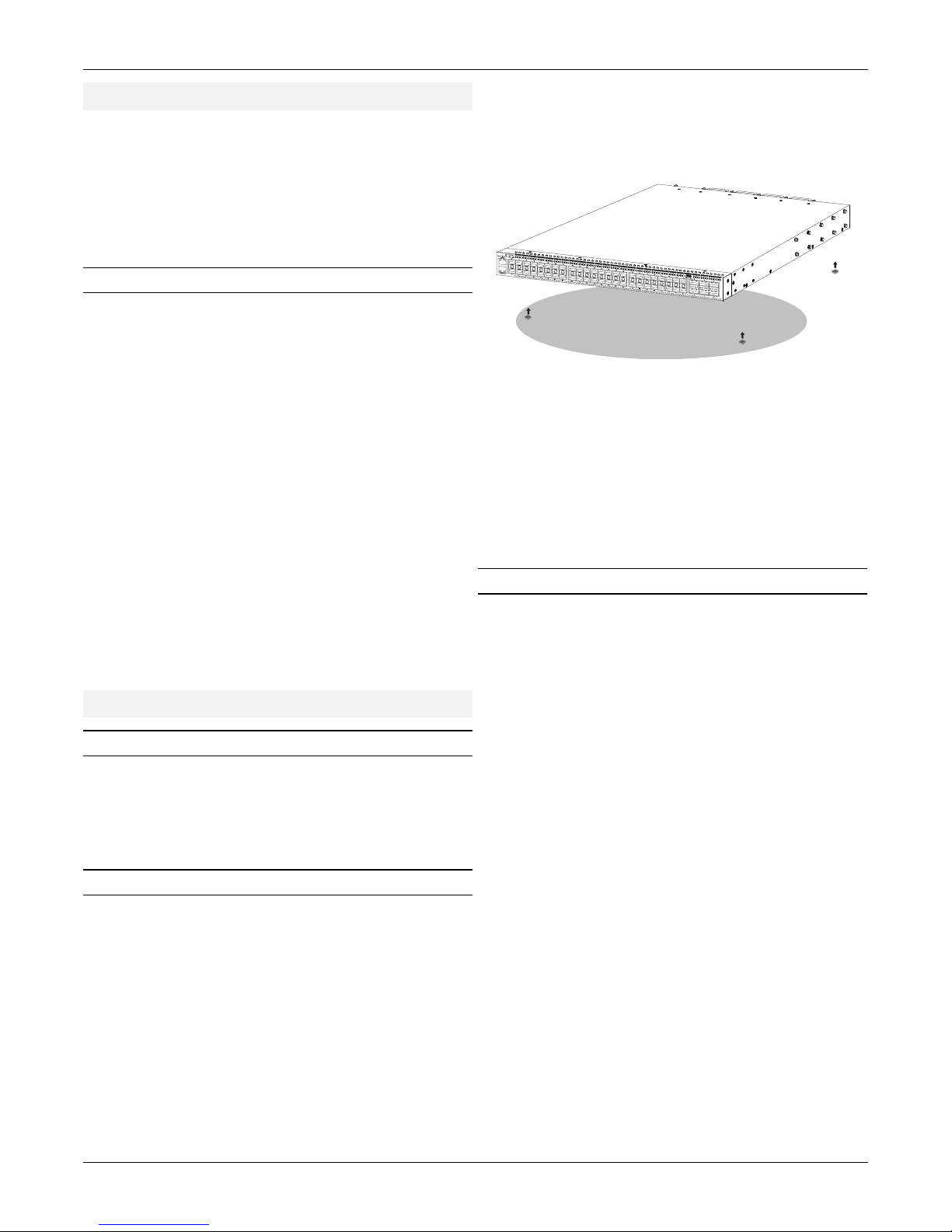

Figure 1 - Installation using the rubber feet
Install the switch on a sturdy, level surface that can
support the weight of the switch. Do not place any
heavy objects on the switch. Make sure that there is
proper heat dissipation from and adequate
ventilation around the switch. Leave at least 10 cm
(4 inches) of space at the front and rear of the
switch for ventilation.
Installation into a Rack
Normally, ToR switches are installed not only into a
rack-mount unit but at the top of the rack. The
switch can be mounted in a standard 19"(1U) rack
using the provided mounting brackets. The
following section will explain how to install the rack-
mount brackets onto the switch and then mount the
switch into a standard 1U rack-mount unit.
The following parts will be used to install the switch
into a rack-mount unit:
One pair of frontal rack-mount brackets.
One pair of rack-mount slider brackets.
Eight Phillips-head frontal rack-mount bracket screws.
Additional equipment needed to install the switch
into a rack-mount unit:
One Phillips-head screwdriver. This screwdriver will be
used for the rack-mount bracket screws
One additional screwdriver. This screwdriver will be
used for the rack-mount unit screws and its type and
size depends on the rack-mount unit screws being
used.
Eight rack-mount unit screws. These screws will be used
to attach the switch onto to the rack-mount unit and
are not included in the switch’s packaging as rack-
mount units differ at each installation site.
Quick Installation Guide SNX-60x0-486F Series Data Center Switch
3

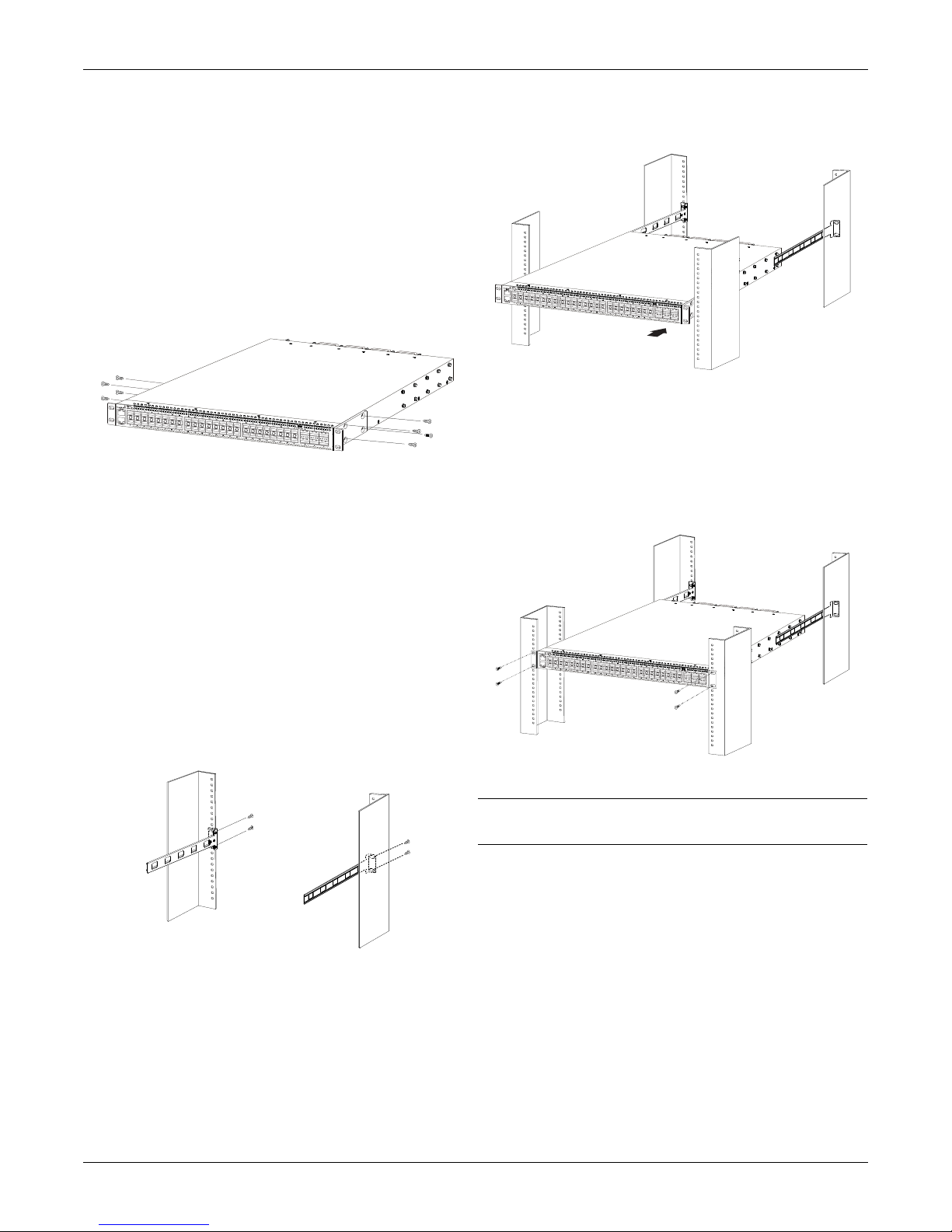

The figure below illustrates how to install the
frontal rack-mount brackets onto the switch.
1. Place the switch on a flat horizontal surface.
2. Position the frontal rack-mount bracket over the screw
holes on the side of the switch. The ears of the bracket
must be facing forward and outwards.
3. Use the frontal rack-mount screws and the Phillips-
head screwdriver to fasten the bracket onto the side of
the switch.
4. Repeat steps 1 to 3 for the other frontal rack-mount
bracket on the other side of the switch.
Figure 2 - Front Rack-Mount Bracket Installation
The figure below illustrates how to install the rack-
mount slider brackets onto the rack-mount unit.
5. Take one rack-mount slider bracket and position it over
the screw holes, on the back of the rack-mount unit, at
the appropriate height. The ears of the bracket must be
facing backwards and outwards.
6. Use the rack-mount unit screws and the additional
screwdriver to fasten the bracket onto the back of the
rack-mount unit.
7. Take the second rack-mount slider bracket and repeat
steps 1 and 2, on the opposite side of the back of the
rack-mount unit. Make sure to horizontally align the
two rack-mount slider brackets.
Figure 3 - Attach rack-mount slider brackets to rack
The figure below illustrates how to mount the switch
onto the rack-mount slider brackets.
8. Position the switch so that the rack-mount slider
brackets align horizontally within the two rows of rack-
mount slider bracket pegs found on the side panel of
the switch.
9. Slide the switch carefully backwards so that the rack-
mount slider brackets fit into the space between the
two rows of rack-mount slider pegs.
Figure 4 - Slide switch into position
The figure below illustrates how to complete the
rack-mount installation.
10. Use the rack-mount unit screws and the additional
screwdriver to fasten the frontal rack-mount brackets
onto the front of the rack-mount unit.
Figure 5 - Slide switch into position
Installing Transceivers into the
Transceiver Ports
Switches in this series have 48 SPF+ ports and 6
QSFP+ ports. QSFP+ technology allows a smooth
transition from 10 to 40 Gigabit Ethernet
infrastructures in data centers. Each of the switch’s
QSFP+ ports can operate in either native 40 Gigabit
Ethernet mode or 4 x 10 Gigabit Ethernet mode.
This switch supports both fiber and copper cabling
solutions for these two modes.
SNX-60x0-486F Series Data Center Switch Quick Installation Guide
4

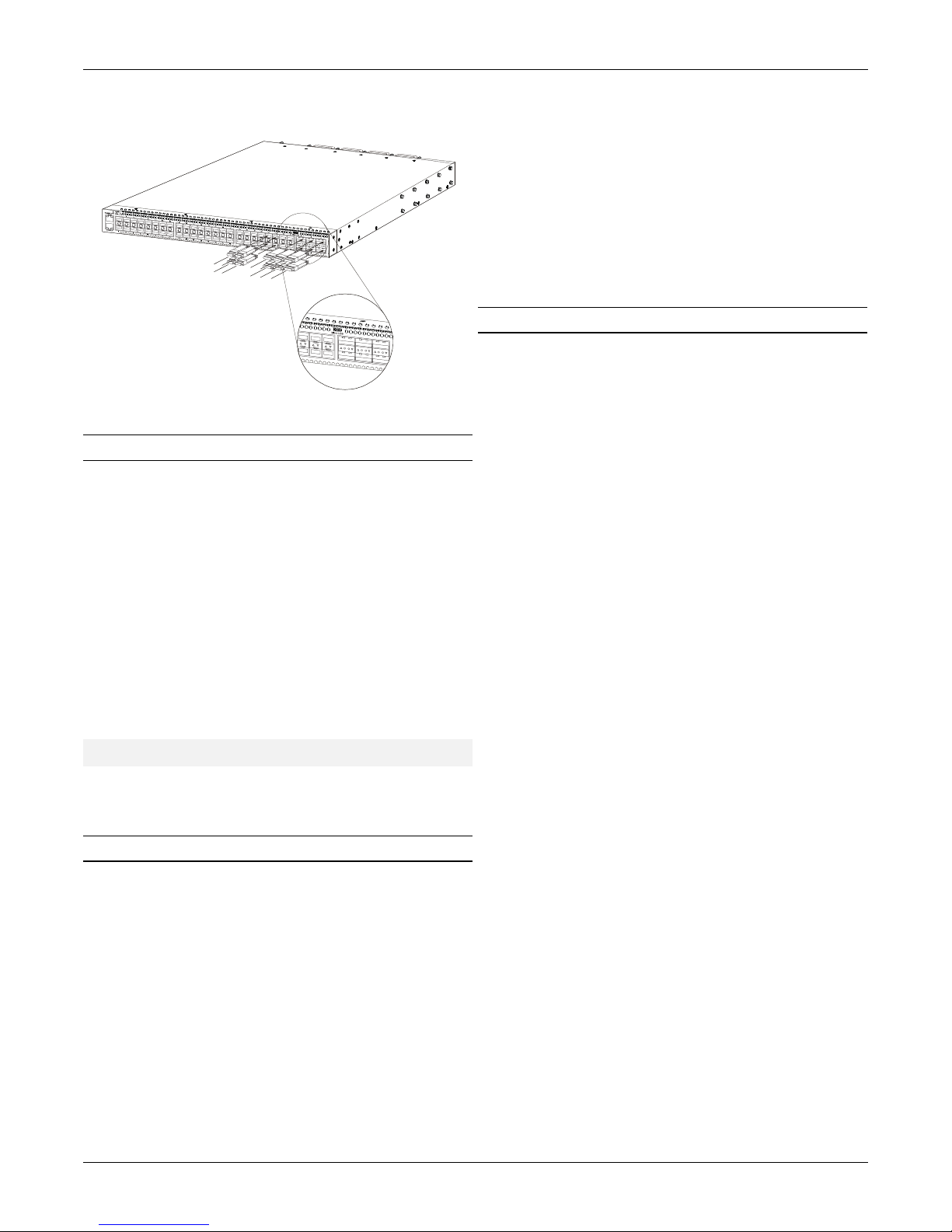

The figure below illustrates how to properly insert
SFP+ and QSFP+ transceivers into the switch’s ports.
Figure 6 - Installing Transceivers into the Transceiver Ports
Connect the Power Cable
Connect one end of the AC power cord, included in
the package, into the grounded electrical outlet at
the site and insert the other end of the AC power
cord into the AC power receptacle of the AC power
supply module on the back panel of the switch. The
switch will automatically adjust the voltage supplied
to the voltage needed as this power supply supports
any voltage power supply in the range from 100VAC
to 240VAC at 50Hz to 60Hz.
The LED indicators on the front panel of the switch
should come on.
Safety Instructions
The following sections provide safety precautions to
follow when installing the switch.
Safety Precautions
For your protection, observe the following safety
precautions when setting up your equipment:
Follow all cautions and instructions marked on the
equipment.
Only trained and qualified personnel are allowed to
install or to replace this equipment.
Never push objects of any kind through openings in
the equipment. Dangerous voltages may be present.
Conductive foreign objects could produce a short
circuit that could cause fire, electric shock, or damage
to your equipment.
This product is intended for restricted access whereby
access is controlled through the use of a means of
security (for example, key, lock, tool, badge access) and
personnel authorized for access have been instructed
on the reasons for the restrictions and any precautions
that need to be taken.
Remove all metal jewelry, such as rings and watches,
before installing or removing the device.
Do not look directly at the fiber optic cable ends or
inspect the cable ends with an optical lens.
Do not install in direct sunlight, or a damp or dusty
place.
Do not expose the device to moisture or water.
Disconnect all power supply cords before servicing.
Electrical Safety Precautions
For your protection, observe the following electrical
safety precautions when setting up your equipment:
Ensure that the voltage and frequency of your power
source match the voltage and frequency inscribed on
the equipment’s electrical rating label.
This switch is designed to work with power systems
having a grounded neutral. To reduce the risk of
electric shock, do not plug the switch into any other
type of power system. Contact your facilities manager
or a qualified electrician if you are not sure what type
of power is supplied to your building.
Not all power cords have the same current ratings. Do
not use the power cord provided with your equipment
for any other products or use. Household extension
cords do not have overload protection and are not
meant for use with these switches. Do not use
household extension cords with this product.
To prevent electric shock, do not remove the cover of
this product. There are no user-serviceable parts inside.
This unit contains hazardous voltages and should only
be opened by a trained and qualified technician.
Do not work on equipment or cables during periods of
lightning activity.
Check to see if there are any exposed copper strands
coming from the installed wire. When this installation is
done correctly there should be no exposed copper wire
strands extending from the terminal block. Any
exposed wiring can conduct harmful levels of electricity
to persons touching the wires.
The power source for the device should be located near
the unit and should be easily accessible.
Circuit Overloading: Consideration should be given to
the connection of the equipment to the supply circuit
and the effect that overloading of circuits might have
on overcurrent protection and supply wiring.
Appropriate consideration of equipment nameplate
ratings should be used when addressing this concern.
Warning: A readily accessible disconnect device shall
be incorporated in the building installation wiring.
Quick Installation Guide SNX-60x0-486F Series Data Center Switch
5
Attention: Un dispositif de déconnexion facilement
accessible doit être incorporé dans l'installation
électrique du bâtiment.
Caution: Risk of explosion if battery is replaced by an
incorrect type. Dispose of used batteries according to
the instructions.
Attention: Risque d'explosion si la batterie est
remplacée par un type incorrect. Jetez les piles usagées
selon les instructions.
警告:如果更換不正確之電池型式會有爆炸的風險˙請依
製造商說明書處理用過之電池˙
Rack-mount Safety Precautions
For your protection, observe the following rack-
mount safety precautions when setting up your
equipment:
Elevated Operating Ambient - If installed in a closed
or multi-unit rack assembly, the operating ambient
temperature of the rack environment may be greater
than room ambient. Therefore, consideration should be
given to installing the equipment in an environment
compatible with the maximum ambient temperature
(Tma) specified by the manufacturer.
Reduced Air Flow - Installation of the equipment in a
rack should be such that the amount of air flow
required for safe operation of the equipment is not
compromised.
Mechanical Loading - Mounting of the equipment in
the rack should be such that a hazardous condition is
not achieved due to uneven mechanical loading.
Circuit Overloading - Consideration should be given
to the connection of the equipment to the supply
circuit and the effect that overloading of the circuits
might have on overcurrent protection and supply
wiring. Appropriate consideration of equipment
nameplate ratings should be used when addressing
this concern.
Reliable Earthing - Reliable earthing of rack-mounted
equipment should be maintained. Particular attention
should be given to supply connections other than
direct connections to the branch circuit (for example,
use of power strips).
For safety, equipment should always be loaded from
the bottom up. That is, install the equipment that will
be mounted in the lowest part of the rack first, then the
next higher systems, etc.
To prevent the rack from tipping during equipment
installation, the anti-tilt bar on the rack must be
deployed.
The mounting brackets provided must be used to
securely mount the device in a rack-mount unit.
Regulations & Warnings
FCC Warning
NOTE: This equipment has been tested and found to
comply with the limits for a class A digital device, pursuant
to Part 15 of the FCC rules. These limits are designed to
provide reasonable protection against harmful interference
when the equipment is operated in a commercial
environment. This equipment uses, generates, and can
radiate radio frequency energy and if not installed in
accordance with the operator’s manual, may cause harmful
interference to radio communications. Operation of this
equipment in a residential area is likely to cause
interference in which case the user will be required to
correct the interference at his/her own expense.
WARNING: Changes or modifications made to this device
which are not expressly approved by the party responsible
for compliance could void the user’s authority to operate
the equipment.
CE Mark Warning
This is a Class A product. In a domestic environment, this
product may cause radio interference in which case the user
may be required to take adequate measures.
BSMI Notice
警告使用者: 此為甲類資訊技術設備，於居住的環境中使用
時，可能會造成射頻擾動，在此種情況下，使用者會被要求
採取某些適當的對策。
警告
此为 A级产品，在生活环境中，该产品可能会造成无线电干
扰。在这种情况下，可能需要用户对其干扰采取切实可行的
措施。
Safety Compliance
Warning: Class 1 Laser Product.
EN: When using a fiber optic media expansion module,
never look at the transmit laser while it is powered on.
Also, never look directly at the fiber TX port and fiber
cable ends when they are powered on.
FR: Ne regardez jamais le laser tant qu’il est sous
tension. Ne regardez jamais directement le port TX
(Tramsmission) à fibres optiques et les embouts de
câbles à fibres optiques tant qu’ils sont sous tension.
Warning: Class 1M Laser Product (Laser Radiation):.
EN: Class 1M laser radiation when open. Do not view
directly with optical instruments
SNX-60x0-486F Series Data Center Switch Quick Installation Guide
6
FR: Radiation laser de classe 1M en cas d'ouverture. Ne
pas observer directement avec des instruments
optiques.
GBIC, SFP (Mini-GBIC), QSFP+, XENPAK, and XFP
Regulatory Compliance
Class 1 or 1M.
EN60825-1:2007 2nd Edition or later, European
standard.
FCC 21 CFR Chapter 1, Subchapter J in accordance with
FDA and CDRH requirements.
Application of CE Mark in accordance with
2004/108/EEC EMC Directive and the 2006/95/EC Low
Voltage Directives.
UL and/or CSA registered component for North
America.
47 CFR Part 15, Class A when installed into Alpha
products.
Warranty
Switches in this series support a 2 year warranty.
Upgrade the ONIE
The latest ONIE file(s) can be downloaded from
ftp://onie_4_client:p03LL8j[email protected]phanetworks.co
m
For More Information
For more information, please visit
http://www.alphanetworks.com.
Table des matières
Autres manuels Alpha Networks Changer
