Quick Installation Guide
2 x530 Series Quick Installation Guide
Introduction
This Quick Installation Guide contains a short version of the
installation instructions for the x530 Series of Multi-Gigabit Layer 3
Ethernet Switches. For more instructions, refer to the x530 Series
Installation Guide for Standalone Switches and x530 Series
Installation Guide for Virtual Chassis Stacking on the Allied Telesis
web site at www.alliedtelesis.com/us/en/services-support. This
guide contains the following sections:
“Front Panels” next
“PoE+ Power Budgets” on page 5
“VCStack™ Feature” on page 5
“Beginning the Installation” on page 6
“Installing the Switch” on page 9
“Ports” on page 14
“Powering On the Switch” on page 16
“LEDs” on page 18
“Starting a Local Management Session” on page 21
“Disabling the VCStack Feature” on page 22
“Troubleshooting” on page 23
Front Panels

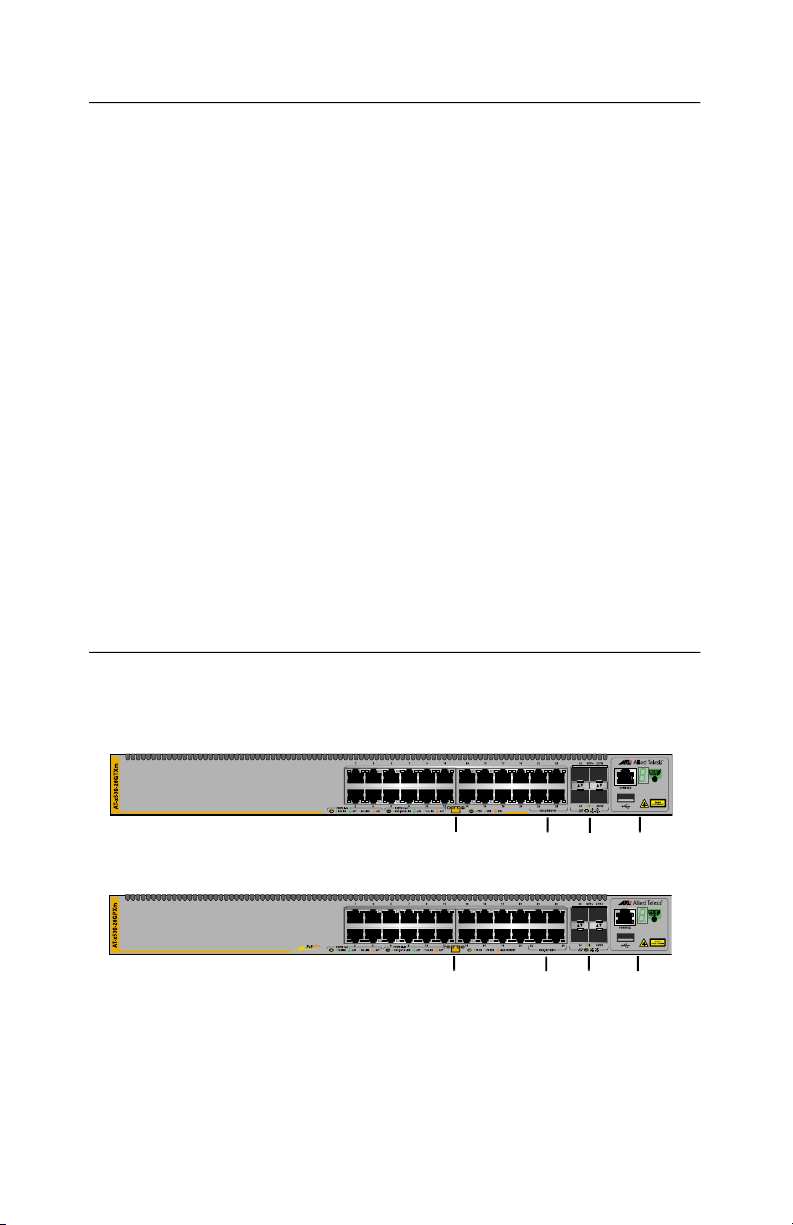

Here are the front panels of the switches in the x530 Series.
x530-28GTXm
x530-28GPXm
1 2
34
5 6
56
x530 Series Quick Installation Guide 3

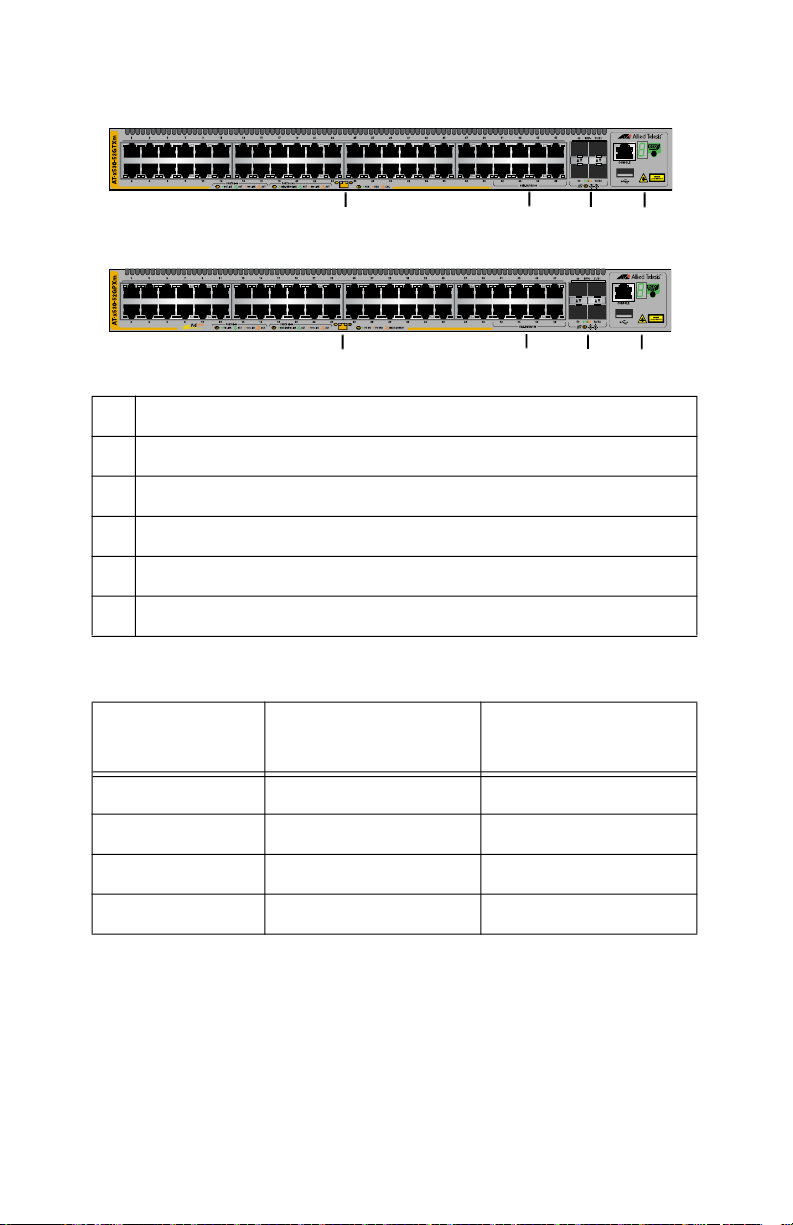

Here are the 10/100/1000Mbps Ethernet copper ports.
1 10/100/1000Mbps Ethernet copper ports
2 100M/1/2.5/5Gbps Ethernet copper ports
3 10/100/1000Mbps Ethernet copper ports with PoE+
4 100M/1/2.5/5Gbps Ethernet copper ports with PoE+
5 1/10Gbps SFP+ transceiver ports
6 Management panel
Switch 10/100/1000Mbps
Ports
10/100/1000Mbps
Ports with PoE+
x530-28GTXm 1 to 20 -
x530-28GPXm - 1 to 20
x530-52GTXm 1 to 40 -
x530-52GPXm - 1 to 40
x530-52GTXm
x530-52GPXm 1256
56
34
4 x530 Series Quick Installation Guide
Here are the 100M/1/2.5/5Gbps Ethernet copper ports.
Here are the 1/10Gbps SFP+ ports.

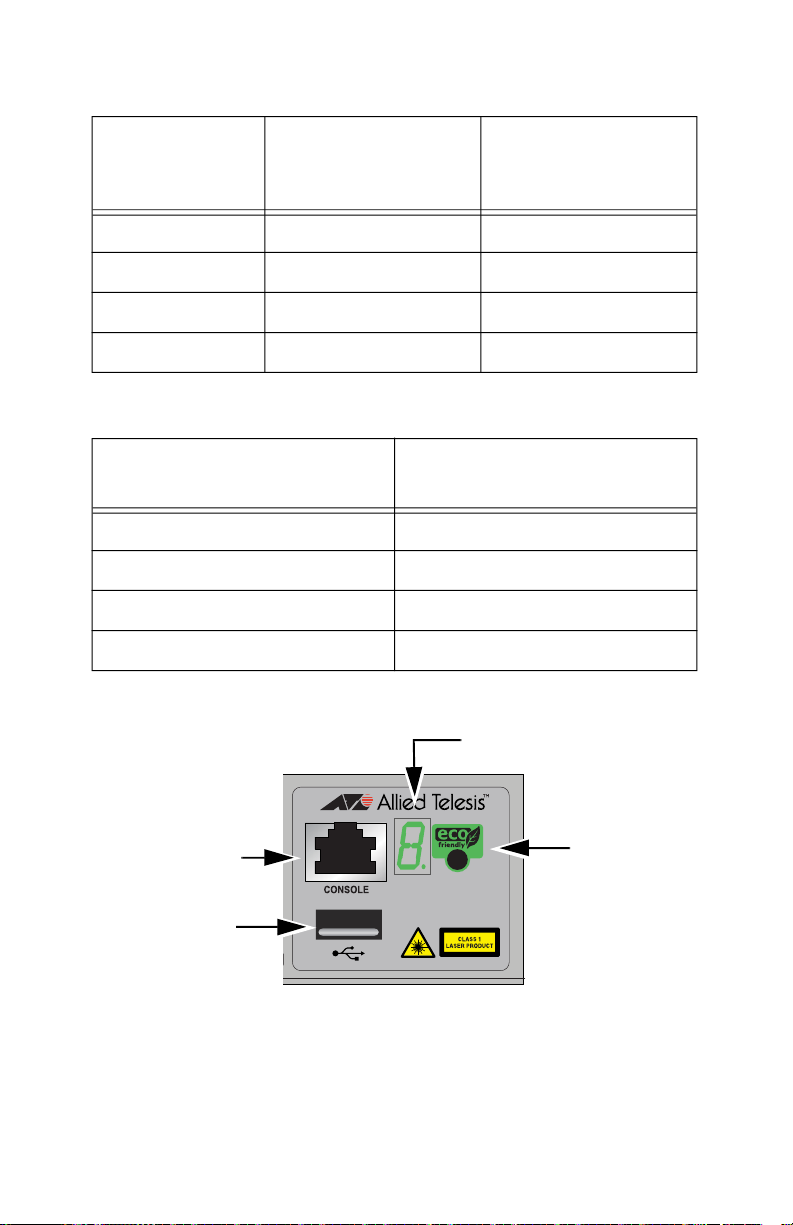

The management panel is shown here.
Switch 100M/
1/2.5/5Gbps Ports
100M/
1/2.5/5Gbps Ports
with PoE+
x530-28GTXm 21 to 24
x530-28GPXm - 21 to 24
x530-52GTXm 41 to 48 -
x530-52GPXm - 41 to 48
Switch Number of
1/10Gbps SFP+ Ports
x530-28GTXm 25 to 28
x530-28GPXm 25 to 28
x530-52GTXm 49 to 52
x530-52GPXm 49 to 52
USB Port
eco-friendly
Button
Console
Management
Port
Switch ID LED
x530 Series Quick Installation Guide 5
PoE+ Power Budgets
The PoE+ power budgets of the x530-28GPXm and x530-52GPXm
Switches are listed here. Power budgets are the maximum amounts
of power that PoE+ switches can provide to powered devices on the
Ethernet copper ports.
The x530-28GPXm and x530-52GPXm Switches support IEEE
802.3at Classes 0 to 4 devices. (Maximum 30.0W at the switch
ports.)
Note: The maximum number of powered devices that the switches
can support simultaneously will depend on the power requirements
of the devices.
VCStack™ Feature
The VCStack feature lets you manage up to eight switches as a
single virtual unit. The switches synchronize their actions so that
switching operations (such as spanning tree protocols, virtual LANs,
and static port trunks) span across all the ports and switches. Two
advantages of stacks are:
You can manage multiple units simultaneously, which can
simplify network management.
You can add redundancy to your network topology by distributing
functions across multiple switches. For instance, static port
trunks on standalone switches have to consist of ports from the
same switch. In contrast, static port trunks in a stack can have
ports from different switches.
Note: For instructions, refer to the x530 Series Installation Guide for
Virtual Chassis Stacking.
Switch PoE+ Budget
x530-28GPXm 740W (370W per power supply)
x530-52GPXm 740W (370W per power supply)
6 x530 Series Quick Installation Guide
Beginning the Installation
Reviewing Safety Precautions
Review the following safety precautions before installing the product.
Note: The symbol indicates that a translation of the safety
statement is available in the PDF document “Translated Safety
Statements” on the Allied Telesis website at
www.alliedtelesis.com/us/en/documents/translated-safety-
statements.
Warning: Class 1 Laser product.
L1
Warning: Do not stare into the laser beam.
L2
Warning: Power cord is used as a disconnection device.
To de-energize equipment, disconnect the power cord.
E3
Warning: To prevent electric shock, do not remove the
cover. No user-serviceable parts inside. This unit
contains hazardous voltages and should only be opened
by a trained and qualified technician. To avoid the
possibility of electric shock, disconnect electric power to
the product before connecting or disconnecting the
cables. E1
Warning: Class I Equipment. This equipment must be
earthed. The power plug must be connected to a
properly wired earth ground socket outlet. An improperly
wired socket outlet could place hazardous voltages on
accessible metal parts. E4
Warning: The device is heavy. Always ask for
assistance before moving or lifting it to avoid injuring
yourself or damaging the equipment. E122
x530 Series Quick Installation Guide 7
Installation Options

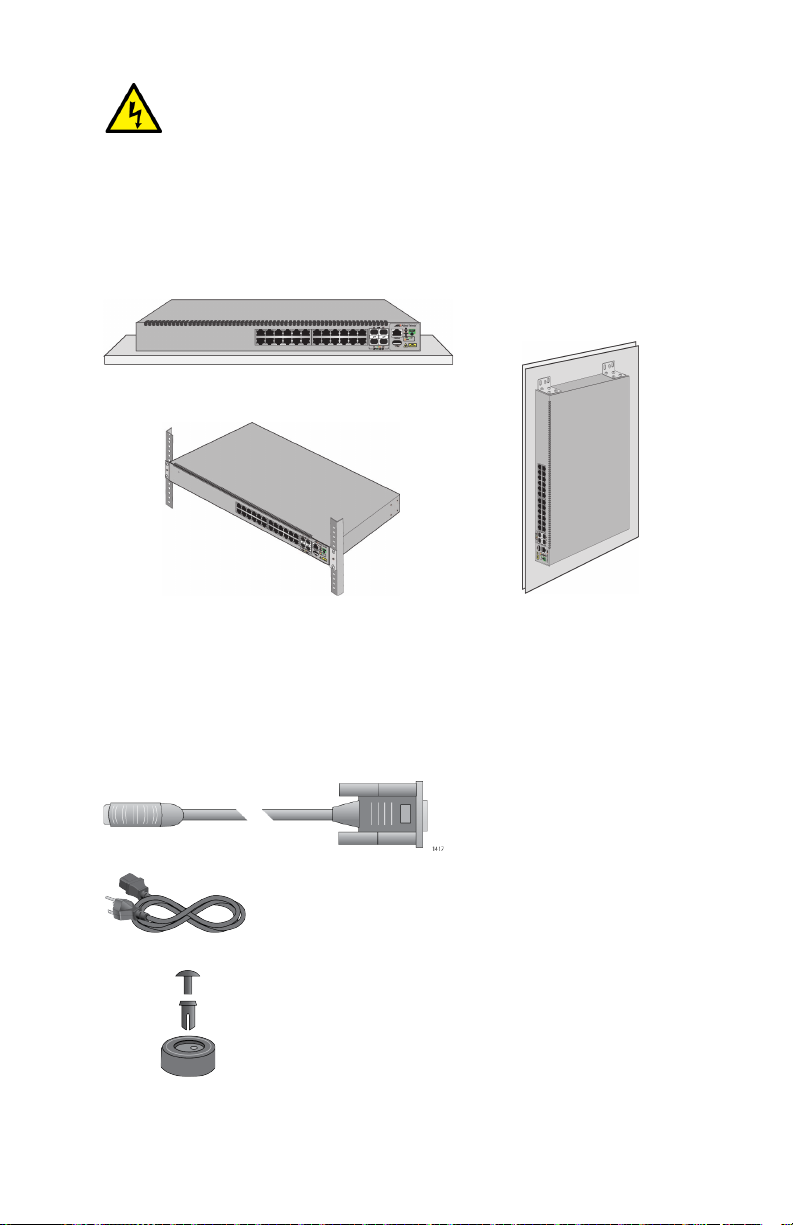

This figure illustrates the installation options.
Unpacking the Switch
Here are the accessory items that come with the switches.
Warning: To reduce the risk of electric shock, the PoE
ports on this product must not connect to cabling that is
routed outside the building where this device is located.
E40
Table
Standard 19-inch
equipment rack
Wood or concrete
wall
One 2m (6.6 ft) local
management cable with
RJ-45 (8P8C) and DB-9
(D-sub 9-pin) connectors.
Two AC power cords
Four bumper feet with rivets
8 x530 Series Quick Installation Guide
Choosing a Site for the Switch
Review these site recommendations and requirements.
Before installing the switch in an equipment rack, check that the
rack is safely secured so that it will not tip over. Devices in a rack
should be installed starting at the bottom of the rack, with the
heavier devices near the bottom.
Before installing the switch on a table, verify that the table is level
and stable.
Before installing the switch on a wall, verify that the wall’s material
is strong enough to hold the switch’s weight. You should position
the device so that it can be screwed into the wall’s framing timber
or equivalent structural element.
The power outlet should be located near the switch and be easily
accessible.
The site should allow for easy access to the ports on the front of
the switch so that you can easily connect and disconnect cables,
and view the port LEDs.
Two power cord retaining clips
Wall/equipment rack brackets:
2 brackets - x530-28GTXm and x530-28GPXm
4 brackets - x530-52GTXm and x530-52GPXm
Bracket screws: 3x6mm
8 screws - x530-28GTXm and x530-28GPXm
16 screws - x530-52GTXm and x530-52GPXm
Wood and concrete wall screws: 4x32.3mm
2 screws - x530-28GTXm and x530-28GPXm
4 screws - x530-52GTXm and x530-52GPXm
Wall anchors - 6x4x29.6mm:
2 anchors - x530-28GTXm and x530-28GPXm
4 anchors - x530-52GTXm and x530-52GPXm
x530 Series Quick Installation Guide 9
The site should allow for adequate air flow around the unit and
through the cooling vents on the front and rear panels. (The
ventilation direction is from front to back.)
Do not place objects on top of the switch.
The site should not expose the switch to moisture or water.
The site should be a dust-free environment.
The site should use dedicated power circuits or power
conditioners to supply reliable electrical power to the network
devices.
Do not install the switch in a wiring or utility box without adequate
airflow. The switch might overheat and shutdown.
Ventilation Direction in the Switches
The direction of ventilation in the switches is from front to back.
Installing the Switch
Installing the Switch on a Desk or Table
To install the switch on a desk or table, perform the following
procedure:
1. Place the switch upside down on a table.
2. Inset a rivet housing into a bumper foot.
3. Place the bumper foot on one of the corner holes in the bottom
panel of the switch.
4. Insert the rivet to secure the bumper foot to the base.
Warning: Switches should not be stacked on a table or
desktop. They could present a physical safety hazard if
you need to move or replace switches. E91
10 x530 Series Quick Installation Guide
5. Repeat steps 2 to 4 to install the remaining bumper feet.
6. Turn the switch over.
7. Go to “Ports” on page 14.
Installing the Switch in an Equipment Rack
The following items are required to install the switch in an equipment
rack:
Two equipment rack brackets (included with the switch)
Eight M3x6mm bracket screws (included with the switch)
Cross-head screwdriver (not provided)
Four standard equipment rack screws (not provided)
To install the switch, perform the following procedure:
1. Place the switch on a table.
2. If the bumper feet are attached to the bottom of the switch,
remove them using a flat-head screwdriver.

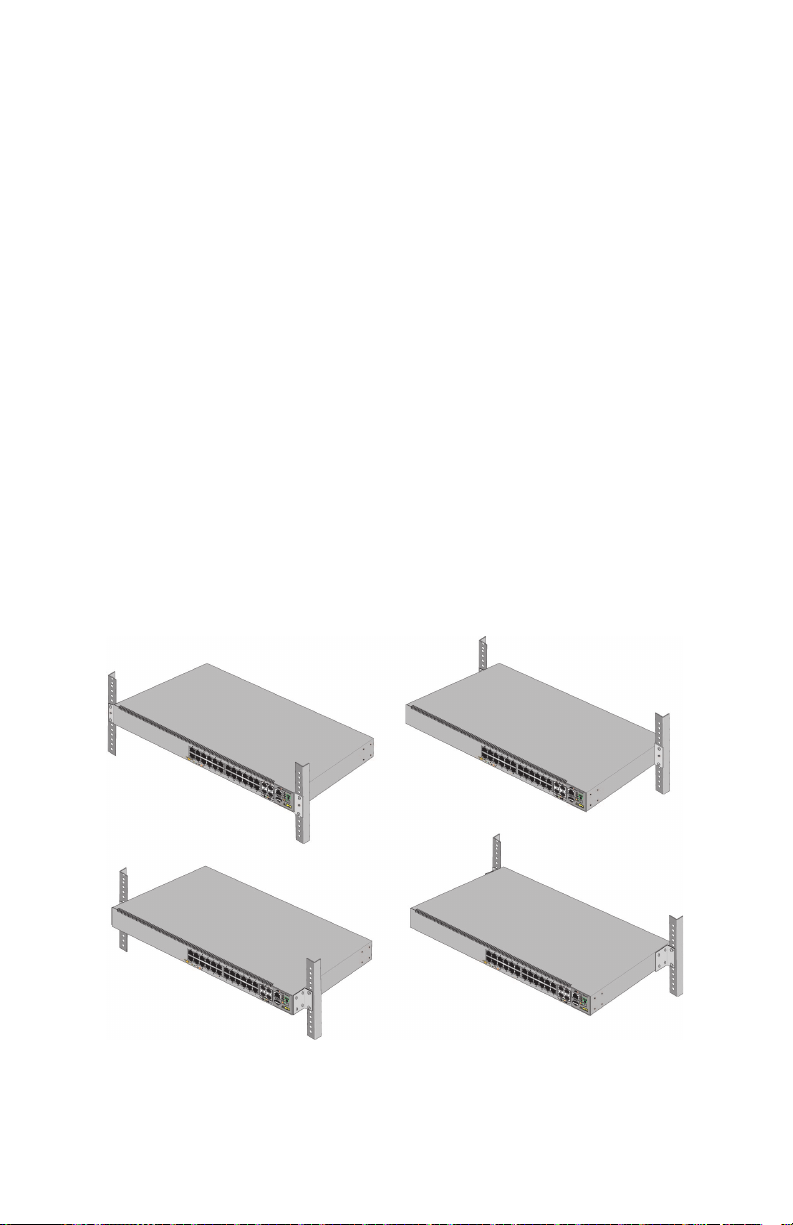

3. Attach two brackets to the sides of the switch with eight bracket
screws included with the unit. The following figures illustrate the
four possible positions of the brackets on the switch for a
standard 19-inch equipment rack.
