Allied Telesis www.alliedtelesis.com

Datasheet | Switches

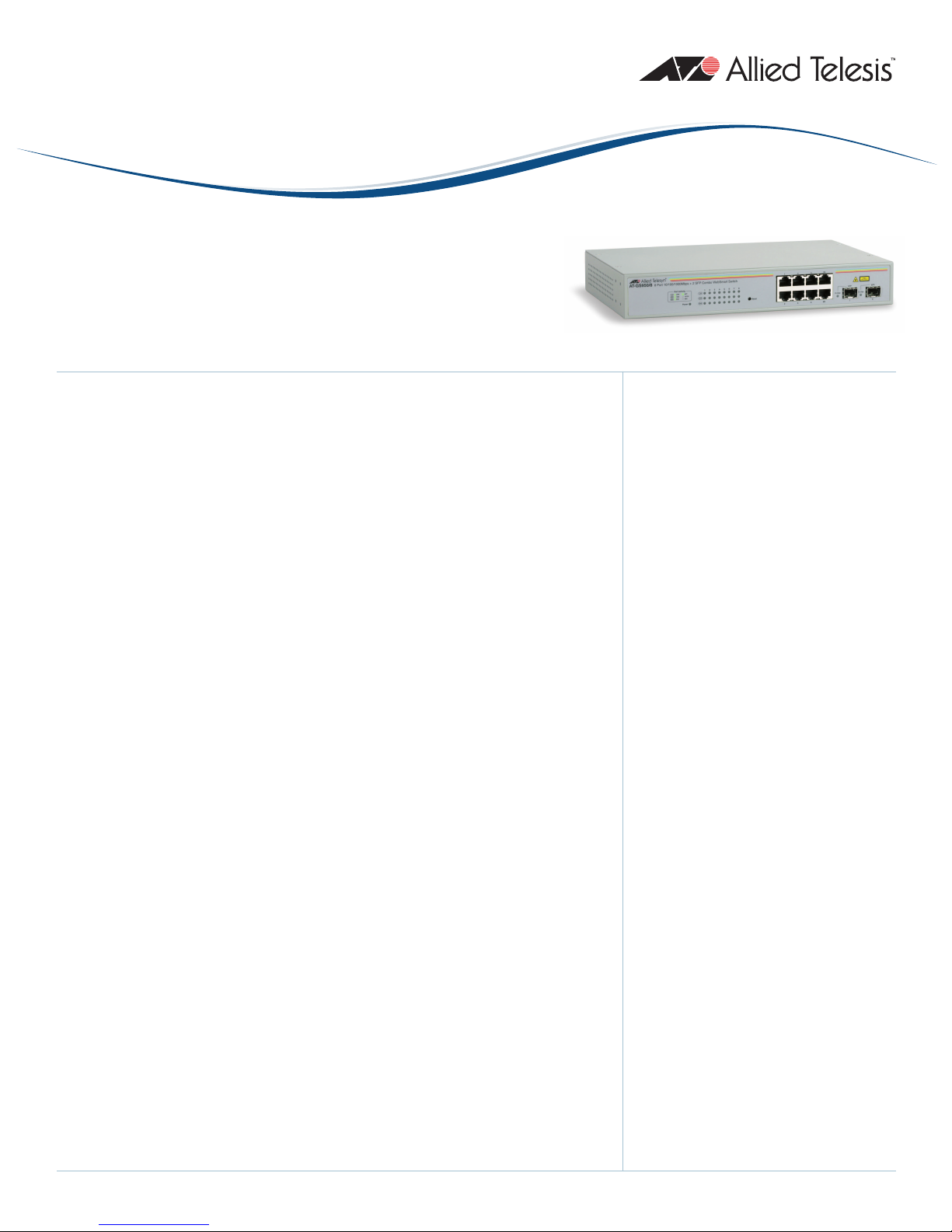

AT-GS950/8

8 port Gigabit ebSmart Switch

AT-GS950/8-xx

8 port 10/100/1000T WebSmart switch

with 2 SFP combo ports

Performance

Allied Telesis’ WebSmart switch integrates the

simplicity of unmanaged switches with the

performance and reliability of managed switches

to provide a cost-effective solution for users

to integrate management at the edge of their

network. This WebSmart switch provides a

network manager some key features using

the simple web-based management function

such as; port-based VLANs, IEEE 802.1p oS,

port trunking/link aggregation, priority queues

and IEEE 802.1x packet pass-through. With

support of up to 4K MAC addresses and a

128K packet buffer the AT-GS950/8 WebSmart

switch is an ideal option for integrating

management into your network solution.

Va ue

Never thought you could afford managed

switches in your network? Always wanted to

provide management functionality at the edge?

Now’s your chance. Allied Telesis’ WebSmart

switch truely helps network managers get the

most value for their dollar. With industry

standard protocols, fiber media support via

the SFP's and simple Plug and Play usability

right out of the box how can you go wrong

implementing this cost-effective solution into

your network?

Qua ity and Re iabi ity

Allied Telesis is a worldwide leader in

unmanaged Ethernet switches. Shipping more

than 250,000 unmanaged switches each year,

Allied Telesis offers proven reliability and

industry recognized quality.

Key Features

•8 10/100/1000T ports

•2 SFP combo ports

•Non-blocking architecture

•Auto MDI/MDI-X

•Web-based management

•IEEE 802.1x packet pass-through

•Up to 4K MAC addresses

•Link aggregation

•Port setting (speed, availability, flow control)

•Port trunking

•Port mirroring

•IEEE 802.1p oS

•IEEE 802.1 tagged VLANs

•Statistics and diagnostics

•Rack-mount kit

•No fan (quiet operation)

•RoHS compliant

USA Headquarters |19800 North Creek Parkway |Suite 100 |Bothell |A 98011 |USA |T: +1 800 424 4284 |F: +1 425 481 3895

Asia-Pacific Headquarters |11 Tai Seng Link |Singapore |534182 |T: +65 6383 3832 |F: +65 6383 3830

www.alliedtelesis.com

© 2010 Allied Telesis Inc. All rights reserved. Information in this document is subject to change without notice. All company names, logos, and product designs that are trademarks or registered trademarks are the property of their respective owners. 617-000121 Rev. L

AT-GS950/8 | 8 port Gigabit ebSmart Switch

Performance

14,880pps for 10Mbps Ethernet

148,800pps for 100Mbps Ethernet

1,488,000pps for 1000Mbps Ethernet

MAC addresses 4K

Packet buffer 128KB

DRAM 16MB

Flash 4MB

Jumbo frame 9728 byte

Switching capacity 16Gbps

Throughput 11.9Mpps

Power Characteristics

Voltage 100-240V AC

Frequency 50/60Hz

Current 0.3A

Interface Connections

10/100/1000T RJ-45

1000FX (SFP) 1000SX or 1000LX

Environmenta Specifications

Operating temp. 0°C to 40°C (32°F to 104°F)

on-operating temp. -25°C to 70°C (-13°F to 158°F)

Operating humidity 5% to 90% non-condensing

Storage humidity 5% to 95% non-condensing

SFP’s Supported

1000LX

1000SX

1000LH

1000ZX

Technica Specifications

Physica Characteristics

Dimensions 28cm x 17.9cm x 4.3cm

(W x D x H) 11 x 7 x 1.7in

Weight 1.61Kg

3.5lbs

Mounting Abi ity

Wall, desk, or rack

Standards and Comp iance

IEEE 802.3 CSMA/CD

IEEE 802.3u 100TX

IEEE 802.3z 1000SX

IEEE 802.3z/ab 100T

IEEE 802.3x Flow control

IEEE 802.1Q Tagged VLA

E ectrica /Mechanica Approva s

UL 1950

FCC/E 55022 Class B

VCCI Class B

C-Tick

E 60950 (TUV)

E 55024

Software Features

Web-based management

IEEE 802.1p Prioritization (four queues)

IEEE 802.1x Packet pass-through

IEEE 802.1d Bridging

IEEE 802.3ad Link aggregation

IEEE 802.1Q VLA (32)

IEEE 802.1D Spanning-Tree

Port settings Speed, duplex, flow

BPDV pass-through

Ping response

IP settings

Traffic segementation Multiple overlapping VLA

Port trunking 4 groups

up to 2 ports per group

Statistics/diagnostics

Ordering Information

AT-GS950/8-xx

8 port 10/100/1000T WebSmart switch

with 2 SFP combo ports

Where xx = 10 for US power cord

20 for no power cord

30 for UK power cord

40 for Australian power cord

50 for European power cord

Product Contents

Switch unit

Rack-mount/wall-mount brackets and screws

Power cord

User manual/install guide on CD

Rubber feet
