AT-8700XL Series Switch Quick Install Guide

Document Number C613-04042-01 REV D.

19800 North Creek Parkway, Suite 200, Bothell, WA 98011, USA.

permission from Allied Telesyn.

Allied Telesyn International, Corp. reserves the right to make changes in specifications

and other information contained in this document without prior written notice. The

information provided herein is subject to change without notice. In no event shall Allied

Telesyn be liable for any incidental, special, indirect, or consequential damages

whatsoever, including but not limited to lost profits, arising out of or related to this

manual or the information contained herein, even if Allied Telesyn has been advised of,

known, or should have known, the possibility of such damages.

All trademarks are the property of their respective owners.

Quick Install Guide 3

C613-04042-01 REV D

Models Covered By This Guide

This Quick Install Guide includes information on the following models:

■AT-8724XL 24-port 10BASE-T/100BASE-TX Advanced Fast Ethernet

Switch

■AT-8748XL 48-port 10BASE-T/100BASE-TX Advanced Fast Ethernet

Switch

Quick Install Guide updates can be downloaded from

www.alliedtelesyn.co.nz/support/at8700xl/.

Package Contents

The following items are included with each AT-8700XL Series switch. Contact

your sales representative if any items are damaged or missing.

■One AT-8700XL Series switch.

■One AC power cord (AC models only).

■One serial cable for connecting the switch to a terminal or PC.

■One 19 inch rack-mount kit.

■One AT-8700XL Series Quick Install Guide.

■One Safety and Statutory Information booklet.

■One AT-8700XL Series Documentation and Tools CD-ROM (which includes

the complete AT-8700XL Series Document Set and utilities).

■One warranty card.

AT-8700XL Series

Printed Acrobat PDF Website

Documentation Roadmap

AT-8700XL Series Safety and Statutory Information Booklet

AT-8700XL Series User Guide

AT-8700XL Series Software Reference

General Customer Support

Visit www.alliedtelesyn.co.nz for

the latest documentation, FAQs,

and support information.

AT-8700XL Series Quick Install Guide

AT-8700XL Series Hardware Reference

Uplink Module

Uplink Module Quick Install Guide

Uplink Module Hardware Reference

4AT-8700XL Series Switch

C613-04042-01 REV D

Selecting a Site

The switch can be installed in a standard 19-inch rack or on a level surface such

as a desktop or bench. When installing the switch, choose a site that:

■Allows adequate airflow around the switch and its vents.

■Is free of dust and moisture.

■Will maintain an ambient temperature range of 0 to 40º C (32 to 104º F) and

a humidity range of 5 to 95% non-condensing.

■Has a reliable and earthed (grounded) power supply circuit, preferably

dedicated and filtered.

■Does not expose cabling to sources of electrical noise, such as radio

transmitters, broadband amplifiers, power lines, electric motors, and

fluorescent fixtures.

■Allows easy access to the switch’s power and cable connections.

■Will allow all related network devices to be connected to the switch

without exceeding maximum cable length limitations. See the AT-8700XL

Series Hardware Reference for cable length specifications.

Installing the Switch

All AC and DC versions of this equipment must be earthed.

Follow these steps to install the switch:

1. Before installing the switch, read the safety information

For safety information, see the Safety and Statutory Information booklet. A

copy of this booklet is supplied with each switch, and can also be found on

the Documentation and Tools CD-ROM or at

www.alliedtelesyn.co.nz/support/at8700xl/

2. Gather the tools and equipment you will need

If installing a DC version of the switch, you will need a DC power source,

DC supply cable, and wire strippers (see step 9).

If the switch is to be connected to a redundant power supply, you will need

a redundant power supply unit and cable (see step 11).

3. Choose a suitable site for the switch

Either a flat surface or 19 inch rack.

4. Unpack the switch

Verify the package contents. If any items are damaged or missing, contact

your sales representative.

Quick Install Guide 5

C613-04042-01 REV D

5. Install uplink modules (optional)

If you purchased uplink modules, install them now by following the

instructions in the Uplink Module Quick Install Guide.

6. Place the switch in its operating location

If installing the switch in a rack:

• Remove the rubber feet.

• Attach the rack-mounting brackets.

• Mount the switch in the rack.

7. Check the supply voltage and the switch’s rated voltage

AC versions of AT-8700XL Series switches are fitted with a universal main

power supply that will function over the range 100–240 VAC and

50–60 Hz.

DC versions of AT-8700XL Series switches require a supply voltage in the

range 39–60V DC.

The specific power supply requirements for a particular model are clearly

displayed on the rear or underside of the switch. If the supply is outside

the accepted range for the switch, the switch may not operate or damage to

the switch may result.

8. Apply AC power to the switch (for AC models)

Plug the power cord into the AC power connector on the switch’s rear

panel. The Fault LED should flash for approximately 10 seconds as the

switch runs internal tests. If the LED continues to flash or remains lit, refer

to the AT-8700XL Series Hardware Reference for troubleshooting information.

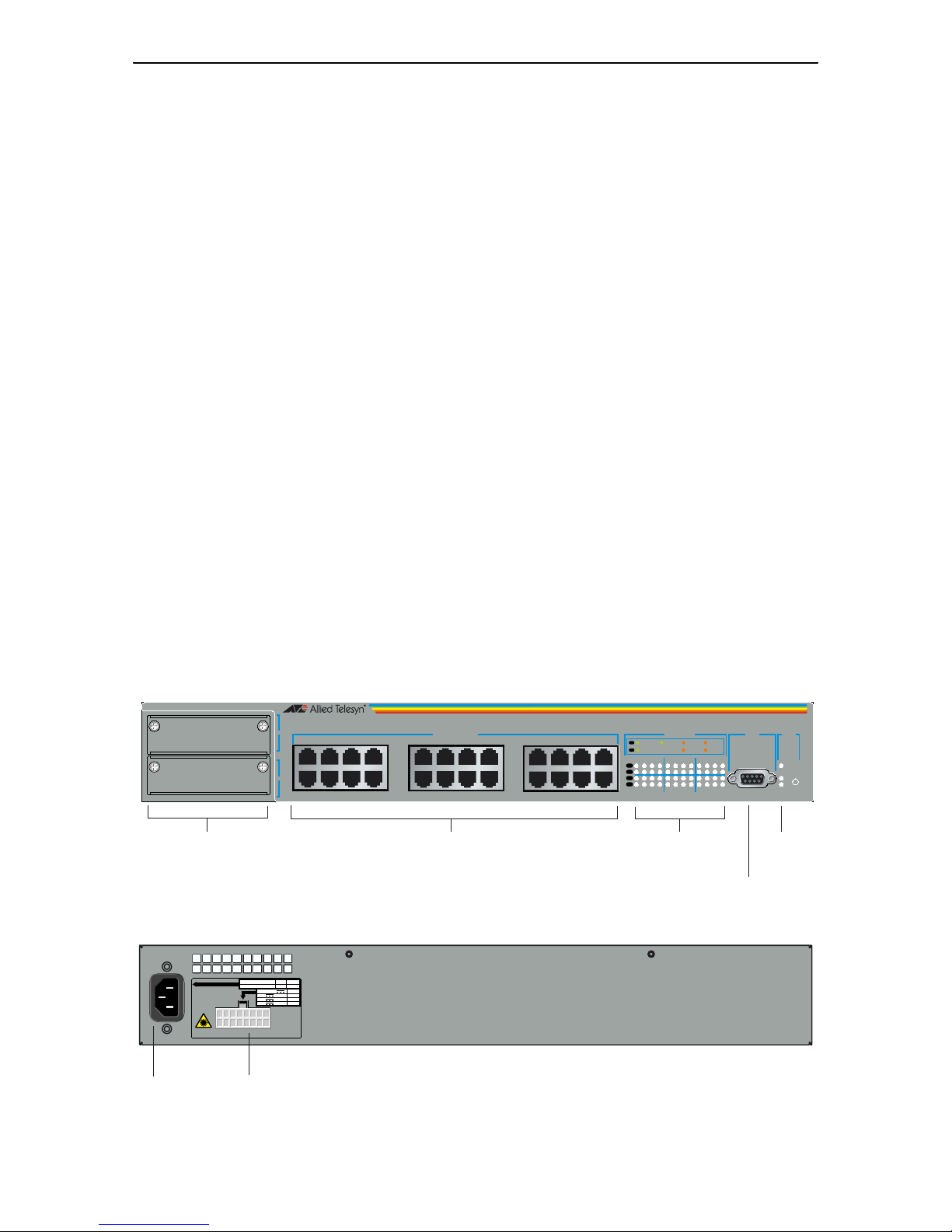

Figure 1: AT-8724XL front panel and rear panel with AC power inlet.

CLASS 1

LASER

R.P.S.

INPUT

AC SUPPLY DATA

100-120/200-240~HZ

50/60

AMPS

4/2

Input Vdc

+3.3

+12

A Max

AC Power AT-RPS8000 RPS Connector

STATUS

RESET

FAULT

PWR

RPS

10BASE-T / 100BASE-TX

1X3X5X7X

2X4X6X8X

9X11X13X15X

10X12X14X16X

17X19X21X23X

18X20X22X

100M LINK / ACTIVITY

24X

RS-232

TERMINAL PORT

10M LINK / ACTIVITY

HALF DUP/

COL

FULL DUP

PORT ACTIVITY

L/A

D/C

L/A

D/C

ASYN0

AT-8724XL

Advanced Fast Ethernet Switch

Uplink Module Bays 10/100 BASE Ports Port LEDs System

LEDs

RS-232 Terminal Port

Rear panel

Front panel

6AT-8700XL Series Switch

C613-04042-01 REV D

9. Apply DC power to the switch (for DC models)

Read the Safety and Statutory Information booklet before connecting a DC

power supply. A copy of this booklet is included with each switch. It is also

included on the Documentation and Tools CD-ROM, or can be

downloaded from www.alliedtelesyn.co.nz/support/at8700xl/

Only trained and qualified personnel should connect a DC power supply. Due

to exposed terminals, DC powered switches should be installed only in

Restricted Access Areas.

DC supply cable specifications:

• Number of wires (cores): 3

• Minimum size: 2.1mm2(14 AWG)

• Minimum cable rating: 600V, 90 degrees Celsius

DC power supply specifications:

• 48 VDC (39-60 VDC is acceptable)

• Either positive grounded or negative grounded

Circuit protection:

• Use a 10 Amp circuit breaker

To connect the DC supply:

a) Ensure the supply cable is not live

b) Strip the supply cable wires to expose 8mm (0.31 in.) of bare conductor

c) At the switch, connect the ground wire to the ground terminal

(terminals can be identified by the diagram on the switch’s rear panel,

see Figure 2). Tighten the terminal to between 0.6-0.8 Nm (0.041-0.055

pound-force per foot)

d) At the switch, connect the positive feed to the + (positive) terminal and

the negative feed to the - (negative) terminal. Tighten the terminals to

between 0.6-0.8 Nm (0.041-0.055 pound-force per foot)

e) Ensure there are no exposed conductor strands

f) Secure the supply cable (to the rack framework or similar object) so that

the connections are isolated from any force applied to the cable

g) Ensure the circuit breaker is in the Off position

h) Connect the supply-cable wires to the circuit breaker

i) Energise the circuit breaker

Quick Install Guide 7

C613-04042-01 REV D

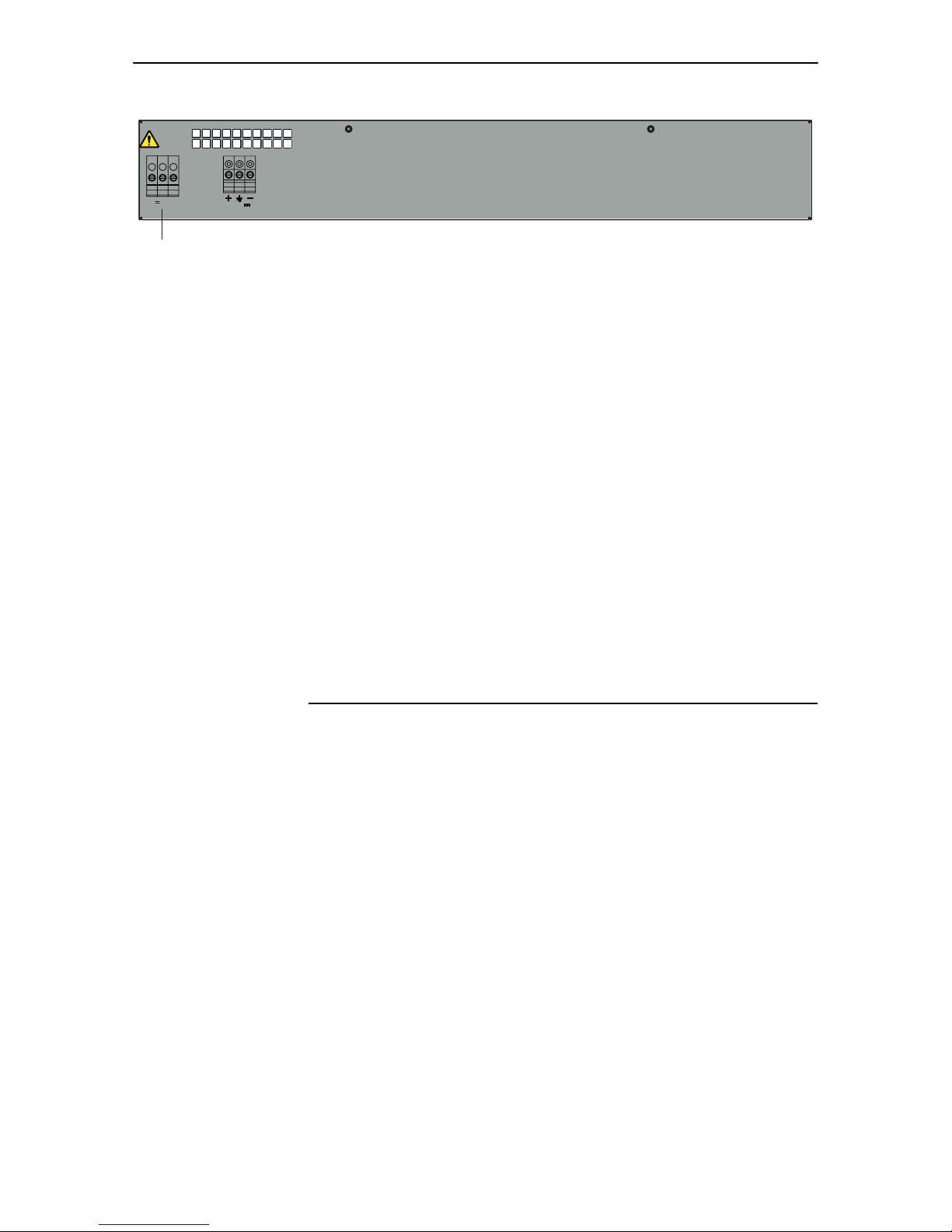

Figure 2: DC Power inlet terminals on an AT-8724XL.

The Fault LED should flash for approximately 10 seconds as the switch

runs internal tests. If the LED continues to flash or remains lit, refer to the

AT-8700XL Series Hardware Reference for troubleshooting information.

10. Check that the Power LED on the switch’s front panel lights green

If the LED fails to light, refer to the AT-8700XL Series Hardware Reference for

troubleshooting information.

11. Connect the Redundant Power Supply (Optional)

AC models of AT-8700XL Series switches have a Redundant Power Supply

(RPS) connector on their rear panel.

The switch is designed to operate with the AT-RPS8000 RPS, which can be

purchased separately. Contact your authorised Allied Telesyn distributer

or reseller for more information.

12. Connect the data cables

Make sure each cable connection is secure. The switch will now perform

basic Layer 2 switching functions.

Configuring the Switch

Some configuration is necessary if you wish to enable the switch’s advanced

switching capabilities. The switch can be configured via the Command Line

Interface (CLI) or Graphical User Interface (GUI).

Using the CLI to configure a switch

1. Connect a terminal or PC to the Terminal Port (ASYN0)

Using the supplied RS-232 DB9 straight-through cable, connect your

terminal or PC to the RS-232 Terminal Port on the switch’s front panel.

2. Set the communication parameters

Set the communication parameters on your terminal or terminal emulation

program to:

• Baud rate: 9600

• Data bits: 8

•Parity:None

• Stop bits: 1

• Flow control: Hardware

38-75VDC , 2A

FOR CENTRALIZED DC

POWER CONNECTION,

INSTALL ONLY IN A

RESTRICTED AREA

DC Power inlet

DC INPUT

8AT-8700XL Series Switch

C613-04042-01 REV D

3. Log in

After the switch has booted, the log-in prompt appears. If the log-in

prompt doesn’t appear, press [Enter] two or three times.

When the switch boots for the first time, it automatically creates an account

with manager privileges. The account has the log in name “manager” and

the password is “friend”.

At the log-in prompt, enter the log-in name and password.

Password: friend

The switch’s command prompt appears and you can now configure the

switch using the command line interface.

Change the password as soon as possible. Leaving the manager account with

the default password is a serious security risk. Make sure you remember the

new password as there is no way to retrieve it if it is lost.

Use the following command to change the account password:

set password

4. Load help files

To display a list of help topics, enter:

help

To display help on a specific topic, enter:

help topic

Alternatively, type a question mark (?) at the end of a partially completed

command to see a list of valid options.

See the AT-8700XL Series Software Reference for more information on

configuring the switch.

Using the GUI to configure a router:

This section describes how to establish a connection to the router through the

GUI, so you can configure the router before installing it in your LAN. For more

information about the GUI, see the Using the Graphical User Interface chapter

of the AT-8700XL Series Software Reference.

1. Select a PC to browse to the router from

You can browse to the router from any PC that is running a supported

operating system with a supported browser installed. JavaScript must be

enabled. If you are using a toolbar or plug-in on your browser to block

pop-ups, disable it while using the GUI. The GUI displays detailed

configuration options and information in pop-up windows.

You need to know the PC’s subnet.

Quick Install Guide 9

C613-04042-01 REV D

2. Connect the PC to the router

Use an Ethernet cable to connect an Ethernet card on the PC to any one of

the switch ports.

You can browse to the router through any VLAN, as long as you give that VLAN an IP

address (see below). These instructions assume you will use vlan1. The switch ports all

belong to vlan1 by default.

3. Access the router’s command line interface

Access the CLI from the PC, as described in the previous “Using the CLI to

configure a router” section.

4. Enable IP

enable ip

5. Assign the vlan1 interface an IP address in the same subnet as the PC

add ip interface=vlan1 ip=ipaddress mask=mask

6. Save the configuration and set the router to use it on bootup

create config=your-name.cfg

set config=your-name.cfg

7. On the PC’s web browser, bypass the HTTP proxy server, if necessary

8. Point your web browser at vlan1’s IP address

9. At the login prompt, enter the user name and password

The default username is manager:

User Name: manager

Password: friend

The System Status page is displayed. Select options from the sidebar menu

to configure and manage the router.

For context-sensitive online help, click on the Help button at the top of the

sidebar menu or on any pop-up page.

10 AT-8700XL Series Switch

C613-04042-01 REV D

System LEDs

System LEDs on its front panel indicate the switch’s operational status.

1. DC models of the switches do not have an RPS connector and the RPS LED will not function.

The AT-8700XL Series Hardware Reference has further troubleshooting

information, including information on Switch Port and Uplink Module LEDs.

Documentation and Tools CD-ROM

The Documentation and Tools CD-ROM bundled with each AT-8700XL Series

switch contains the complete Documentation Set for your switch and its

expansion options, as well as tools for managing the switch. This includes:

■The AT-8700XL Series Safety and Statutory Information booklet, which

provides safety and statutory information for the AT-8700XL Series switch

and its expansion options.

■The AT-8700XL Series Hardware Reference, which provides detailed

information on the hardware features of AT-8700XL Series switches.

■This Quick Install guide.

■The AT-8700XL Series Software Reference, which provides detailed

information on configuring the switch and its software.

■The Uplink Module Quick Install Guide, which outlines the procedure for

installing an Uplink Module; and the Uplink Module Hardware Reference,

which provides detailed information on Uplink Modules.

■AT-TFTP Server for Windows for downloading software releases.

■Adobe Acrobat Reader for viewing online documentation.

System LEDs

LED State Function

Power Green The switch is receiving power and the voltage

is within the acceptable range

Fault Red The switch or management software is

malfunctioning

1 flash A switch fan has failed. (The LEDs will not

indicate an RPS fan failure.)

3 flashes If an RPS is connected, the switch’s PSU (Power

Supply Unit) has failed

4 flashes If RPS monitoring is enabled, the RPS PSU has

failed

5 flashes If RPS monitoring is enabled, an RPS is not

connected or is not operational

RPS1(Redundant

Power Supply)

Green An RPS is connected to the switch

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Allied Telesis Changer

Allied Telesis

Allied Telesis AT-GS950/28PS Manuel utilisateur

Allied Telesis

Allied Telesis AT-9000/24 Manuel utilisateur

Allied Telesis

Allied Telesis IE220 Series Manuel utilisateur

Allied Telesis

Allied Telesis AT-9800 Series Manuel utilisateur

Allied Telesis

Allied Telesis AT-9000/28 Manuel utilisateur

Allied Telesis

Allied Telesis AT-PC232/POE Manuel utilisateur

Allied Telesis

Allied Telesis AT-9424Ts AC Manuel utilisateur

Allied Telesis

Allied Telesis GS950 Eco Series Manuel utilisateur

Allied Telesis

Allied Telesis x600 Series Manuel utilisateur

Allied Telesis

Allied Telesis x900-12X Series Manuel utilisateur

Allied Telesis

Allied Telesis z AT-8700XL Series Manuel utilisateur

Allied Telesis

Allied Telesis x510 Series Manuel utilisateur

Allied Telesis

Allied Telesis AT-GS916 Manuel utilisateur

Allied Telesis

Allied Telesis AT-8000S/48 Manuel utilisateur

Allied Telesis

Allied Telesis Switchblade AT-x900-12 Manuel utilisateur

Allied Telesis

Allied Telesis AT-DC2552XSL3 Manuel d'installation

Allied Telesis

Allied Telesis CentreCOM GS948MPX Manuel d'installation

Allied Telesis

Allied Telesis AlliedWare Plus AT-x230-10GP Manuel d'installation

Allied Telesis

Allied Telesis AT-FSW724 Manuel utilisateur

Allied Telesis

Allied Telesis GS950 PS Series Manuel utilisateur

Allied Telesis

Allied Telesis x900-24 series Manuel d'instructions et de sécurité

Allied Telesis

Allied Telesis WebSmart AT-FS750/48 Manuel utilisateur

Allied Telesis

Allied Telesis AT-FS201 Series Manuel utilisateur

Allied Telesis

Allied Telesis TurboStack AT-S6 Manuel utilisateur

Manuels Changer populaires d'autres marques

URC

URC Total Control MFS-8 Manuel utilisateur

Azbil

Azbil HPQ-D11 Manuel utilisateur

Sony

Sony DFS-900M Manuel utilisateur

SICK

SICK i17S Manuel utilisateur

F&F

F&F SZR-277 Manuel utilisateur

Shure

Shure UAMS/BK Manuel utilisateur

Dräger

Dräger X-zone Switch Off Manuel utilisateur

Asco

Asco Joucomatic 349 Series Manuel utilisateur

BT Mini Hub Manuel utilisateur

D-Link

D-Link DES-1226G Manuel utilisateur

Johnson Controls

Johnson Controls FS80-C Manuel utilisateur

Alcatel-Lucent

Alcatel-Lucent 7450 ESS-12 Manuel utilisateur

MicroNet

MicroNet SP1200A Manuel utilisateur

Ruijie

Ruijie RG-PF2920 Series Manuel d'installation et d'exploitation

Altinex

Altinex DA1914SX Manuel utilisateur

MiLAN

MiLAN MIL-SM2401M Manuel utilisateur

RJM

RJM MASTERMIND PBC/6X Manuel utilisateur

Atlas

Atlas MMK-KVM8 Manuel utilisateur
