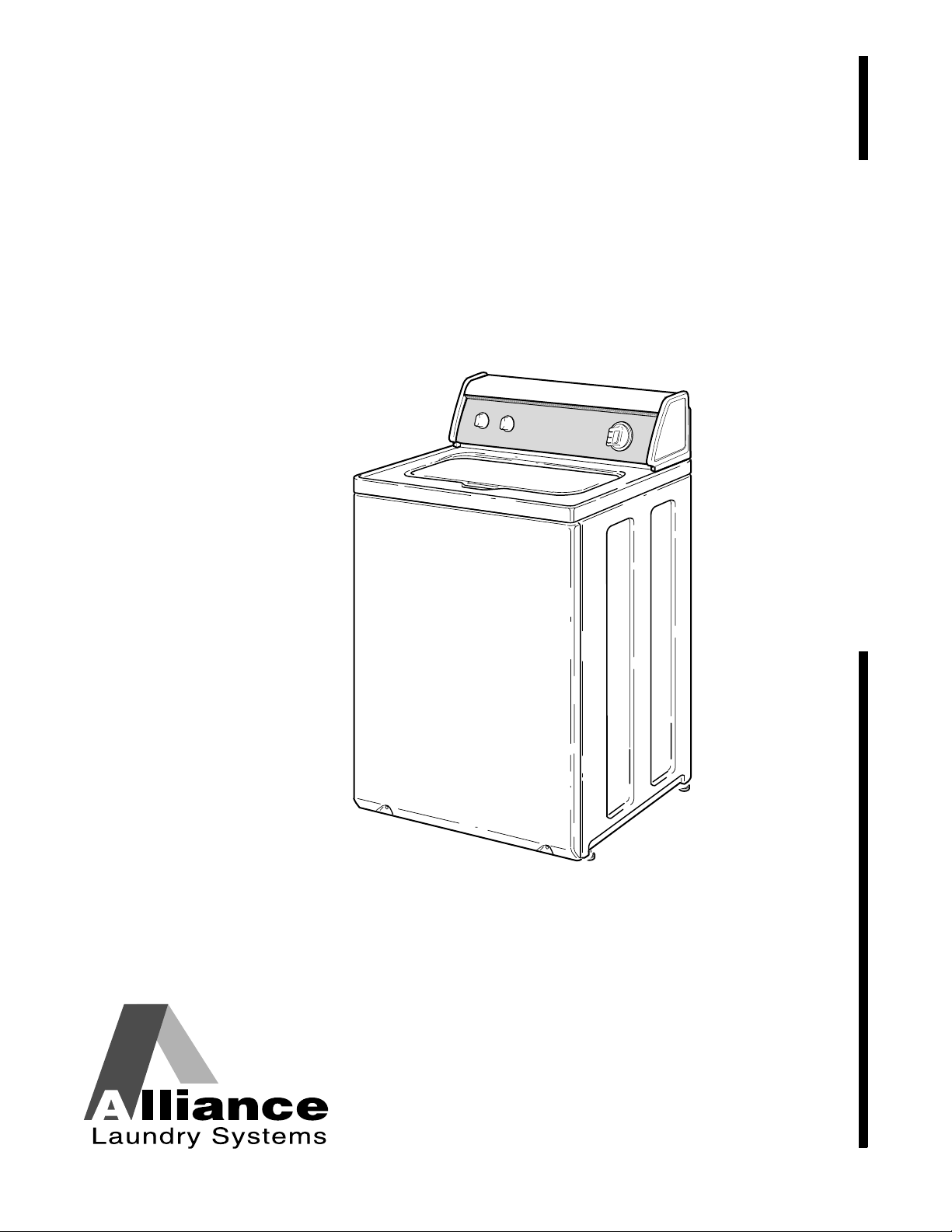

Alliance Laundry Systems W001C Mode d’emploi

Installation/Operation

www.comlaundry.com

Automatic

Topload Washers

W001C

Part No. 39971R3

March 2007

Keep These Instructions for Future Reference.

(If this machine changes ownership, this manual must accompany machine.)

IMPORTANT: Read the complete INSTALLATION and OPERATION INSTRUCTIONS before using the

washer.

For your safety and to reduce the risk of fire or an explosion, do not store or use gasoline or

other flammable vapors and liquids in the vicinity of this or any other appliance.

W022E

WARNING

239971

Notes

means without the expressed written consent of the publisher.

39971 3

Table of

Contents

Replacement Parts .............................................................................. 5

Safety Information.............................................................................. 7

Explanation of Safety Messages........................................................... 7

Important Safety Instructions ............................................................... 7

Installation........................................................................................... 9

Dimensions and Specifications............................................................. 9

Before You Start ................................................................................... 10

Tools ................................................................................................ 10

Installing the Washer ............................................................................ 10

Step 1: Remove the Shipping Brace and Shipping Plug.................. 10

Step 2: Wipe Out Inside of Washtub ............................................... 11

Step 3: Connect Fill Hoses............................................................... 11

Step 4: Connect Drain Hose to Drain Receptacle............................ 12

Step 5: Position and Level the Washer ............................................ 14

Step 6: Connect the Washer to Electrical Power ............................. 14

Step 7: Add Water to the Washer .................................................... 15

Step 8: Check Lid Switch ................................................................ 15

Electrical Requirements........................................................................ 16

Earthing (Grounding) Instructions................................................... 17

Water Supply Requirements................................................................. 17

Water Temperature .......................................................................... 18

Water Pressure ................................................................................. 18

Risers................................................................................................ 18

Operation............................................................................................. 19

Loading the Washer.............................................................................. 19

Load Articles.................................................................................... 19

Load Sizes........................................................................................ 19

Water Level...................................................................................... 20

Determine Proper Cycle ....................................................................... 20

To Wash Clothes................................................................................... 21

Timer................................................................................................ 22

Soaking ............................................................................................ 22

Optional Features.................................................................................. 23

Bleach Dispenser ............................................................................. 23

Fabric Softener Dispenser................................................................ 23

Washing Temperature Guide ........................................................... 24

Maintenance ........................................................................................ 25

User-Maintenance Instructions............................................................. 25

Cold Weather Care........................................................................... 25

Care of Your Washer ....................................................................... 25

Replacing Hoses............................................................................... 25

Vacations and Extended Non-Use ................................................... 25

Filter Screens ................................................................................... 25

Reinstallation of Shipping Materials ............................................... 25

439971

Motor Overload Protector..................................................................... 25

Before You Call for Service ................................................................. 26

If Service Is Required ........................................................................... 27

Information for Handy Reference......................................................... 28

39971

Replacement Parts

If replacement parts are required, contact the source

from which you purchased your washer, or contact:

Alliance Laundry Systems

Shepard Street

P.O . B ox 9 90

Ripon, WI 54971-0990

U.S.A.

Phone: (920) 748-3950

for the name and address of the nearest authorized

parts distributor.

Notes

39971

Safety Information

Explanation of Safety Messages

Throughout this manual and on machine decals, you

will find precautionary statements (“DANGER,”

“WARNING,” and “CAUTION”) followed by specific

instructions. These precautions are intended for the

personal safety of the operator, user, servicer, and

those maintaining the machine.

Additional precautionary statements (“IMPORTANT”

and “NOTE”) are followed by specific instructions.

IMPORTANT: The word “IMPORTANT” is used

to inform the reader of specific procedures where

minor machine damage will occur if the procedure

is not followed.

NOTE: The word “NOTE” is used to communicate

installation, operation, maintenance or servicing

information that is important but not hazard

related.

Important Safety Instructions

(Save These Instructions)

1. Read all instructions before using the washer.

2. Refer to the GROUNDING INSTRUCTIONS in

the INSTALLATION manual for the proper

grounding of the washer.

3. Do not wash articles that have been previously

cleaned in, washed in, soaked in, or spotted with

gasoline, dry-cleaning solvents, or other

flammable or explosive substances as they give

off vapors that could ignite or explode.

4. Do not add gasoline, dry-cleaning solvents, or

other flammable or explosive substances to the

wash water. These substances give off vapors that

could ignite or explode.

5. Under certain conditions, hydrogen gas may be

produced in a hot water system that has not been

used for two weeks or more. HYDROGEN GAS

IS EXPLOSIVE. If the hot water system has not

been used for such a period, before using a

washing machine or combination washer-dryer,

turn on all hot water faucets and let the water

flow from each for several minutes. This will

release any accumulated hydrogen gas. THE

GAS IS FLAMMABLE. DO NOT SMOKE OR

USE AN OPEN FLAME DURING THIS TIME.

6. Do not allow children to play on or in the washer.

Close supervision of children is necessary when

the washer is used near children. This is a safety

rule for all appliances.

Indicates an imminently hazardous

situation that, if not avoided, will cause

severe personal injury or death.

DANGER

Indicates a hazardous situation that, if not

avoided, could cause severe personal

injury or death.

WARNING

Indicates a hazardous situation that, if not

avoided, may cause minor or moderate

personal injury or property damage.

CAUTION

To reduce the risk of fire, electric shock,

serious injury or death to persons when

using your washer, follow these basic

precautions:

W023

WARNING

Safety Information

39971

7. Before the washer is removed from service or

discarded, remove the lid to the washing

compartment.

8. Do not reach into the washer if the washtub or

agitator is moving.

9. Do not install or store the washer where it will be

exposed to water and/or weather.

10. Do not tamper with the controls.

11. Do not repair or replace any part of the washer, or

attempt any servicing unless specifically

recommended in the user-maintenance

instructions or in published user-repair

instructions that you understand and have the

skills to carry out.

12. To reduce the risk of an electric shock or fire, DO

NOT use an extension cord or an adapter to

connect the washer to the electrical power

source.

13. Use your washer only for its intended purpose,

washing clothes.

14. ALWAYS disconnect the washer from electrical

supply before attempting any service. Disconnect

the power cord by grasping the plug, not the cord.

15. Install the washer according to the

INSTALLATION INSTRUCTIONS. All

connections for water, drain, electrical power and

grounding must comply with local codes and be

made by licensed personnel when required. Do

not do it yourself unless you know how!

16. To reduce the risk of fire, clothes which have

traces of any flammable substances such as

vegetable oil, cooking oil, machine oil,

flammable chemicals, thinner, etc., or anything

containing wax or chemicals such as in mops and

cleaning cloths, must not be put into the washer.

These flammable substances may cause the

fabric to catch on fire by itself.

17. Do not use fabric softeners or products to

eliminate static unless recommended by the

manufacturer of the fabric softener or product.

18. Keep your washer in good condition. Bumping or

dropping the washer can damage safety features.

If this occurs, have your washer checked by a

qualified service person.

19. If the supply cord is damaged, it must be replaced

by a special cord or assembly available from the

manufacturer or its service agent.

20. Be sure water connections have a shut-off valve

and that fill hose connections are tight. CLOSE

the shut-off valves at the end of each wash day.

21. Lid MUST BE CLOSED any time the washer is

to agitate or spin. DO NOT bypass the lid switch

by permitting the washer to agitate or spin with

the lid open. A brake will stop the washtub within

seconds if the lid is opened during spinning. If

the washtub does not stop when the lid is opened,

remove the washer from use and call the service

person.

22. Always read and follow manufacturer’s

instructions on packages of laundry and cleaning

aids. Heed all warnings or precautions. To reduce

the risk of poisoning or chemical burns, keep

them out of the reach of children at all times

(preferably in a locked cabinet).

23. Always follow the fabric care instructions

supplied by the garment manufacturer.

24. Never operate the washer with any guards and/or

panels removed.

25. DO NOT operate the washer with missing or

broken parts.

26. DO NOT bypass any safety devices.

27. Failure to install, maintain, and/or operate this

machine according to the manufacturer’s

instructions may result in conditions which can

produce bodily injury and/or property damage.

NOTE: The WARNING AND IMPORTANT

SAFETY INSTRUCTIONS appearing in this

manual are not meant to cover all possible

conditions and situations that may occur. Common

sense, caution and care must be exercised when

installing, maintaining, or operating the washer.

Always contact your dealer, distributor, service agent

or the manufacturer about any problems or conditions

you do not understand.

Autres manuels pour W001C

Table des matières

Autres manuels Alliance Laundry Systems Rondelle

Alliance Laundry Systems

Alliance Laundry Systems Speed Queen TC5000WN Manuel utilisateur

Alliance Laundry Systems

Alliance Laundry Systems HX Manuel utilisateur

Alliance Laundry Systems

Alliance Laundry Systems AWN43RSN115CW01 Mode d'emploi

Alliance Laundry Systems

Alliance Laundry Systems 38903R6 Manuel utilisateur

Alliance Laundry Systems

Alliance Laundry Systems D1627ENR5 Manuel du propriétaire

Alliance Laundry Systems

Alliance Laundry Systems H011C Manuel utilisateur

Alliance Laundry Systems

Alliance Laundry Systems HF18VCV Manuel utilisateur

Alliance Laundry Systems

Alliance Laundry Systems 201470R7 Manuel d'utilisation et d'entretien

Alliance Laundry Systems

Alliance Laundry Systems LTZ87A*H2802 Series Manuel utilisateur

Alliance Laundry Systems

Alliance Laundry Systems EA2011-3000 Manuel utilisateur

Alliance Laundry Systems

Alliance Laundry Systems HWF561 Manuel du propriétaire

Alliance Laundry Systems

Alliance Laundry Systems HWF261*E Manuel utilisateur

Alliance Laundry Systems

Alliance Laundry Systems 805413R1 Mode d’emploi

Alliance Laundry Systems

Alliance Laundry Systems 802749r1 Manuel utilisateur

Alliance Laundry Systems

Alliance Laundry Systems Speed Queen LFNE5B Manuel utilisateur

Alliance Laundry Systems

Alliance Laundry Systems Speed Queen TC5000WN Manuel utilisateur

Alliance Laundry Systems

Alliance Laundry Systems Speed Queen LWN311SP101NW22 Manuel utilisateur

Alliance Laundry Systems

Alliance Laundry Systems H370I Manuel utilisateur

Alliance Laundry Systems

Alliance Laundry Systems HFNKCASG116TN01 Manuel utilisateur

Alliance Laundry Systems

Alliance Laundry Systems UW100VV Series Manuel utilisateur

Alliance Laundry Systems

Alliance Laundry Systems TLW22C_SVG Manuel utilisateur

Alliance Laundry Systems

Alliance Laundry Systems NetMaster HC18NC2 Manuel du propriétaire

Alliance Laundry Systems

Alliance Laundry Systems LTS84A*H Manuel utilisateur

Alliance Laundry Systems

Alliance Laundry Systems UW35TV Manuel utilisateur

Manuels Rondelle populaires d'autres marques

Tricity Bendix

Tricity Bendix AW 1000 W Guide produit

Panasonic

Panasonic NA-F60L5WRB Manuel utilisateur

GE WSLP1500 Manuel

Electrolux

Electrolux EWF1284EDW Manuel utilisateur

Bosch

Bosch WAN2829BSN Manuel utilisateur

LG TV2516DV3B Manuel utilisateur

LG TH2517DSAV Manuel utilisateur

VESTEL

VESTEL CMH-XL 7510 TE Manuel utilisateur

AEG

AEG 74335 Manuel d'utilisation

Johnson

Johnson JWF721A Manuel utilisateur

Beko

Beko WTE7604XLW0 Manuel utilisateur

Danby

Danby DTT100A1WDB Instructions de montage

Amica

Amica WA 14 Ex Manuel utilisateur

Daewoo

Daewoo DWD-F1222 Manuel utilisateur

Bosch

Bosch WAS28461AU Manuel utilisateur

Miele

Miele PW 6080 Vario Manuel utilisateur

Finlux

Finlux FLX108CF220 Manuel utilisateur

Whirlpool

Whirlpool 3LBR5132AN0 Manuel utilisateur
