Alliance Laundry Systems NX18BVPA6 Mode d’emploi

Installation/Operation Supplement

www.comlaundry.com

Washer-Extractors

Cabinet Freestanding

Coin Models

Part No. 9002062R1EN

December 2007

Keep These Instructions for Future Reference.

(If this machine changes ownership, this manual must accompany machine.)

means without the expressed written consent of the publisher.

9002062 (EN) 1

Installation/Operation/Supplement

Table of

Contents

Introduction......................................................................................... 2

Model Identification ............................................................................. 2

Safety Information.............................................................................. 3

Explanation of Safety Messages........................................................... 3

Important Safety Instructions ............................................................... 3

Specifications and Dimensions........................................................... 5

Installation........................................................................................... 9

Dimensional Clearances................................................................... 9

Machine Foundation ........................................................................ 9

Mounting Bolt Installation (If Required).............................................. 10

Removing the Transport Block............................................................. 11

Operation............................................................................................. 13

Control Panel ........................................................................................ 13

Operating Instructions .......................................................................... 14

Disposal of Unit ................................................................................... 16

Installation/Operation Supplement

Introduction

Model Identification

Information in this manual is applicable to these

models:

NX18BVPA6

NX18BVQA6

NX18BVXA6

NX30BVPA6

NX30BVQA6

NX30BVXA6

9002062 (EN)

Installation/Operation Supplement

Safety Information

Explanation of Safety Messages

Throughout this manual and on machine decals, you

will find precautionary statements (“DANGER,”

“WARNING,” and “CAUTION”) followed by specific

instructions. These precautions are intended for the

personal safety of the operator, user, servicer, and

those maintaining the machine.

Additional precautionary statements (“IMPORTANT”

and “NOTE”) are followed by specific instructions.

IMPORTANT: The word “IMPORTANT” is used

to inform the reader of specific procedures where

minor machine damage will occur if the procedure

is not followed.

NOTE: The word “NOTE” is used to communicate

installation, operation, maintenance or servicing

information that is important but not hazard

related.

Important Safety Instructions

1. Read all instructions before using the washer.

2. Refer to the GROUNDING INSTRUCTIONS in

the INSTALLATION manual for the proper

grounding of the washer.

3. Do not wash textiles that have been previously

cleaned in, washed in, soaked in, or spotted with

gasoline, kerosene, waxes, cooking oils, dry-

cleaning solvents, or other flammable or

explosive substances as they give off vapors that

could ignite or explode.

4. Do not add gasoline, dry-cleaning solvents, or

other flammable or explosive substances to the

wash water. These substances give off vapors that

could ignite or explode.

5. Under certain conditions, hydrogen gas may be

produced in a hot water system that has not been

used for two weeks or more. HYDROGEN GAS

IS EXPLOSIVE. If the hot water system has not

been used for such a period, before using a

washing machine or combination washer-dryer,

turn on all hot water faucets and let the water

flow from each for several minutes. This will

release any accumulated hydrogen gas. The gas is

flammable, do not smoke or use an open flame

during this time.

6. Do not allow children to play on or in the washer.

This appliance is not intended for use by young

children or infirm persons without supervision.

Young children should be supervised to ensure

that they do not play with the appliance.

7. Before the washer is removed from service or

discarded, remove the door to the washing

compartment.

8. Do not reach into the washer if the wash drum is

moving.

Indicates an imminently hazardous

situation that, if not avoided, will cause

severe personal injury or death.

DANGER

Indicates a hazardous situation that, if not

avoided, could cause severe personal

injury or death.

WARNING

Indicates a hazardous situation that, if not

avoided, may cause minor or moderate

personal injury or property damage.

CAUTION

To reduce the risk of fire, electric shock,

serious injury or death to persons when

using your washer, follow these basic

precautions:

W023

WARNING

Installation/Operation Supplement

9002062 (EN)

9. Do not install or store the washer where it will be

exposed to water and/or weather.

10. Do not tamper with the controls.

11. Do not repair or replace any part of the washer, or

attempt any servicing unless specifically

recommended in the user-maintenance

instructions or in published user-repair

instructions that the user understands and has the

skills to carry out.

12. To reduce the risk of an electric shock or fire, DO

NOT use an extension cord or an adapter to

connect the washer to the electrical power source.

13. Use washer only for its intended purpose,

washing textiles.

14. ALWAYS disconnect the washer from electrical

supply before attempting any service. Disconnect

the power cord by grasping the plug, not the cord.

15. Install the washer according to the

INSTALLATION INSTRUCTIONS. All

connections for water, drain, electrical power and

grounding must comply with local codes and be

made by licensed personnel when required.

16. To reduce the risk of fire, textiles which have

traces of any flammable substances such as

vegetable oil, cooking oil, machine oil,

flammable chemicals, thinner, etc., or anything

containing wax or chemicals such as in mops and

cleaning cloths, must not be put into the washer.

These flammable substances may cause the

fabric to catch on fire by itself.

17. Do not use fabric softeners or products to

eliminate static unless recommended by the

manufacturer of the fabric softener or product.

18. Keep washer in good condition. Bumping or

dropping the washer can damage safety features.

If this occurs, have washer checked by a qualified

service person.

19. Replace worn power cords and/or loose plugs.

20. Be sure water connections have a shut-off valve

and that fill hose connections are tight. CLOSE

the shut-off valves at the end of each wash day.

21. Loading door MUST BE CLOSED any time the

washer is to fill, tumble or spin. DO NOT

bypass the loading door switch by permitting the

washer to operate with the loading door open.

22. Always read and follow manufacturer’s

instructions on packages of laundry and cleaning

aids. Heed all warnings or precautions. To reduce

the risk of poisoning or chemical burns, keep

them out of the reach of children at all times

(preferably in a locked cabinet).

23. Always follow the fabric care instructions

supplied by the textile manufacturer.

24. Never operate the washer with any guards and/or

panels removed.

25. DO NOT operate the washer with missing or

broken parts.

26. DO NOT bypass any safety devices.

27. Failure to install, maintain, and/or operate this

washer according to the manufacturer’s

instructions may result in conditions which can

produce bodily injury and/or property damage.

NOTE: The WARNINGS and IMPORTANT

SAFETY INSTRUCTIONS appearing in this

manual are not meant to cover all possible

conditions and situations that may occur. Common

sense, caution and care must be exercised when

installing, maintaining, or operating the washer.

Any problems or conditions not understood should be

reported to the dealer, distributor, service agent or the

manufacturer.

9002062 (EN)

Installation/Operation Supplement

Specifications and Dimensions

General Specifications

Model 18 30

Overall Dimensions

Overall width 26 in. (660 mm) 30.7 in. (780 mm)

Overall height 40.9 in. (1038 mm) 47.3 in. (1202 mm)

Overall depth 29.1 in. (739 mm) 33.1 in. (842 mm)

Weight and Shipping Information

Net weight 465.2 lb. (211 kg) 716.5 lb. (325 kg)

Shipping weight 513.7 lb. (233 kg) 782.6 lb. (355 kg)

Shipping volume 22.5 ft3(0.8 m3) 34.7 ft3(1.3 m3)

Wash Cylinder Information

Cylinder diameter 20.9 in. (530 mm) 25.6 in. (650 mm)

Cylinder depth 13 in. (330 mm) 15.76 in. (400 mm)

Cylinder volume 2.7 ft3(76 l) 4.66 ft3(132 l)

Perforation size 0.12 in. (3 mm) 0.12 in. (3 mm)

Door Opening Information

Door opening size 11.8 in. (300 mm) 11.8 in. (300 mm)

Height of door bottom above floor 11 in. (280 mm) 15 in. (381 mm)

Water Consumption

Average water consumption per cycle

HOT 3 gal. (11 l) 13 gal. (49 l)

COLD 18 gal. (68 l) 27 gal. (102 l)

Power Consumption

Average power used per cycle

Motor 0.15 kW/hr 0.2 kW/hr

Heating 1.5 kW/hr 3 kW/hr

Installation/Operation Supplement

9002062 (EN)

General Specifications

Model 18 30

Drive Train Information

Number of motors in drive train 11

Drive motor power 1 HP (0.75 kW) 2 HP (1.5 kW)

Cylinder Speeds

Wash/reverse speed 10-50 RPM 10-50 RPM

Distribution/drain speed 85 RPM 85 RPM

Extract speed 250-1000 RPM 250-1000 RPM

Centrifugal Force Data

Wash/reverse centrifugal force 0.03-0.74 Gs 0.04-0.91 Gs

Extract centrifugal force 19-296 Gs 23-363 Gs

Balance Detection

Vibration safety switch installed Standard Standard

Electrical Heating (International Models Only)

Total electrical heating capacity 9 kW 18 kW

Electrical heating elements 36

Electrical heat element size 3 kW 3 kW

Installation/Operation Supplement

9002062 (EN)

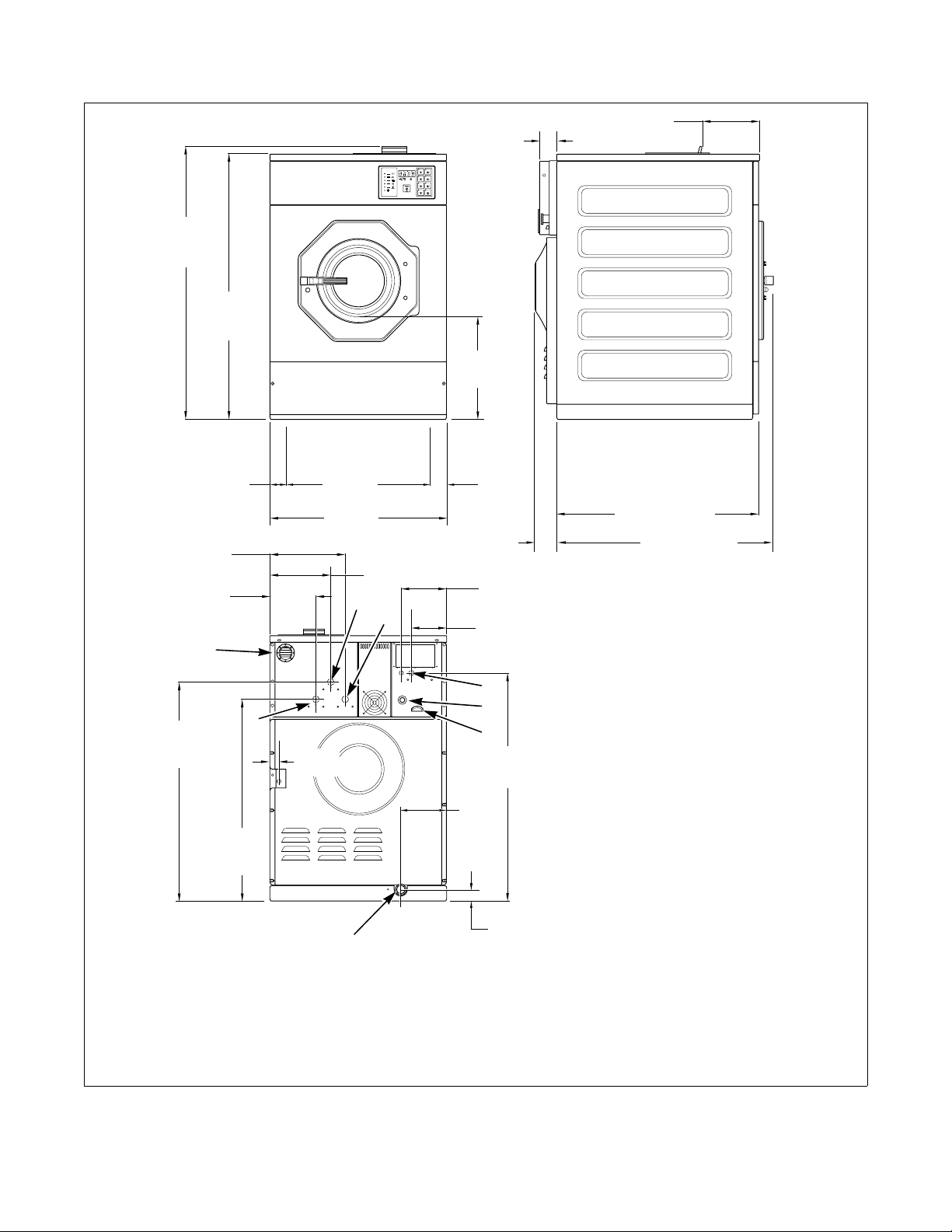

Figure 1

CFD21N

1Hot Water Connections .75 in. (19 mm) 5Ventilation Tub

2Cold Water Inlet (required) .75 in. (19 mm) 6Drain Outlet

3Power Input 7Cold Water Inlet (required) .75 in. (19 mm)

4Emergency Stop Button 8Fill and Supply Ventilation

CFD21N

18 MODEL

40.9 in.

(1038 mm)

39.8 in.

(1011 mm)

26 in.

(660 mm)

9.1 in.

(231 mm) 6 in.

(153 mm)

3 in.

(75 mm) 5.5 in.

(139 mm)

27.7 in.

(633 mm)

31.9 in.

(809 mm)

26 in.

(660 mm)

14.4 in.

(365 mm)

8.7 in.

(220 mm)

33.2 in.

(843 mm)

20.9 in.

(530 mm)

2.8 in.

(70 mm)

7 in.

(180 mm)

7.2 in.

(184 mm)

2.6 in.

(65 mm)

2.6 in.

(65 mm)

2.7 in.

(69 mm)

26.3 in. (670 mm)

28.6 in. (727 mm)

Installation/Operation Supplement

9002062 (EN)

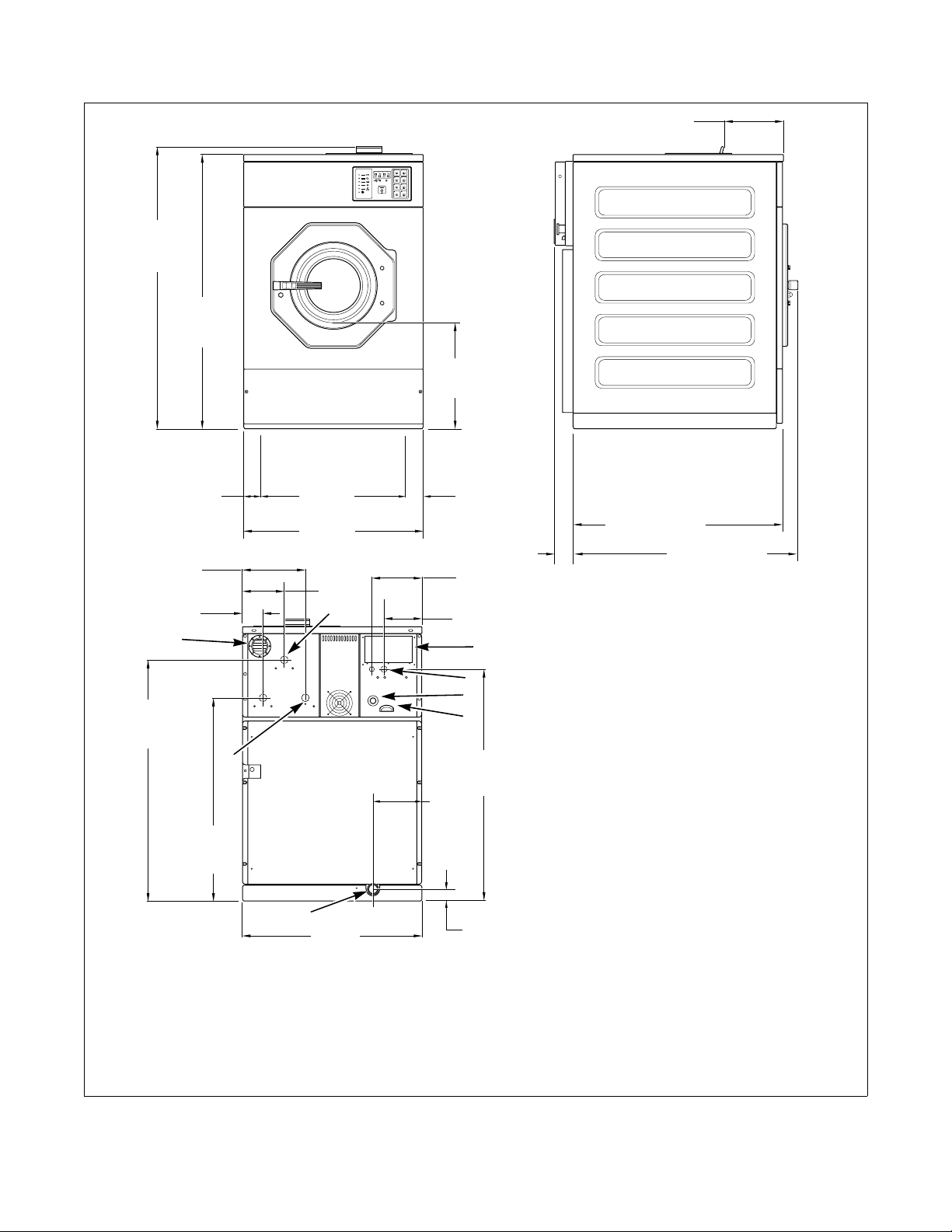

Figure 2

CFD23N

1Hot Water Connections .75 in. (19 mm) 5Ventilation Tub

2Cold Water Inlet (required) .75 in. (19 mm) 6Drain Outlet

3Power Input 7Cold Water Inlet (required) .75 in. (19 mm)

4Emergency Stop Button 8Fill and Supply Ventilation

CFD23N

30 MODEL

474 in.

(1202 mm)

46.3 in.

(1175 mm)

30.7 in.

(780 mm)

3.2 in.

(82 mm)

13.1 in.

(332 mm)

33.5 in.

(849 mm)

8.7 in.

(220 mm)

6.1 in.

(155 mm)

1.4 in.

(35 mm) 38 in.

(964 mm)

7.9 in.

(200 mm)

18.7 in.

(475 mm)

2.8 in.

(70 mm)

36.4 in.

(924 mm)

7.9 in.

(200 mm)

25.5 in.

(648 mm)

3.5 in.

(88 mm)

29.9 in. (760 mm)

32.1 in. (816 mm)

2.6 in.

(66 mm)

2.6 in.

(66 mm)

8 in.

(202 mm)

10.5 in.

(267 mm)

Autres manuels pour NX18BVPA6

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Alliance Laundry Systems Rondelle

Alliance Laundry Systems

Alliance Laundry Systems AFNE9BSP303XW01 Manuel utilisateur

Alliance Laundry Systems

Alliance Laundry Systems F232157R7 Manuel du propriétaire

Alliance Laundry Systems

Alliance Laundry Systems HCD020GD2 Manuel du propriétaire

Alliance Laundry Systems

Alliance Laundry Systems UW100AV Guide de dépannage

Alliance Laundry Systems

Alliance Laundry Systems Speed Queen TC5000WN Manuel utilisateur

Alliance Laundry Systems

Alliance Laundry Systems HC18MC2 Mode d'emploi

Alliance Laundry Systems

Alliance Laundry Systems Home Laundry Automatic Washer Manuel utilisateur

Alliance Laundry Systems

Alliance Laundry Systems AFNE9BSP113TN01 Manuel utilisateur

Alliance Laundry Systems

Alliance Laundry Systems FTS80A*H Manuel utilisateur

Alliance Laundry Systems

Alliance Laundry Systems FTSA1A N Series Manuel utilisateur

Alliance Laundry Systems

Alliance Laundry Systems IYC350V Manuel du propriétaire

Alliance Laundry Systems

Alliance Laundry Systems HFNNERSP116CW01 Manuel utilisateur

Alliance Laundry Systems

Alliance Laundry Systems 800797 Manuel utilisateur

Alliance Laundry Systems

Alliance Laundry Systems 9001014R7 Guide d'installation

Alliance Laundry Systems

Alliance Laundry Systems 201470R7 Manuel d'utilisation et d'entretien

Alliance Laundry Systems

Alliance Laundry Systems StGeorge Manuel utilisateur

Alliance Laundry Systems

Alliance Laundry Systems Cygnus Ultra Pro Manuel du propriétaire

Alliance Laundry Systems

Alliance Laundry Systems 33 Guide d'installation

Alliance Laundry Systems

Alliance Laundry Systems UCN020HN2 Manuel du propriétaire

Alliance Laundry Systems

Alliance Laundry Systems B-Series Manuel d'installation et d'exploitation

Alliance Laundry Systems

Alliance Laundry Systems SH180-QED-SELECT Manuel du propriétaire

Alliance Laundry Systems

Alliance Laundry Systems SFNBXFSP122DW01 Manuel utilisateur

Alliance Laundry Systems

Alliance Laundry Systems UW POCKET HARDMOUNT UW35B2 Manuel utilisateur

Alliance Laundry Systems

Alliance Laundry Systems AWN432SP113TW01 Manuel utilisateur

Manuels Rondelle populaires d'autres marques

Tricity Bendix

Tricity Bendix AW 1000 W Guide produit

Panasonic

Panasonic NA-F60L5WRB Manuel utilisateur

GE WSLP1500 Manuel

Electrolux

Electrolux EWF1284EDW Manuel utilisateur

Bosch

Bosch WAN2829BSN Manuel utilisateur

LG TV2516DV3B Manuel utilisateur

LG TH2517DSAV Manuel utilisateur

VESTEL

VESTEL CMH-XL 7510 TE Manuel utilisateur

AEG

AEG 74335 Manuel d'utilisation

Johnson

Johnson JWF721A Manuel utilisateur

Beko

Beko WTE7604XLW0 Manuel utilisateur

Danby

Danby DTT100A1WDB Instructions de montage

Amica

Amica WA 14 Ex Manuel utilisateur

Daewoo

Daewoo DWD-F1222 Manuel utilisateur

Bosch

Bosch WAS28461AU Manuel utilisateur

Miele

Miele PW 6080 Vario Manuel utilisateur

Finlux

Finlux FLX108CF220 Manuel utilisateur

Whirlpool

Whirlpool 3LBR5132AN0 Manuel utilisateur
