Alliance Laundry Systems H370I Manuel utilisateur

Installation

www.comlaundry.com

Frontload Washers

H370I

NOTA: El manual en

españolaparecedespués

del manual en inglés.

Part No. 801516

April 2003

Keep These Instructions for Future Reference.

(If this machine changes ownership, this manual must accompany machine.)

means without the expressed written consent of the publisher.

801516 1

Table of

Contents

Replacement Parts.............................................................................. 3

Installation........................................................................................... 5

Dimensions and Specifications............................................................. 5

Before You Start................................................................................... 6

Tools ................................................................................................ 6

Electrical .......................................................................................... 6

Water................................................................................................ 6

Accessories Bag............................................................................... 6

Installing the Washer ............................................................................ 7

Step 1: Position Washer Near Installation Area .............................. 7

Step 2: Connect Water Inlet Hoses .................................................. 7

Step 3: Connect Drain Hose to Drain Receptacle............................ 8

Step 4: Position and Level the Washer ............................................ 10

Step 5: Remove the Shock Sleeves and Shipping Brace ................. 11

Step 6: Wipe Out Inside of Washer Drum....................................... 11

Step 7: Plug In the Washer............................................................... 11

Step 8: Check Installation ................................................................ 12

Moving Unit to a New Location ...................................................... 12

Electrical Requirements........................................................................ 12

Grounding Instructions .................................................................... 13

Water Supply Requirements................................................................. 14

Water Temperature .......................................................................... 14

Water Pressure ................................................................................. 14

Risers................................................................................................ 14

Information for Handy Reference......................................................... 15

Installer Checklist................................................................ Back Cover

2801516

Notes

801516 © Copyright, Alliance Laundry Systems LLC –DO NOT COPY or TRANSMIT

Replacement Parts

If replacement parts are required, contact the source

from which you purchased your washer, or contact:

Alliance Laundry Systems

Shepard Street

P.O. Box 990

Ripon, WI 54971-0990

U.S.A.

Phone: (920) 748-3950

for the name and address of the nearest authorized

parts distributor.

801516

4© Copyright, Alliance Laundry Systems LLC –DO NOT COPY or TRANSMIT

Notes

801516 © Copyright, Alliance Laundry Systems LLC –DO NOT COPY or TRANSMIT

Installation

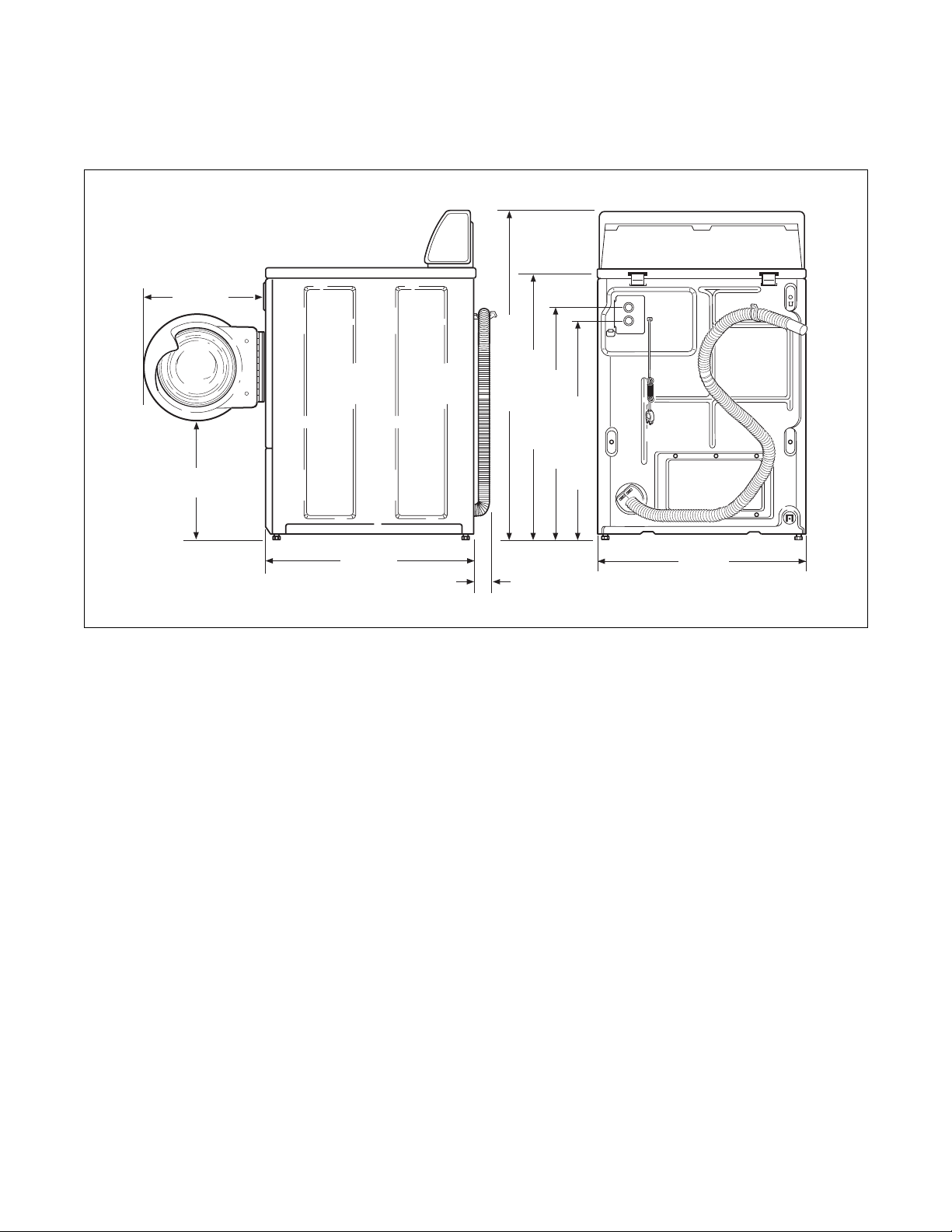

Dimensions and Specifications

FLW1989N

FLW1957N

28 in.

(71.1 cm)

2 in. (5.1 cm)

17.5 in.

(44.8 cm)

31.1 in. (79 cm)

14.9 in.

(37.9 cm)

29.6 in. (75.1 cm)

26.9 in.

(68.3 cm)

43 in. (109.2 cm)

36.6 in. (93 cm)

Installation

801516

6© Copyright, Alliance Laundry Systems LLC –DO NOT COPY or TRANSMIT

Before You Start

Tools

For most installations, the basic tools you will need

are:

Figure 1

Electrical

Refer to serial plate for specific electrical

requirements. For more detailed information refer to

section on Electrical Requirements.

Water

Washer needs two standard 3/4 in. (19.1 mm) water

supply faucets with a pressure between 20 and

120 pounds per square inch (138 to 827 kPa). For

more detailed information refer to section on Water

Supply Requirements.

Accessories Bag

An accessories bag has been shipped inside your

washer. It includes:

●Two inlet hoses with washers. Refer to step 2 of

Installation.

●Four rubber feet. Refer to step 4 of Installation.

●Beaded tie-down strap. Refer to step 3 of

Installation.

●Installation instructions.

●Use and Care Guide.

●Operating insert.

●Warranty bond.

●Helpful Hints insert.

●Bag for storing shipping materials.

D820I

1Wrench

2Screwdriver

3Pliers

4Socket Wrench

5Level

1234

Installation

801516 © Copyright, Alliance Laundry Systems LLC –DO NOT COPY or TRANSMIT

Installing the Washer

NOTE: If the washer is delivered on a cold day

(below freezing), or is stored in an unheated room

or area during the cold months, do not attempt to

operate it until the washer has had a chance to

warm up.

Step 1: Position Washer Near Installation

Area

IMPORTANT: Install dryer before washer. This

allows room for attaching exhaust duct.

Move washer as close to the desired area of

installation as possible.

Figure 2

Step 2: Connect Water Inlet Hoses

NOTE: Refer to section on Water Supply

Requirements before connecting water inlet hoses.

Remove the four plain rubber washers from accessories

bag, and install them according to Figure 3.

Turn on the water supply faucets and flush the lines for

approximately two minutes to remove any foreign

materials that could clog the screens in the water

mixing valve.

NOTE: When installing in newly constructed or

renovated building, it is very important to flush the

lines since build-up may have occurred during

construction.

IMPORTANT: Thread hose couplings onto valve

connections finger-tight, then approximately

1/4 turn with pliers. DO NOT cross thread or

overtighten couplings.

Turn water on and check for leaks. If leaks are found,

retighten the hose couplings. Continue tightening and

rechecking until no leaks are found.

Figure 3

Figure 4

D772I

H091I

1Rubber Washer (Plain)

2Inlet Hose

FLW1990N

1Water Supply Faucets

2Cold Water Connection

3Hot Water Connection

4Water Inlet Hoses

H091I

FLW1990N

123

WATER

MIXING

VALVE

Installation

801516

8© Copyright, Alliance Laundry Systems LLC –DO NOT COPY or TRANSMIT

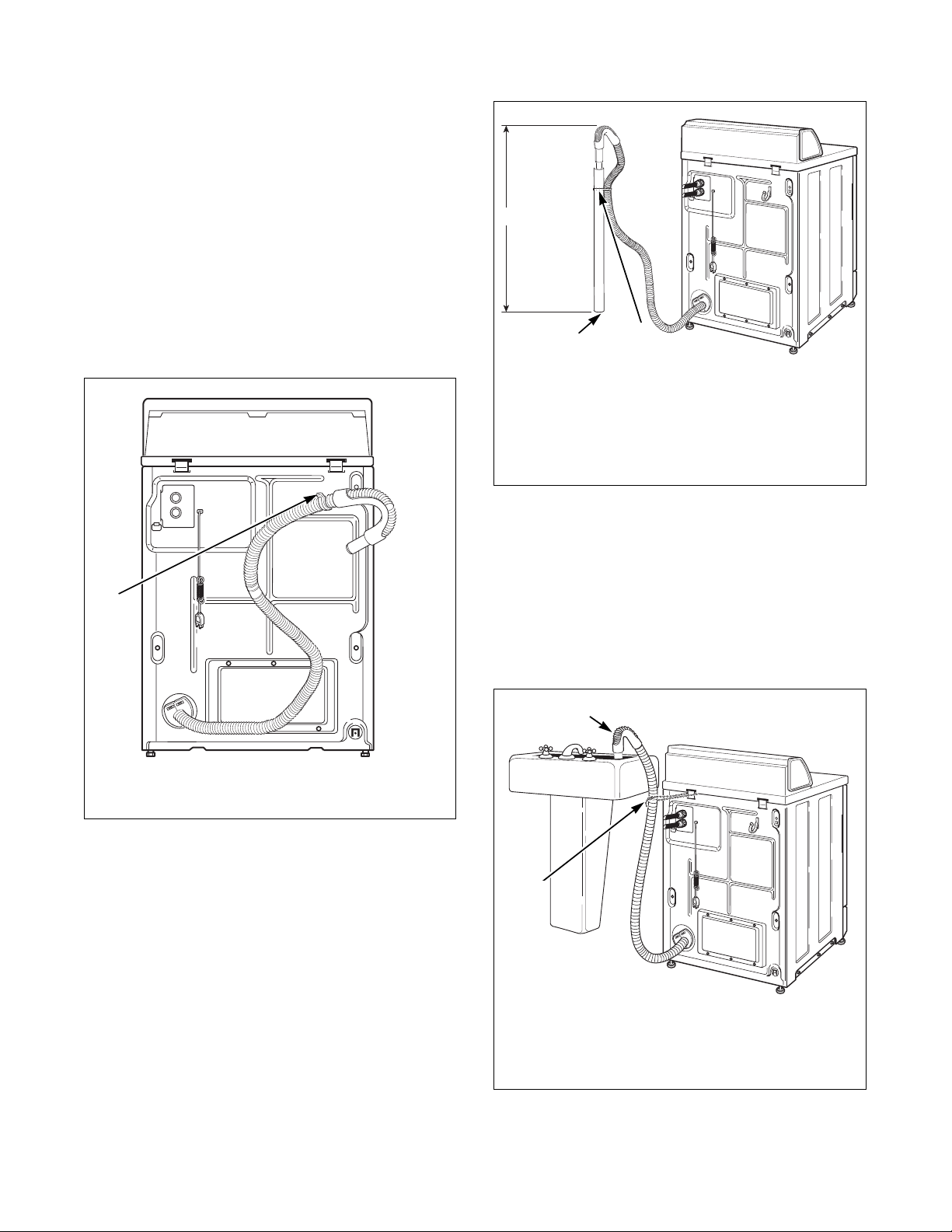

Step 3: Connect Drain Hose to Drain

Receptacle

Remove the drain hose from its shipping position on

the rear of the washer by unhooking the hose from the

retainer clamp and by removing shipping tape.

Find the instructions, on the following pages, that are

appropriate for your type of drain receptacle

(standpipe, sink, wall, or laundry tub). Follow these

instructions to properly install the drain hose.

IMPORTANT: Drain receptacle must be capable of

handling a minimum of 1-1/4 inch (3.2 cm) outside

diameter drain hose.

Figure 5

Standpipe Installation

Place the drain hose into the standpipe.

Remove the beaded tie-down strap from accessories

bag and place around standpipe and drain hose and

tighten strap to hold hose to standpipe. This will

prevent the drain hose from dislodging from drain

receptacle during use.

Figure 6

Sink Installation

For this type of installation, use the beaded tie-down

strap (supplied in accessories bag) or use a large wire

tie (available from your local hardware store), and

secure the drain hose to the cabinet top hinge (refer to

Figure 7). This will prevent the drain hose from

dislodging during use.

Figure 7

FLW1991N

1Retainer Clamp

FLW1992N

124 in. to 36 in. (91.44 cm recommended

height)

2Standpipe –2 in. (5.08 cm) or 1-1/2 in.

(4 cm)

3Beaded Tie-Down Strap

FLW1993N

1Drain Hose

2Tie-Down Strap (Wire tie or tape if

necessary)

FLW1992N

FLW1993N
