Alliance Laundry Systems 801455R2 Manuel utilisateur

Installation

www.comlaundry.com

Frontload Washers

FLW1522C

Part No. 801455R2

April 2012

Keep These Instructions for Future Reference.

(If this machine changes ownership, this manual must accompany machine.)

Para bajar una copia de estas instrucciones

en español, visite www.comlaundry.com.

means without the expressed written consent of the publisher.

801455 1

Table of

Contents

Replacement Parts .............................................................................. 2

Installation........................................................................................... 3

Dimensions and Specifications............................................................. 3

Before You Start ................................................................................... 4

Tools ................................................................................................ 4

Electrical .......................................................................................... 4

Water................................................................................................ 4

Accessories Bag ............................................................................... 4

Installing the Washer ............................................................................ 5

Step 1: Position Washer Near Installation Area .............................. 5

Step 2: Connect Fill Hoses............................................................... 5

Step 3: Connect Drain Hose to Drain Receptacle ............................ 6

Step 4: Position and Level the Washer ............................................ 8

Step 5: Remove the Shock Sleeves and Shipping Brace ................. 9

Step 6: Wipe Out Inside of Washer Drum ....................................... 10

Step 7: (Supply Injection Models Only) Connect External

Supplies to Washer......................................................................... 10

Control Function Test ...................................................................... 11

Step 8: Plug In the Washer............................................................... 11

Step 9: Check Installation ................................................................ 11

Moving Unit to a New Location ...................................................... 11

Electrical Requirements........................................................................ 12

Grounding Instructions .................................................................... 13

Water Supply Requirements................................................................. 14

Water Temperature .......................................................................... 14

Water Pressure ................................................................................. 14

Risers................................................................................................ 14

Information for Handy Reference......................................................... 15

Installer Checklist ................................................................. Back Cover

2801455

Replacement Parts

If replacement parts are required, contact the source

from which you purchased your washer, or contact:

Alliance Laundry Systems

Shepard Street

P.O. Box 99 0

Ripon, WI 54971-0990

U.S.A.

Phone: (920) 748-3950

for the name and address of the nearest authorized

parts distributor.

801455 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT

Installation

Dimensions and Specifications

FLW2092N

28 in.

(71.1 cm)

2 in. (5.1 cm)

17.5 in.

(44.8 cm)

41.2 in. (104.6 cm)

14.3 in.

(36.3 cm)

29.6 in. (75.1 cm)

31.1 in. (79 cm)

26.9 in.

(68.3 cm)

MODELS WITH OLD STYLE DOOR

FLW2044N

28 in.

(71.1 cm)

2 in. (5.1 cm)

18.7 in.

(47.5 cm)

41.2 in. (104.6 cm)

14.3 in.

(36.3 cm)

29.6 in. (75.1 cm)

31.1 in. (79 cm)

26.9 in.

(68.3 cm)

MODELS WITH NEW STYLE DOOR

Installation

801455

4© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT

Before You Start

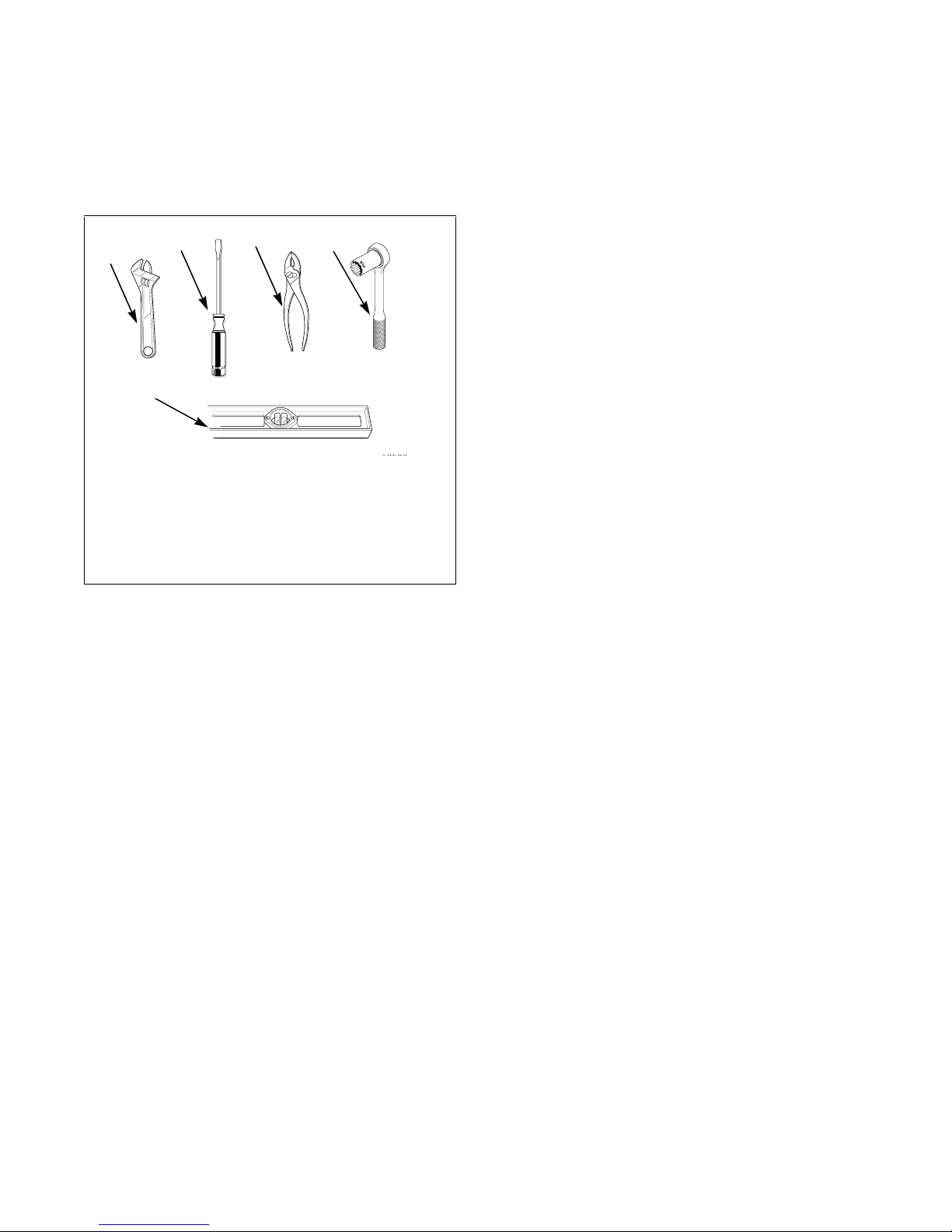

Tools

For most installations, the basic tools you will need

are:

Electrical

Refer to serial plate for specific electrical

requirements. For more detailed information refer to

section on Electrical Requirements.

Water

Washer needs two standard 3/4 in. (19.1 mm) water

supply faucets with a pressure between 20 and

120 pounds per square inch (138 to 827 kPa). For

more detailed information refer to section on Water

Supply Requirements.

Accessories Bag

An accessories bag has been shipped inside your

washer. It includes:

•Two fill hoses with washers and filter screens.

Refer to step 2 of Installation.

•Four rubber feet. Refer to step 4 of Installation.

•Beaded tie-down strap. Refer to step 3 of

Installation.

•Installation instructions.

•Use and Care Guide.

•Operating insert.

•Warranty bond.

•Helpful Hints insert.

•Bag for storing shipping materials.

D820I

1Wrench

2Screwdriver

3Pliers

4Socket Wrench

5Level

Figure 1

234

Installation

801455 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT

Installing the Washer

NOTE: If the washer is delivered on a cold day

(below freezing), or is stored in an unheated room

or area during the cold months, do not attempt to

operate it until the washer has had a chance to

warm up.

Step 1: Position Washer Near Installation

Area

IMPORTANT: Install dryer before washer. This

allows room for attaching exhaust duct.

Move washer as close to the desired area of

installation as possible.

NOTE: For best performance and to minimize

vibration or movement, install washer on a solid,

sturdy and level floor. Some floors may need to be

reinforced, especially on a second floor or over a

basement. Do not install the washer on carpeting,

soft tile, a platform or other weakly supported

structures.

Step 2: Connect Fill Hoses

NOTE: Refer to section on Water Supply

Requirements before connecting fill hoses.

Turn on the water supply faucets and flush the lines for

approximately two minutes to remove any foreign

materials that could clog the screens in the water

mixing valve.

NOTE: When installing in newly constructed or

renovated building, it is very important to flush the

lines since build-up may have occurred during

construction.

Remove the two plain rubber washers and two filter

screens from accessories bag, and install them

according to Figure 3 and Figure 4.

NOTE: Check filter screens for debris or damage

annually. Clean or replace them if necessary.

IMPORTANT: Thread hose couplings onto valve

connections finger-tight, then approximately

1/4 turn with pliers. DO NOT cross thread or

overtighten couplings.

Turn water on and check for leaks. If leaks are found,

retighten the hose couplings. Continue tightening and

rechecking until no leaks are found.

FLW702N

Figure 2

FLW702N

W520I

1Filter Screen (Screen must be facing

outward)

2Fill Hose

3Rubber Washer (Plain)

Figure 3

W520I

Installation

801455

6© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT

IMPORTANT: Hoses and other natural rubber

parts deteriorate after extended use. Hoses may

develop cracks, blisters or material wear from the

temperature and constant high pressure they are

subjected to.

All hoses should be checked on a yearly basis for

any visible signs of deterioration. Any hose showing

the signs of deterioration listed above should be

replaced immediately. All hoses should be replaced

every five years.

Step 3: Connect Drain Hose to Drain

Receptacle

Remove the drain hose from its shipping position on

the rear of the washer by unhooking the hose from the

retainer clamp and by removing shipping tape.

Find the instructions, on the following pages, that are

appropriate for your type of drain receptacle

(standpipe, sink, wall, or laundry tub). Follow these

instructions to properly install the drain hose.

IMPORTANT: Drain receptacle must be capable of

handling a minimum of 1-1/4 inch (3.2 cm) outside

diameter drain hose.

Standpipe Installation

Place the drain hose into the standpipe.

Remove the beaded tie-down strap from accessories

bag and place around standpipe and drain hose and

tighten strap to hold hose to standpipe. This will

prevent the drain hose from dislodging from drain

receptacle during use.

FLW1973N

1Water Supply Faucets

2Cold Water Connection

3Hot Water Connection

4Fill Hoses

Figure 4

FLW1973N

123

WATER

MIXING

VALVE

FLW1958N

1Retainer Clamp

Figure 5

Installation

801455 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT

Sink Installation

For this type of installation, use the beaded tie-down

strap (supplied in accessories bag) or use a large wire

tie (available from your local hardware store), and

secure the drain hose to the cabinet top hinge (refer to

Figure 7). This will prevent the drain hose from

dislodging during use.

Figure 7

In-the-Wall Installation

For installations of this type, the drain hose MUST be

secured to one of the fill hoses using the beaded tie-

down strap from accessories bag.

NOTE: End of drain hose must not be below 24 in.

(61 cm).

Figure 8

FLW1959N

124 in. to 36 in. (91.44 cm recommended

height)

2Standpipe 2 in. (5.08 cm) or 1-1/2 in. (4 cm)

3Beaded Tie-Down Strap

Figure 6

FLW1960N

1Drain Hose

2Tie-Down Strap (Wire tie or tape if

necessary)

FLW1959N

FLW1960N

H023I

1Drain Hose

2Tie-Down Strap (Tape if necessary)

3Fill Hoses

Installation

801455

8© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT

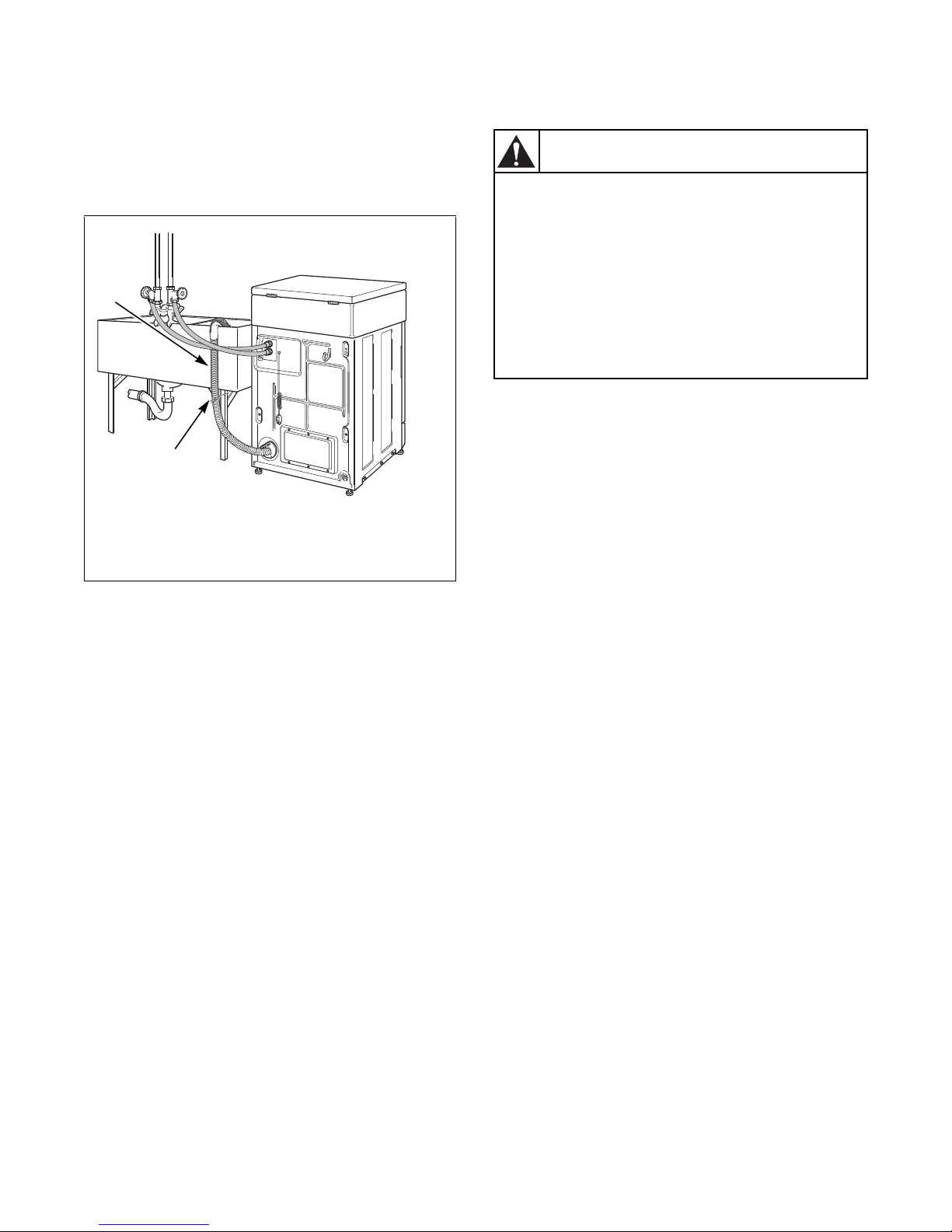

Laundry Tub Installation

For this type of installation, the drain hose MUST be

secured to the stationary tub to prevent hose from

dislodging during use. Use the beaded tie-down strap

(supplied in accessories bag) to secure hose.

Step 4: Position and Level the Washer

Place washer in position on a solid, sturdy and level

floor. Installing the washer on any type of carpeting,

soft tile, a platform or other weakly supported

structures is not recommended.

Loosen 7/8 in. locknut and adjust the front and rear

leveling legs until the washer is level from side to side

and front to back (using a level). Washer should not

rock.

NOTE: Level must rest on raised portion of top

panel. Refer to Figure 10.

Tighten the locknuts securely against the washer

base using the 7/8 in. wrench. If the locknuts are not

tight, washer will move out of position during operation.

NOTE: DO NOT slide washer across floor if the

leveling legs have been extended, as legs and base

could become damaged.

NOTE: Use of the dispenser drawer or washer door

as a handle in the transportation of the washer may

cause damage to the dispenser or door.

FLW1961N

1Drain Hose

2Tie-Down Strap (Tape if necessary)

Figure 9

FLW1961N

Washers elevated above floor level must be

anchored to that elevated surface, base or

platform. The material used to elevate the

washer should also be anchored to the floor

to ensure that the washer will not walk or

that the washer can not be physically

pulled, tipped or slid from its installed

position. Failure to do so may result in

conditions which can produce serious

injury, death and/or property damage.

W306

WARNING

Table des matières

Autres manuels Alliance Laundry Systems Rondelle

Alliance Laundry Systems

Alliance Laundry Systems HC18MC2 Manuel utilisateur

Alliance Laundry Systems

Alliance Laundry Systems AFB50RSP111TW01 Mode d'emploi

Alliance Laundry Systems

Alliance Laundry Systems PMC360T Manuel utilisateur

Alliance Laundry Systems

Alliance Laundry Systems HWF261*E Manuel utilisateur

Alliance Laundry Systems

Alliance Laundry Systems LTZ97A N2802 Series Manuel utilisateur

Alliance Laundry Systems

Alliance Laundry Systems HY105 HC-200 Manuel du propriétaire

Alliance Laundry Systems

Alliance Laundry Systems CCN020HNF Manuel utilisateur

Alliance Laundry Systems

Alliance Laundry Systems WF065B Guide de maintenance et de service

Alliance Laundry Systems

Alliance Laundry Systems HF150 Manuel utilisateur

Alliance Laundry Systems

Alliance Laundry Systems MB26 Manuel utilisateur

Alliance Laundry Systems

Alliance Laundry Systems HC18 Guide de maintenance et de service

Alliance Laundry Systems

Alliance Laundry Systems 100 Manuel utilisateur

Alliance Laundry Systems

Alliance Laundry Systems CS2000 Manuel de la liste des pièces

Alliance Laundry Systems

Alliance Laundry Systems Speed Queen TLW24C-SVG1 Manuel utilisateur

Alliance Laundry Systems

Alliance Laundry Systems AFNE9BSP303XW01 Manuel utilisateur

Alliance Laundry Systems

Alliance Laundry Systems LTS80A Series Manuel utilisateur

Alliance Laundry Systems

Alliance Laundry Systems FLW700C Manuel utilisateur

Alliance Laundry Systems

Alliance Laundry Systems EA2011*A3000 Manuel utilisateur

Alliance Laundry Systems

Alliance Laundry Systems FLW1526C Manuel utilisateur

Alliance Laundry Systems

Alliance Laundry Systems FTSA1A N Series Manuel utilisateur

Alliance Laundry Systems

Alliance Laundry Systems HFNBCF Manuel du propriétaire

Alliance Laundry Systems

Alliance Laundry Systems EA2011 Series Instructions de montage

Alliance Laundry Systems

Alliance Laundry Systems FLW39H Series Manuel utilisateur

Alliance Laundry Systems

Alliance Laundry Systems BWNBC2PP112TW01 Manuel du propriétaire

Manuels Rondelle populaires d'autres marques

Tricity Bendix

Tricity Bendix AW 1000 W Guide produit

Panasonic

Panasonic NA-F60L5WRB Manuel utilisateur

GE WSLP1500 Manuel

Electrolux

Electrolux EWF1284EDW Manuel utilisateur

Bosch

Bosch WAN2829BSN Manuel utilisateur

LG TV2516DV3B Manuel utilisateur

LG TH2517DSAV Manuel utilisateur

VESTEL

VESTEL CMH-XL 7510 TE Manuel utilisateur

AEG

AEG 74335 Manuel d'utilisation

Johnson

Johnson JWF721A Manuel utilisateur

Beko

Beko WTE7604XLW0 Manuel utilisateur

Danby

Danby DTT100A1WDB Instructions de montage

Amica

Amica WA 14 Ex Manuel utilisateur

Daewoo

Daewoo DWD-F1222 Manuel utilisateur

Bosch

Bosch WAS28461AU Manuel utilisateur

Miele

Miele PW 6080 Vario Manuel utilisateur

Finlux

Finlux FLX108CF220 Manuel utilisateur

Whirlpool

Whirlpool 3LBR5132AN0 Manuel utilisateur
