Alliance Laundry Systems DRY688C Mode d'emploi

Troubleshooting

DRY688C

DRY684C

D715I

DRY684C

DRY688C

Part No. D512176R3

January 2018

Home Dryers

Refer to Page 6 for Model Numbers

the expressed written consent of the publisher.

D512176 1

Table of

Contents

Section 1 – Safety Information

Locating an Authorized Servicer ..................................................... 4

Section 2 – Introduction

Customer Service ............................................................................ 5

Nameplate Location ........................................................................ 5

Model Identification ........................................................................ 6

How Your Dryer Works .................................................................. 7

Section 3 – Dryer Troubleshooting

1. No Timer Advance In Automatic Cycles ................................. 8

2. Dryer Motor Does Not Run ...................................................... 10

3. Dryer Stops in Cycle; Quits After the First Few Loads;

Has a Burning Smell; Cycles On Motor Thermal

Protector ................................................................................... 12

4. Dryer Motor Runs But Cylinder Does Not Turn ...................... 13

5. Dryer Motor Does Not Stop .................................................... 14

6. Dryer Runs Only When Door is Open ..................................... 15

7. Dryer Heating Assembly Does Not Heat or Burner

Does Not Ignite ......................................................................... 16

8. Igniter Does Not Glow (Gas Supply Sufficient) –

Gas Dryer Models ..................................................................... 18

9. Burner Ignites and Goes Out Repeatedly –

Gas Dryer Models ..................................................................... 19

10. Igniter Glows But Burner Does Not Ignite –

Gas Dryer Models ..................................................................... 20

11. Dryer Heater Assembly or Burner Shuts Off Prematurely ....... 21

12. Dryer Heater Assembly or Burner Repeatedly Cycles

Off On Limit Thermostat .......................................................... 22

13. Dryer Heater Assembly or Burner Does Not Shut Off ............. 24

14. Clothes Do Not Dry in Dryer ................................................... 25

15. Timer Does Not Advance in Automatic Cycle ......................... 26

16. Clothes Are Too Hot When Removed From Dryer .................. 27

17. Excessive Chattering or Vibrating Noise in Dryer ................... 28

18. Excessive Humming or Whistling Noise in Dryer ................... 29

Section 4 – Adjustments

19. Leveling Legs ........................................................................... 30

20. Burner Flame (Gas Models) ..................................................... 31

Section 5 – Test Procedures

21. Timer Contacts ......................................................................... 32

22. Fabric Selector Switch .............................................................. 33

23. Drive Motor .............................................................................. 34

24. Motor Switch ............................................................................ 37

25. Burner System Operation ......................................................... 39

26. Electrical Circuit To Ignition System (Gas Models) ................ 40

2D512176

27. Gas Valve Coils Check (Gas Models) ...................................... 40

28. Sensor Check (Gas Models) ..................................................... 41

29. Igniter Check (Gas Models) ..................................................... 41

30. Thermal Fuse (Electric Models) ............................................... 42

31. Heater Assembly (Electric Models) ......................................... 42

32. Cycling or Limit Thermostat .................................................... 42

33. Door Switch .............................................................................. 43

Section 6 – Internal Wiring of Dryer Motor Switch

D512176

Section 1

Safety Information

Throughout this manual and on machine decals, you will find precautionary statements (“CAUTION,”

“WARNING” and “DANGER”) followed by specific instructions. These precautions are intended for the personal

safety of the operator, user, servicer, and those maintaining the machine.

DANGER

Danger indicates an imminently hazardous situation that, if not avoided, will cause severe personal injury or death.

WARNING

Warning indicates a hazardous situation that, if not avoided, could cause severe personal injury or death.

CAUTION

Caution indicates a hazardous situation that, if not avoided, may cause minor or moderate personal injury or

property damage.

Additional precautionary statements (“IMPORTANT” and “NOTE”) are followed by specific instructions.

IMPORTANT

The word “IMPORTANT” is used to inform the reader of specific procedures where minor machine damage will

occur if the procedure is not followed.

NOTE

The word “NOTE” is used to communicate installation, operation, maintenance or servicing information that is

important but not hazard related.

In the interest of safety, some general precautions relating to the operation of this machine follow.

To reduce the risk of electric shock, fire, explosion, serious injury or death:

• Disconnect electric power to the dryer(s) before servicing.

• Close gas shut-off valve to gas dryer(s) before servicing.

• Never start the dryer(s) with any guards/panels removed.

• Whenever ground wires are removed during servicing, these ground wires must be

reconnected to ensure that the dryer is properly grounded.

W001R1

WARNING

4D512176

Section 1 Safety Information

NOTE: The WARNINGS and IMPORTANT INSTRUCTIONS appearing in this manual are not meant to

cover all possible conditions and situations that may occur. Common sense, caution and care must be

exercised when installing, maintaining or operating the machine.

Always contact your dealer, distributor, service agent or the manufacturer about any problems or conditions you do

not understand.

Locating an Authorized Servicer

Alliance Laundry Systems is not responsible for personal injury or property damage resulting from improper

service. Review all service information before beginning repairs.

Warranty service must be performed by an authorized technician, using authorized factory parts. If service is

required after the warranty expires, Alliance Laundry Systems also recommends contacting an authorized

technician and using authorized factory parts.

• Failure to install, maintain, and/or operate this machine according to the manufacturer’s

instructions may result in conditions which can produce serious injury, death and/or

property damage.

• Do not repair or replace any part of the machine or attempt any servicing unless specifically

recommended or published in this Service Manual and that you understand and have the

skills to carry out.

• Whenever ground wires are removed during servicing, these ground wires must be

reconnected to ensure that the machine is properly grounded and to reduce the risk of fire,

electric shock, serious injury, or death.

W284

WARNING

Repairs that are made to your products by unqualified persons can result in hazards due to

improper assembly or adjustments subjecting you, or the inexperienced person making such

repairs, to the risk of serious injury, electrical shock, or death.

W007

WARNING

If you or an unqualified person perform service on your machine, you must assume the

responsibility for any personal injury or property damage which may result. The manufacturer

will not be responsible for any injury or property damage arising from improper service and/or

service procedures.

W286

WARNING

D512176

Section 2

Introduction

Customer Service

If literature or replacement parts are required, contact

the source from whom the machine was purchased or

contact Alliance Laundry Systems at (920) 748-3950

for the name and address of the nearest authorized

parts distributor.

For technical assistance, call (920) 748-3121.

Nameplate Location

When calling or writing about your product, be sure to

mention model and serial numbers. Model and serial

numbers are located on nameplate(s) as shown.

D412PE1A

Nameplate

Section 2 Introduction

D512176

Model Identification

Information in this manual is applicable to these dryers:

ADE30RGS171TW01

ADE3LRGS171TW01

ADE41FSS171TN01

ADE4BFGS171TW01

ADE4BRGS171TW01

ADG30RGS111TW01

ADG3LRGS111TW01

ADG41FSS111TN01

ADG4BFGS111TW01

ADG4BRGS111TW01

AES17AWF

AES20AWF

AES28AWF

AES28AWF1500

AES68AWF

AES68AWF1500

AGS17AWF

AGS20AWF

AGS28AWF

AGS68AWF

ASE30FGW171TW01

ASG30FGW111TW01

CES68AWF

CES68AWF1500

CGS68AWF

KES18AWF

KES18AWF1500

KGS18AWF

Section 2 Introduction

D512176

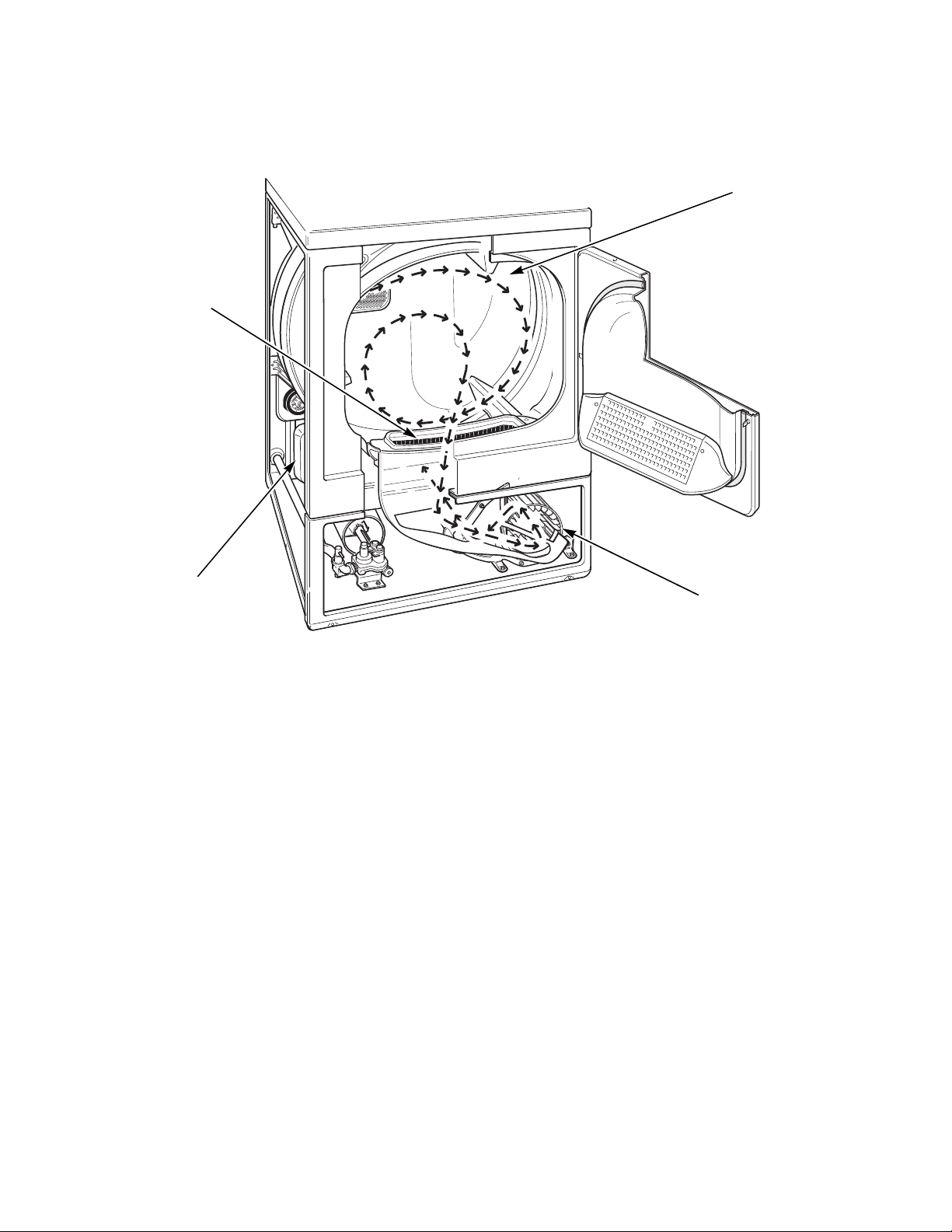

How Your Dryer Works

The dryer uses heated air to dry loads of laundry. When the motor is started, the exhaust fan pulls room temperature

air in through louvers at the rear of the dryer and over the heat source (burner flame for gas and heating element for

electric). The heated air moves through the heater duct and into the cylinder, where it circulates through the wet

load. The air then passes through the lint filter, air duct, and exhaust fan, where it is vented to the outdoors.

The dryer has an automatic drying feature. At cycle start, when fabric is wet and the temperature inside dryer is

cool, the heat source (burner on gas models and heating element on electric models) is energized and heats the

cylinder until operating temperature (as set on Fabric Selector) is reached. Power is not supplied to timer motor

while heat source is energized during an automatic cycle. The heat source runs for longer periods of time in the

beginning of the cycle, when it is working to reach the operating temperature, resulting in very little timer

advancement. As the fabric dries and the cylinder heat is maintained, the heat source is powered less, allowing the

timer to advance to cycle end. If dryer heats but timer does not advance, refer to Paragraph 1.

DRY1819S

Lint

Filter

Cylinder

Heater

Duct Blower

Fan

DRY1819S

To reduce the risk of electric shock, fire, explosion, serious injury or death:

• Disconnect electric power to the dryer(s) before servicing.

• Close gas shut-off valve to gas dryer(s) before servicing.

• Never start the dryer(s) with any guards/panels removed.

• Whenever ground wires are removed during servicing, these ground wires must be

reconnected to ensure that the dryer is properly grounded.

W001R1

WARNING

Section 3

Troubleshooting

IMPORTANT: Refer to wiring diagram for aid in

testing dryer components.

1. NO TIMER ADVANCE IN AUTOMATIC

CYCLES

For a description of Automatic drying feature, refer to

SECTION 2. If dryer heats but the timer does not

advance, perform the following service procedures:

Electric Dryers

1. Remove any damp clothing from the dryer.

2. Set the timer to an Automatic cycle. Set fabric

selector switch to Regular.

3. Remove the top 3 screws holding the control

hood to the rear panel.

4. Start dryer by pushing in timer knob.

5. Using a volt/ohm meter set to AC voltage,

measure the voltage across terminal “T” and

terminal “M” on timer. Refer to Figure 1.

6. Meter should read no voltage when the unit is

first started and the dryer is still heating.

Continue to monitor these points until the heating

element has shut off (this will take several

minutes even with an empty load). When the

heating element shuts off, meter should read 120

Volts and the timer motor should advance the

cycle.

7. If meter does not read 120 Volts after the unit has

reached proper operating temperature use meter

to check for 120 AC Voltage between terminal

“A” and terminal “N” (neutral) on the timer.

8. If voltage is present, recheck voltage between

“T” and “M”.

9. If voltage is present, but timer does not advance,

replace timer.

10. If meter does not read 120 Volts at “A” and “N”,

check the wire connections at the heating element

and timer (blue/black wire). If the connections

are good, UNPLUG dryer, remove wire at

terminal “A” on timer and perform an ohms

check on wire continuity between the heating

element and timer. If the wire shows continuity,

replace timer.

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Alliance Laundry Systems Séchoir

Alliance Laundry Systems

Alliance Laundry Systems DRY724C_SVG Mode d’emploi

Alliance Laundry Systems

Alliance Laundry Systems TMB1276C Manuel du propriétaire

Alliance Laundry Systems

Alliance Laundry Systems AES17AWF Instructions de montage

Alliance Laundry Systems

Alliance Laundry Systems 70269701R4 Manuel utilisateur

Alliance Laundry Systems

Alliance Laundry Systems DRY725C_SVG Manuel utilisateur

Alliance Laundry Systems

Alliance Laundry Systems Drying Tumblers none Manuel utilisateur

Alliance Laundry Systems

Alliance Laundry Systems LWS01M series Manuel utilisateur

Alliance Laundry Systems

Alliance Laundry Systems Speed Queen DR7004WE Manuel utilisateur

Alliance Laundry Systems

Alliance Laundry Systems LES19A SERIES Manuel utilisateur

Alliance Laundry Systems

Alliance Laundry Systems HSE117*A Manuel utilisateur

Alliance Laundry Systems

Alliance Laundry Systems Drying Tumbler 70278501R5EN Manuel du propriétaire

Alliance Laundry Systems

Alliance Laundry Systems 120 Pound Capacity Manuel d'installation et d'exploitation

Alliance Laundry Systems

Alliance Laundry Systems 513257R1 Mode d’emploi

Alliance Laundry Systems

Alliance Laundry Systems 70420801 Manuel utilisateur

Alliance Laundry Systems

Alliance Laundry Systems DR7000WE Manuel utilisateur

Alliance Laundry Systems

Alliance Laundry Systems HE-HG Seies Instructions de montage

Alliance Laundry Systems

Alliance Laundry Systems 75 Manuel utilisateur

Alliance Laundry Systems

Alliance Laundry Systems TLW1991N Manuel utilisateur

Alliance Laundry Systems

Alliance Laundry Systems ADEE9BSS Manuel utilisateur

Alliance Laundry Systems

Alliance Laundry Systems Dryer Tumblers Manuel utilisateur

Alliance Laundry Systems

Alliance Laundry Systems BA120L Manuel utilisateur

Alliance Laundry Systems

Alliance Laundry Systems Drying Tumblers none Manuel utilisateur

Alliance Laundry Systems

Alliance Laundry Systems T453I Guide de dépannage

Alliance Laundry Systems

Alliance Laundry Systems 70444901R3 Manuel du propriétaire

Manuels Séchoir populaires d'autres marques

Bosch

Bosch WTA79200GB Manuel utilisateur

Amana

Amana W10233410A Manuel utilisateur

Miele

Miele TWH 780 WP Manuel utilisateur

Asko

Asko T760 Manuel utilisateur

Bosch

Bosch Logixx 10 WTB76556GB Fiche technique

STIEBEL ELTRON

STIEBEL ELTRON Ultronic S Mode d’emploi

Electrolux

Electrolux EW2H328R2 Manuel utilisateur

Beko

Beko DS8433RX1M Manuel utilisateur

Dawlance

Dawlance Spinner DS 6000 C Manuel utilisateur

Electrolux

Electrolux TP5080TW Manuel utilisateur

AEG

AEG TR838P4OB Manuel utilisateur

Indesit

Indesit IDV 75 Manuel utilisateur

Infiniton

Infiniton SD-DG85C Manuel utilisateur

BOMANN

BOMANN WT 5019 Manuel utilisateur

Asko

Asko T793C Manuel utilisateur

Kenmore

Kenmore 8041 - 5.8 cu. Ft. Capacity Electric Dryer Manuel utilisateur

Frigidaire

Frigidaire CAQE7077KW0 Manuel du propriétaire

Bosch

Bosch WTX8HKM9SN Manuel utilisateur
