Alliance Laundry Systems D355IE1B Manuel du propriétaire

Installation and Operation

Stacked Dryer

Metered and Nonmetered

Electric and Gas Models

Part No. 504524R3

June 1998

NOTA: El manual en español aparece después del manual en inglés.

D355IE1B

504524 1

KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE. (If the dryer changes ownership, be

sure this manual accompanies the dryer.)

IMPORTANT: Purchaser must consult the local gas supplier for suggested instructions to be

followed if the dryer user smells gas. The gas utility instructions plus the SAFETY and

WARNING note directly above must be posted in a prominent location near the dryer for

customer use.

• Do not store or use gasoline or other flammable vapors and liquids in the vicinity of

this or any other appliance.

• WHAT TO DO IF YOU SMELL GAS:

– Do not try to light any appliance.

– Do not touch any electrical switch; do not use any phone in your building.

– Clear the room, building or area of all occupants.

– Immediately call your gas supplier from a neighbor’s phone. Follow the gas supplier’s

instructions.

– If you cannot reach your gas supplier, call the fire department.

• Installation and service must be performed by a qualified installer, service agency or

the gas supplier. W052

FOR YOUR SAFETY, the information in this manual must be followed to minimize the

risk of fire or explosion or to prevent property damage, personal injury or death.W033

WARNING

FOR YOUR SAFETY

Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or

any other appliance.

W053

2504524

Replacement Parts . . .

If replacement parts are required, contact the source

where you purchased your dryer, or contact Alliance Laundry Systems LLC

Shepard Street

P.O. Box 990

Ripon, WI 54971-0990

Phone:

(920) 748-3950

for the name and address of the nearest authorized parts

distributor.

Table of

Contents

Replacement Parts ............................................................................... 2

Important Safety Instructions.............................................................. 3

Roughing In Dimensions ..................................................................... 5

Additional Security .............................................................................. 7

Slide Extension ..................................................................................... 7

Timer Cams ........................................................................................... 7

Lower Front Panel Security ................................................................ 7

Coin Slide Guards ................................................................................ 8

Before You Start ................................................................................... 9

Installing the Dryer

STEP 1 – Position and Level the Dryer Unit.................................. 10

STEP 2 – Connect Dryer Exhaust System ..................................... 10

STEP 3 – Connect Gas Supply Pipe............................................... 11

STEP 4 – Connect Electrical Plug..................................................12

STEP 5 – Wipe Out Inside of Each Dryer...................................... 13

STEP 6 – Plug in the Dryer Unit.................................................... 13

STEP 7 – Check Installation........................................................... 13

Heat Source Check ............................................................................. 14

Reversing Door Procedure ................................................................ 15

Electrical Requirements (Electric Dryers) ....................................... 16

Electrical Connection ......................................................................... 17

Three-wire Power Cord ................................................................. 17

Four-Wire Power Cord .................................................................. 19

Electrical Requirements (Gas Dryers) ............................................. 21

Gas Requirements ............................................................................. 23

Location Requirements ..................................................................... 24

Dryer Exhaust Requirements ........................................................... 25

Multi-Dryer Installation Exhuast Requirements ............................. 28

Lint Filter............................................................................................. 31

Motor Overload Protector.................................................................. 31

User-Maintenance Instructions ......................................................... 32

For Energy Conservation ................................................................... 32

Before Your Call for Service............................................................... 33

Operation Instructions For Electromechanical Dryers .................. 34

Operation Instructions for Electronic Control Dryers.................... 36

Information for Handy Reference .................................................... 39

Installer Check .................................................................... Back Cover

the written permission of the publisher.

504524 3

IMPORTANT SAFETY INSTRUCTIONS

(SAVE THESE INSTRUCTIONS)

1. Read all instructions before using the dryer.

2. Refer to the GROUNDING INSTRUCTIONS in

the INSTALLATION manual for the proper

grounding of the dryer.

3. Do not dry articles that have been previously

cleaned in, washed in, soaked in, or spotted with

gasoline, dry-cleaning solvents, other flammable

or explosive substances as they give off vapors

that could ignite or explode.

4. Do not allow children to play on or in the dryer.

Close supervision of children is necessary when

the dryer is used near children. This is a safety

rule for all appliances.

5. Before the dryer is removed from service or

discarded, remove the door to the drying

compartment.

6. Do not reach into the dryer if the cylinder is

revolving.

7. Do not install or store the dryer where it will be

exposed to water and/or weather.

8. Do not tamper with the controls.

9. Do not repair or replace any part of the dryer, or

attempt any servicing unless specifically

recommended in the user-maintenance

instructions or in published user-repair

instructions that you understand and have the

skills to carry out.

10. Do not use fabric softeners or products to

eliminate static unless recommended by the

manufacturer of the fabric softener or product.

11. To reduce the risk of fire, DO NOT DRY plastics

or articles containing foam rubber or similarly

textured rubberlike materials.

12. ALWAYS clean the lint filter after every load. A

layer of lint in the filter reduces drying efficiency

and prolongs drying time.

13. Keep area around the exhaust opening and

adjacent surrounding area free from the

accumulation of lint, dust and dirt.

14. The interior of the dryer and the exhaust duct

should be cleaned periodically by qualified

service personnel.

15. If not installed, operated and maintained in

accordance with the manufacturer’s instructions

or if there is damage to or mishandling of this

product’s components, use of this product could

expose you to substances in the fuel or from fuel

combustion which can cause death or serious

illness and which are known to the State of

California to cause cancer, birth defects or other

reproductive harm.

16. Dryer will not operate with the loading door

open. DO NOT by-pass the door safety switch by

permitting the dryer to operate with the door

open. The dryer will stop tumbling when the door

is opened. Do not use the dryer if it does not stop

tumbling when the door is opened or starts

tumbling without pressing the START

mechanism. Remove the dryer from use and call

the service person.

17. Do not put articles soiled with vegetable or

cooking oil in the dryer, as these oils may not be

removed during washing. Due to the remaining

oil, the fabric may catch on fire by itself.

18. To reduce the risk of fire, DO NOT put clothes

which have traces of any flammable substances

such as machine oil, flammable chemicals,

thinner, etc., or anything containing wax or

chemicals such as in mops and cleaning cloths, or

anything dry-cleaned at home with a dry-

cleaning solvent in the dryer.

19. Use the dryer only for its intended purpose,

drying clothes.

20. Always disconnect the electrical power to the

dryer before attempting service. Disconnect the

power cord by grasping the plug, not the cord.

21. Replace worn power cords and/or loose plugs.

22. Install this dryer according to the

INSTALLATION INSTRUCTIONS. All

connections for electrical power, grounding and

gas supply must comply with local codes and be

made by licensed personnel when required. Do

not do it yourself unless you know how!

23. Remove laundry immediately after the dryer

stops.

To reduce the risk of fire, electric shock, or

injury to persons when using your dryer,

follow these basic precautions:

W034

WARNING

4504524

24. Always read and follow manufacturer’s

instructions on packages of laundry and cleaning

aids. Heed all warnings or precautions. To reduce

the risk of poisoning or chemical burns, keep

them out of reach of children at all times

(preferably in a locked cabinet).

25. Do not tumble fiber glass curtains and draperies

unless the label says it can be done. If they are

dried, wipe out the cylinder with a damp cloth to

remove particles of fiber glass.

26. ALWAYS follow the fabric care instructions

supplied by the garment manufacturer.

27. Never operate the dryer with any guards and/or

panels removed.

28. DO NOT operate the dryer with missing or

broken parts.

29. DO NOT by-pass any safety devices.

30. Failure to install, maintain, and/or operate this

machine according to the manufacturer’s

instructions may result in conditions which can

produce bodily injury and/or property damage.

IMPORTANT: Solvent vapors from dry-cleaning

machines create acids when drawn through the heater

of the drying unit. These acids are corrosive to the

dryer as well as to the laundry load being dried. Be

sure make-up air is free of solvent vapors.

IMPORTANT: Have your dryer installed properly.

Don’t do it yourself unless you know how!

NOTE: The WARNING and IMPORTANT

SAFETY INSTRUCTIONS appearing in this manual

are not meant to cover all possible conditions and

situations that may occur. Common sense, caution

and care must be exercised when installing,

maintaining, or operating the dryer.

Always contact your dealer, distributor, service agent or

the manufacturer about any problems or conditions you

do not understand.

504524 5

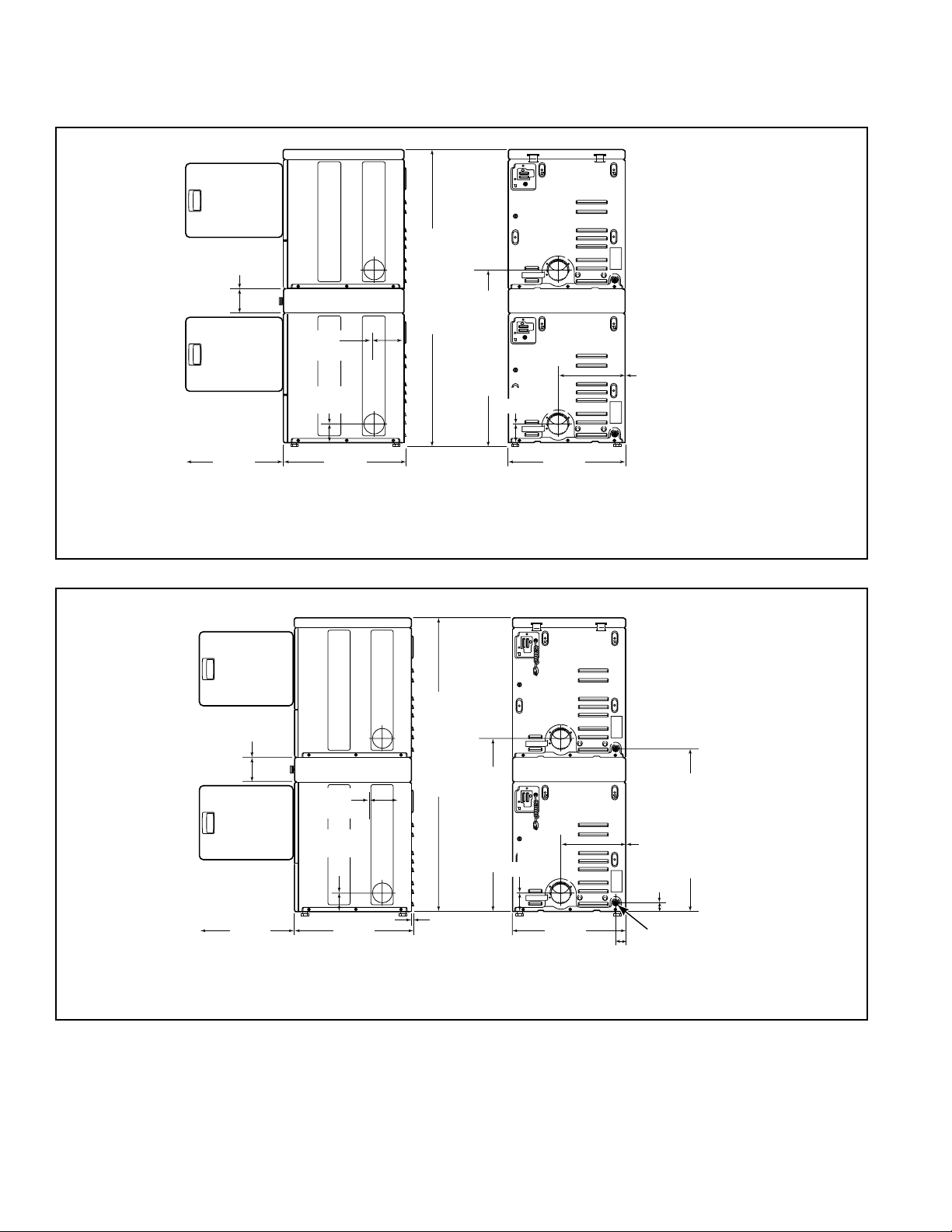

Roughing In Dimensions . . .

(Metered Models)

NOTE: Side, rear and bottom exhaust openings are

four inch (10.2 cm) ducting. Gas models cannot be

vented out left side of cabinet because of burner

housing.

IMPORTANT: The dryer should have sufficient

clearance around it for needed ventilation and for the

ease of installation and servicing. For maximum

drying performance, we recommend that more

clearance be allowed around the dryer than the

clearances that are listed throughout this manual.

ELECTRIC MODELS

D350IE2A

28.0"

(71.1 cm) 26.9"

(68.3 cm)

23.5"

(59.7 cm)

4.0"

(10.2 cm)

*76.5" (194.3 cm)

*45.2" (114.8 cm)

15.4"

(39.1 cm)

7.7"

(19.6 cm)

7.0"

(17.8 cm)

4.0"

(10.2 cm)

* WITH LEVELING LEGS TURNED INTO BASE.

GAS MODELS

D351IE2A

28.0"

(71.1 cm)

26.9"

(68.3 cm)

23.5"

(59.7 cm)

4.0"

(10.2 cm)

*76.5" (194.3 cm)

*45.2" (114.8 cm)

*WITH LEVELING LEGS TURNED INTO BASE.

15.4"

(39.1 cm)

7.7"

(19.6 cm)

7.0"

(17.8 cm)

4.0"

(10.2 cm) 2.8"

(7.1 cm)

43.5" (110.5 cm)

2.3"

(6 cm)

3/8"

NPT GAS

CONNECTION

6504524

Roughing In Dimensions . . .

(Nonmetered Models)

NOTE: Side, rear and bottom exhaust openings are

four inch (10.2 cm) ducting. Gas models cannot be

vented out left side of cabinet because of burner

housing.

IMPORTANT: The dryer should have sufficient

clearance around it for needed ventilation and for the

ease of installation and servicing. For maximum

drying performance, we recommend that more

clearance be allowed around the dryer than the

clearances that are listed throughout this manual.

ELECTRIC MODELS

D353IE2A

28.0"

(71.1 cm) 26.9"

(68.3 cm)

23.5"

(59.7 cm)

4.0"

(10.2 cm)

*76.5" (194.3 cm)

*45.2" (114.8 cm)

*WITH LEVELING LEGS TURNED INTO BASE.

15.4"

(39.1 cm)

7.7"

(19.6 cm)

7.0"

(17.8 cm)

4.0"

(10.2 cm)

GAS MODELS

D352IE2A

28.0"

(71.1 cm) 26.9"

(68.3 cm)

23.5"

(59.7 cm)

4.0"

(10.2 cm)

*76.5" (194.3 cm)

*45.2" (114.8 cm)

*WITH LEVELING LEGS TURNED INTO BASE.

15.4"

(39.1 cm)

7.7"

(19.6 cm)

7.0"

(17.8 cm)

43.5" (110.5 cm)

4.0"

(10.2 cm) 2.8"

(7.1 cm)

2.3"

(6 cm)

3/8"

NPT GAS

CONNECTION

504524 7

Additional Security . . .

Torx security screws are available (as optional equipment

at extra cost) for securing both lower access panels to

each dryer base. Order part number 62853.

A Torx bit, part number 282P4, is available (as optional

equipment at extra cost) for installing the Torx security

screws.

A Torx bit holder, part number 24161, is available (as

optional equipment at extra cost) to be used with the Torx

bit.

Slide Extension . . .

(Metered Models)

Remove two slide extensions, four screws and

lockwashers from the accesssories bag (located in lower

cylinder) and install the extension on the top of the coin

slide.

IMPORTANT: Slide extension must be attached to

top side of the coin slides to make them long enough to

activate the accumulator.

NOTE: This dryer unit, as shipped from the factory,

does not include the coin slides, coin drawers, lock or

keys. These coin slide kits (or parts) must be ordered,

at extra cost, according to the purchaser’s

requirements direct from the coin kit manufacturer

of your choice.

Timer Cams . . .

(Metered Models)

The dryer timers are factory equipped with a 45 minute

timing cam. If this drying time is not suitable to your

installation, the following cams can be found in the

accessories bag (located in lower cylinder).

ELECTRIC DRYERS

2-53242 Cams (30 Minutes)

2-53240 Cams (60 Minutes)

GAS DRYERS

2-53242 Cams (30 Minutes)

A 60 minute timing cam, Part No. 53240, is available for

the gas dryers as optional equipment at extra cost.

Lower Front Panel Security . . .

(Optional)

(Metered Models)

For added security, remove the two screws (with

lockwashers) from accessories bag (located in lower

cylinder). Install screws as follows:

1. Unlock control panel.

2. Lift up on control panel and swing bottom of panel

out, then pull down and away from control cabinet.

3. Install the two screws down through holes in lower

flange of control cabinet and into top flange of lower

front panel.

8504524

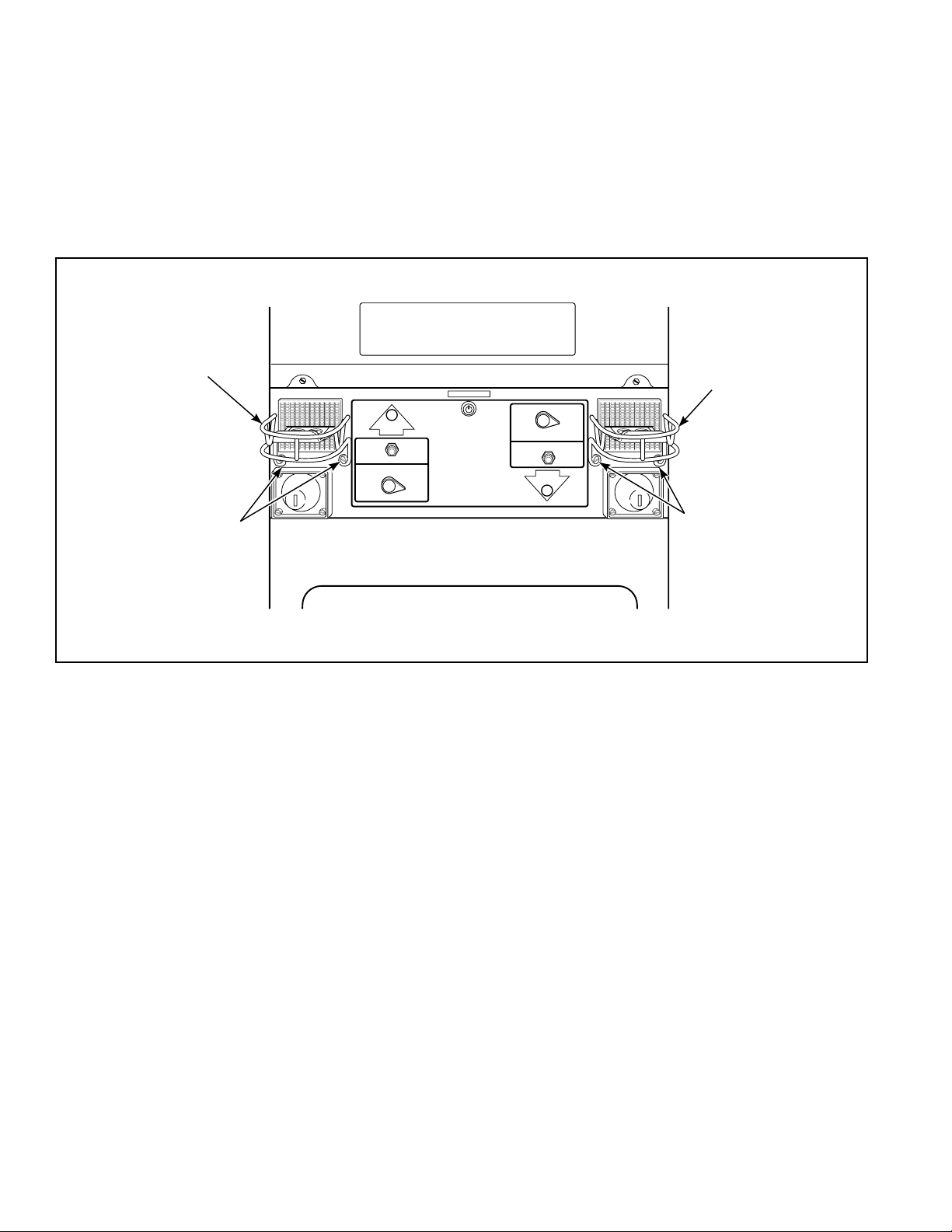

Coin Slide Guards . . .

(Metered Models)

Using serrated hex head screws from accessories bag

(located in lower cylinder), install coin slide guards

(located in accessories bag in lower cylinder), to front of

dryer’s control cabinet. See illustration below.

A special security screw kit is available (as optional

equipment at extra cost) for securing the two coin slide

guards and both front panels to front of dryer unit. Order

Security Kit No. 298P3. A special driver, part number

56217, is available (as optional equipment at extra cost)

for installing the special security screws.

NOTE: Coin slides and coin drawers are shown for illustration only. You must obtain them locally.

PUSH TO START

IN USE

PUSH TO START

FABRIC SELECTOR

PERM PRESS

NORMAL

DELICATE

FLUFF

(NO HEAT)

PERM PRESS

NORMAL

DELICATE

FLUFF

(NO HEAT)

COIN

SLIDE

GUARD

COIN

SLIDE

GUARD

SERRATED

HEX HEAD

SCREWS

SERRATED

HEX HEAD

SCREWS

D193IE3A

Table des matières

Langues :

Autres manuels Alliance Laundry Systems Séchoir

Alliance Laundry Systems

Alliance Laundry Systems ADEE9BSS Manuel utilisateur

Alliance Laundry Systems

Alliance Laundry Systems DRY683C Manuel utilisateur

Alliance Laundry Systems

Alliance Laundry Systems 512042R4 Manuel utilisateur

Alliance Laundry Systems

Alliance Laundry Systems 602004144 Mode d’emploi

Alliance Laundry Systems

Alliance Laundry Systems 25 Pound Capacity Manuel

Alliance Laundry Systems

Alliance Laundry Systems LEB07A*-1709 Manuel utilisateur

Alliance Laundry Systems

Alliance Laundry Systems Speed Queen DF7000WG Manuel utilisateur

Alliance Laundry Systems

Alliance Laundry Systems DRY724C_SVG Mode d’emploi

Alliance Laundry Systems

Alliance Laundry Systems SE5130 Instructions de montage

Alliance Laundry Systems

Alliance Laundry Systems HA025L Guide de dépannage

Alliance Laundry Systems

Alliance Laundry Systems 70260301?8 Manuel utilisateur

Alliance Laundry Systems

Alliance Laundry Systems BDEBCAGS173TN01 Manuel utilisateur

Alliance Laundry Systems

Alliance Laundry Systems 70269701R4 Manuel utilisateur

Alliance Laundry Systems

Alliance Laundry Systems JCD32DG Manuel utilisateur

Alliance Laundry Systems

Alliance Laundry Systems DRY684C Manuel utilisateur

Alliance Laundry Systems

Alliance Laundry Systems 120 Pound Capacity Manuel d'installation et d'exploitation

Alliance Laundry Systems

Alliance Laundry Systems TMB1276C Manuel du propriétaire

Alliance Laundry Systems

Alliance Laundry Systems Drying Tumbler 110 Pound Capacity Part No.... Manuel d'installation et d'exploitation

Alliance Laundry Systems

Alliance Laundry Systems W800 Guide de dépannage

Alliance Laundry Systems

Alliance Laundry Systems CA120L Manuel du propriétaire

Alliance Laundry Systems

Alliance Laundry Systems LES19A SERIES Manuel utilisateur

Alliance Laundry Systems

Alliance Laundry Systems LES33 Manuel utilisateur

Alliance Laundry Systems

Alliance Laundry Systems DRY722C-SVG Mode d’emploi

Alliance Laundry Systems

Alliance Laundry Systems AE Series Manuel utilisateur

Manuels Séchoir populaires d'autres marques

Bosch

Bosch WTA79200GB Manuel utilisateur

Amana

Amana W10233410A Manuel utilisateur

Miele

Miele TWH 780 WP Manuel utilisateur

Asko

Asko T760 Manuel utilisateur

Bosch

Bosch Logixx 10 WTB76556GB Fiche technique

STIEBEL ELTRON

STIEBEL ELTRON Ultronic S Mode d’emploi

Electrolux

Electrolux EW2H328R2 Manuel utilisateur

Beko

Beko DS8433RX1M Manuel utilisateur

Dawlance

Dawlance Spinner DS 6000 C Manuel utilisateur

Electrolux

Electrolux TP5080TW Manuel utilisateur

AEG

AEG TR838P4OB Manuel utilisateur

Indesit

Indesit IDV 75 Manuel utilisateur

Infiniton

Infiniton SD-DG85C Manuel utilisateur

BOMANN

BOMANN WT 5019 Manuel utilisateur

Asko

Asko T793C Manuel utilisateur

Kenmore

Kenmore 8041 - 5.8 cu. Ft. Capacity Electric Dryer Manuel utilisateur

Frigidaire

Frigidaire CAQE7077KW0 Manuel du propriétaire

Bosch

Bosch WTX8HKM9SN Manuel utilisateur
