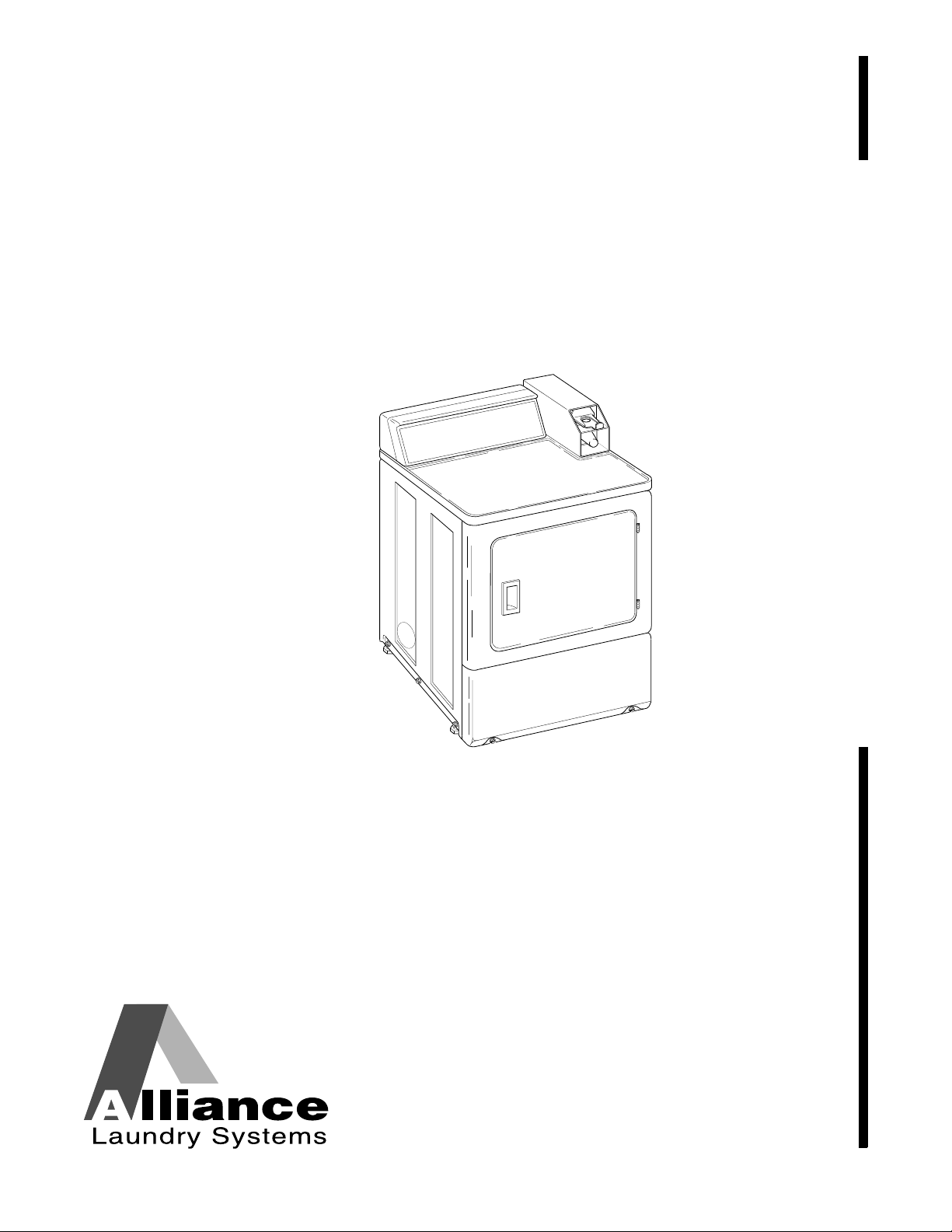

Alliance Laundry Systems 504522R3 Manuel du propriétaire

Installation and Operation

Dryer

Metered and Nonmetered

Electric and Gas Models

Part No. 504522R3

July 1998

NOTA: El manual en español aparece después del manual en inglés.

D334IE1D

504522 1

KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE. (If the dryer changes ownership, be

sure this manual accompanies the dryer.)

IMPORTANT: Purchaser must consult the local gas supplier for suggested instructions to be

followed if the dryer user smells gas. The gas utility instructions plus the SAFETY and

WARNING note directly above must be posted in a prominent location near the dryer for

customer use.

• Do not store or use gasoline or other flammable vapors and liquids in the vicinity of

this or any other appliance.

• WHAT TO DO IF YOU SMELL GAS:

– Do not try to light any appliance.

– Do not touch any electrical switch; do not use any phone in your building.

– Clear the room, building or area of all occupants.

– Immediately call your gas supplier from a neighbor’s phone. Follow the gas supplier’s

instructions.

– If you cannot reach your gas supplier, call the fire department.

• Installation and service must be performed by a qualified installer, service agency or

the gas supplier. W052

FOR YOUR SAFETY, the information in this manual must be followed to minimize the

risk of fire or explosion or to prevent property damage, personal injury or death.W033

WARNING

FOR YOUR SAFETY

Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or

any other appliance.

2504522

Replacement Parts . . .

If replacement parts are required, contact the source

where you purchased your dryer, or contact Alliance Laundry Systems LLC

Shepard Street

P.O. Box 990

Ripon, WI 54971-0990

Phone:

(920) 748-3950

for the name and address of the nearest authorized parts

distributor.

Table of

Contents

Replacement Parts ............................................................................... 2

Important Safety Instructions.............................................................. 3

Roughing In Dimensions ..................................................................... 5

Meter Case............................................................................................. 7

Timer Cams ........................................................................................... 7

Dryer Slide Extension .......................................................................... 8

Before You Start ................................................................................... 9

Installing the Dryer

Step 1 – Position and Level the Dryer ........................................... 10

Step 2 – Connect Dryer Exhaust System........................................ 10

Step 3 – Connect Gas Supply Pipe.................................................11

Step 4 – Connect Electrical Plug.................................................... 12

Step 5 – Wipe Out Inside of Dryer ................................................. 13

Step 6 – Plug in the Dryer .............................................................. 13

Step 7 – Check Installation.............................................................13

Heat Source Check ............................................................................. 14

Reversing Door Procedure ................................................................ 15

Manufactured (Mobile) Home Installation ...................................... 16

Electrical Requirements (Electric Dryers) ....................................... 17

Electrical Connection ......................................................................... 18

Three-Wire Power Cord ................................................................. 18

Four-Wire Power Cord .................................................................. 20

Electrical Requirements (Gas Dryers) ............................................. 22

Gas Requirements ............................................................................. 24

Location Requirements ..................................................................... 25

Dryer Exhaust Requirements ........................................................... 26

Multi-Dryer Installation Exhuast Requirements ............................. 29

Lint Filter............................................................................................. 32

Motor Overload Protector.................................................................. 32

User-Maintenance Instructions ......................................................... 33

For Energy Conservation ................................................................... 33

Before You Call for Service ................................................................ 34

Additional Dryer Security.................................................................. 35

Operation Instructions For Electromechanical Dryers .................. 36

Operation Instructions for Electronic Control Dryers.................... 38

Information for Handy Reference .................................................... 41

Installer Check .................................................................... Back Cover

the written permission of the publisher.

504522 3

IMPORTANT SAFETY INSTRUCTIONS

(SAVE THESE INSTRUCTIONS)

1. Read all instructions before using the dryer.

2. Refer to the GROUNDING INSTRUCTIONS in

the INSTALLATION manual for the proper

grounding of the dryer.

3. Do not dry articles that have been previously

cleaned in, washed in, soaked in, or spotted with

gasoline, dry-cleaning solvents, other flammable

or explosive substances as they give off vapors

that could ignite or explode.

4. Do not allow children to play on or in the dryer.

Close supervision of children is necessary when

the dryer is used near children. This is a safety

rule for all appliances.

5. Before the dryer is removed from service or

discarded, remove the door to the drying

compartment.

6. Do not reach into the dryer if the cylinder is

revolving.

7. Do not install or store the dryer where it will be

exposed to water and/or weather.

8. Do not tamper with the controls.

9. Do not repair or replace any part of the dryer, or

attempt any servicing unless specifically

recommended in the user-maintenance

instructions or in published user-repair

instructions that you understand and have the

skills to carry out.

10. Do not use fabric softeners or products to

eliminate static unless recommended by the

manufacturer of the fabric softener or product.

11. To reduce the risk of fire, DO NOT DRY plastics

or articles containing foam rubber or similarly

textured rubberlike materials.

12. ALWAYS clean the lint filter after every load. A

layer of lint in the filter reduces drying efficiency

and prolongs drying time.

13. Keep area around the exhaust opening and

adjacent surrounding area free from the

accumulation of lint, dust and dirt.

14. The interior of the dryer and the exhaust duct

should be cleaned periodically by qualified

service personnel.

15. If not installed, operated and maintained in

accordance with the manufacturer’s instructions

or if there is damage to or mishandling of this

product’s components, use of this product could

expose you to substances in the fuel or from fuel

combustion which can cause death or serious

illness and which are known to the State of

California to cause cancer, birth defects or other

reproductive harm.

16. Dryer will not operate with the loading door

open. DO NOT by-pass the door safety switch by

permitting the dryer to operate with the door

open. The dryer will stop tumbling when the door

is opened. Do not use the dryer if it does not stop

tumbling when the door is opened or starts

tumbling without pressing the START

mechanism. Remove the dryer from use and call

the service person.

17. Do not put articles soiled with vegetable or

cooking oil in the dryer, as these oils may not be

removed during washing. Due to the remaining

oil, the fabric may catch on fire by itself.

18. To reduce the risk of fire, DO NOT put clothes

which have traces of any flammable substances

such as machine oil, flammable chemicals,

thinner, etc., or anything containing wax or

chemicals such as in mops and cleaning cloths, or

anything dry-cleaned at home with a dry-

cleaning solvent in the dryer.

19. Use the dryer only for its intended purpose,

drying clothes.

20. Always disconnect the electrical power to the

dryer before attempting service. Disconnect the

power cord by grasping the plug, not the cord.

21. Replace worn power cords and/or loose plugs.

22. Install this dryer according to the

INSTALLATION INSTRUCTIONS. All

connections for electrical power, grounding and

gas supply must comply with local codes and be

made by licensed personnel when required. Do

not do it yourself unless you know how!

23. Remove laundry immediately after the dryer

stops.

To reduce the risk of fire, electric shock, or

injury to persons when using your dryer,

follow these basic precautions:

W034

WARNING

4504522

24. Always read and follow manufacturer’s

instructions on packages of laundry and cleaning

aids. Heed all warnings or precautions. To reduce

the risk of poisoning or chemical burns, keep

them out of reach of children at all times

(preferably in a locked cabinet).

25. Do not tumble fiber glass curtains and draperies

unless the label says it can be done. If they are

dried, wipe out the cylinder with a damp cloth to

remove particles of fiber glass.

26. ALWAYS follow the fabric care instructions

supplied by the garment manufacturer.

27. Never operate the dryer with any guards and/or

panels removed.

28. DO NOT operate the dryer with missing or

broken parts.

29. DO NOT by-pass any safety devices.

30. Failure to install, maintain, and/or operate this

machine according to the manufacturer’s

instructions may result in conditions which can

produce bodily injury and/or property damage.

IMPORTANT: Solvent vapors from dry-cleaning

machines create acids when drawn through the heater

of the drying unit. These acids are corrosive to the

dryer as well as to the laundry load being dried. Be

sure make-up air is free of solvent vapors.

IMPORTANT: Have your dryer installed properly.

Don’t do it yourself unless you know how!

NOTE: The WARNING and IMPORTANT

SAFETY INSTRUCTIONS appearing in this manual

are not meant to cover all possible conditions and

situations that may occur. Common sense, caution

and care must be exercised when installing,

maintaining, or operating the dryer.

Always contact your dealer, distributor, service agent or

the manufacturer about any problems or conditions you

do not understand.

504522 5

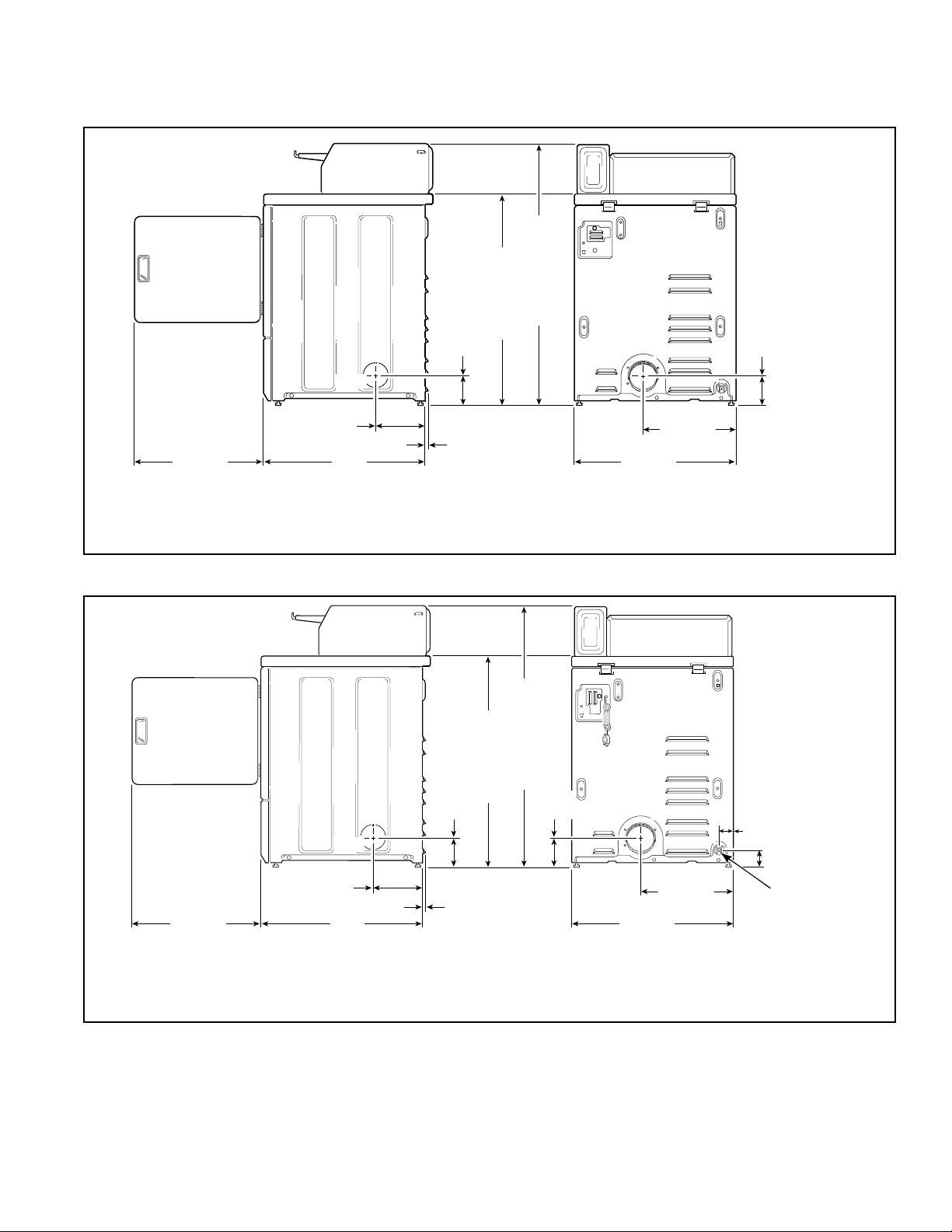

Roughing In Dimensions . . .

(Metered Models)

NOTE: Side, rear and bottom exhaust openings are

four inch (10.2 cm) ducting. Gas models cannot be

vented out left side of cabinet because of burner

housing.

IMPORTANT: The dryer should have sufficient

clearance around it for needed ventilation and for the

ease of installation and servicing. For maximum

drying performance, we recommend that more

clearance be allowed around the dryer than the

clearances that are listed throughout this manual.

ELECTRIC MODELS

D329IE3A

23.5"

(59.7 cm)

*36" (91.4 cm)

*43.2" (109.7 cm)

28"

(71.1 cm)

.4"

(1.0 cm) 26.9"

(68.3 cm)

7.7"

(19.6 cm)

4.0"

(10.2 cm)

15.4"

(39.1 cm)

4.0"

(10.2 cm)

* WITH LEVELING LEGS TURNED INTO BASE.

GAS MODELS

D330IE3A

23.5"

(59.7 cm)

*36" (91.4 cm)

*43.2" (109.7 cm)

28"

(71.1 cm)

.4"

(1.0 cm) 26.9"

(68.3 cm)

7.7"

(19.6 cm)

15.4"

(39.1 cm)

4.0"

(10.2 cm)

* WITH LEVELING LEGS TURNED INTO BASE.

2.8"

(7 cm)

2.3"

(6 cm)

4.0"

(10.2 cm)

3/8"

NPT GAS

CONNECTION

6504522

(Nonmetered Models)

NOTE: Side, rear and bottom exhaust openings are

four inch (10.2 cm) ducting. Gas models cannot be

vented out left side of cabinet because of burner

housing.

IMPORTANT: The dryer should have sufficient

clearance around it for needed ventilation and for the

ease of installation and servicing. For maximum

drying performance, we recommend that more

clearance be allowed around the dryer than the

clearances that are listed throughout this manual.

ELECTRIC MODELS

D331IE3A

23.5"

(59.7 cm)

*36" (91.4 cm)

*43.2" (109.7 cm)

28"

(71.1 cm)

.4"

(1.0 cm) 26.9"

(68.3 cm)

7.7"

(19.6 cm)

4.0"

(10.2 cm)

* WITH LEVELING LEGS TURNED INTO BASE.

15.4"

(39.1 cm)

4.0"

(10.2 cm)

GAS MODELS

D332IE3A

23.5"

(59.7 cm)

*36" (91.4 cm)

*43.2" (109.7 cm)

28"

(71.1 cm)

.4"

(1.0 cm) 26.9"

(68.3 cm)

7.7"

(19.6 cm)

15.4"

(39.1 cm)

4.0"

(10.2 cm)

* WITH LEVELING LEGS TURNED INTO BASE.

3/8"

NPT GAS

CONNECTION

2.8"

(7 cm)

2.3"

(6 cm)

4.0"

(10.2 cm)

504522 7

Meter Case . . .

(Metered Models)

The factory mounted coin meter case does not include the

service door lock, coin drawer, coin drawer lock and

keys. These parts must be ordered (at extra cost)

according to the purchaser’s requirements direct from the

manufacturer of your choice.

NOTE: You have the option of using a screw type lock

or a 1/4 turn lock on the meter case service door. If

you choose to use a screw lock, then the special

bracket (located inside the meter case) must be used.

DO NOT use the special bracket if a 1/4 turn lock is

used.

Coin Drawer Security —for additional security, drill

out the two pilot holes on each front side of the meter case

to 1/4 or 5/16 inch (6.4 or 8.0 mm) holes and install a

bicycle lock through these holes.

Timer Cams . . .

(Metered Models)

The dryer timer is factory equipped with a 45 minute

timing cam. If this drying time is not suitable to your installation, the following cams can be found in the

envelope located in the cylinder:

Electric Dryers Gas Dryers

1-53242 Cams (30 Minutes) 1-53242 Cams (30 Minutes)

1-53240 Cams (60 Minutes)

A 60 minute timing cam, Part No. 53240, is available for gas

dryers as optional equipment at extra cost.

8504522

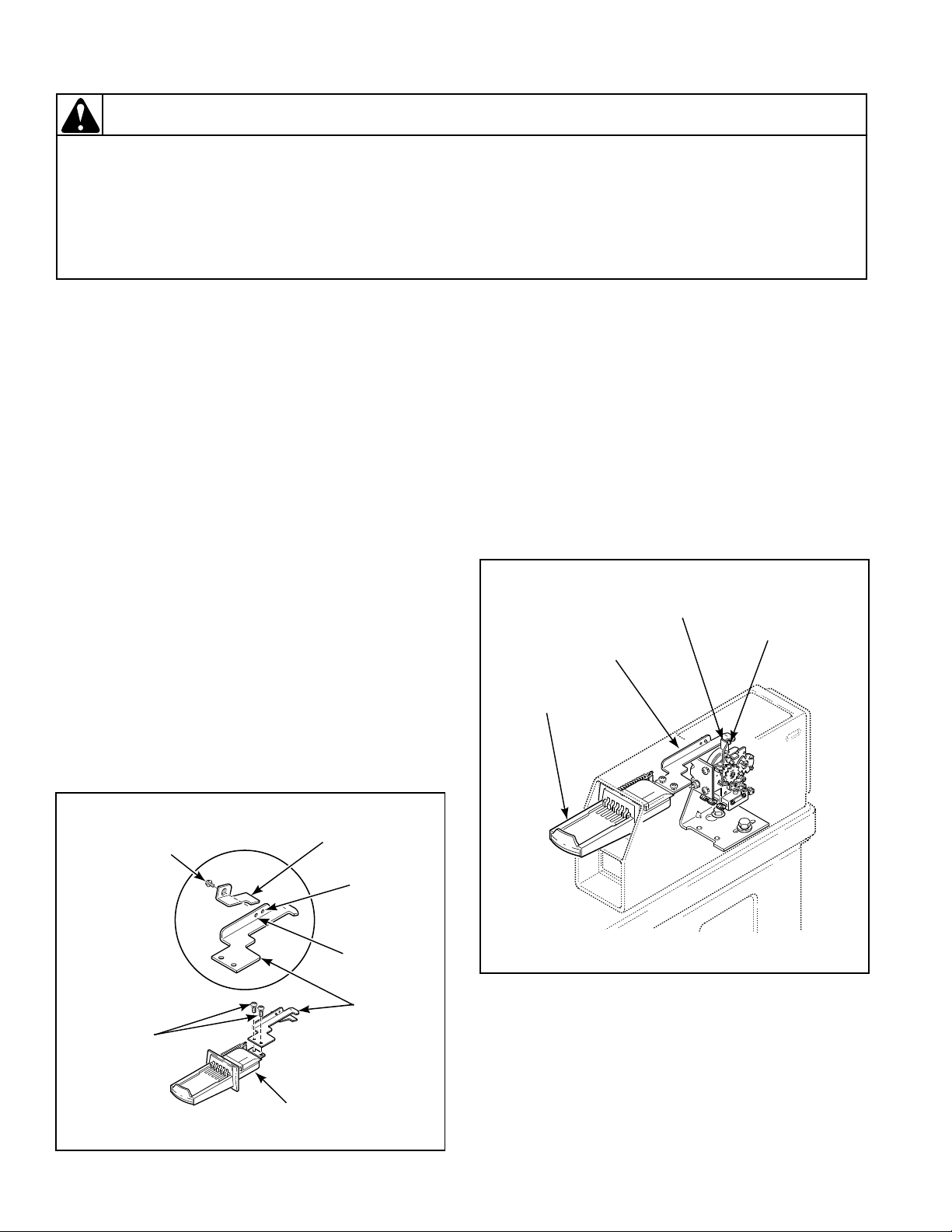

Dryer Slide Extension . . .

1. Assemble coin slide extension, No. 503733, to top

side of coin slide using two Phillips head screws and

lockwashers, No. 03950. Tighten firmly. See

illustration below.

2. Install slide extension modifier, No. 501796, as

follows:

NOTE: Dryers equipped with Greenwald coin slides

(except for Greenwald Comet Slide or Greenwald

Tokette Slide) do not require the use of the slide

extension modifier.

•ESD Coin Slide —Mount slide extension

modifier, No. 501796, to the underside of slide

extension, No. 503733. Align the hole in the slide

extension modifer with hole "A" in the slide

extension and install self-tapping screw, No.

501086. Tighten firmly. See illustration below.

•GREENWALD Comet Slide, GREENWALD

Tokette Slide or MONARCH Coin Slide —

Mount slide extension modifier, No. 501796, to the

underside of slide extension, No. 503733. Align the

hole in the slide extension modifier with hole "B"

in the slide extension and install self-tapping screw,

No. 501086. Tighten firmly. See illustration below.

3. Reinstall coin slide in dryer meter case.

4. CHECK DRYER OPERATION —Connect

electrical power to dryer. Place required number of

coins in coin slide. Push slide in, and observe through

service door opening in meter case. The slide

extension should be contacting the accumulator

actuator arm and moving back with slide travel.

When slide is pushed all the way in, slide is retracted.

Accumulator actuator arm should remain back until slide

extension is moved forward and contacts actuator arm

again, returning arm to starting position. See illustration

below.

5. After completing the dryer check, reinstall service

door on top of meter case.

NOTE: When reinstalling service door, front of door

must be inserted at about a 45°angle in order to

engage notched tabs with internal rib at top of meter

case.

To reduce the risk of electric shock, fire, explosion, serious injury or death:

•Disconnect electric power to the dryer(s) before servicing.

•Close gas shut-off valve to gas dryer(s) before servicing.

•Never start the dryer(s) with any guards/panels removed.

•Whenever ground wires are removed during servicing, these ground wires must be reconnected

to ensure that the dryer is properly grounded.

W001R1

WARNING

D019KE1C

COIN

SLIDE

03950

PHILLIPS

HEAD

SCREWS

AND

LOCKWASHERS

HOLE "B"

503733

SLIDE

EXTENSION

HOLE "A"

501796

SLIDE EXTENSION

MODIFIER

501086

SELF-TAPPING

SCREW

D044KE1A

ACCUMULATOR

ACTUATOR ARM SLIDE

EXTENSION

MODIFIER

SLIDE

EXTENSION

COIN

SLIDE

Table des matières

Langues :

Autres manuels Alliance Laundry Systems Séchoir

Alliance Laundry Systems

Alliance Laundry Systems 70223701R2 Manuel utilisateur

Alliance Laundry Systems

Alliance Laundry Systems Huebsch DR5102WG Manuel utilisateur

Alliance Laundry Systems

Alliance Laundry Systems AT170FG Manuel utilisateur

Alliance Laundry Systems

Alliance Laundry Systems TLW1991N Manuel utilisateur

Alliance Laundry Systems

Alliance Laundry Systems SFG109*F Mode d’emploi

Alliance Laundry Systems

Alliance Laundry Systems DRY735C SVG Series Manuel utilisateur

Alliance Laundry Systems

Alliance Laundry Systems 513006R3 Mode d’emploi

Alliance Laundry Systems

Alliance Laundry Systems 510977R9 Mode d’emploi

Alliance Laundry Systems

Alliance Laundry Systems CHD25G2-CA025L Manuel du propriétaire

Alliance Laundry Systems

Alliance Laundry Systems UniLinc 35 Series Manuel utilisateur

Alliance Laundry Systems

Alliance Laundry Systems DR5004WE Manuel utilisateur

Alliance Laundry Systems

Alliance Laundry Systems HSE117*A Manuel utilisateur

Alliance Laundry Systems

Alliance Laundry Systems 505828 Manuel utilisateur

Alliance Laundry Systems

Alliance Laundry Systems 25 Pound Capacity Manuel

Alliance Laundry Systems

Alliance Laundry Systems AES17AWF Instructions de montage

Alliance Laundry Systems

Alliance Laundry Systems SFE107*A Manuel utilisateur

Alliance Laundry Systems

Alliance Laundry Systems LES33 Manuel utilisateur

Alliance Laundry Systems

Alliance Laundry Systems DRY684C Manuel utilisateur

Alliance Laundry Systems

Alliance Laundry Systems 513218R5 Manuel utilisateur

Alliance Laundry Systems

Alliance Laundry Systems Speed Queen DR5003WG Manuel utilisateur

Alliance Laundry Systems

Alliance Laundry Systems AT120FG Manuel utilisateur

Alliance Laundry Systems

Alliance Laundry Systems 504523R3 Manuel du propriétaire

Alliance Laundry Systems

Alliance Laundry Systems Speed Queen DR7004WE Manuel utilisateur

Alliance Laundry Systems

Alliance Laundry Systems CHD25G2-CT025L Mode d'emploi

Manuels Séchoir populaires d'autres marques

Bosch

Bosch WTA79200GB Manuel utilisateur

Amana

Amana W10233410A Manuel utilisateur

Miele

Miele TWH 780 WP Manuel utilisateur

Asko

Asko T760 Manuel utilisateur

Bosch

Bosch Logixx 10 WTB76556GB Fiche technique

STIEBEL ELTRON

STIEBEL ELTRON Ultronic S Mode d’emploi

Electrolux

Electrolux EW2H328R2 Manuel utilisateur

Beko

Beko DS8433RX1M Manuel utilisateur

Dawlance

Dawlance Spinner DS 6000 C Manuel utilisateur

Electrolux

Electrolux TP5080TW Manuel utilisateur

AEG

AEG TR838P4OB Manuel utilisateur

Indesit

Indesit IDV 75 Manuel utilisateur

Infiniton

Infiniton SD-DG85C Manuel utilisateur

BOMANN

BOMANN WT 5019 Manuel utilisateur

Asko

Asko T793C Manuel utilisateur

Kenmore

Kenmore 8041 - 5.8 cu. Ft. Capacity Electric Dryer Manuel utilisateur

Frigidaire

Frigidaire CAQE7077KW0 Manuel du propriétaire

Bosch

Bosch WTX8HKM9SN Manuel utilisateur
