Alliance Laundry Systems 513257R1 Mode d’emploi

Installation/Operation

www.comlaundry.com

Stacked Clothes

Dryers

Electric and Gas Models

DRY711C

REMARQUE : Le guide

est rédigé en anglais et

en français. La version

francaise figure à la

suite de la version

anglaise.

Part No. 513257R1

August 2011

Keep These Instructions for Future Reference.

(If this machine changes ownership, this manual must accompany machine.)

IMPORTANT: Purchaser must consult the local gas supplier for suggested instructions to be followed if the

unit user smells gas. The gas utility instructions plus the SAFETY and WARNING note directly above must

be posted in a prominent location near the unit for customer use.

• Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or

any other appliance.

• WHAT TO DO IF YOU SMELL GAS:

– Do not try to light any appliance.

– Do not touch any electrical switch; do not use any phone in your building.

– Clear the room, building or area of all occupants.

– Immediately call your gas supplier from a neighbor’s phone. Follow the gas supplier’s

instructions.

– If you cannot reach your gas supplier, call the fire department.

• Installation and service must be performed by a qualified installer, service agency or the

gas supplier.

W052

FOR YOUR SAFETY, the information in this manual must be followed to minimize

the risk of fire or explosion or to prevent property damage, personal injury or

death. Keep this manual for future reference. If this machine changes ownership,

this manual must accompany machine.

W755

WARNING

• Installation of unit must be performed by a qualified installer.

• Install clothes dryer according to manufacturer’s instructions and local codes.

• DO NOT install a clothes dryer with flexible plastic venting materials. If flexible metal (foil

type) duct is installed, it must be of a specific type identified by the appliance manufacturer

as suitable for use with clothes dryers. Refer to section on connecting exhaust system.

Flexible venting materials are known to collapse, be easily crushed, and trap lint. These

conditions will obstruct clothes dryer airflow and increase the risk of fire.

W729R1

WARNING

FOR YOUR SAFETY

Do not store or use gasoline or other flammable vapors and liquids in the vicinity of

this or any other appliance.

W053

means without the expressed written consent of the publisher.

513257

Table of

Contents

Safety Information.............................................................................. 3

Explanation of Safety Messages........................................................... 3

Important Safety Instructions ............................................................... 3

Installation........................................................................................... 5

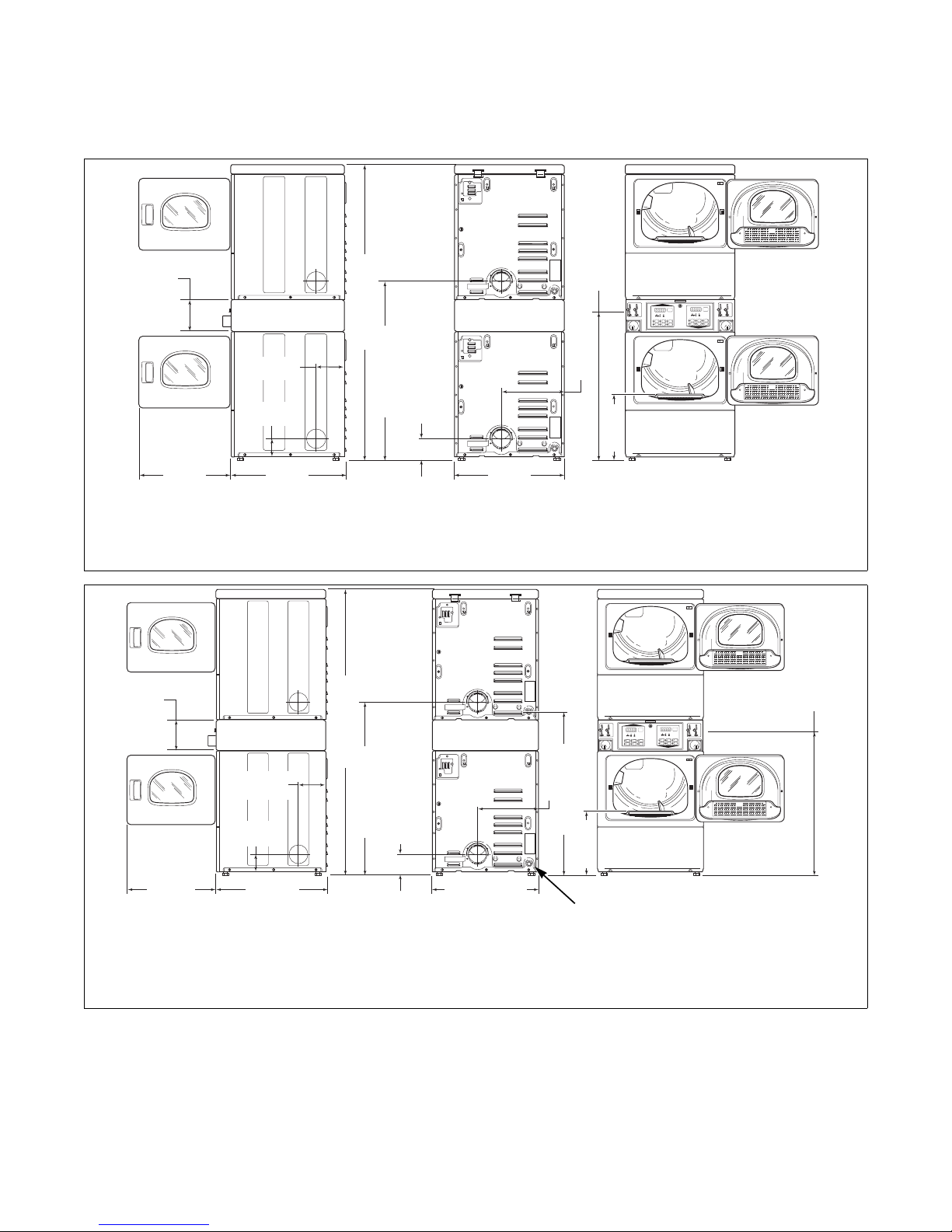

Dimensions ........................................................................................... 5

Before You Start................................................................................... 6

Tools ................................................................................................ 6

Additional Security............................................................................... 6

Installing the Dryer............................................................................... 7

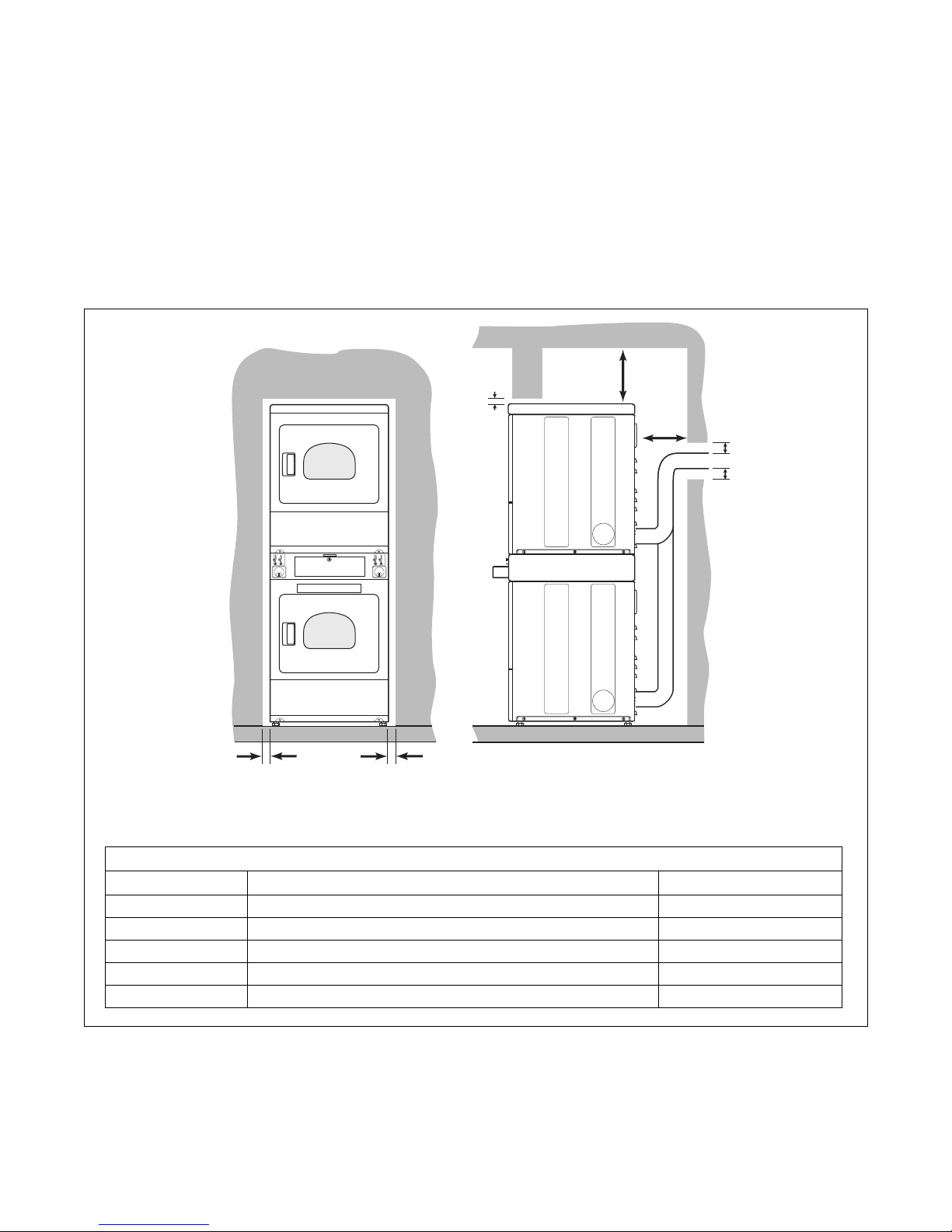

Step 1: Position and Level the Dryer ............................................... 7

Step 2: Connect Dryer Unit Exhaust System................................... 8

Step 3: (Gas Dryer Only) Connect Gas Supply Pipe ....................... 13

Step 4: Reverse Door, if Desired ..................................................... 14

Step 5: Wipe Out Inside of Dryer .................................................... 16

Step 6: Connect Unit to Electrical Power ........................................ 16

Step 7: Recheck Steps 1-6................................................................ 18

Step 8: Check Heat Source .............................................................. 18

Operation............................................................................................. 20

Operation Instructions .......................................................................... 20

Step 1: Clean Lint Filter................................................................... 20

Step 2: Load Laundry....................................................................... 20

Step 3: Close Loading Door............................................................. 20

Step 4: Determine Proper Dryer ...................................................... 21

Step 5: Set Fabric Selector............................................................... 21

Step 6: Insert Coin(s) or Card .......................................................... 21

Step 7: Start Dryer ........................................................................... 22

Indicator Lights................................................................................ 22

Maintenance ........................................................................................ 23

Lubrication............................................................................................ 23

Care of Your Dryer............................................................................... 23

Dryer Interior ................................................................................... 23

Cabinet ............................................................................................. 23

Control Panel ................................................................................... 23

Exhaust System................................................................................ 23

Lint Filter.............................................................................................. 24

Motor Overload Protector..................................................................... 24

For Energy Conservation...................................................................... 24

Troubleshooting .................................................................................. 25

Contact Information........................................................................... 26

Installer Checklist............................................................... Back Cover

513257

Safety Information

Explanation of Safety Messages

Throughout this manual and on machine decals, you

will find precautionary statements (“DANGER,”

“WARNING,” and “CAUTION”) followed by specific

instructions. These precautions are intended for the

personal safety of the operator, user, servicer, and

those maintaining the machine.

Additional precautionary statements (“IMPORTANT”

and “NOTE”) are followed by specific instructions.

IMPORTANT: The word “IMPORTANT” is used

to inform the reader of specific procedures where

minor machine damage will occur if the procedure

is not followed.

NOTE: The word “NOTE” is used to communicate

installation, operation, maintenance or servicing

information that is important but not hazard

related.

Important Safety Instructions

Save These Instructions

1. Read all instructions before using the dryer.

2. Refer to the GROUNDING INSTRUCTIONS in

the INSTALLATION manual for the proper

grounding of the dryer.

3. Do not dry articles that have been previously

cleaned in, washed in, soaked in, or spotted with

gasoline, dry-cleaning solvents, other flammable

or explosive substances as they give off vapors

that could ignite or explode.

4. Do not allow children to play on or in the dryer.

Close supervision of children is necessary when

the dryer is used near children. This is a safety

rule for all appliances.

5. Before the dryer is removed from service or

discarded, remove the door to the drying

compartment.

6. Do not reach into the dryer if the cylinder is

revolving.

7. Do not install or store the dryer where it will be

exposed to water and/or weather.

8. Do not tamper with the controls.

9. Do not repair or replace any part of the dryer, or

attempt any servicing unless specifically

recommended in the user-maintenance

instructions or in published user-repair

instructions that you understand and have the

skills to carry out.

10. Do not use fabric softeners or products to

eliminate static unless recommended by the

manufacturer of the fabric softener or product.

11. To reduce the risk of fire, DO NOT DRY plastics

or articles containing foam rubber or similarly

textured rubberlike materials.

12. ALWAYS clean the lint filter after every load. A

layer of lint in the filter reduces drying efficiency

and prolongs drying time.

Indicates an imminently hazardous

situation that, if not avoided, will cause

severe personal injury or death.

DANGER

Indicates a hazardous situation that, if not

avoided, could cause severe personal

injury or death.

WARNING

Indicates a hazardous situation that, if not

avoided, may cause minor or moderate

personal injury or property damage.

CAUTION

To reduce the risk of fire, electric shock,

or injury to persons when using your

dryer, follow these basic precautions:

W034

WARNING

Safety Information

513257

13. Keep area around the exhaust opening and

adjacent surrounding area free from the

accumulation of lint, dust and dirt.

14. The interior of the dryer and the exhaust duct

should be cleaned periodically by qualified

service personnel.

15. If not installed, operated and maintained in

accordance with the manufacturer’s instructions

or if there is damage to or mishandling of this

product’s components, use of this product could

expose you to substances in the fuel or from fuel

combustion which can cause death or serious

illness and which are known to the State of

California to cause cancer, birth defects or other

reproductive harm.

16. Dryer will not operate with the loading door

open. DO NOT bypass the door safety switch by

permitting the dryer to operate with the door

open. The dryer will stop tumbling when the door

is opened. Do not use the dryer if it does not stop

tumbling when the door is opened or starts

tumbling without pressing the START

mechanism. Remove the dryer from use and call

the service person.

17. Do not put articles soiled with vegetable or

cooking oil in the dryer, as these oils may not be

removed during washing. Due to the remaining

oil, the fabric may catch on fire by itself.

18. To reduce the risk of fire, DO NOT put clothes

which have traces of any flammable substances

such as machine oil, flammable chemicals,

thinner, etc., or anything containing wax or

chemicals such as in mops and cleaning cloths, or

anything dry-cleaned at home with a dry-

cleaning solvent in the dryer.

19. Use the dryer only for its intended purpose,

drying clothes.

20. Always disconnect the electrical power to the

dryer before attempting service. Disconnect the

power cord by grasping the plug, not the cord.

21. If supply cord is damaged, it must be replaced by

a special cord or assembly available from the

manufacturer or its service agent.

22. Install this dryer according to the

INSTALLATION INSTRUCTIONS. All

connections for electrical power, grounding and

gas supply must comply with local codes and be

made by licensed personnel when required. Do

not do it yourself unless you know how!

23. Remove laundry immediately after the dryer

stops.

24. Always read and follow manufacturer’s

instructions on packages of laundry and cleaning

aids. Heed all warnings or precautions. To reduce

the risk of poisoning or chemical burns, keep

them out of reach of children at all times

(preferably in a locked cabinet).

25. Do not tumble fiberglass curtains and draperies

unless the label says it can be done. If they are

dried, wipe out the cylinder with a damp cloth to

remove particles of fiberglass.

26. ALWAYS follow the fabric care instructions

supplied by the garment manufacturer.

27. Never operate the dryer with any guards and/or

panels removed.

28. DO NOT operate the dryer with missing or

broken parts.

29. DO NOT bypass any safety devices.

30. DO NOT operate dryers if the units have been

separated.

31. Failure to install, maintain, and/or operate this

machine according to the manufacturer’s

instructions may result in conditions which can

produce bodily injury and/or property damage.

IMPORTANT: Solvent vapors from dry-cleaning

machines create acids when drawn through the

heater of the drying unit. These acids are corrosive

to the dryer as well as to the laundry load being

dried. Be sure make-up air is free of solvent vapors.

IMPORTANT: Have your dryer installed properly.

Don’t do it yourself unless you know how!

NOTE: The WARNING and IMPORTANT

SAFETY INSTRUCTIONS appearing in this

manual are not meant to cover all possible

conditions and situations that may occur. Common

sense, caution and care must be exercised when

installing, maintaining, or operating the dryer.

Always contact your dealer, distributor, service agent

or the manufacturer about any problems or conditions

you do not understand.

513257

Installation

Dimensions

NOTE: Side, rear and bottom exhaust openings are

10.2 cm (4 in.) ducting. Gas models cannot be

vented out left side of cabinet because of burner

housing.

IMPORTANT: The dryer should have sufficient

clearance around it for needed ventilation and for

the ease of installation and servicing. For maximum

drying performance, we recommend that more

clearance be allowed around the dryer than the

clearances that are listed throughout this manual.

DRY2364N

*With leveling legs turned into base. NOTE: Not all models have windows.

17.8 cm

(7 in.)

*194.3 cm (76.5 in.)

*113.8 cm (44.8 in.)

20.3 cm

(8 in.)

10.2 cm

(4 in.)

ELECTRIC MODELS

11.4 cm

(4.5 in.)

39.4 cm (15.5 in.)

39.2 cm

(15.44 in.)

**93.8 cm (36.94 in.)

68.3 cm

(26.9 in.)

71.1 cm

(28.0 in.)

59.7 cm

(23.5 in.)

DRY2365N

*With leveling legs turned into base. NOTE: Not all models have windows.

13/8 in. N.P.T. Gas Connection

DRY2365N

17.8 cm

(7 in.)

*194.3 cm (76.5 in.)

*113.8 cm (44.8 in.)

59.7 cm

(23.5 in.)

10.2 cm

(4 in.)

68.3 cm (26.9 in.)

71.1 cm

(28.0 in.)

GAS MODELS

20.3 cm

(8 in.)

11.4 cm

(4.5 in.)

39.4 cm (15.5 in.)

39.2 cm

(15.44 in.)

*93.8 cm (36.94 in.)

110.5 cm (43.5 in.)

Installation

513257

Before You Start

Tools

For most installations, the basic tools you will need

are:

Figure 1

NOTE: An 20.32 cm (8 in.) coin drawer is required

for coin operated models.

Additional Security

Torx security screws are available (as optional

equipment at extra cost) for securing both lower access

panels to each dryer base. Order Part No. 62853.

A Torx bit, Part No. 282P4, is available (as optional

equipment at extra cost) for installing the Torx security

screws.

A Torx bit holder, Part No. 24161, is available (as

optional equipment at extra cost) to be used with the

Torx bit.

D818I

1Wrench

2Screwdrivers

3Level

4Teflon Tape

5Duct Tape

Any disassembly requiring the use of

tools must be performed by a suitably

qualified service person.

W299

WARNING

Installation

513257

Installing the Dryer

Step 1: Position and Level the Dryer

Install dryer before washer. This allows room for

attaching exhaust duct.

Install the four rubber feet (in accessories bag).

Select a location with a solid floor. Dryers installed in

residential garages must be elevated 46 cm (18 inches)

above the floor.

No other fuel burning appliance should be installed in

the same closet with the dryer.

The dryer unit must not be installed or stored in an

area where it will be exposed to water and/or weather.

The dryer needs sufficient clearance and an adequate

air supply for proper operation and ventilation, and for

easier installation and servicing. (Minimum clearances

are shown in Figure 2).

Figure 2

DRY2370N

NOTE: Shaded areas indicate adjacent structure.

DRY2370N

Dryer and Exhaust Duct Clearances

Area Description Minimum Clearance

A Dryer Sides 0 cm (0 in.)

B Dryer Top (Rear 24 in.) 30.5 cm (12 in.)

C Dryer Rear 10.2 cm (4 in.)

D Dryer Top (Front 4 in.) 1.3 cm (0.5 in.)

E Exhaust Duct from Combustible Construction 5.1 cm (2 in.)

Installation

513257

Place the dryer in position, and adjust the legs until the

dryer is level from side to side and front to back.

Leveling legs can be adjusted from inside the dryer

with a 1/4 in. driver. All four legs must rest firmly on

the floor so the weight of the dryer is evenly

distributed. The dryer must not rock.

Figure 3

IMPORTANT: In mobile home installations, gas

dryers MUST be permanently attached to the floor

at the time of installation. Order No. 526P3 Hold

Down Kit (available at extra cost) for a

manufactured (mobile) home installation. Follow

the instructions supplied with the kit.

Installation of unit must conform to the Manufactured

Home Construction and Safety Standards, Title 24

CF4, Part 32-80 or Standard CAN/CSA-Z240 MH.

IMPORTANT: Unless completely assembled, DO

NOT slide the dryer unit across the floor. DO NOT

slide the unit once the leveling legs have been

extended, as the legs and the base could become

damaged.

Step 2: Connect Dryer Unit Exhaust

System

DRY2366N

1Dryer Base

2Level

3Leveling Leg

4Rubber Foot

To reduce the risk of fire and combustion

gas accumulation the dryer MUST be

exhausted to the outdoors.

W604

To reduce the risk of fire and the

accumulation of combustion gases, DO

NOT exhaust dryer air into a window well,

gas vent, chimney or enclosed, unventilated

area, such as an attic, wall, ceiling, crawl

space under a building or concealed space

of a building.

W045

WARNING

This gas appliance contains or produces a

chemical or chemicals which can cause

death or serious illness and which are

known to the State of California to cause

cancer, birth defects, or other reproductive

harm. To reduce the risk from substances in

the fuel or from fuel combustion, make sure

this appliance is installed, operated, and

maintained according to the instructions in

this manual.

W115

To reduce the risk of fire, DO NOT use

plastic or thin foil ducting to exhaust the

dryer.

W354

To reduce the risk of fire, the exhaust duct

and weather hood MUST be fabricated of a

material that will not support combustion.

Rigid or flexible metal pipe is recommended

for a clothes dryer.

W048

WARNING

Table des matières

Langues :

Autres manuels Alliance Laundry Systems Séchoir

Alliance Laundry Systems

Alliance Laundry Systems HSE117*C802 Instructions de montage

Alliance Laundry Systems

Alliance Laundry Systems AT170FG Manuel utilisateur

Alliance Laundry Systems

Alliance Laundry Systems LES37AW Manuel utilisateur

Alliance Laundry Systems

Alliance Laundry Systems Drying Tumblers none Manuel utilisateur

Alliance Laundry Systems

Alliance Laundry Systems SDE807 Mode d’emploi

Alliance Laundry Systems

Alliance Laundry Systems 70420801 Manuel utilisateur

Alliance Laundry Systems

Alliance Laundry Systems Speed Queen FF7009WN Manuel utilisateur

Alliance Laundry Systems

Alliance Laundry Systems Drying Tumbler 110 Pound Capacity Part No.... Manuel d'installation et d'exploitation

Alliance Laundry Systems

Alliance Laundry Systems LWS01M series Manuel utilisateur

Alliance Laundry Systems

Alliance Laundry Systems ADG41F1 Manuel utilisateur

Alliance Laundry Systems

Alliance Laundry Systems 512685R2 Manuel utilisateur

Alliance Laundry Systems

Alliance Laundry Systems DC0220SFG Manuel utilisateur

Alliance Laundry Systems

Alliance Laundry Systems TMB795C Manuel utilisateur

Alliance Laundry Systems

Alliance Laundry Systems DRYING TUMBLERS 70269501R3 Mode d'emploi

Alliance Laundry Systems

Alliance Laundry Systems BDEBCAGS173TN01 Manuel utilisateur

Alliance Laundry Systems

Alliance Laundry Systems W800 Guide de dépannage

Alliance Laundry Systems

Alliance Laundry Systems 510963R6 Manuel utilisateur

Alliance Laundry Systems

Alliance Laundry Systems TMB1276C Manuel du propriétaire

Alliance Laundry Systems

Alliance Laundry Systems Drying Tumblers none Manuel d'utilisation

Alliance Laundry Systems

Alliance Laundry Systems 75 Manuel utilisateur

Alliance Laundry Systems

Alliance Laundry Systems 0904004427 Manuel du propriétaire

Alliance Laundry Systems

Alliance Laundry Systems 50 Pound Series Manuel utilisateur

Alliance Laundry Systems

Alliance Laundry Systems DRY710C Mode d’emploi

Alliance Laundry Systems

Alliance Laundry Systems Stacked Drying Tumbler Manuel d'utilisation

Manuels Séchoir populaires d'autres marques

Bosch

Bosch WTA79200GB Manuel utilisateur

Amana

Amana W10233410A Manuel utilisateur

Miele

Miele TWH 780 WP Manuel utilisateur

Asko

Asko T760 Manuel utilisateur

Bosch

Bosch Logixx 10 WTB76556GB Fiche technique

STIEBEL ELTRON

STIEBEL ELTRON Ultronic S Mode d’emploi

Electrolux

Electrolux EW2H328R2 Manuel utilisateur

Beko

Beko DS8433RX1M Manuel utilisateur

Dawlance

Dawlance Spinner DS 6000 C Manuel utilisateur

Electrolux

Electrolux TP5080TW Manuel utilisateur

AEG

AEG TR838P4OB Manuel utilisateur

Indesit

Indesit IDV 75 Manuel utilisateur

Infiniton

Infiniton SD-DG85C Manuel utilisateur

BOMANN

BOMANN WT 5019 Manuel utilisateur

Asko

Asko T793C Manuel utilisateur

Kenmore

Kenmore 8041 - 5.8 cu. Ft. Capacity Electric Dryer Manuel utilisateur

Frigidaire

Frigidaire CAQE7077KW0 Manuel du propriétaire

Bosch

Bosch WTX8HKM9SN Manuel utilisateur
