BEFORE ATTEMPTING TO INSTALL LOCK, READ ALL

INSTRUCTIONS AND LAY PARTS OUT AS SHOWN IN

FIGURE 7A OR 7B

BORE 1" HOLE (25mm)

PARALLEL TO

SIDES OF DOOR

CENTER

FOR 1³⁄₄"

DOORS

(44mm)

CENTER

FOR 1³⁄₈"

DOORS

(43mm)

FOLD ALONG EDGE OF DOOR

1¹⁄₂"

HOLE

1¹⁄₈" (28mm) MIN.

BEYOND REQUIRED BACKSET

DISTANCE

FROM EDGE

OF DOOR

(BACKSET)

IMPORTANT

PLACE TEMPLATE

ON HIGH EDGE

OF DOOR BEVEL

BORE 1¹⁄₂" (38mm) HOLE AT CORRECT BACKSET

2³⁄₄"

(70mm)

(127mm)

2³⁄₈"

(60mm)

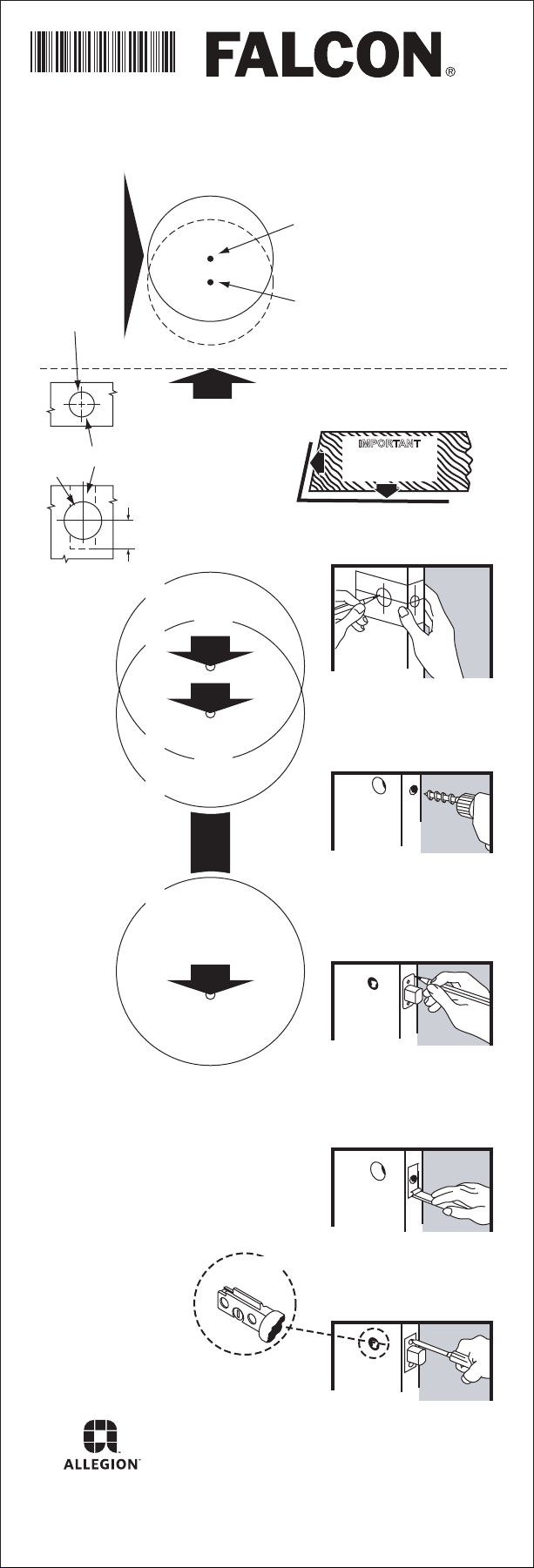

Marking Template for New Installations

1 Mark centers for latch

holes and side holes (follow

template instructions)

2 Drill 1¹⁄₂" dia. hole in

face and 1" dia. hole in

edge of door per template

instructions

3 Insert latch in edge

keeping its face parallel to

face of door. Mark outline of

latch face and remove latch

4 Chisel 5\32" (3.97mm)

deep or until latch face

is flush with door edge.

5Insert latch and secure

with two (2) No. 7 x ³⁄₄" wood

screws. Tighten screws.

EXTENDED

Install with

A on Top

002103-000-70

Printed in U.S.A.

002103-000-70 Rev. 10/14-d

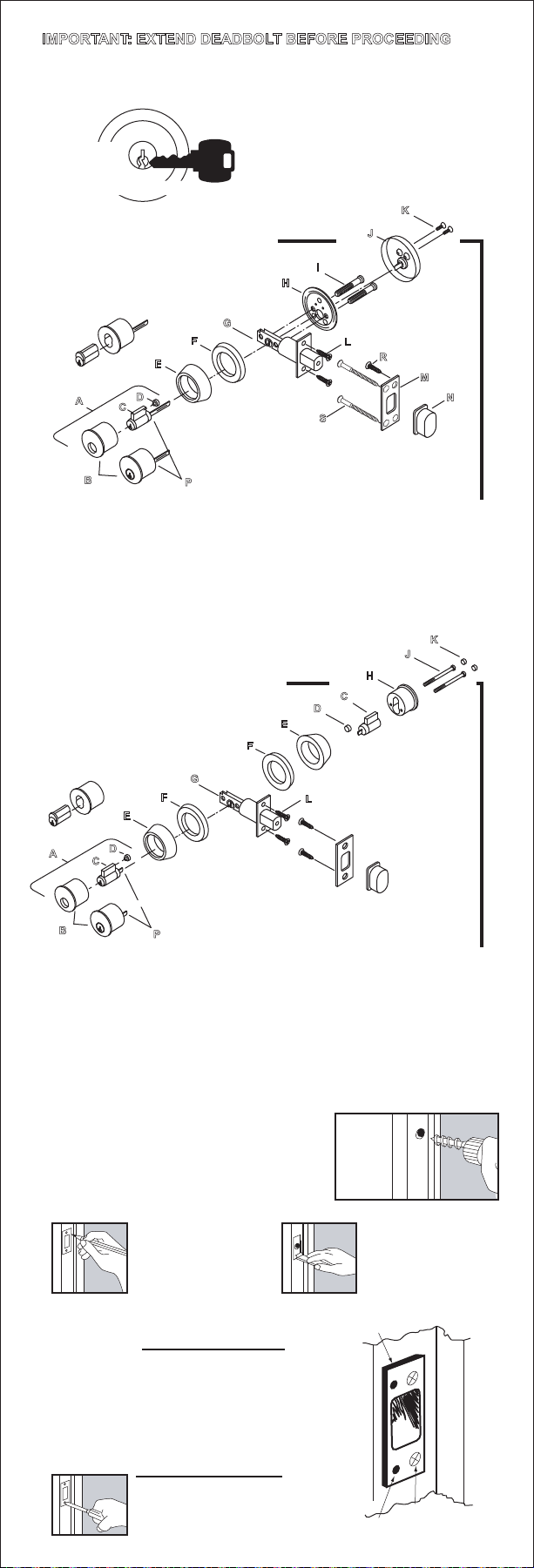

IMPORTANT: EXTEND DEADBOLT BEFORE PROCEEDING

6 TRIM ASSEMBLY

8. STRIKE INSTALLATION

STANDARD STRIKE

OPTIONAL STRIKE

Small rings (F) are used only on

1³⁄₈" thick doors

Install

keyed trims

as shown

(Key Notches Up)

Single Cylinder Screw ¹⁄₄" bolts (I) through plate* (H) into

housing (B) & tighten. Engage tailpiece (P) with thumbturn

(J). Fasten thumbturn (J) to plate (H) with short machine

screws (K)

NOTE Align plate with the large holes below the small holes

as shown

Double Cylinder Screw ¹⁄₄" bolts (J) through housing (H),

and ring (E) into housing (B) engaging tailpieces (P) with

the vertical slot in the deadbolt

Important: Check locking and unlocking of both sides

with door open before snapping covers (K) over bolts (J).

Place strike on

jamb, centering over

hole and parallel to

edge of frame. Mark

outline and remove

strike.

DChisel cutout ¹⁄₁₆"

deep for standard strike.

Chisel cutout ¹⁄₁₆" deep

for optional strike.

GInstall strike with

No. 7 x ³⁄₄" screws.

Tighten screws.

7A SINGLE CYLINDER

ASSEMBLY

Optional

Interchangeable Core

7B DOUBLE CYLINDER

ASSEMBLY

Optional

Interchangeable Core

DOOR

STOP

Screws (S)

(O) Screws

BBore 1" diameter hole

1¹⁄₈" deep centered

between the markings.

CAUTION: Deadbolt will

not function correctly if

hole is too shallow.

AMark the corners of the

deadbolt with crayon or

grease pencil. Retract

deadbolt and close door.

Throw dead bolt firmly

against jamb to transfer

markings.

FDrill 2 pilot holes (O) 3" deep to prevent splitting of jamb and

install 3" long screws (O) in large holes next to door jamb

ECenter strike (M) over hole with small holes (S) away

from door stop. Install 2 small screws (S).

Check locking function before installing longer screws.

4.250

3.125

Additional Notes: Revision History Revision Description:

D > Revised artwork

1. None A B C D E F

FAL 0790 6683

Material

50# oset or equivalent

Edited By Approved By EC Number Release Date

J. Ellis M. Roberts xxxxx 10/14

Notes

1. printed both sides

2. printed black

3. tolerance ± .13

4. printed in country may vary

5. barcode shows after folding

Title

Falcon Marking Template for New Installations

Creation Date

10-22-14

Number

002103-000-70

Revision

Created By

J. Ellis Activity

3899 Hancock Expwy

Security, CO 80911 © Allegion 2014Software: InDesign CS6

4.250

12.500

BEGINNING SHEET

FOLDED SHEET

FRONT
