ALL TRAFFIC SOLUTIONS
SINGLE-ARM SOLAR PANEL MOUNTING BRACKET
INSTALLATION GUIDE
Phone: 814/237-9005
Fax: 814/237-9006
Email: Support@alltrafficsolutions.com
2
Overview
Overview
The SPBRAC100-ASB Solar Panel Mounting Bracket is designed to allow you to mount a 60/90/100W solar
panel on a pole. You can adjust the angle according to your needs for your location and the mount can be
installed on poles with ideally a 3.5- to 5-inch diameter.
About this Guide
This guide is intended for anyone who needs to assemble and install the SPBRAC100-ASB Solar Panel
Mounting Bracket along with the accompanying solar panel.
However, as the installer you are responsible for the following:
» Making sure that the installation complies with any applicable building codes
» Making sure that you heed any and all warnings of electrical hazards related to the installation of the
solar panel
Mounting Bracket Installation Guide
3
Mounting Bracket Installation Guide
Components
Components
The major components of the SPBRAC100-ASB Mounting Bracket are as follows:
» Pole bracket - Attaches to the pole with the banding straps and provides support for the arm/panel
assembly.
» Arm - Attaches to the pole bracket and supports the solar panel.
» Solar panel clamps - Attach the solar panel to the arm.
» Banding straps - Attaches the pole bracket to the pole. The included banding straps can be used with
poles up to 5 inches indiameter.
» Support rails - Attach to the pole bracket and the arm.

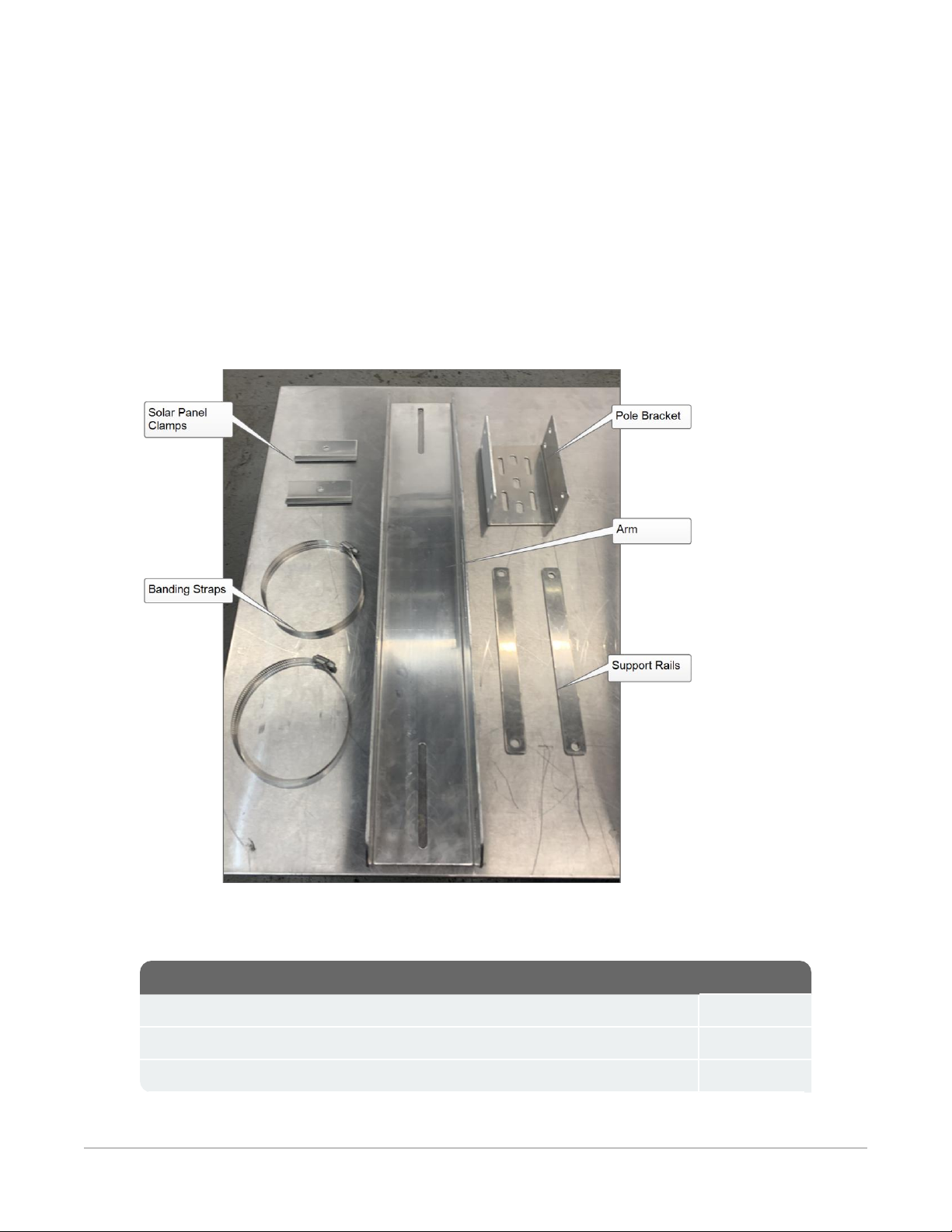

Figure 1: SPBRAC100-ASB Mounting Bracket Components
In addition the mount contains the following mounting hardware:
Item
Quantity
Solar panel clamp hardware
1/4"-20 x 3/4" stainless steel hex-cap bolt
2
1/4" stainless steel flat washer
4
4
Components
Item
Quantity
1/4" stainless steel split lock washer
2
1/4"-20 stainless steel hex nut
2
Arm, bracket, and support rail fastening hardware
5/16"-18 x 1" stainless steel hex-cap bolt
8
5/16" stainless steel flat washer
16
5/16" stainless steel split lock washer
8
5/16"-18 stainless steel hex nut
8

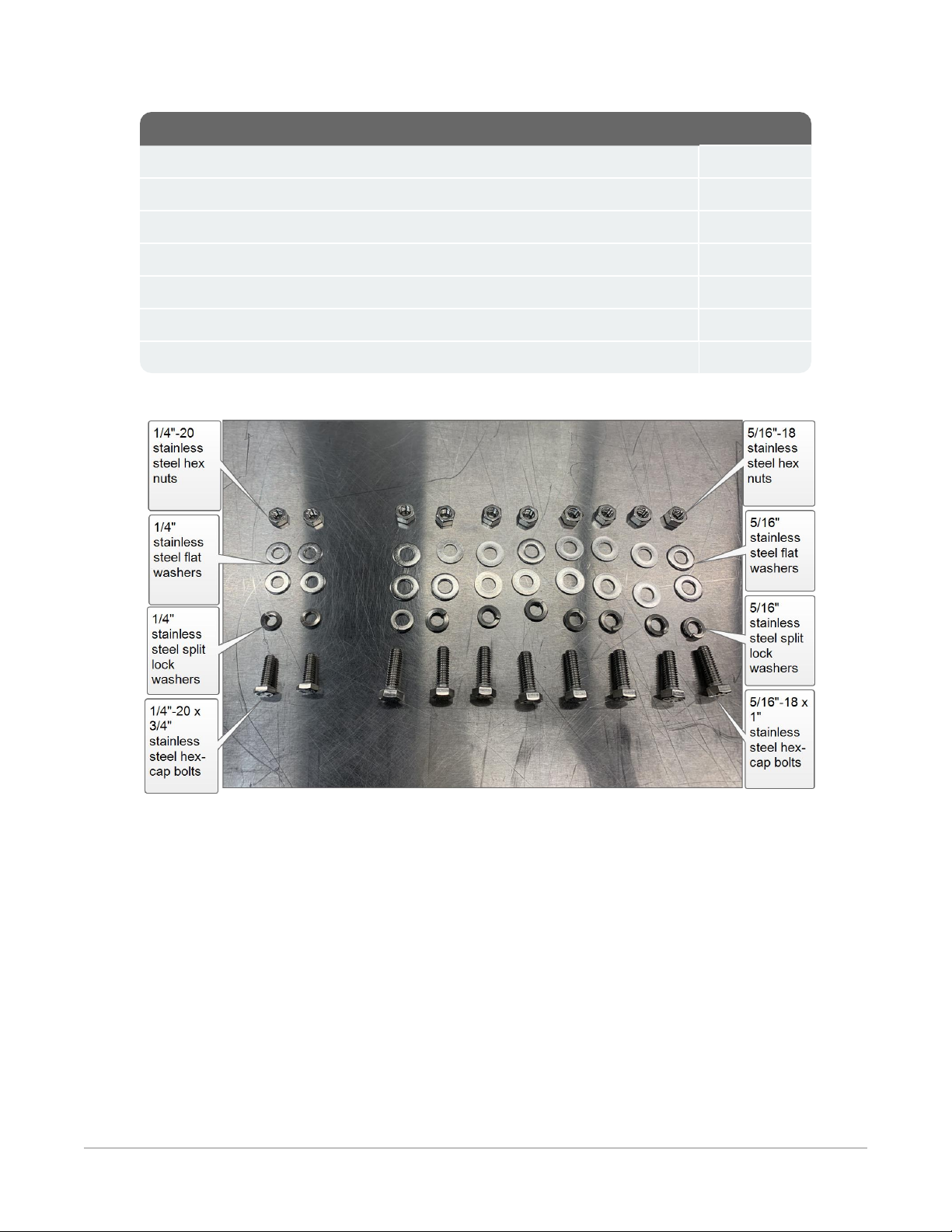

Figure 2: Mounting hardware for the SPBRAC100-ASB Mounting Bracket
Mounting Bracket Installation Guide
5
Required Tools
Required Tools
You will need the following tools to assemble and mount a solar panel with the SPBRAC100-ASB Mounting
Bracket.
Tool
Description
Wrenches / Nut driver
Open-end wrench, Box-end wrench, or 3/8-inch or greater nut driver
with sockets to support the following size hex heads:
• 5/16-inch
• 7/16-inch
•1/2-inch
Screwdrivers
One 1/4-inch flat head screwdriver.
One 1/2-inch flat head screwdriver.
Figure 3: Required Tools
Mounting Bracket Installation Guide
6
Assembling the Bracket
Assembling the Bracket
This section describes how to use the SPBRAC100-ASB Mounting Bracket to mount a 100-watt solar panel
to the side of apole.
TIP: We recommend that you first assemble the bracket and panel then mount the entire bracket/panel
assembly on the pole.
Step 1 - Mount the Solar Panel on the Arm
You will need the following items to complete this procedure:
» Arm
» Solar panel
» Solar panel clamp
» Solar panel clamp hardware
Figure 4: Arm, Clamps, and Clamp Hardware
To mount the solar panel on the arm of the bracket:
1. Lay the solar panel face-down on a flat surface.
Mounting Bracket Installation Guide
7
Assembling the Bracket
2.

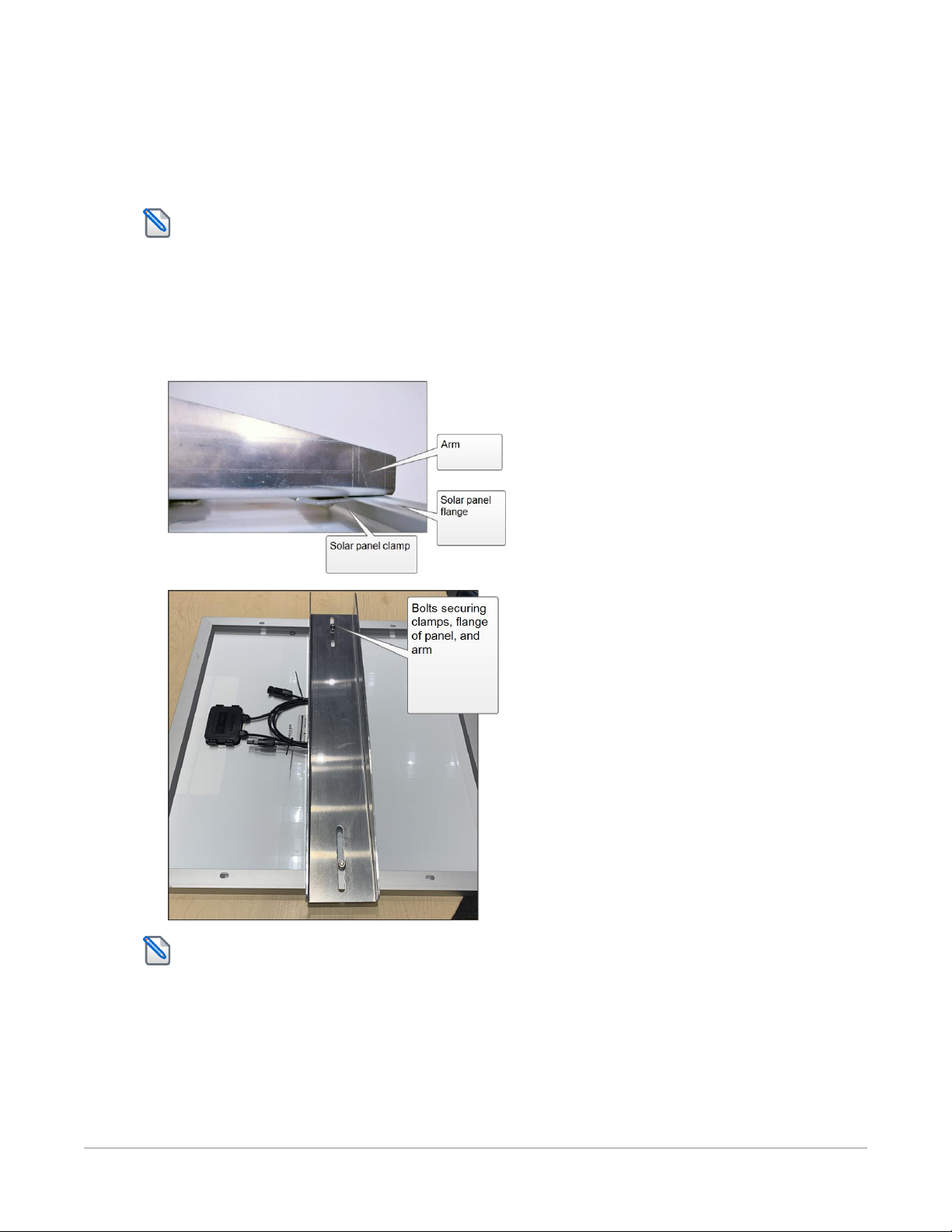

Center the arm on the back of the panel and position the clamps under the edges of the panel's flange.
3.
Attach a solar panel clamp to one of the slots of the arm as follows:
A. Insert a 1/4" bolt, washer and solar panel clamp through one of the slots in the arm.
NOTE: Pay close attention to the orientation of the solar panel clamp.
B. Place a washer, split lock washer and hex nut on the other end of the bolt and tighten loosely.
4.
Repeat the previous step to attach the other solar panel clamp to the other slot in the arm.
5.
Make sure that the clamps are resting against the flange then tighten the bolts to hold the solar panel in
place.
NOTE: The image above shows the arm installed lengthwise on a 50W panel. For a 100W solar panel,
install the armwidthwise.
Step 2 - Attach the Arm and Solar Panel to the Pole Bracket
You will need the following items to complete this procedure:
» Arm and solar panel assembly
Mounting Bracket Installation Guide
8
Assembling the Bracket
» Pole bracket
» Arm and bracket fastening hardware
To attach the arm and solar panel to the pole bracket:
1. Place the pole bracket on the solar panel and arm assembly and align the holes as shown in the following
image.
NOTE: Orient the bracket so that the flat back plane is facing up and the open side is facing down. Also,
use the bolt holes that are further from the back plane to connect the bracket to the arm.
2. Do the following for each of the four holes:
A. Insert the 5/16" bolt and flat washer on one side.
B. Place another flat washer, split lock washer and hex nut on the other side, then tighten.
Mounting Bracket Installation Guide
9
Assembling the Bracket
3. Attach the support rails in the position shown below; the nuts and bolts on the pole bracket can be
tightened, but the bolts going through the arm should remain loose.

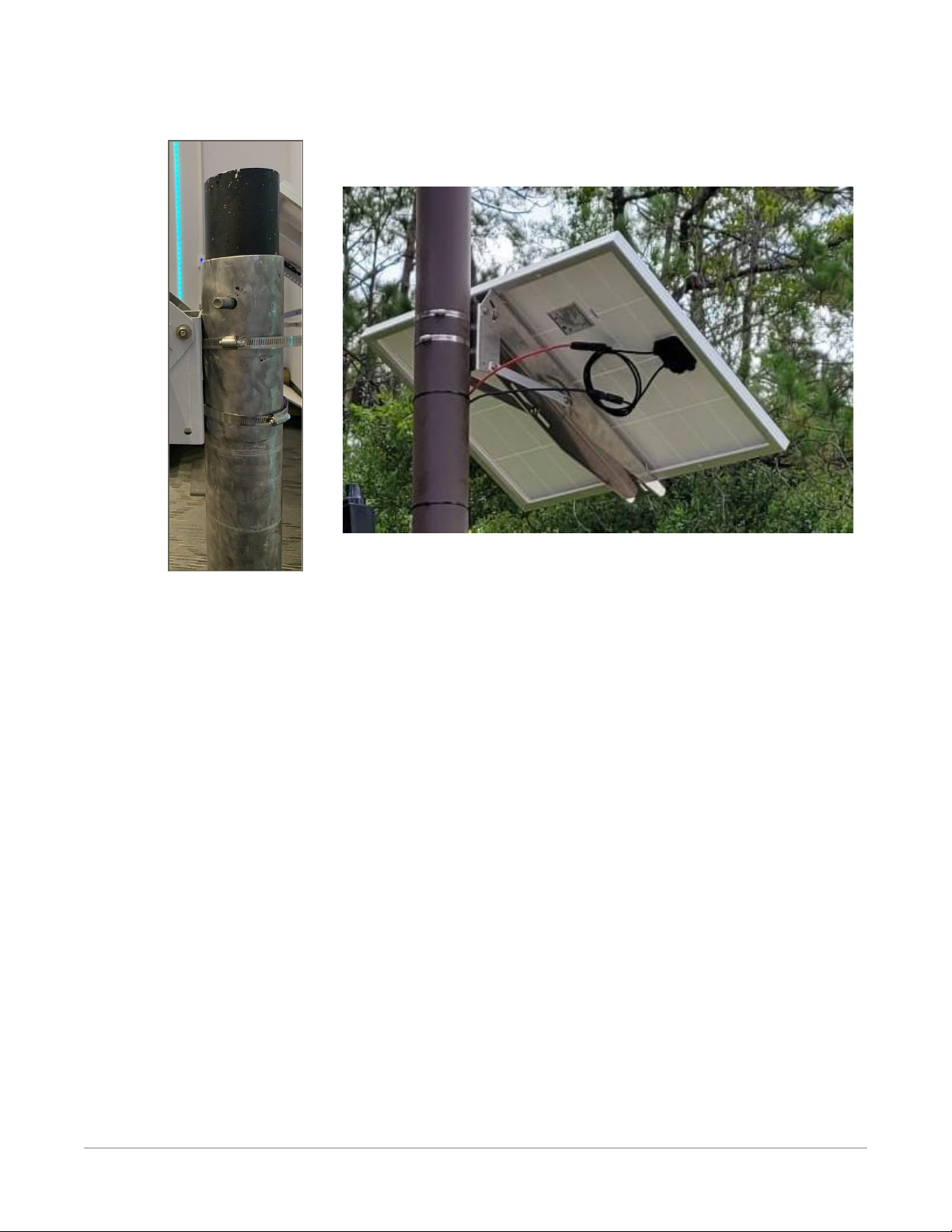

Step 3 - Attach the Mounting Bracket to the Pole
You will need the following items to complete this procedure:
» Solar panel and bracket assembly
» Banding straps
To attach the mounting bracket to the pole:
1. Insert the stainless steel banding straps through the slots on the back of the bracket.
2. Place the bracket against the pole and fasten the banding straps to the pole.
Mounting Bracket Installation Guide
10
Assembling the Bracket
3. Tighten the straps with a nut driver until secure.
4. Loosen the arm/bracket and support rail mounting nuts and bolts to adjust the angle of the panel then
tighten again when you are finished.
