Align Trex 700 Electric conversion Manuel utilisateur

Instruction Manual

Align Trex 700 Electric

conversion

By: Ray Nemovi

Made in the USA

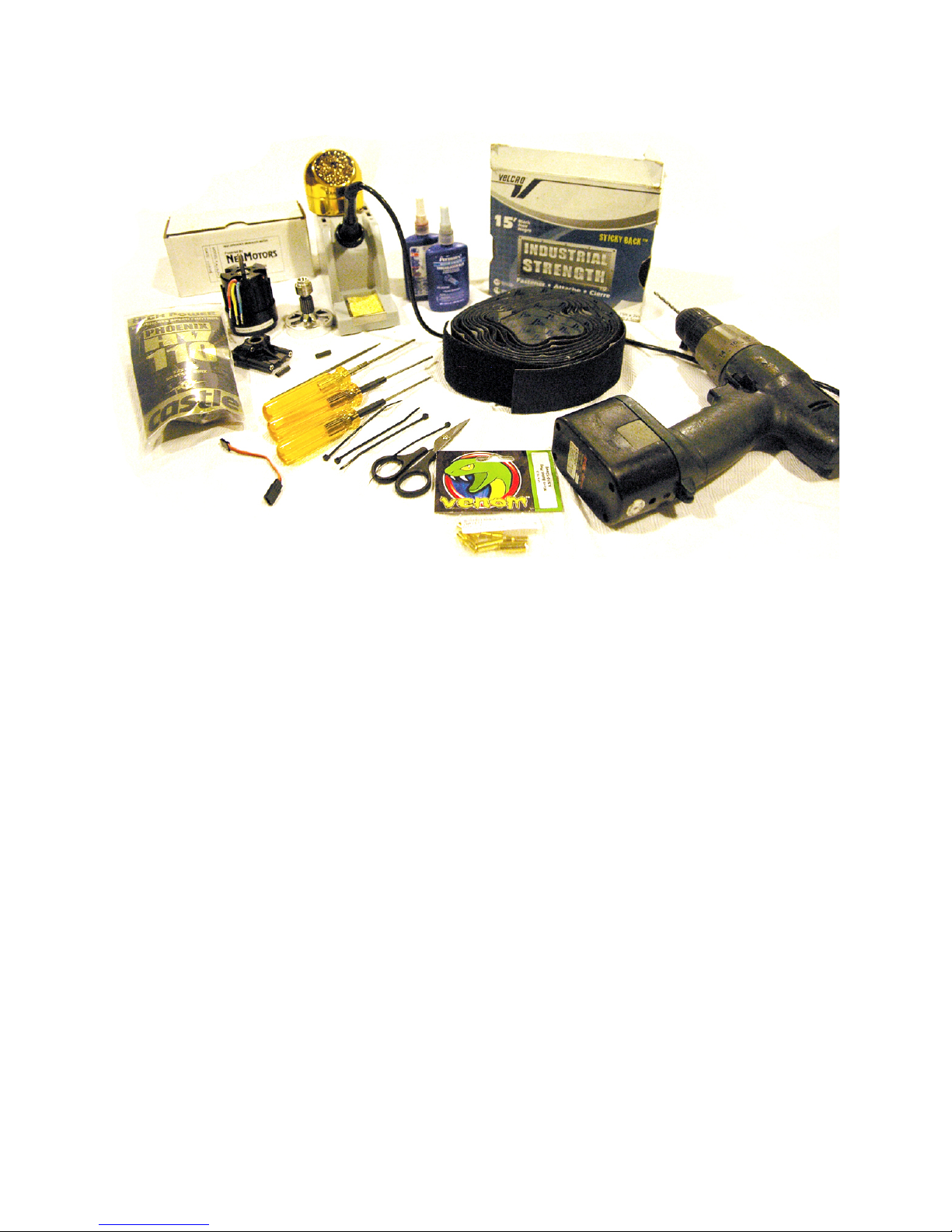

Required Items:

1. 2mm allen Wrench

2. 2.5mm allen Wrench

3. 3mm allen Wrench

4. Blue and Red locktite

5. Drill

6. Heat shrink

7. Scissors

8. 13mm open end wrench

9. Zip ties

10. Mikado 0.7 mod. 5mm pinion (recommended 20 tooth for 12s) good idea to have variety 15-20 tooth

11. 4.6mm or .18 inch drill bit (simply find a drill bit same size as the original motor mount holes existing on

the frames)

12. Industrial strength stick down velcro

13. Electric motor of choice (I recommend Neu motors for performance and reliability)

14. High Voltage Speed Controller for 12s setup ( I recommend the Castle Creation HV110 speed controller

because it simply performs outstanding under all conditions)

15. Bullet connectors for motor to speed controller connection (I recommend Venom or castle creations

connectors because they are designed for high voltage yet very affordable)

16. Deans connectors

17. Soldering Station (This is only if you need to Solder your bullet connectors to your motor and speed

controller or Dean's connector to your speed controller or batteries)

18. Servo extension (You may need a 4 inch servo extension for your speed controller to reach your receiver)

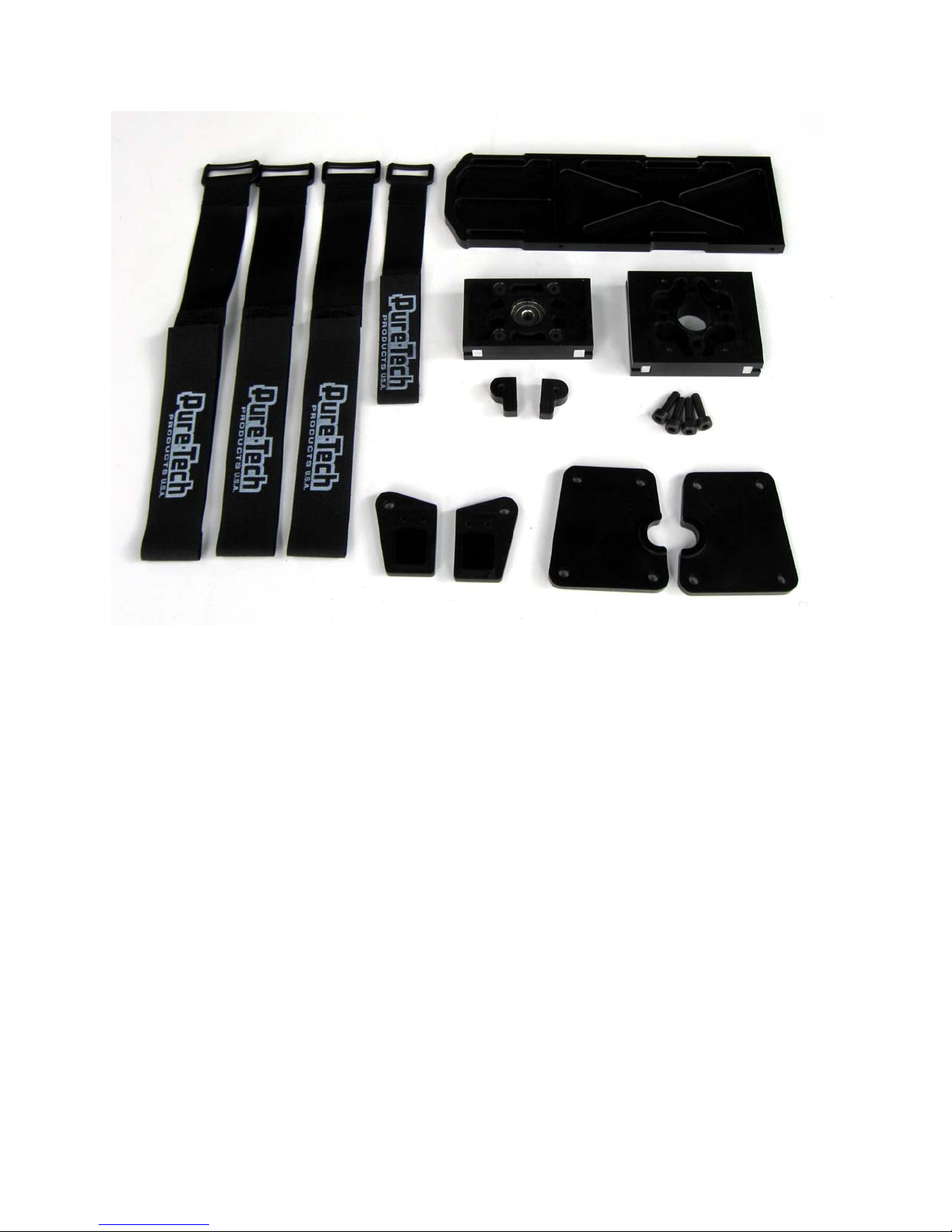

Supplied Items:

1. One inch velcro straps (three included for flight packs)

2. Half inch velcro strap for speed controller

3. Battery Tray

4. Motor Mount

5. Upper bearing block

6. 4mm motor mount screws (4 included)

7. Right side and left side guides for drilling motor mount holes

8. Right side and left side guides for drilling battery mount holes

9. Side frame to bottom plate connecting brackets

Optional:

5mm or 6mm motor shaft adaptor (for motors with short shafts that will not reach the upper bearing block)

Step 1:

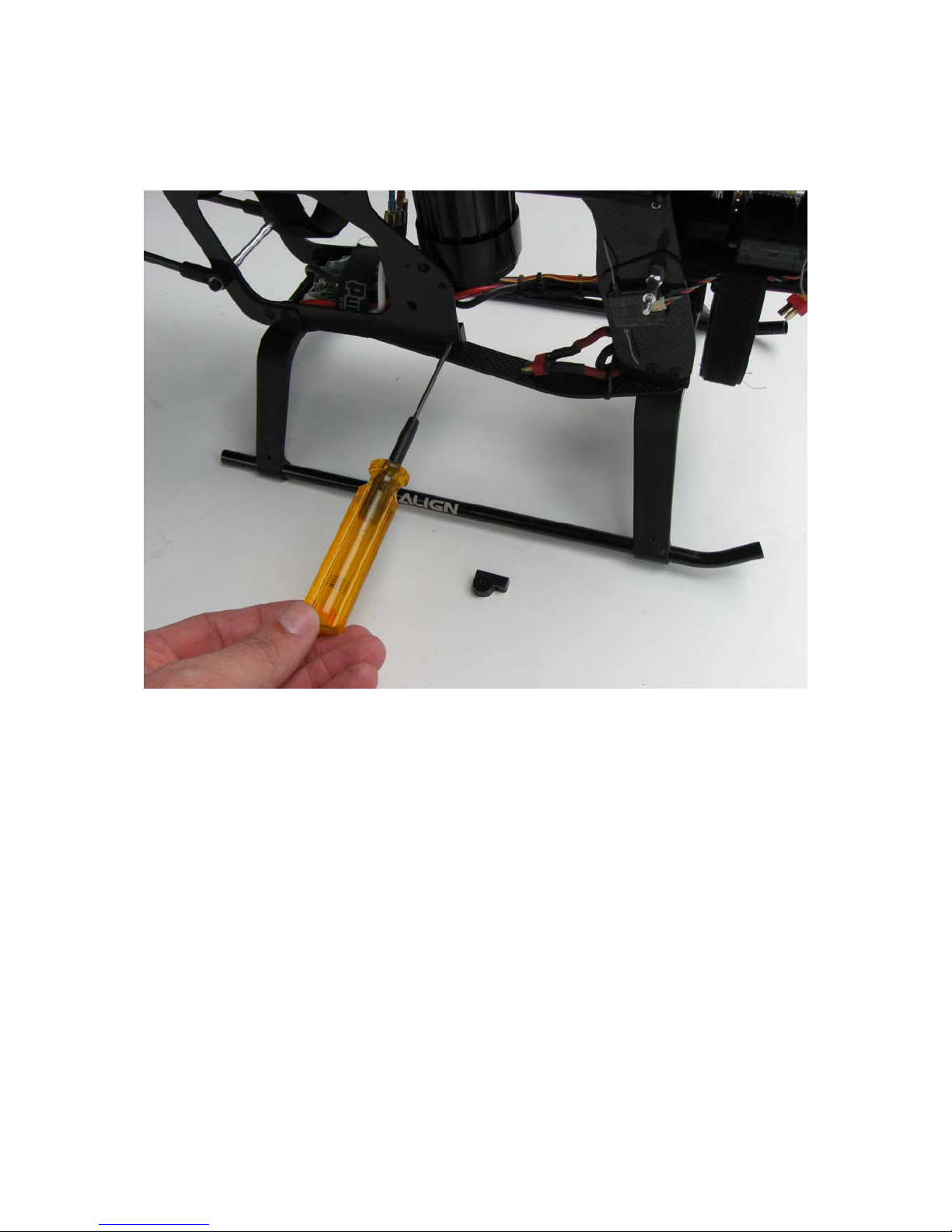

I've removed the rotor head and main gear assembly to allow more room to work on the model.

I've also loosened all screws on one side of the frames to allow disassembly of the clutch assembly

electric motor which will be helpful in the build later on. You may find it easier to remove the tail

boom to allow the model to sit balanced on your work bench. Make sure you have all the required

tools and equipment listed under required items. This conversion kit was designed to allow the user

to convert an existing nitro 700 to electric or simply build from a brand new kit using this

conversion kit. You can at any point revert back to the nitro setup since we're not changing any

part of the

machine that effects re-assembly of the nitro components. I wanted to use the least amount of

parts and make it as simple as possible just like the designer of this fine machine originally

set out to do. We all can appreciate the amazing power of electrics and its features like: instant

torque, not wearing down balls and ball links as quick from the oil, particles, vibration and not

having to clean the mess nitro leaves behind.

Step 2:

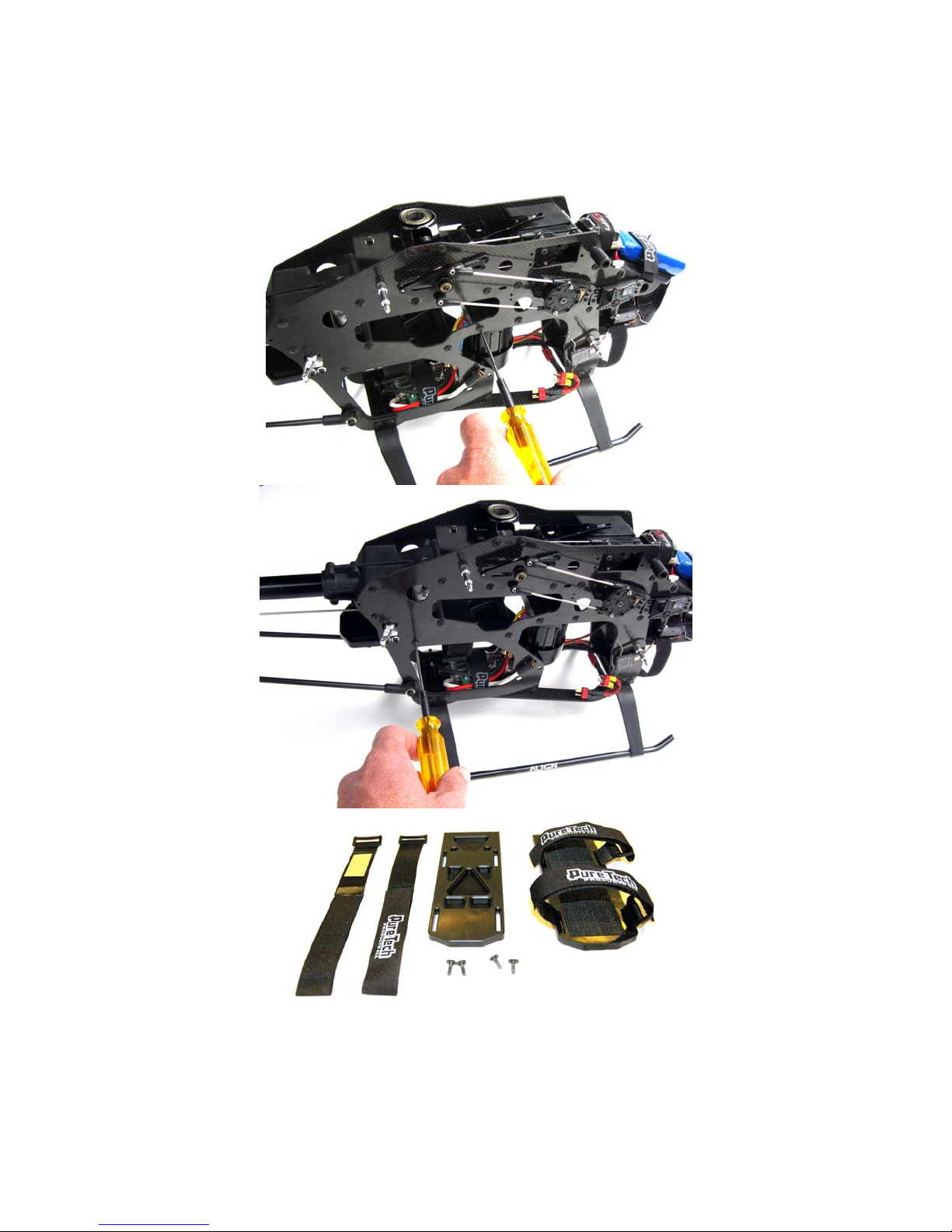

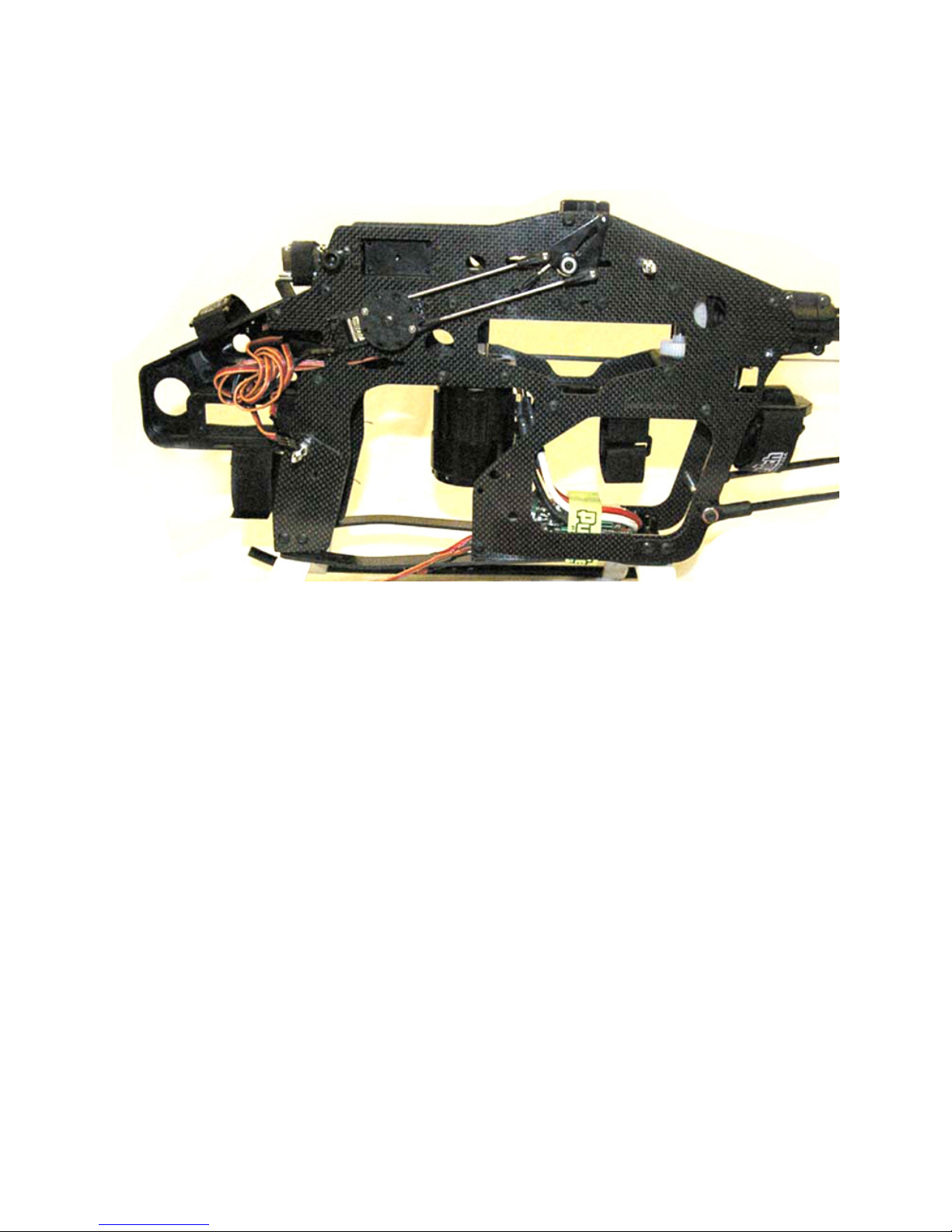

Locate the right side and left side motor mount and battery mount drilling guides. These guides

are designed to make it easy for the user to successfully drill the holes in the frames for the

motor mount and battery mount without any hassle. The larger guides are for your motor mount

and smaller guides are for the battery mount. Place the appropriate guides in both sides of the

frames as seen in the picture.

Step 3:

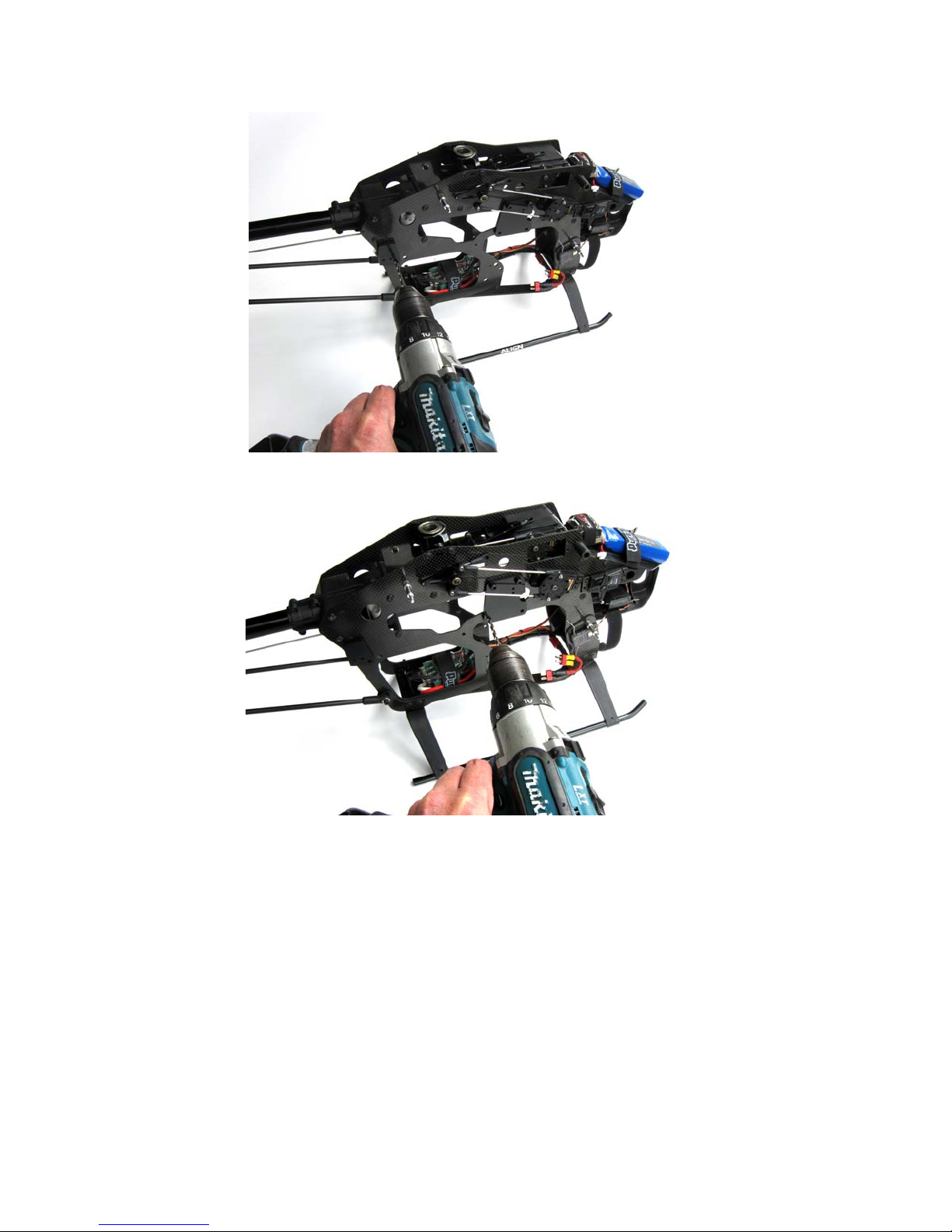

Be sure you have the front drilling guides secured well before drilling. Line the upper

bearing block holes with the holes in the drilling guide. Use the required drill bit to

drill through the guide holes as seen in the pictures. It's not necessary to use excessive

force when drilling the carbon side frames. Excessive force will dull the drill bit and may

damage the carbon frames. The original holes in the frames are approximately 4.6mm

so you will need to find a drill bit that size or close to it. You can use the drilling guides

supplied to index the right drill bit. We'll be using the stock shouldered screws supplied

with the Align Trex 700N kit for mounting the motor mount, upper bearing block,

battery mount and side frames to bottom plate connecting brackets.

Step 4:

Locate your electric and if you have not done so yet, solder your male end bullet connectors to your

motor and female end to your speed controller.

Step 5:

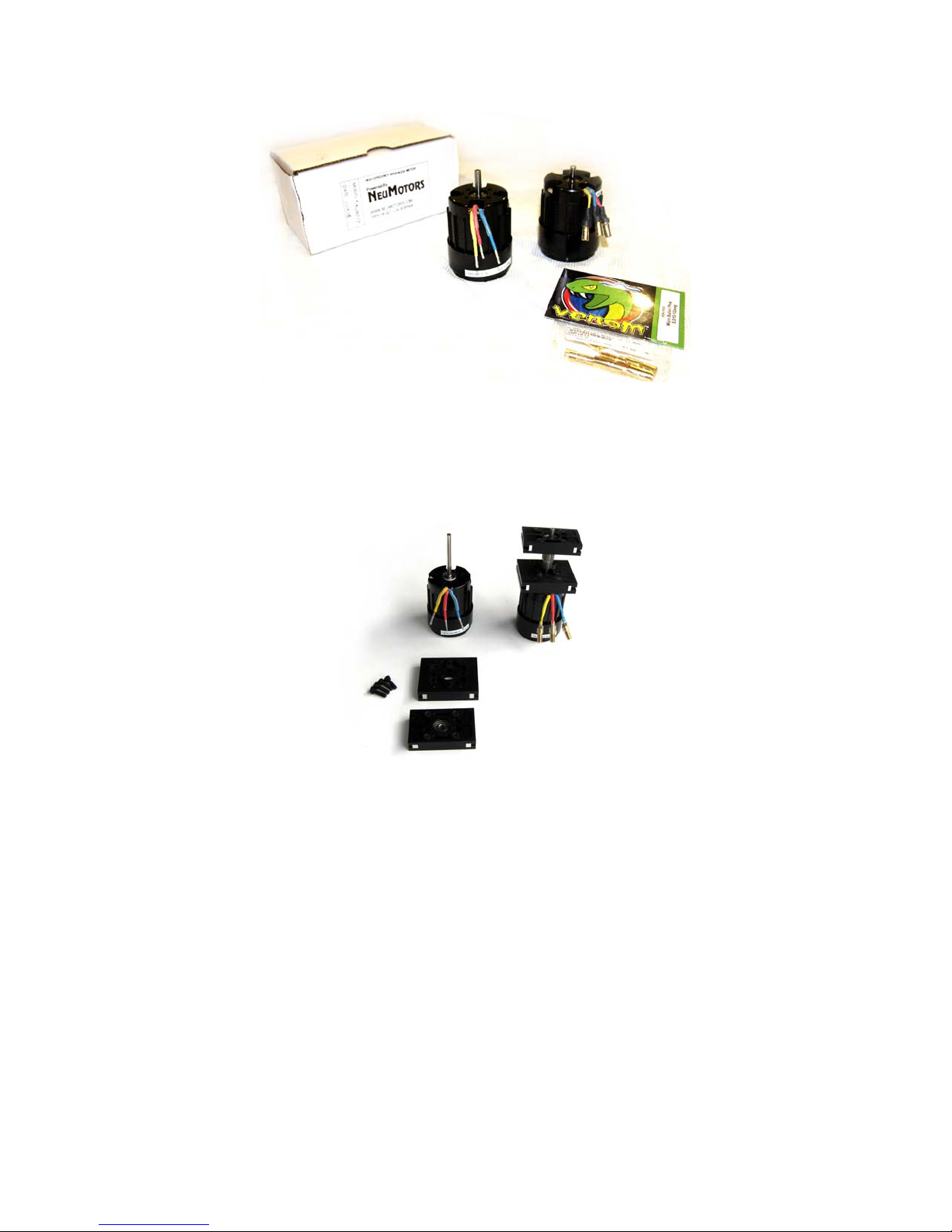

Locate the supplied motor mount and 4mm screws (4 screws). Again, use very little red or blue

loctite prior to assembling motor mount onto the motor as seen in the picture. I personally use very

little red loctite just so things don’t loosen in flight. The Neu motors are designed with longer shafts

to reach up into the upper bearing block. Install the motor mount to motor using the supplied

screws using blue loctite. You will notice 2 different set of mounting holes to allow use of different

motors. Most motor will use the smaller diameter holes including the Neu motor. You will notice

pockets designed to lighten the parts and you will need to have the mounting screws inserted

through the pocketed side of the motor mount (flip motor mount if you have to use larger diameter

mounting holes if you are using Kontronik or motors that use larger diameter mounting holes).

Slide the pinion of your choice(20 teeth for the Neu 1915 1.5Y) on the motor shaft. Install upper

bearing block on motor shaft at this point. We will have to install motor assembly in the model

temporarily to identify placement of pinion in reference to main gear so we can dremel the flat spot

on the shaft to secure pinion.

*If using a motor with a short shaft, you will need to obtain our upgraded adaptor to utilize the

upper block.

Step 6:

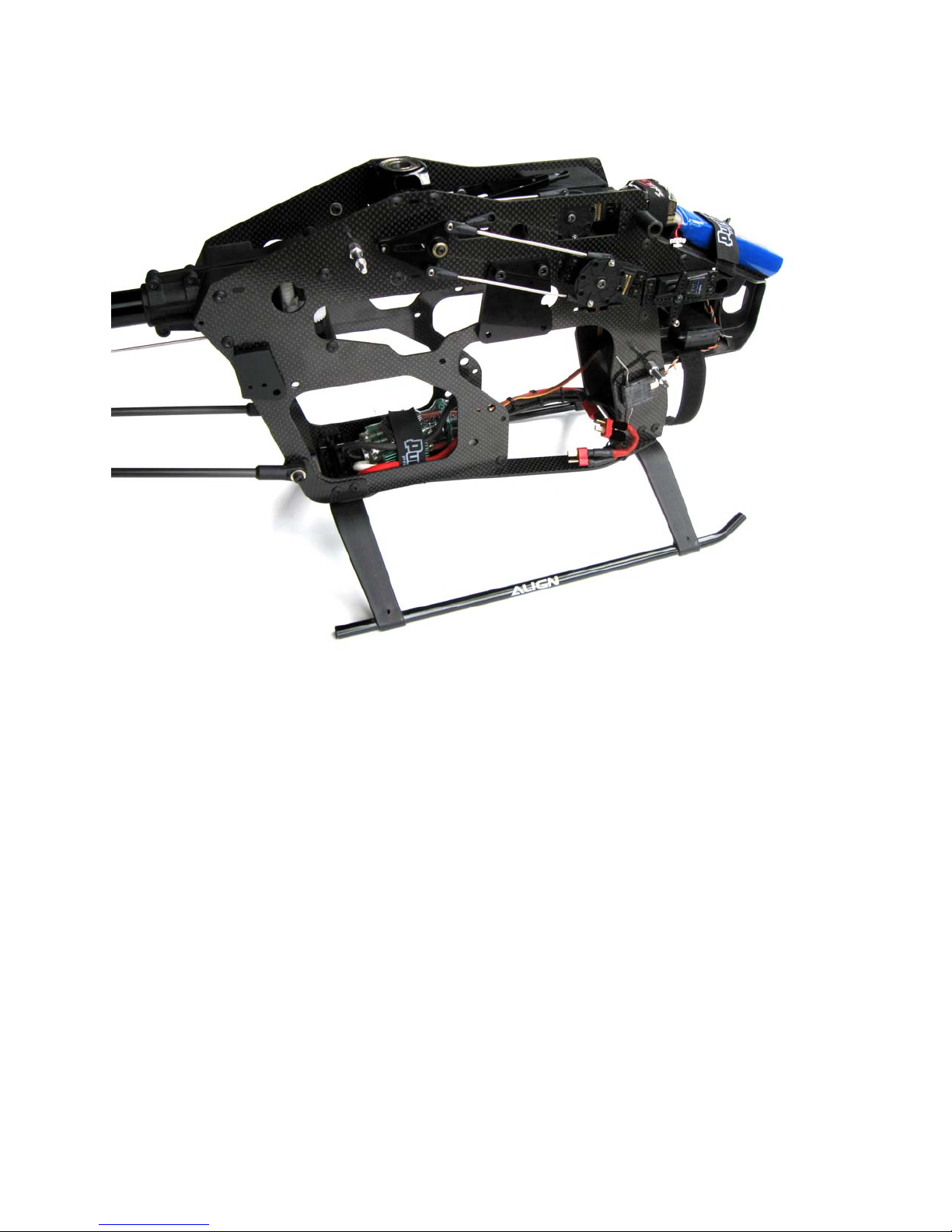

Install the motor assembly and upper bearing block in the frame halves at this point as seen in the

picture. Loosely install the shouldered screws supplied with the Align Trex 700N kit onto the upper

bearing block assembly and motor mount making sure the shoulder of the screw is registered in the

frames. You can also install the rear battery tray as seen in the picture.

Step 7:

Locate the 2 small side frame to bottom plate connecting brackets. Install using the shouldered

screws supplied with the Align Trex 700N kit as seen in the picture. There are 2 screws per

bracket securing the side frame to the bottom plate.

Step 8:

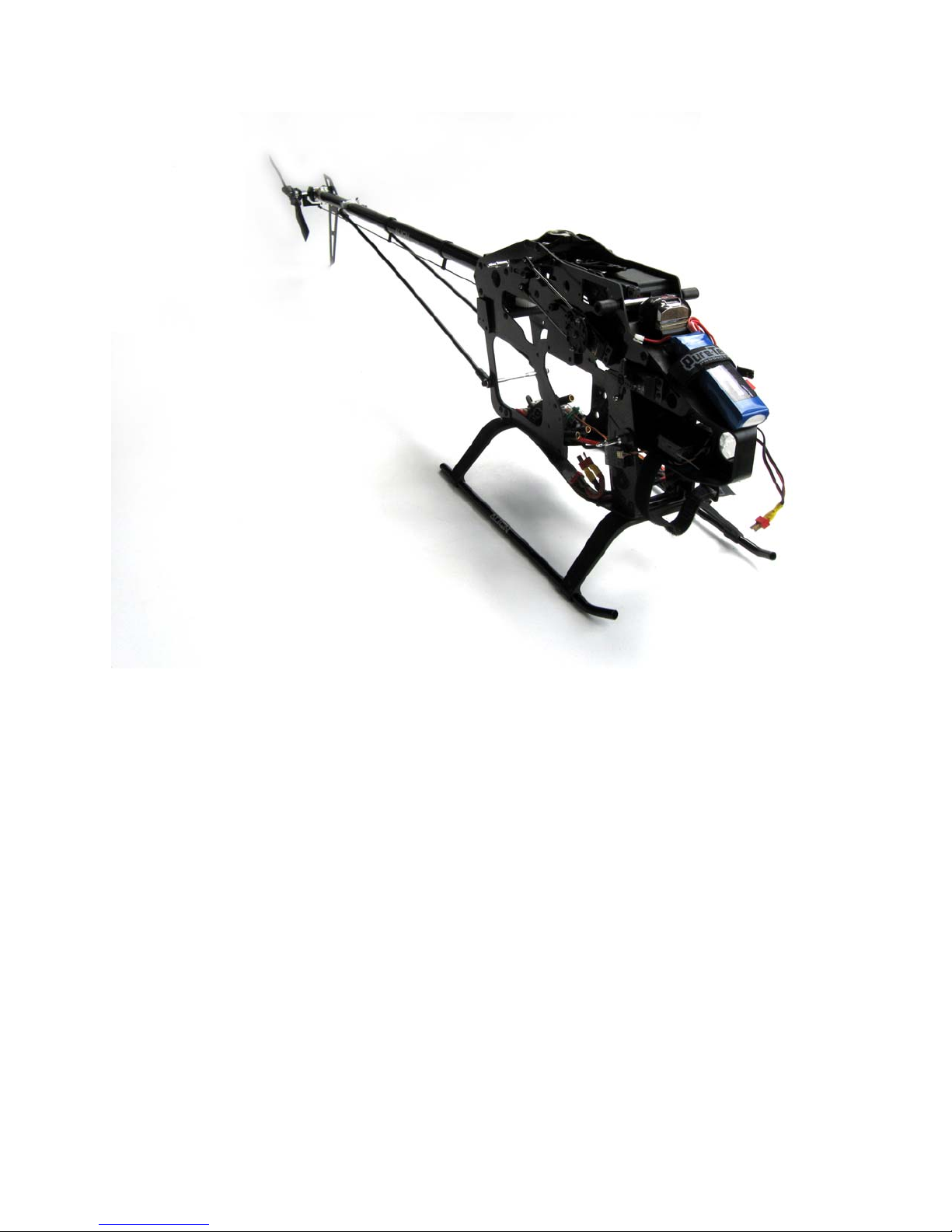

At this point, you can install the speed controller. Clean the mounting surfaces where you will be

using sticky back Velcro. Cover the back of the speed controller with the fuzzy side Velcro and the

hook side to the top of the bottom tray. Install the speed controller where the fuel tank was placed.

You may need to use the servo extension to fully reach the receiver and plug into your throttle

channel. connect speed controller to motor and connect your Y connector so you can run both flight

packs in series.
