ALIGATOR K50 eXtremo Manuel utilisateur
K50 eXtremo
Quick Guide
Contents
Important instructions.....................................3
Mobile phone controls....................................8
Insert SIM and memory cards, battery...........9
Battery charging...........................................10
Switch n / ff.............................................11
Basic control.................................................12
Making calls..................................................13
Keypad unlock..............................................13
Volume.........................................................14
Location of antennas....................................14
Text insert.....................................................15
Phonebook...................................................16
Torchlight......................................................17
Internet connection.......................................17
Applications and Kai S system...................18
Safety and ecology.......................................19
Declaration of conformity.............................20
2
Thank you for buying of our ALIGAT R mobile
phone . Before you start please read carefully
this instruction manual.
Important instructions
Although the phone is durable, handle the
phone and its accessories with care, and do
not drop it, subject to mechanical damage,
dirt, or extreme temperatures. In particular,
protect the phone display from shocks and
impacts! Never disassemble your phone or
accessories! Remember that even with a
durable phone, the display can be damaged
in the event of an impact!
Your phone is waterproof (does not apply to
salt water), provided that the covers of all
openings are properly fitted and sealed. The
maximum duration of contact with water is 30
min. and the phone must not be immersed to
a depth of more than 1m. Nevertheless,
protect it from water as much as possible. In
case of contact or immersion in water,
3
remove it from the water and dry it as soon as
possible.
When fitting all caps, always make sure that
there is no dirt on the cap seals, that the caps
seal properly and are fully fitted.
If your phone or any part of it comes in
contact with water, dry it thoroughly before
using it again. In particular, dry all covers,
folds, joints and openings for the speaker,
earphone or microphone. Never open the
cover on the back of the phone or on the
connector after the phone has come in
contact with water without first drying it and
its surroundings.
In case of contact with water, do not handle
the phone, do not press any buttons and do
not handle the hole caps.
4
When using, protect the holes of the
microphone, headphone and speaker from
the ingress of dust from sharp objects.
Do not switch the phone on in places where it
is prohibited
Do not use the phone while driving
Do not use the phone near the petrol station
Always switch off your phone near
explosives.
Always use only original batteries supplied by
the manufacturer. Danger of destroying the
phone or explosion
SAR – This phone meets RF exposure
guidelines.
When making a call, keep the phone at least
2.5 cm away from your body to reduce the
amount of electromagnetic radiation
absorbed by your body.
Handle your phone and accessories with care
and protect them from mechanical damage
and dirt.
5
Protect your phone and accessories from
extreme temperatures.
Do not dispose of batteries in a fire or expose
them to temperatures above + 60° C - risk of
explosion.
Protect your phone and accessories from
being dropped.
Never disassemble your phone or
accessories.
Do not use the phone near personal or
medical or healthcare facilities without
confirmation that the radio emissions from the
phone do not affect their operation.
Mobile phones may affect the operation of
pacemakers and other implanted equipment.
When making a call, place the phone on the
opposite side of your body from an implanted
pacemaker or other device. Consult your
doctor about the possible risks of
interference. If interference is suspected,
switch off the phone immediately.
Always turn off the phone on an airplane.
6
Do not use the phone near explosives.
Do not place nor install the phone or its
holder or accessories in the space above the
airbag in the car.
Keep out of reach of children and do not
allow them to play with it. The phone contains
small parts that the children could suffocate
or may injure children in other way.
The software and hardware of the phone are
constantly being updated. The importer
therefore reserves the right to change the
instructions and individual functions of the
phone without prior notice.
The phone has a very powerful flashlight.
Therefore, never shine into the eyes. Risk of
eye damage or glare!
7
Mobile phone controls
8
1. Earphone
2. Screen
3. Left function button
4. Call button
5. Charging connector
6. Earphone
connector
7. Navigation button
8. Right function
button / contacts
9. Torchlight
10. Button – End call /
Switch n
11. Button K
12. Volume +/-
13. Button - Torchlight
n/ ff

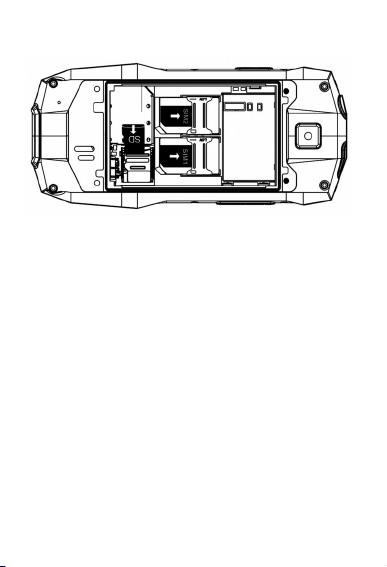

Insert SIM and memory
cards, battery
1.Unscrew and remove the battery cover on the
back of the phone.
2.Carefully slide one or two SIM cards into the
holders under the battery compartment. Make
sure that the SIM cards with the contacts are
positioned correctly facing down. The battery
must be removed when inserting SIM cards.
3.Insert the microSD memory card into the
holder
9
4.Insert the battery
5.Insert the battery cover and secure it with the
supplied screws. The screws must be tight,
but be careful not to damage the thread with
excessive force. If a screwdriver is included,
use it.
Battery char in
The battery status indicator is located at the top
of the screen. If the battery is low, follow these
steps:
1.Connect the charger to a wall outlet.
10
