ALIGATOR RX510 eXtremo Manuel utilisateur
RX510 eXtremo
Quick Guide
Google, Google Play and Android are trademarks of
Google Inc.
Contents
Before you start.................................................... 2
Dual SIM function................................................. 3
Im ortant instructions......................................... 3
Insert SIM cards.... ............................................... 7
Mobile controls.................................................... 8
Switch on …............................................................ 9
Tele hone reset................................................... 9
Activation and screen unlock …........................... 9
O erational system Android™........................... 10
Basic mani ulation .................................................. 10
Making calls …..................................................... 14
SMS Messages.................................................... 15
Choice of SIM for calling, SMS + Internet …........ 16
Choice of network by connection difficulties..... 16
Photogra hy ….................................................... 17
PC connection................................................... 17
Safety and ecology …............................................ 18
Declaration of conformity.................................. 19
Before you start
We thank you for buying of this resistant
mobile phone ALIGATOR.
2
Before you start, lease read this quick
guide with im ortant instructions.
D AL SIM function
Your mobile hone can o erate on 1 or 2 SIM
cards. If you insert only 1 SIM card, your
mobile hone works like a standard mobile
hone.
If you insert 2 SIM cards, both are working on
line at the same time and it is ossible to
make a call on either card.
Important instructions
In s ite of the fact that the mobile hone
is very sturdy , handle the device with
care, rotect it against the fall on the
ground, mechanical damage,
contamination or extreme high
tem eratures. Protect the screen from
the hits or im acts ! Never ut the mobile
hone into arts. Never disassemble the
hone or accessory! Remember that even
3
by a durable hone the dis lay can crash
damage !
Your hone is water resistant, assuming
that all the hole covers are ro erly fitted
and sealed. Yet if ossible, kee away from
water. In case of contact, res ectively
immersion in water, remove it from water
as soon as ossible and let it ro erly dry.
When de loying all ca s be always sure
that the seal ca s are not dirty and that
the covers seal ro erly and are fully
de loyed.
If the hone or its art gets into the contact
with water, dry it thoroughly before using. Mainly
dry all the folds, crevices and holes for the
s eaker, ear hone and micro hone. Never o en
the door (on the back of the hone) after the
hone has come into contact with water and
before the cover and its surroundings were
ro erly dried.
I n case of contact with water, do not
tam er with the hone, do not ress any
keys and do not tam er with ca s o enings.
Do not switch on and do not use the mobile
4
hone in the rohibited areas
Do not use the mobile hone while driving the
car
Turn off the mobile hone near the
sensitive medical device unless you are
sure that the radio transmission of the
mobile hone does not influence its
functions
Mobile hone can influence the function
of the electronic cardiac acemaker or
other im lanted a aratus lease consult�
your medical doctor
Turn off the mobile hone in the aircraft
D o not use the mobile hone near the
filling etrol station, turn off the mobile
hone always near ex losives
Use always original batteries su lied
by the roducer (danger of damage or
ex losion of the mobile hone)
5
Do not ut the battery at the fire and
do not ex ose it to the tem erature
over +60°C (danger of ex losion or fire)
SAR – mobile hone meets the
rescri tions for maximal emission of
the electromagnetic radiation
While making a call lease kee the
mobile hone at least 2,5 cm away from
the body to minimalise the quantity of
the el. magnetic radiation absorbed by
your body
D o not lace the mobile hone or its
holder in the car at the lace over the
airbag
K ee it out of reach of the children and
do not allow them to lay with. It contains
small arts that they can suffocate or can
hurt !
Failure to com ly with these
instructions may void the warranty on
the device
Software and hardware of the mobile
hone are continuously u dated. The
im orter reserves the right to alter the
instruction manual or mobile hone
functions without a rior notice
6
lnsert SIM cards
Make sure that the mobile hone is
switched off. Loosen 2 screws on the back
side of the mobile hone and remove the
cover
Insert one or two SIM cards at the re ared
ositions. Pictures by the ositions show in
which way the SIM cards should be inserted.
The hone is equi ed with 2 slots for SIM
cards. Next to SIM cards you can also insert
a MicroSD memory card.
Finally ut the battery cover back and tighten
the screws. The screws must be ro erly
tightened to ensure a watertight seal, but
tighten them carefully not to cross the
thread.
If the ackage includes a screwdriver use
always the su lied screwdriver for
tightening of the screws.
Overtightening, breakage or other
mechanical damage of the screws are not
covered by warranty !
7

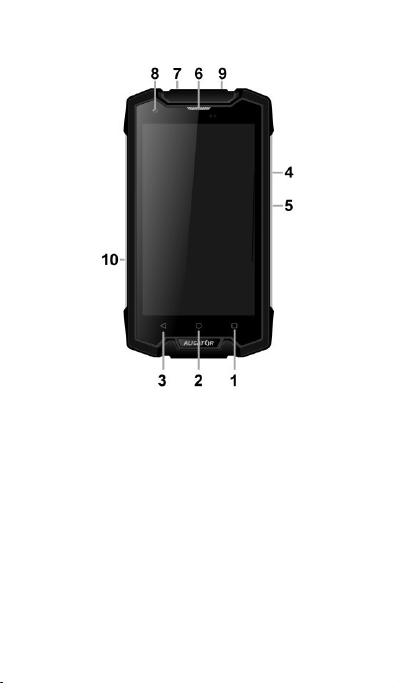

Mobile controls
1. Button „Menu“
2. Button „Main screen“
3. Button „Backwards“
4. Volume
5. Button „Switch On / Off“
6. E ar hon e
7. E ar hone connector
8. Front camera
9. Micro USB connector
10. Button „Camera“
Switch on
To Turn On – ress the button On/Off (5)
and wait for a while till the mobile hone is
on.
The setu wizard is dis layed by the first
start. Choose your language and follow the
instructions on the screen.
To Turn off - ress and hold the hone
button (5) until the dis lay shows the
window asking to shut down. Then confirm
it and the mobile hone switches off.
Mobile phone reset
In case the hone does not res ond or if
you need to reset it, ress and hold the
On/Off button (5) until the hone
reboots.
Activation and screen unlock
The screen will be Switched Off after a certain
time of inactivity. You can Switch On/Off the
screen by a short ress of the button (5).
Generally it is necessary to unlock the screen
after the activation. Put the finger on symbol
„Lock“ on the screen and move it U , left (for
calling) or to the right (camera).The screen
will be unlocked.
Android™ system
Your mobile hone is rovided with the
Android o erating system. The mobile hone
is in fact a small ersonal com uter which
can be connected to internet and in which
you can install a lot of various a lications
free of charge (viaGoogle Play™ store).
Basic manipulation
Meaning of the touch buttons (1) až (3)
(1) Launched applications/Menu – serves
to dis lay a list of recently o ened
a lications. After a long ress dis lays
the menu of items available on the
current screen or in a running
a lication
