Alfalaval ALTB-SB-20 Manuel utilisateur

ESE03056-EN6 2020-05

Original manual

Instruction Manual

ALTB-SB-20

Table of contents

The information herein is correct at the time of issue but may be subject to change without prior notice

1. EC Declaration of Conformity ....................................................................... 4

2. Safety .................................................................................................... 5

2.1. Important information ............................................................................. 5

2.2. Warning signs ..................................................................................... 5

2.3. Intended use ...................................................................................... 5

2.4. Safety precautions ................................................................................ 6

3. Installation .............................................................................................. 7

3.1. Unpacking/delivery ............................................................................... 7

3.2. Requirement for installation, personnel ......................................................... 8

3.3. Installation (with cutting/machining and welding required) ..................................... 8

3.4. Installation (assembling) .......................................................................... 12

3.5. Installation, electrically ............................................................................ 19

3.6. Recycling information ............................................................................. 19

4. Operation ............................................................................................... 20

4.1. Operation .......................................................................................... 20

4.2. Inspection ......................................................................................... 20

4.3. Troubleshooting ................................................................................... 20

4.4. Cleaning ........................................................................................... 21

5. Maintenance ........................................................................................... 22

5.1. General Maintenance ............................................................................. 22

5.2. Disassembling of agitator ........................................................................ 22

5.3. Replacement of gear motor ..................................................................... 22

5.4. Replacement of seals ............................................................................ 22

5.5. Replacement of Bearing for bottom console ................................................... 22

6. Technical Data ......................................................................................... 23

6.1. Technical data ..................................................................................... 23

7. Parts list / Service kits ................................................................................ 24

7.1. ALTB-SB-20-AE (with aeration) ................................................................. 24

7.2. ALTB-SB-20 (without aeration) .................................................................. 26

7.3. ALTB-SB-20 (with and without aeration) ....................................................... 27

7.4. Mounting Tools .................................................................................... 36

7.5. Installation Drawings .............................................................................. 38

8. Appendix ............................................................................................... 41

8.1. Declaration of Compliance ....................................................................... 41

8.2. Order specific “Tank With Agitator” drawing, example ........................................ 42

8.3. WPS ................................................................................................ 43

8.4. Drive unit lubrication .............................................................................. 44

8.5. Drive unit instruction .............................................................................. 49

1 EC Declaration of Conformity

Revision of Declaration of Conformity: 2017-03-01

The Designated Company

Alfa Laval KoldingA/S

Company Name

Albuen 31, DK-6000 Kolding, Denmark

Address

+4579322200

Phone No.

hereby declare that

ALTB-SB

Designation

Type

Serial number from AAC000000001 to AAC999999999

is in conformity with the following directive with amendments:

Machinery Directive 2006/42/EC

FDA 21CFR§177

Regulation (EC) 1935/2004

The person authorised to compile the technical file is the signer of this document.

Global Product Quality Manager, Pumps, Valves, Fittings and Tank Equipment Lars Kruse Andersen

Title Name

Kolding 2020-02-01

Place Date (YYYY-MM-DD) Signature

2 Safety

Unsafe practices and other important information are emphasized in this manual.

Warnings are emphasized by means of special signs.

2.1 Important information

Always read the manual before using the agitator!

WARNING

Indicates that special procedures must be followed to avoid serious personal injury.

CAUTION

Indicates that special procedures must be followed to avoid damage to the Agitator.

NOTE

Indicates important information to simplify or clarify procedures.

2.2 Warning signs

General warning:

Caustic agents:

Dangerous electric voltage:

2.3 Intended use

- The Agitator in only for mixing / conditioning / stirring of liquids in a tank.

- The Agitator is only made for top mounting position on the top plate / welding flange on the tank.

2 Safety

All warnings in the manual are summarised on this page.

Pay special attention to the instructions below so that serious personal injury and/or damage to the valve are avoided.

2.4 Safety precautions

2.4.1 Installation:

Always read the technical data thoroughly (see 6 Technical Data).

Always follow installation instructions thoroughly (see 3 Installation).

Never expose the Agitator to undue vibrations or shocks.

Never start the Agitator in the wrong direction of rotation.

Ensure that the tank media is not corrosive to the Agitator.

Only install the Agitator in environments within temperature limit: -20°C and +40°C.

Only install the Agitator in altitudes less than 1000 m above sea level.

Only use authorized personnel when electrically equipment is connected.

2.4.2 Operation:

Always read the technical data thoroughly (see 6 Technical Data).

Never start Agitator in the wrong direction of rotation.

Beware of Agitator in operation can produce sound levels in excess of 85dB(A).

Always handle lye and acid with great care.

Always rinse well with clean water after cleaning.

Never run the agitator for a longer time (seconds) without product, water or cleaning liquid in the tank.

2.4.3 Maintenance:

Always follow the maintenance instruction thoroughly (see 5 Maintenance.)

Always follow the maintenance instruction for gear motor thoroughly (see 8.5 Drive unit instruction).

Always study the parts list and assembly drawing carefully (see 7 Parts list / Service kits).

Never touch the moving parts while the Agitator is connected to the power supply.

Always disconnect the power supply while servicing the Agitator.

Ensure correct rotation direction of propeller before startup and after any maintains there might have impact on

the direction.

Never service the agitator or tank with product or cleaning liquid in the tank.

2.4.4 Transportation:

Always transport the Agitator in original packaging.

Always support the shaft adequately, to protect shaft and bearings.

Never expose the Agitator to undue vibrations or shocks.

Control for oil leakage on gears with vent screw.

Ensure correct rotation direction of impeller before startup and after any maintains there might have impact on the

direction.

3 Installation

The instruction manual is part of delivery. Study the instructions carefully.

The Agitator is for permanent fastening.

Make sure the motor corresponds to the environment.

Check the direction of rotation before operation.

3.1 Unpacking/delivery

Always use lifting equipment when handling the Agitator.

Alfa Laval cannot be responsible for incorrect unpacking.

Step 1

3.1.1 Inspect the delivery for visible transportation damage (crates and packaging) - all issues should be reported to carrier.

Step 2

3.1.2 Check that deliveries are according to delivery notes.

Complete Agitators can be delivered in more than one shipment.

Agitators can be delivered as one of the following:

1. Agitator parts and instruction manual required for tank builder to install shafts and propellers.

2. Agitator parts and instruction manual required for tank builder to install drive unit (gear motor) and sealing system.

3. As 1) and 2) in one shipment.

Step 3

3.1.3 Inspect Agitator parts for visible transport damage.

Step 4

Do NOT use eye bolts on gear motor to lift the Agitator. They are only for gear motor removal.

Step 5

3.1.5 During lifting:

- Always support the shaft adequately to protect shaft and bearings.

- Be carefully not to damage shaft-end with treads.

- Never expose the Agitator to undue vibrations or shocks.

- Control for oil leakage on gears – leave vent plug in gear until gear is installed and in correct position.

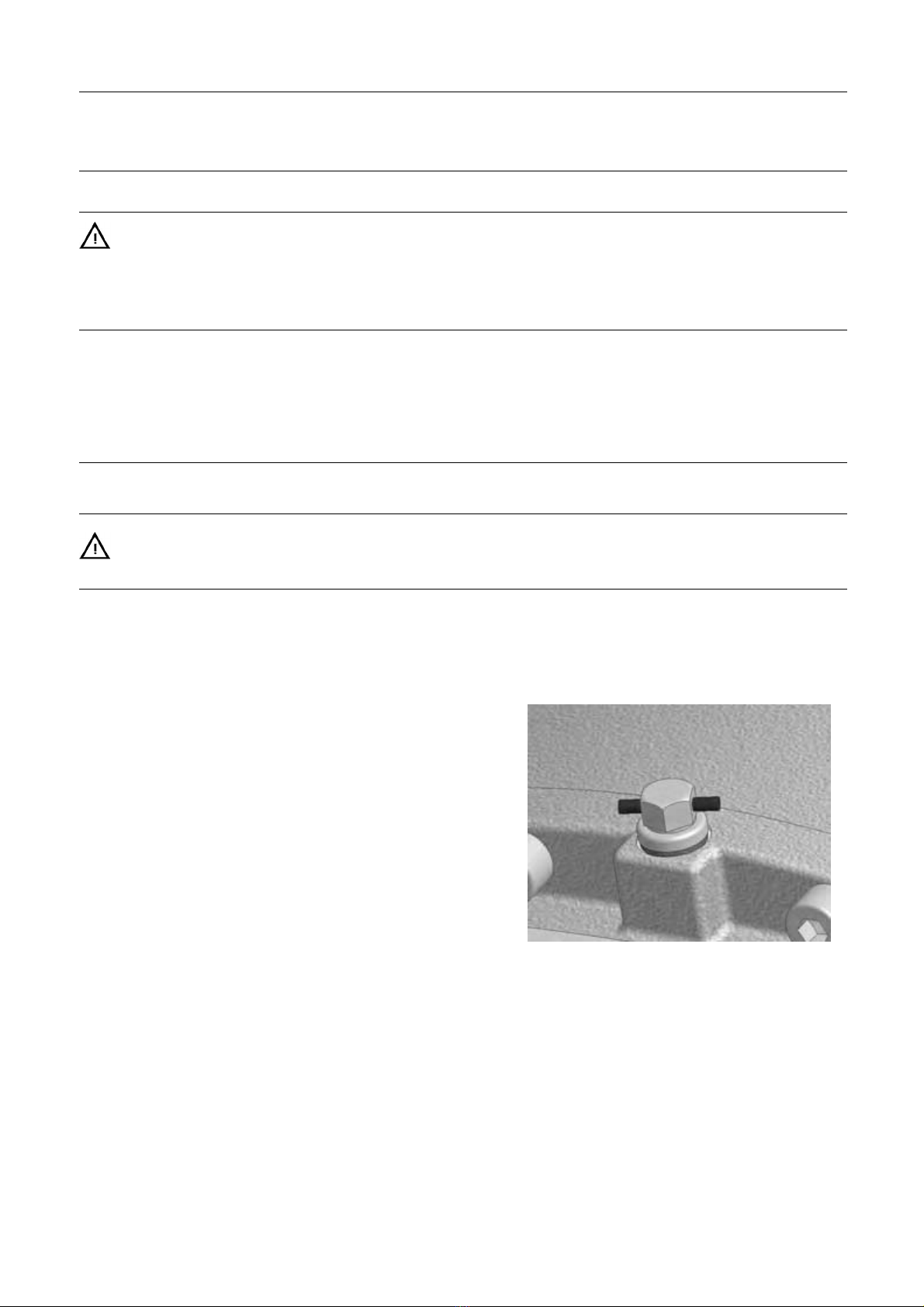

Figure 1, un-activated vent plug

3 Installation

The instruction manual is part of delivery. Study the instructions carefully.

The Agitator is for permanent fastening.

Make sure the motor corresponds to the environment.

Check the direction of rotation before operation.

3.2 Requirement for installation, personnel

Welder:

Experience from similar types of installation, covering TIG, MIG and MAG welding procedures in stainless steel thin

walled material.

Proven skills in reading installation guidelines and drawings ensuring that the installation is carried out safe for personnel

and property.

Erectors:

Experience from similar types of installation.

Proven skills in reading installation guidelines and drawings ensuring that the installation is carried out safe for personnel

and property.

Electrician:

Certified according to local regulations and experience from similar types of installation.

Proven skills in reading installation guidelines and drawings ensuring that the installation is carried out safe for personnel

and property.

3.3 Installation (with cutting/machining and welding required)

3.3.1 Requirement for installation

This work should be carried out by at least two persons and for safety reasons a platform or a scaffold should be

established around the tank top.

During installation ensure to use sufficient lightning.

The tank top must be horizontally during installation – if that is not the case, a laser must be used to ensure that the

right position for the “Bottom Console” can be found.

Ensure that the tank does not contain neither dangerous liquid nor gasses and that good ventilation is established.

Always have safety elements removed by authorized personnel.

Never cover or remove nameplates.

Always use lifting equipment when handling heavy parts of the Agitator.

Never connect to power during installation.

Always have the Agitator connected to power supply by authorized personnel.

Note: Alfa Laval highly recommends installing motor protection guard to the Agitator.

All position numbers and item numbers refer to the drawings show and specified in 7 Parts list / Service kits

3 Installation

The instruction manual is part of delivery. Study the instructions carefully.

The Agitator is for permanent fastening.

Make sure the motor corresponds to the environment.

Check the direction of rotation before operation.

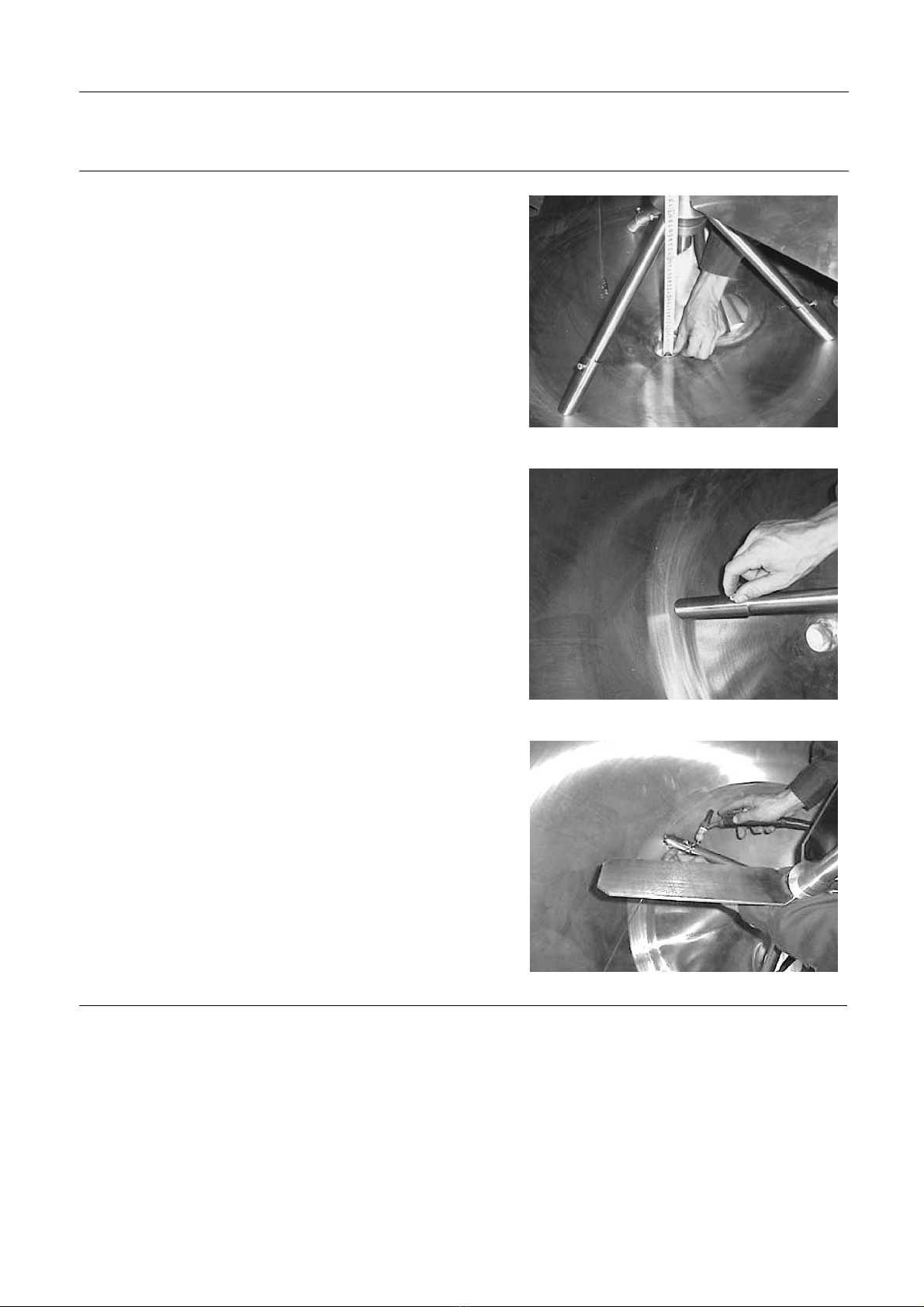

Step 1

3.3.2

See illustration in 7.5.1 page 38.

A. The three “Adjustable Leg For Bottom Console” pos. 70 are fastened to the “Bottom Console for Agitator” pos. 74 using

the three “Screw” pos. 77.

B. The assembled “Bottom Console” from a)

“Guide spindle for bearing” pos. 69

“Tool – Bushing” pos. 83,

“Tool – Back stop” pos. 85,

“Screw” pos. 91,

“Propeller” pos. 73,

“Agitator Shaft” pos. 71 (if delivered),

“Propeller” pos. 72 (if delivered),

“Agitator Shaft” pos. 75,

are lowered into the tank and assembled. In some cases all the parts can be assembled outside the tank and lowered into

the tank assembled. All threads must be greased to ensure not to damage the threads.

C. According to the order specific drawing "Agitator with Tank" that comes with the manual (not in the manual) the correct

Agitator position is selected (0/125/175 mm off center) which specify which position of holes to be used (data in this

manual are not to be used – find order specific drawing).

Example of an order specific drawing "Order specific "Tank With Agitator" drawing, example" are to be found in 8.2, page 42.

D. Mount the “Tool Guide Plate” pos. 80 on the “Tank mounting flange” pos. 99 letting the shaft pos. 75 entering the correct

hole in pos. 80. The “Tool Guide Plate” must be fastened to the tank top using two diagonally located holes in the tank top.

E. Mount the “Tool – Top Guide” pos. 82 to the “Tool Guide Plate” pos. 80 using the four “Screw” pos. 88.

F. Mount the “Tool – Top Guide” pos. 81 into the “Tool – Top Guide” pos. 82.

G. Rotate / orientate pos. 82 enabling the “Screw” pos. 90 to be used to fasten the shaft in vertical direction during adjustment

of the “Bottom Console” pos. 74.

3 Installation

The instruction manual is part of delivery. Study the instructions carefully.

The Agitator is for permanent fastening.

Make sure the motor corresponds to the environment.

Check the direction of rotation before operation.

Step 2

3.3.3 See illustration in 7.5.1 page 38.

A. If the tank top is horizontally within 0,5° the gravity can be used

as guideline for position of the “Bottom Console” – if it is not

possible to adjust the tank top to horizontally position (within

the tolerance) a laser pointer must be used to ensure that the

right position for the “Bottom Console” is found.

B. The Agitator is lifted to the correct position as shown on the

order specific drawing “Tank with Agitator” that comes with

the manual (not in the manual).

Example of an order specific drawing "Order specific "Tank

With Agitator" drawing, example" are to be found in 8.2, page

42. The “Screw” pos. 90 is tightened (not more than sufficient)

to fasten the shafts in vertical position.

C. When the agitator shaft is in correct position the three

“Adjustable Leg For Bottom Console” pos. 70 are

adjusted/rotated facing the tank bottom and the three “Screws”

pos. 77 are fastened. If the legs on “Bottom Console for

Agitator”pos. 74aretoolongtheyarecuttotherequired

length.

D. Tag weld the three “Adjustable Leg For Bottom Console” pos.

70 to the tank bottom using TIG welding.

E. Untighten the “Screw” pos. 90 ensure that the shaft can rotate

freely.

F. Tighten the screw again.

G. Remove one “Screw” pos. 77 and fill the thread hole with

welding, continue one by one with the two other screws.

H. Remove the “Screw” and pos. 90.

I. Verify that the shaft can rotate freely.

J. Grind the welded seams to the required finish.

Figure 2, Height of Bottom Console

Figure 3, Tightening screws

Figure 4, Welding Bottom Console

Autres manuels pour ALTB-SB-20

Table des matières

Autres manuels Alfalaval Mixer

Alfalaval

Alfalaval ALTB-SB-20 Manuel utilisateur

Alfalaval

Alfalaval IM 15 Manuel utilisateur

Alfalaval

Alfalaval HPM M-15 Manuel utilisateur

Alfalaval

Alfalaval ALTB-SB-30 Manuel utilisateur

Alfalaval

Alfalaval ALT Manuel utilisateur

Alfalaval

Alfalaval LeviMag Manuel utilisateur

Alfalaval

Alfalaval IM 15 Manuel utilisateur

Alfalaval

Alfalaval ESE02185-EN8 Manuel utilisateur

Alfalaval

Alfalaval MM UltraPure Manuel utilisateur

Alfalaval

Alfalaval ALS Manuel utilisateur

Alfalaval

Alfalaval IM 20 Manuel utilisateur

Alfalaval

Alfalaval ALT series Manuel utilisateur

Alfalaval

Alfalaval ALS-ME-GR-30 40LF-S3 Series Manuel utilisateur

Manuels Mixer populaires d'autres marques

Bosch

Bosch GRW 9 Manuel utilisateur

MULTIQUIP

MULTIQUIP Whiteman WM45E Mode d’emploi

KitchenAid

KitchenAid KSM7581BZ0 Guide rapide

Jay-Lor

Jay-Lor 5050 Manuel utilisateur

Sunbeam

Sunbeam FPSBSM210X Manuel utilisateur

MULTIQUIP

MULTIQUIP Whiteman MC94S Mode d’emploi

Thinky

Thinky ARE-250 Manuel utilisateur

Midas

Midas XL4 Manuel utilisateur

bianco

bianco PURO 4 Manuel utilisateur

Paso

Paso DAG9200 Manuel utilisateur

Sima

Sima SFX-9A Manuel utilisateur

better chef

better chef IM-815WC Instructions d'installation

ALLEN & HEATH

ALLEN & HEATH GR1 Manuel utilisateur

Lacor

Lacor 69083 Fiche technique

M-Audio

M-Audio Midiman SAM Manuel utilisateur

Buffalo

Buffalo CP921 Manuel utilisateur

Pentair

Pentair HYPRO Cleanload 3376-0870 Instructions de fonctionnement

Cuisinart

Cuisinart SM50WHE Manuel utilisateur
