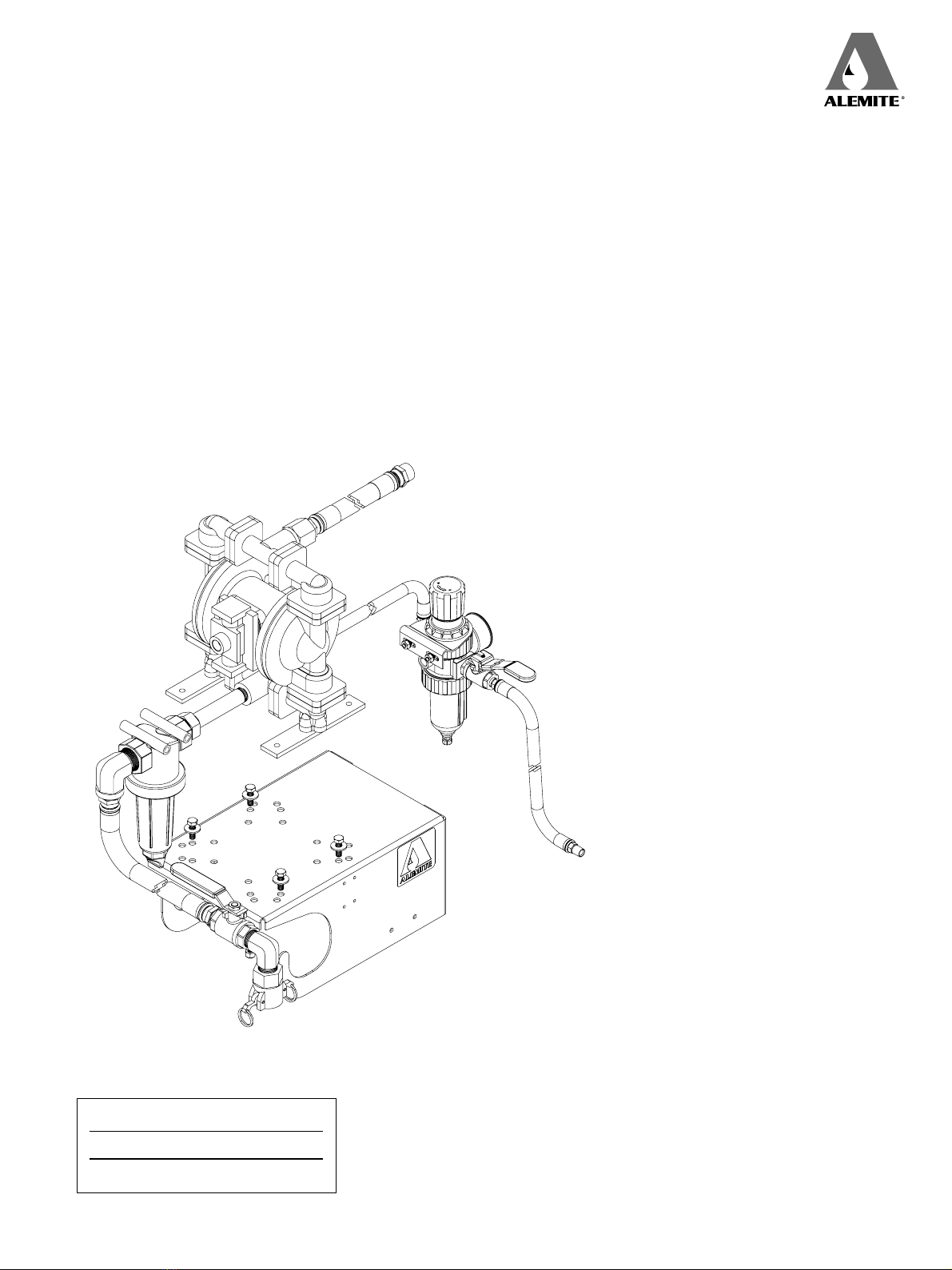

Alemite 8595-C Manuel utilisateur

Service and installation manual

Fluid evacuation system

Model -C

Date of issue January 2024

Form number 671044

Version 2

Safety *. . . . . . . . . . . . . . . . . . . . . . . . . . 5

Description. . . . . . . . . . . . . . . . . . . . . . . 6

Optional kits . . . . . . . . . . . . . . . . . . . . . . 

Installation and maintenance . . . . . . . 7

Installation . . . . . . . . . . . . . . . . . . . . . . . 

Maintenance . . . . . . . . . . . . . . . . . . . . . . 

Service parts . . . . . . . . . . . . . . . . . . . . . 8

Contents

*Indicates change.



WARNING

Do not operate equipment

without reading and fully

understanding safety warn-

ings and instructions.

Failure to follow warnings and

instructions may result in serious injury.

NOTE

Do not operate equipment without

wearing personal protective gear.

Wear eye protection. Protective

equipment such as dust mask, non-skid

safety shoes, hard hat, or hearing pro-

tection used for appropriate conditions

will reduce personal injuries.

WARNING

Do not allow ﬂuid to leak

onto ﬂoor when operating

equipment. If spill occurs,

clean any ﬂuid on ﬂoor before continuing

operation.

Failure to comply may result in death

or serious personal injury.

Safety *

Read and carefully observe these installation

instructions before installing/operating/

troubleshooting. Pump must be installed,

maintained and repaired exclusively by

persons familiar with these instructions.

Always disconnect power source (electric,

air or hydraulic) from equipment when not

being used.

This equipment generates high pressure.

Extreme caution should be used when

operating this equipment as material leaks

from loose or ruptured components can

inject ﬂuid through skin and into body. If any

ﬂuid appears to penetrate skin, seek

attention from a doctor immediately. Do not

treat injury as a simple cut. Tell attending

doctor exactly what type of ﬂuid was injected.

Any other use not in accordance with

instructions will result in loss of claim for

warranty or liability.

• Do not misuse, over-pressurize, modify

parts, use incompatible chemicals, ﬂuids,

or use worn and/or damaged parts.

• Do not exceed stated maximum

working pressure of equipment or of

lowest rated component in your system.

• Always read and follow manufacturer’s

recommendations regarding ﬂuid

compatibility, and use of protective

clothing and equipment.

• Failure to comply may result in personal

injury and/or damage to equipment.

Explanation of signal

words for safety

NOTE

Emphasizes useful hints and recom-

mendations as well as information to

prevent property damage and ensure

efﬁcient trouble-free operation.

CAUTION

Indicates a dangerous situation that can

lead to light personal injury if precau-

tionary measures are ignored.

WARNING

Indicates a dangerous situation that

could lead to death or serious injury if

precautionary measures are ignored.

DANGER

Indicates a dangerous situation that will

lead to death or serious injury if precau-

tionary measures are ignored.

*Indicates change.



Model -C ﬂuid evacuation system

provides a clean, safe way to evacuate

waste ﬂuids.

System features a corrosion resistant

aluminum double diaphragm pump that

creates a powerful suction to evacuate waste

ﬂuids and transfer them through an

enclosed system to a remote storage tank.

Model -C includes a pump for

transferring non-ﬂammable ﬂuids such

as used motor oil, coolant or

windshield cleaner.

System can evacuate used ﬂuids from

rolling drain pans, portable oil drain

containers and differentials and transaxles.

Pump is air operated and can be mounted

on any convenient wall surface.

Additional hardware can be used to serve

multiple service stations.

Optional kits

Pump wall bracket kit  facilitates

mounting of diaphragm pump to wall or to

pole. Wall bracket is designed with hooks for

hanging suction hose when not in use.

Pump wall bracket is pre-drilled to facilitate

installation of  ﬁlter/regulator on its

side using  FRL wall bracket kit

included with diaphragm pump

evacuation kit. († Fig. IPB 1, page 6).

Description



WARNING

Do not exceed lowest pressure rating of

any component in system.

Failure to comply may result in

serious injury or death.

WARNING

Do not operate pump with broken,

missing or defective parts. Replace

defective parts prior to operation.

Failure to comply may result in

serious injury or death.

WARNING

Do not operate with leakage in system.

Disconnect air to motor.

Failure to comply may results in

serious injury.

Installation

Depending on type of ﬂuid to be evacuated,

ﬂuid evacuation system installation and use

must be in accordance with ﬂammable and

combustible liquids code (NFPA ) and

automotive and marine service station code

(NFPA A) and must comply with all local

state and federal codes.

Also, the United States Government safety

standards have been adopted under the

Occupational Safety and Health Act. These

standards should be consulted, particularly

the General Standards, Part , and the

Construction Standard, Part .

Maintenance

DANGER

Do not operate or service machine prior

to ensuring it has been properly

grounded. System must be grounded to

reduce risk of static electrical parking.

Refer to local, state and federal electrical

codes for detailed grounding

instructions.

Failure to comply will result in death

or serious personal injury.

Installation and maintenance

WARNING

• Make sure pump and equipment used

or located in pumping area are

grounded.

• Do not use system if any static

sparking or electrical shock occurs.

Stop evacuation immediately and do

not use system until problem is

corrected.

• Do not alter or modify any part of this

equipment.

• Do not attempt to repair or

disassemble equipment while system

is operating.

• Make sure all connections are

securely tightened before using

equipment.

• Check all equipment regularly and

repair or replace worn or damaged

parts immediately.

• Never place your hand on or near

pump suction inlet.

Failure to comply may result in

personal injury and/or damage to

equipment.



2 3

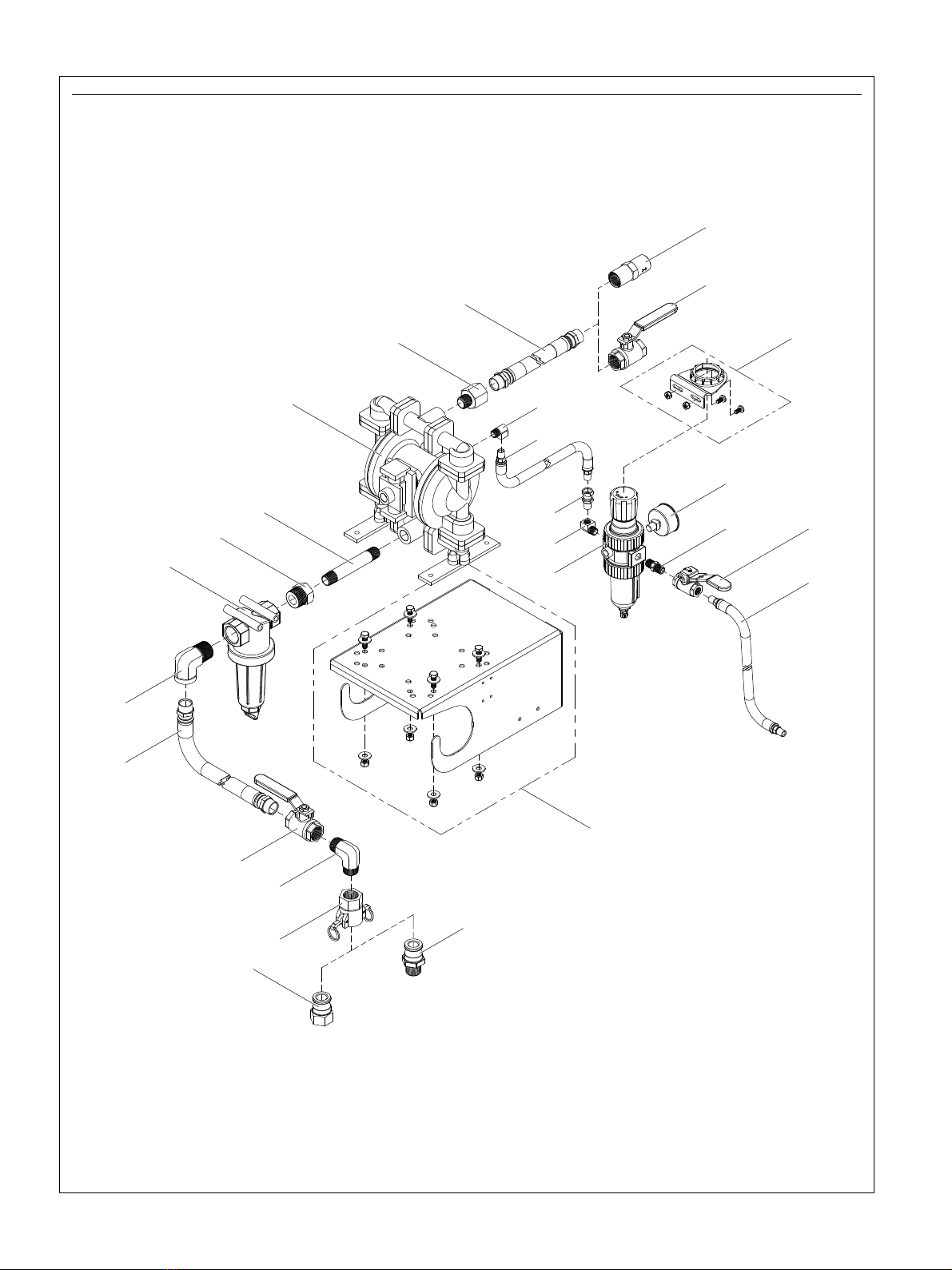

Fig. IPB 1

Service parts



Service parts

Item Description Quantity Part

1Air line hose 2 –

2 Full port ball valve, 1/4in NPT 1 –

3 Nipple, 1/4in × 1/4in NPTF 1 327033

4 Filter/regulator, 1/4in 1 7504-1 *

5 Elbow, 1/4in × 1/4in NPTF 2 –

6 Union adapter 1 1000-44

7 Ball valve, 3/4in NPTF 2 338564 1) 2)

8Check valve, 3/4in 1 343274 1)

9Delivery hose 1 –

10 Adapter, 1/2in ID × 3/4in OD 1 –

11 Diaphragm pump, 1/2in 1 8322-A

12 Nipple, 1/2in NPT ×  in 1 –

13 Bushing,  in × 1/2in NPTF 1 320354

14 T-Strainer 1 –

15 Elbow, 3/4ID ×  OD NPTF 1 –

16 Hose, Suction 1 –

17 Elbow, 3/4in OD × 3/4in OD NPTF 1 –

18 Camlock coupler 1 –

19 Camlock connector 1 343261 1)

20 Camlock connector 1 343262 1)

21 Wall bracket kit (pump) 1 343283 1) 3)

22 Wall bracket kit (FRL) 1 – 3)

Not all parts are available separately.

) Designates kit items that are optional and must be purchased separately

) One valve optional

) Available as a individual kits

*Indicates change.



28 29

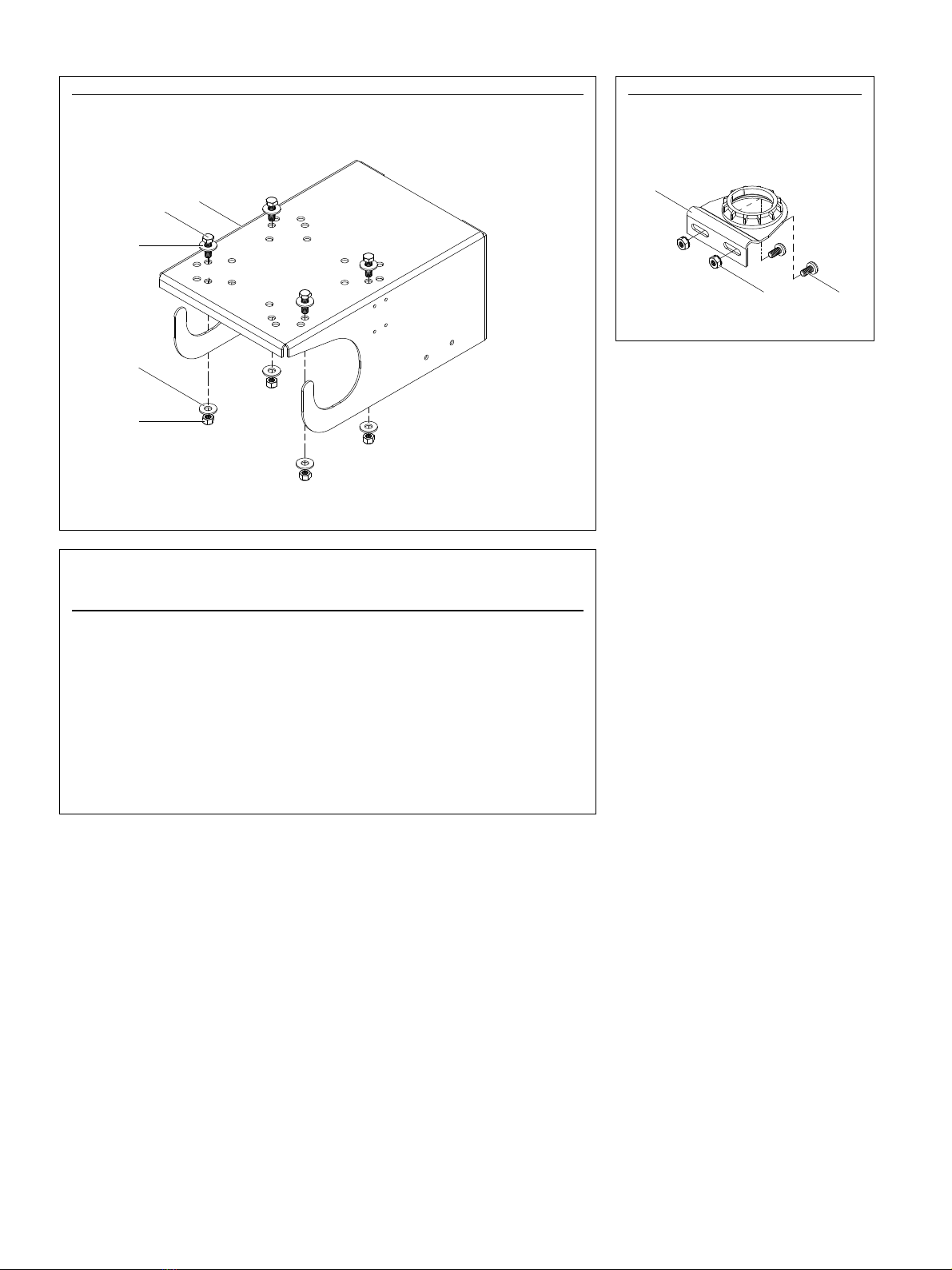

Fig. IPB 2

Wall bracket kit (pump) (21)

Fig. IPB 3

Wall bracket kit (FRL) (22)

Service parts

Item Description Quantity

23 Wall mount bracket 1

24 Hex head cap screw, 5/16 in - 4

25 Flat washer, 5/16 in 8

 Elastic stop nut, 5/16 in - 

 Bracket 

 Hex nut with exterior lock washer, - 

 Pan head screw, - × 3/8in 

Parts not available separately.



This page left intentionally blank.



alemite.com

® Alemite, LLC is a registered trademark.

The contents of this publication are the copyright of the publisher and may not be reproduced (even

extracts) unless prior written permission is granted. Every care has been taken to ensure the accuracy

of the information contained in this publication but no liability can be accepted for any loss or damage

whether direct, indirect or consequential arising out of the use of the information contained herein.

January  · Form 71044 Version 2
