Alcatel One Touch Idol 6030D Manuel technique

ByNCKTeam

L2 Repair Document TCTMobile Limited

Rev.

ONE TOUCH 6030D/X/A/N Level 2 Repair Document

Page

1.2 1/66

Diablo

ONE TOUCH 6030D/X/A/N

Note: this manual is non-contractual and TCT Mobile Limited can modify it without prior notice on

the characteristics of described equipments.

ByNCKTeam

L2 Repair Document TCTMobile Limited

Rev.

ONE TOUCH 6030D/X/A/N Level 2 Repair Document

Page

1.2 2/66

1.2 2013/6/20 Update software download process Jennifer Zhang

1.1 2013/5/24

Update warranty check part and correct

some other error Jennifer Zhang

1.0 2013/4/26 Add L2 E part Jennifer Zhang

0.4 2013-3-16

Updated disassemble process

according to CPM comment Jennifer Zhang

0.3 2013-2-21 Update L2 spare part list Jennifer Zhang

0.2 2013-1-31 Update according to CPM’s comment Jennifer Zhang

0.1 2012-12-28 Draft creation Jennifer Zhang

Rev.

Date

Modification description

Prepared By

Checked By

Approved By

ByNCKTeam

L2 Repair Document TCTMobile Limited

Rev.

ONE TOUCH 6030D/X/A/N Level 2 Repair Document

Page

1.2 4/66

1 Level 2 repair process

Reassembly

Record in BIG

End

Retest

Start

Visual Inspection

Warranty Check

Pretest & Failure confirm

SW Upgrade

Disassembly

L2 Repair

Retest

Function test

PCBA Replace

Restore User Information

Back up user data

ByNCKTeam

L2 Repair Document TCTMobile Limited

Rev.

ONE TOUCH 6030D/X/A/N Level 2 Repair Document

Page

1.2 5/66

2 Warranty Check and Visual Inspection

2.1 Warranty confirmation of L1

IMEI sticker check:

1) Power on the handset, enter *#06#

2) If the IMEI sticker in the back casing is not lost:

We should make sure that the IMEI number MUST be the same with the one on the

IMEI sticker; if not, it’s out of warranty policy

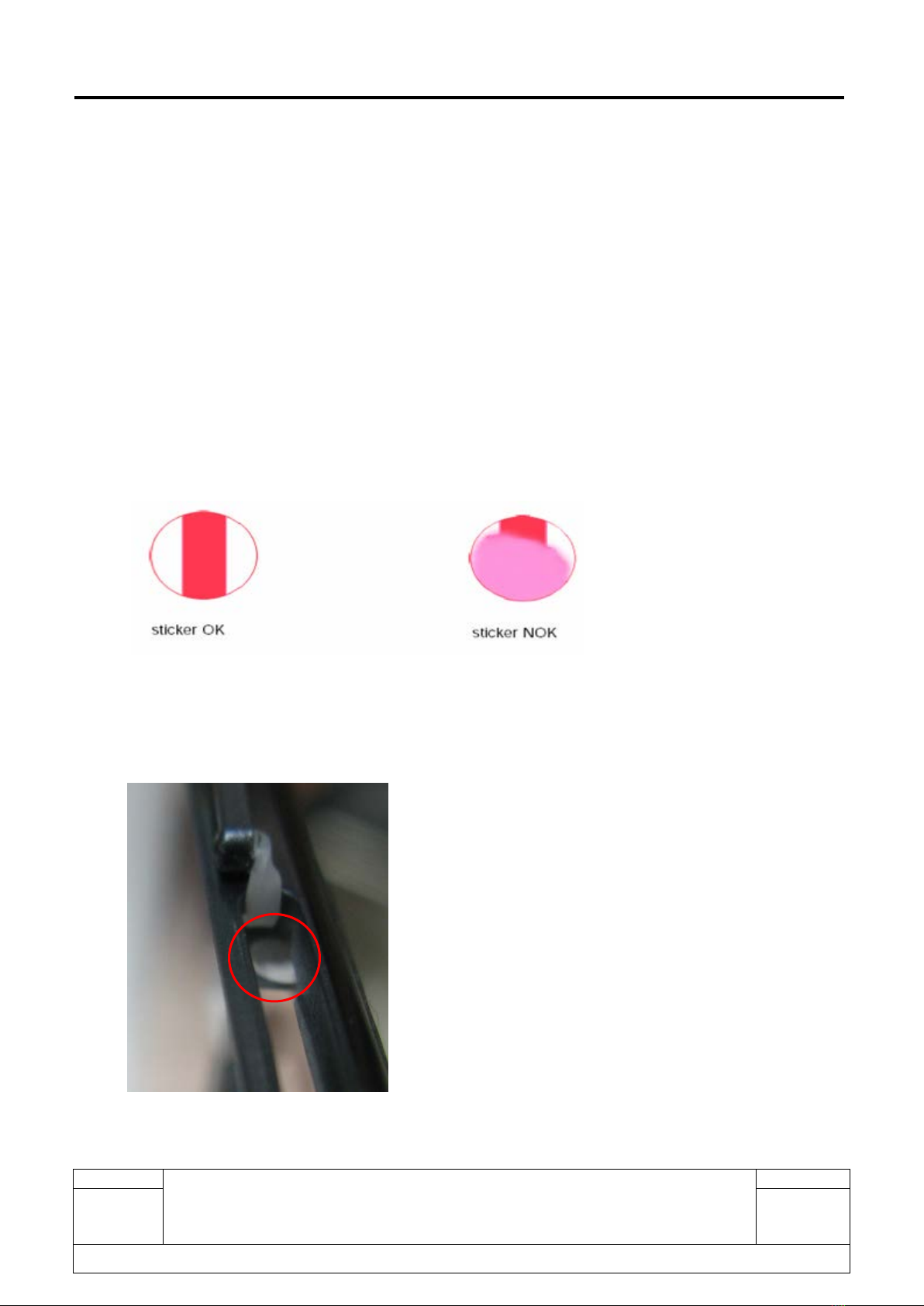

Humidity sensitive label

If humidity sensitive label is not good, the cell phone will be considered as out of

guarantee.

1). Liquid was detected by humidity sensitive label

2). There’re 3 pieces of humidity sensitive sticker. Please find positions of humidity

sensitive stickers from below.

①one humidity sticker is beside SIM2 card or T card.Open the SIM2 cover (ONE

TOUCH 6030D) or T card cover (ONE TOUCH 6030), you can see the humidity sticker

from outside;

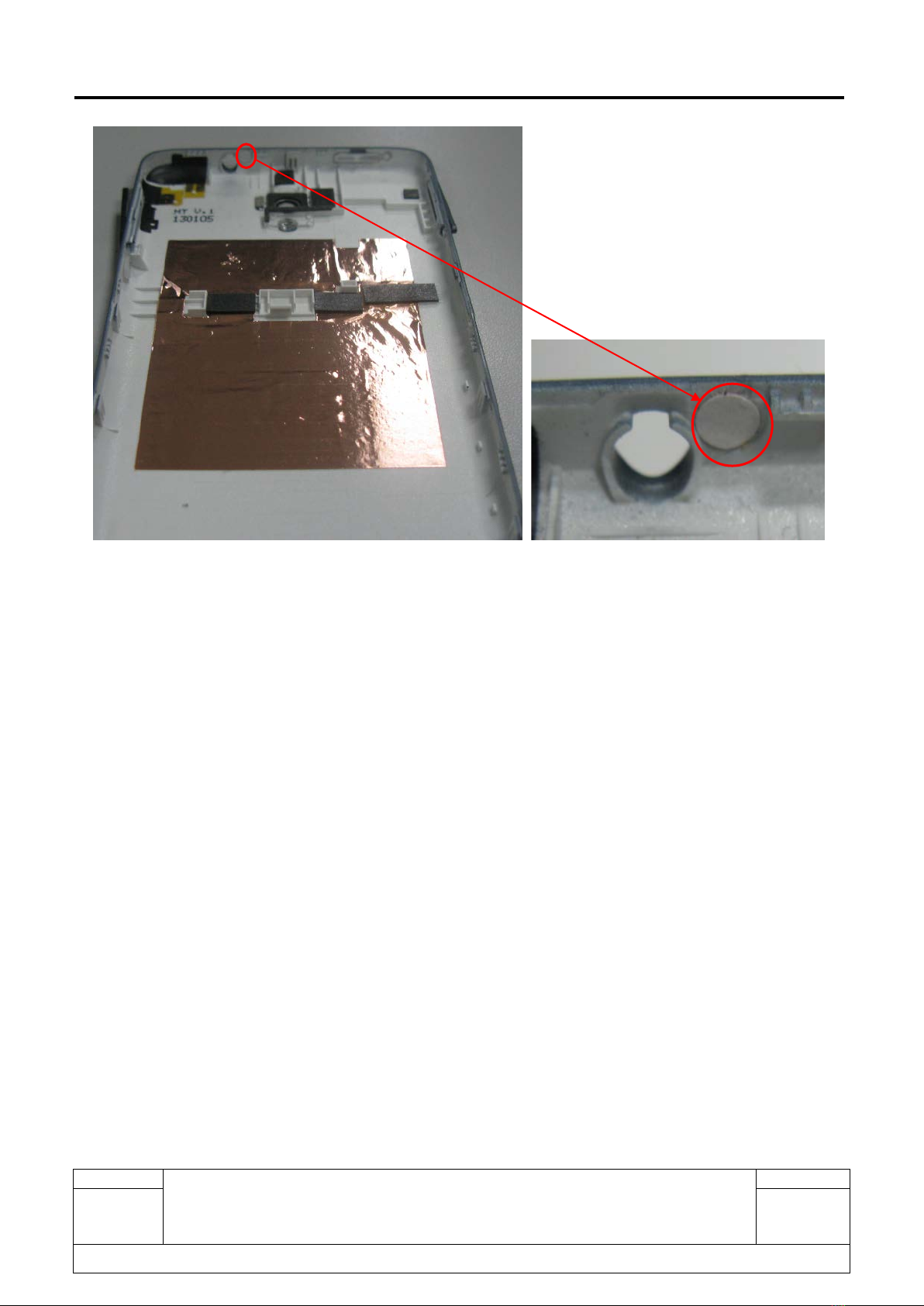

②Other one

is beside audio jack hole on furnished back casing.

ByNCKTeam

L2 Repair Document TCTMobile Limited

Rev.

ONE TOUCH 6030D/X/A/N Level 2 Repair Document

Page

1.2 6/66

2.2 Visual mechanical check

Mechanical warranties check items:

1) Corrosion

Corrosion on the USB connector, SIM connector, and other metal surfaces。

2) Hole (diameter > 1mm)

Holes on any surface, including the front casing, furnished frame, battery cover,

touch Lens, keypad…

3) Bump

Bumps (diameter > 1mm) on any surface, including front casing, decorate frame,

battery cover, touch Lens, keypad, etc.

4) Scratch

Scratches (length > 3mm) on any surface, including the front casing, decorate

frame, battery cover, touch Lens, keypad, etc.

5) Distortion

Bend, twisted or crushed on the h/s, cover/casing or connectors, etc.

ByNCKTeam

L2 Repair Document TCTMobile Limited

Rev.

ONE TOUCH 6030D/X/A/N Level 2 Repair Document

Page

1.2 7/66

6) Broken

Touch broken, casing/cover broken, etc.

7) Dropped

Keypad tear off, touch lens, connectors dropped, etc.

8) Gap

External physical damage relating to abnormal use, like front case and frame

opened

9) Others

Damage caused by disassembly ,wrong part assembly, loss of components

Use in abnormal environment like high temperature causing plastic melts

2.3 Pretest

1) Check that the SIM card is set correctly.

2) Insert the battery.

3) Power on the cell phone.

4) If the cell phone cannot power on, visually check the condition of the battery

connector. Replace it if necessary.

5) If the cell phone asks to input NCK code, this means it is SIM locked and can only

be worked with dedicated SIM card. Use the correct SIM card.

6) Enter the phone code if necessary.

7) After the phone power on, test step by step with the auto test code:

Press *#2886# in dial screen and then you will see the interface displaying the

SW version. Select “Auto” to start the auto test, or select “MANU” to do the MMI

test manually.

If one of the test failed during “Auto” test mode, it will ask you “Restart?”, press

“YES” to restart the auto test from the first one and “NO” to exit the auto test, while

“NEXT” to continue the auto test.

ByNCKTeam

L2 Repair Document TCTMobile Limited

Rev.

ONE TOUCH 6030D/X/A/N Level 2 Repair Document

Page

1.2 8/66

TRACABILITY Test

I. 1). “Auto” test mode: You can get some information such as PT, PFT, BW, MMI

and FT.

2). “MANU” mode: You can get information such as IMEI, CU-REF, PTH (PTM),

Data Code, BT address, etc.

II. Press “Pass” to continue.

TP1

I. “Please draw on the yellow area” according to instructions and it will show

“TEST RESULT: OK!”

II. Press “PASS” to continue.

TP2

III.“Please draw on the yellow area” according to instructions and it will show

“TEST RESULT: OK!”

IV.Press “PASS” to continue.

LCD MIRE

I. You will see the LCD display three colors - RED, GREEN and BLUE - if it

functions well;

II. Press “Pass” to continue.

LCD BLACK

I. You will see the LCD displays black if it functions well;

II. Press “Pass” to continue.

LCD GREYCHART

I. You will see the LCD displays greychart if it functions well;

II. Press “Pass” to continue.

LCD GREY LEVEL

I. You will see the LCD displays grey if it functions well;

ByNCKTeam

L2 Repair Document TCTMobile Limited

Rev.

ONE TOUCH 6030D/X/A/N Level 2 Repair Document

Page

1.2 9/66

II. Press “Pass” to continue.

LCD WHITE

I. You will see the LCD displays white if it functions well;

II. Press “Pass” to continue.

KEYPAD.

I. Press the key displayed on the screen. The key on the screen will disappear

when you press it if it functions well;

II. Press “Pass” to continue;

KEYPAD & LCD BACKLIGHT

I. The keypad and screen backlight will be flashing if it functions well;

II. Press “Pass” to continue;

CAMERA LED

I. Camera LED light will turn on if it functions well

II. Press “Pass” to continue;

CHARGE LED

I. Charge LED will turn on if it functions well;

II. Press “Pass” to continue;

CAMERA

Press “Pass” to continue if the camera functions well;

CAMERA IMG FRONT

Press “Pass” to continue if front camera functions well;

AUDIO

I. Put the phone near to your ear and you will hear a voice prompt which

introduces some emergency call numbers if functions well

II. Press “Pass” to continue;

III.you will hear a voice prompt which introduces some emergency call numbers

ByNCKTeam

L2 Repair Document TCTMobile Limited

Rev.

ONE TOUCH 6030D/X/A/N Level 2 Repair Document

Page

1.2 10/66

through speaker if functions well;

IV.Press “Pass” to continue;

VIBRATOR

I. You can feel the phone’s vibrating if it functions well;

II. Press “Pass” to continue

HEADSET

I. Insert headset according to the instruction and you will hear FM playing through

the headset and FM frequency will be displayed on the screen if it functions

well;

II. Press “Pass” to continue;

III.Remove headset according to the instruction and it will say “Headset tested” if

it functions well;

IV.Press “Pass” to continue;

USB

I. Insert USB cable, then it will say “USB:OK” “Charger:OK” and Charger LED will

also turn on if it functions well;

II. Remove USB cable according to instruction

III.Press “Pass” to continue;

COMPASS

I. “compass test start: move the phone in an 8 shape”

II. Press “Pass” to continue;

III.The compass will ways point north whatever the phone is put at which direction

if it functions well;

IV.Press “Pass” to continue

GENSOR

I. Put the handset up and towards up according to instruction;

ByNCKTeam

L2 Repair Document TCTMobile Limited

Rev.

ONE TOUCH 6030D/X/A/N Level 2 Repair Document

Page

1.2 11/66

II. Put the handset “face up”, “face down” and towards “Down”, “Left”, “Right”

according to instruction; and it will enter into next test automatically if it

functions well;

LIGHT SENSOR

I. “ambient light” value will change according to the phone’s movement, and it will

say “dark:OK” “bright:OK” if it functions well;

II. Press “Pass” to continue;

PROXIMITY

I. Put the handset near to your face and then move it away from you face; then it

will say “near -> far:1” and “far->near:1” if it functions well;

II. Press “Pass” to continue;

SIM CARD

I. Insert SIM card and the phone will detect it if functions well;

II. Press “Pass” to continue;

MEMORY CARD (only ONE TOUCH 6030D supports external memory card and

has this test)

I. Insert memory card according to instruction and the phone will detect it if it

functions well;

II. Press “Pass” to continue;

BATTERY TEMP

I. It will display “Temp range: 20~50”, “current is xxx” and the value of “Battery

content”/ “Battery Voltage” if it functions well;

II. Press “Pass” to continue;

BT

Bluetooth will search automatically and it will display device address if it functions

well;

WIFI
