Akw 1400 Series Manuel utilisateur
1400 Series
Plastic Grab Rails
INSTALLATION INSTRUCTIONS
Please read all instructions before installation and leave this document
with the end user for future reference as it contains important warranty information
General: 01905 823 298 | www.akw-ltd.co.uk2
2
IMPORTANT INFORMATION & INSTALLATION
Important Information & Installation

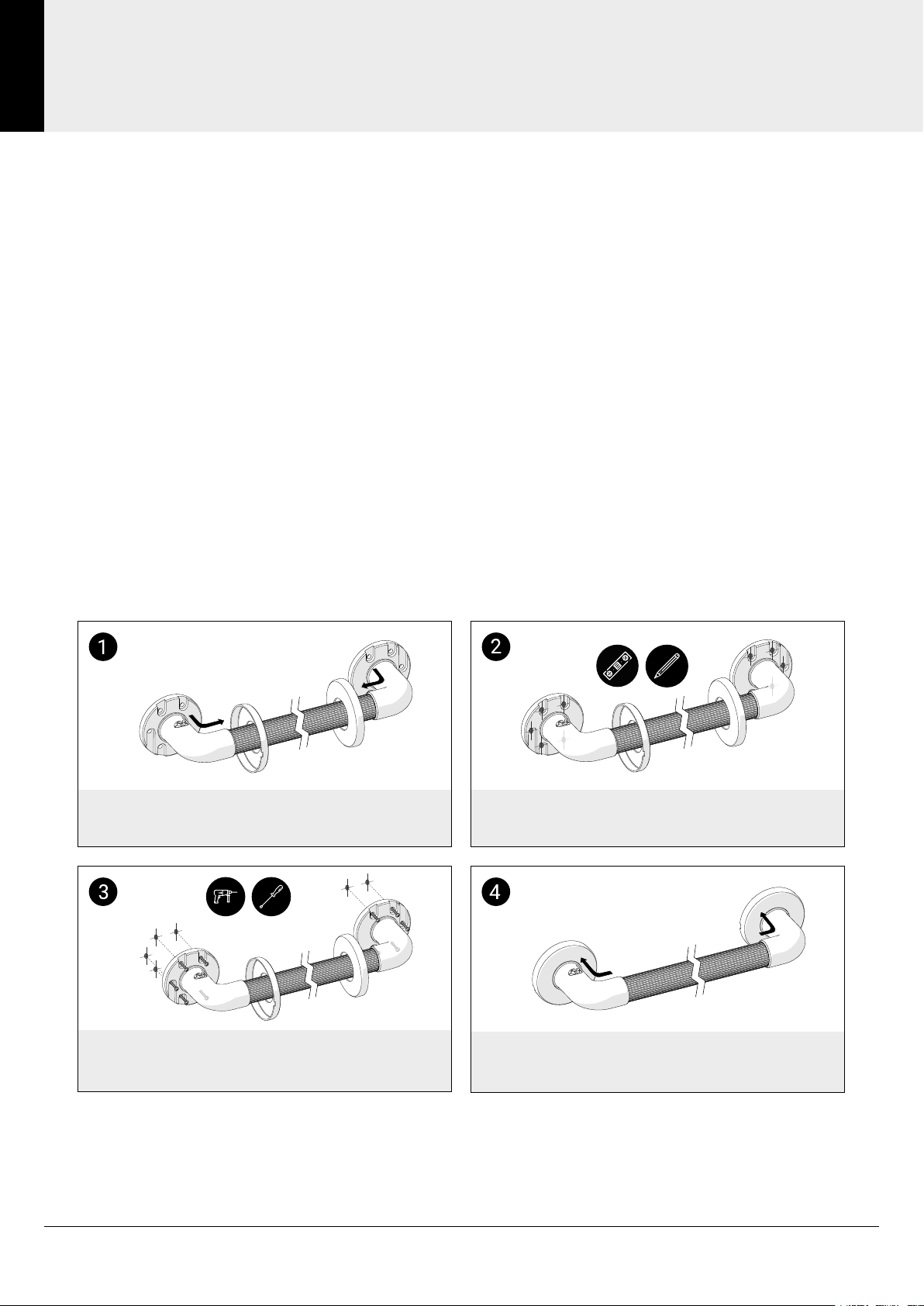

Hold the grab rail in position ensuring that it is level
& mark the position of the holes.
Check for pipes or cables before drilling. Drill & secure
in place using the appropriate tools and wall xings.
Remove bracket covers.
Do not overtighten wall xings.
Secure bracket covers in place.
Installation must be carried out in accordance with these instructions, and must be
conducted by a competent installer.
Important
Before xing anything to the walls, ensure that the construction of that wall type is capable of
the maximum weight of the loaded unit and that the appropriate xings and xtures are used
for that wall type. Wall xings are not supplied.
It is recommended to use all xing holes on the bracket. Do not use countersunk screw xings.
Before you start
Please remove any protective covering and examine carefully. Check that all items are present
before discarding of all packaging. Please notify the retailer immediately of any damage
or faults. The manufacturer cannot be held responsible for any installation costs that may
arise from damaged or faulty products being installed and not in accordance with these
instructions. Keep small parts and packaging away from children and dispose all packaging in
accordance with the local recycling authorities.
For grab rails with two wall brackets please follow the instructions below:
Technical Support: 01905 560 219 3Order: 01905 823 299 |orders.akw-ltd.co.uk
3
INSTALLATION & SPECIFICATIONS
Installation & Specications
Start by installing the elbow(s) from the middle outwards, always making sure the rail is level.
Product Diameter Length* Height** Rail Colour Stock Code
300mm Plastic
Fluted Grab Rail 32mm 300mm 61.5mm
White
Blue
Dark Blue
Mid Grey
01400WH
01400BU
01400DB
01400MG
450mm Plastic
Fluted Grab Rail 32mm 450mm 61.5mm
White
Blue
Dark Blue
Mid Grey
01410WH
01410BU
01410DB
01410MG
600mm Plastic
Fluted Grab Rail 32mm 600mm 61.5mm
White
Blue
Dark Blue
Mid Grey
01420WH
01420BU
01420DB
01420MG
600x600mm Plastic
Fluted Grab Rail (90°) 32mm 600x600mm 61.5mm White
Blue
01430WH
01430BU
450x450mm Plastic
Fluted Grab Rail (135°) 32mm 450x450mm 61.5mm White
Blue
01440WH
01440BU
* Distance between the centre of the wall brackets. ** Distance from the wall to the rail.
90° Elbow 135° Elbow End Elbow
For grab rails with three or more wall brackets you will encounter some of the following elbows:
PRODUCT SPECIFICATION AND DATA INFORMATION
Maximum weight load:
Plastic Fluted 1400 Series 15.5 Stone (100kg)
Weight load refers to the grab rail only, applied for less than 30 minutes in any 60 minute period.
Fixings and retention in the mounting surface are the responsibility of the installer.
Standard operating temperature range : -5°C to +35°C.
Materials of construction:
Brackets: PVC-U | Bracket covers: PVC-U
Rails: PVC-U - 600mm Straight & 600x600mm 90° Grab Rails contain inserts of stainless steel
Some rail brackets include stainless steel xings.
Orders & Quotes
01905 823 299
General Enquiries
01905 823 298
Technical Enquiries
01905 560 219
Kitchen Enquiries
01905 823 262
Fax
01905 823 297
AKW
Pointon Way, Hampton Lovett
Droitwich Spa, WR9 0LR
www.akw-ltd.co.uk
orders.akw-ltd.co.uk
Follow us on Social:
© AKW Medi-Care Limited 2022 04-020-025-05
Contact Us
Warranty
The life time warranty applies only to
manufacturing or material defects,
conditional on the one-time correct
installation of the product.
It does not apply to:
• Inappropriate use or accidental damage.
• Damage or defects that result from
incorrect installation.
• Lack of maintenance including the build
up of grime or damage resulting from
inappropriate cleaning.
• Damage or defects that result from
repairs or modications undertaken by
unauthorised persons.
• This warranty excludes general wear
and tear through usage and does not
apply to surface nishes.
What to do if something goes wrong?
If you have a problem with this product,
please contact your local installer. If this
does not resolve the issue, contact the
AKW Technical Enquiries who can provide
further advice and, if necessary, arrange for
a maintenance engineer to visit and report
any issues. See the T&Cs on our website or
catalogue for further information. None of
the foregoing affects your statutory rights.
